Automatic Electric Ropp Capping Machine For Glass Bottle Aluminum Cap

  • 1 - 1 Sets
    $6,000.00
  • >=2 Sets
    $4,500.00
Power:
1.5KW
Model Number:
XG-1 XG-4 XG-6 XG-8
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 25 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 YEAR
Packaging Type:
Bottles
Packaging Material:
Glass
Type:
Capping Machine
Condition:
New
Application:

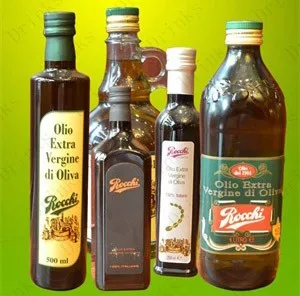

Food, Beverage, Medical, Chemical, Wine , Liquor, Olive Oil
Driven Type:
Electric
Automatic Grade:
Automatic
Voltage:
380V 50HZ( Customized)
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Drinks
Dimension(L*W*H):
1200*1200*1900mm
Weight:
600KG
Certification:
ISO
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Product Name:
Ropp aluminum cap for glass bottle
Capping speed:
20-35Bottles /min(adjustable)
Capping type:
Aluminum Cover
Capping head:
1 head
Cap diameter:
10-50mm
Material:
SUS304
Bottle height:
50-300mm
Control:
Button
Factory Location:
2 Hours From Shanghai
Advantages:
More than 20 years of manufacturing experience
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Machine will be packed by PVC film+ standard wooden case or carton, Wooden case suitable for long distance ocean shipping.
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 25 35 To be negotiated
Video Description
Product Description

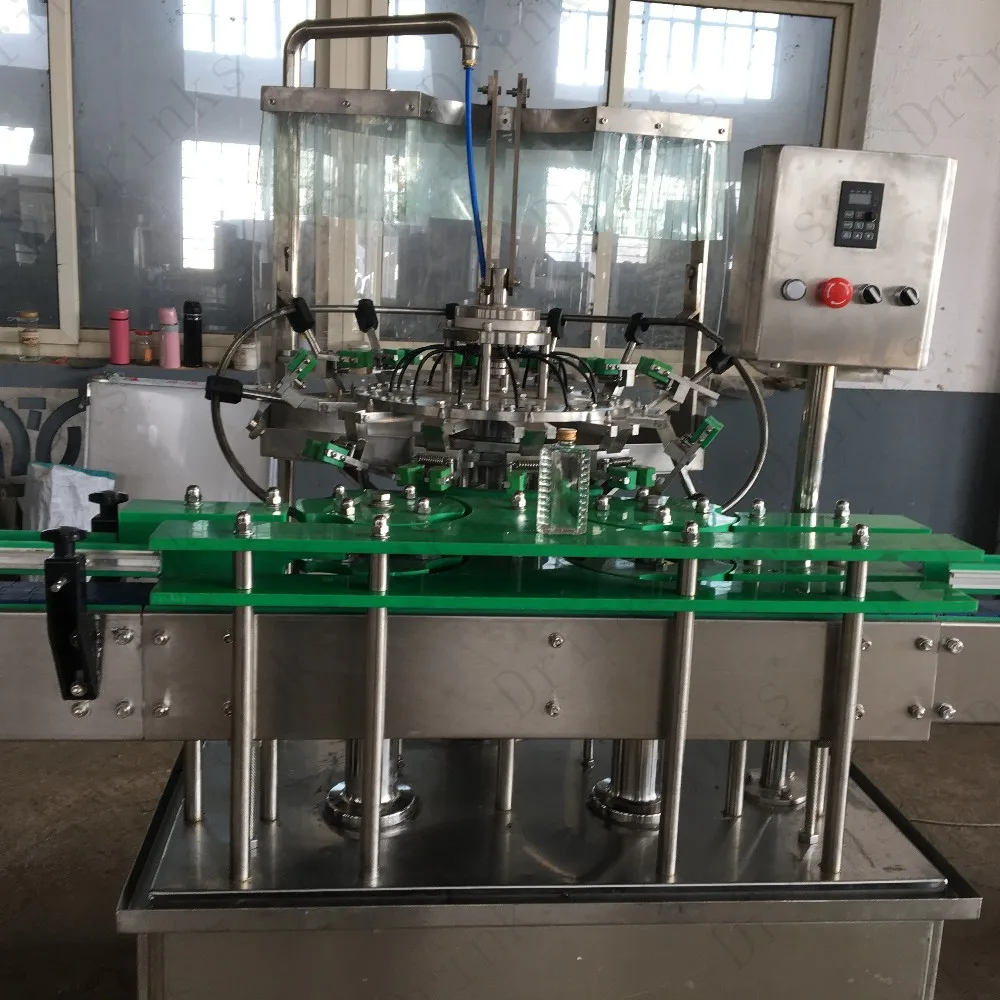

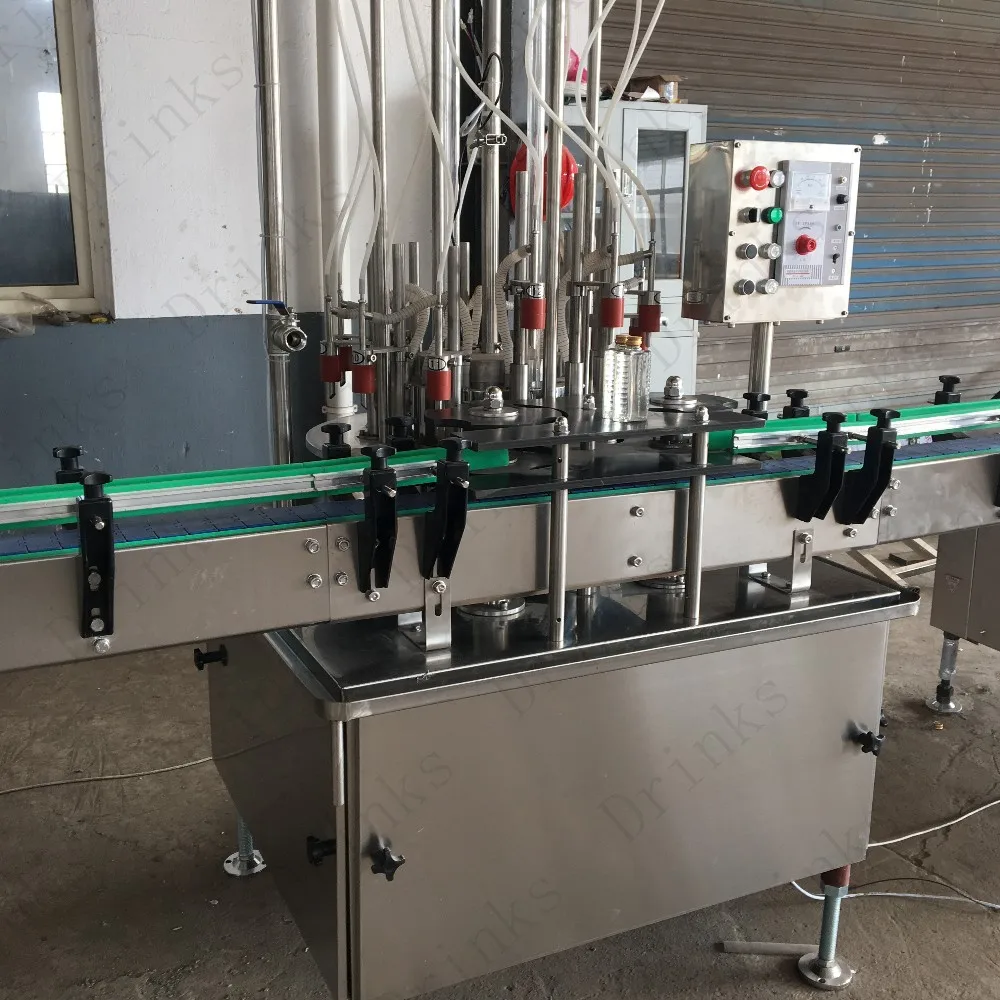

Automatic Electric Ropp Capping Machine For Glass Bottle Aluminum Cap

(Our factory can customize the machine according to the output per hour, different size cover, to meet the customer's demand.)

Q1. Could I have a general understanding of this machine?

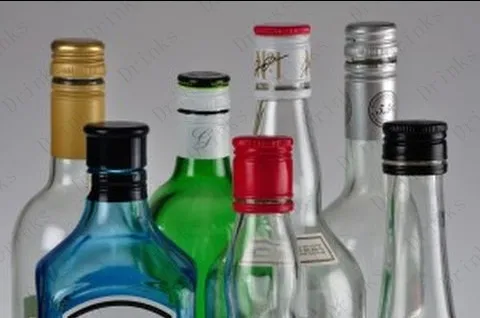

A1:  This machine is suitable for any kind of glass bottle aluminum cover seal. The single-head automatic sealing machine is a special equipment for twist-off aluminum caps. Compared with other similar products, the machine has the following advantages: First, the structure adopts a four-claw balanced head, and the force is evenly applied during sealing; secondly, the bottle cap is deformed according to the shape of the bottle mouth, and then the thread is rolled and then Flange sealing function. At the same time, the machine has the characteristics of beautiful appearance, compact structure, reasonable design, stable operation, low noise, fast sealing speed and good sealing quality. It is suitable for mass production of various wineries, beverage factories, brewing plants, pharmaceutical factories and other enterprises.

Specification:

Modle
XG-1
Cap type
Aluminum cap
Capacity
1000-2200bph(Adjustable speed)
Bottle diameter
Φ 50-100mm (bottle can be round or flat)
Bottle mouth diameter
18-32mm
Height of bottle
100-350mm
Power
0.75kw
Machine weight
650KG
Package dimensions
1200*1200*1900mm
Q2. Could I learn more about more details of the machine?

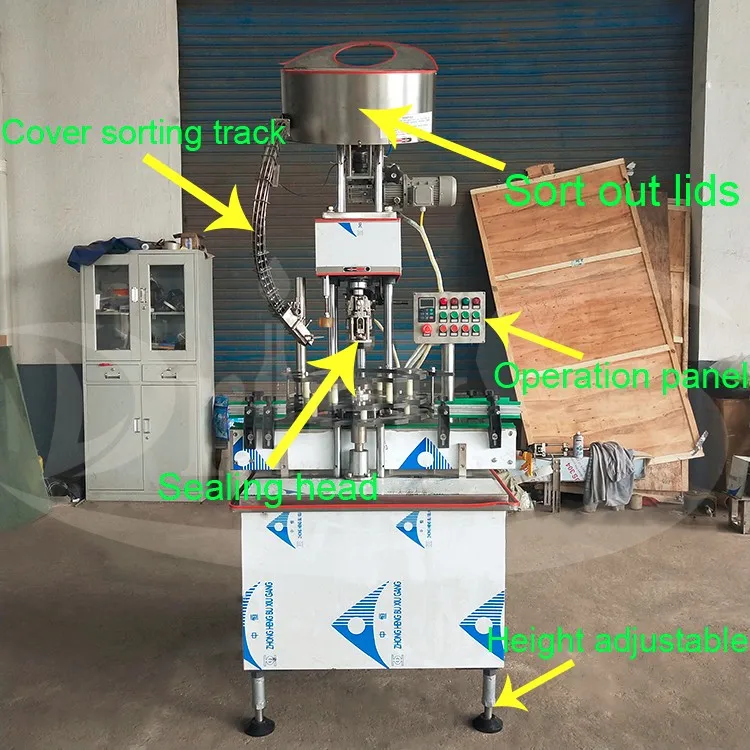

A2: Below is a detailed description of the various parts of the machine.

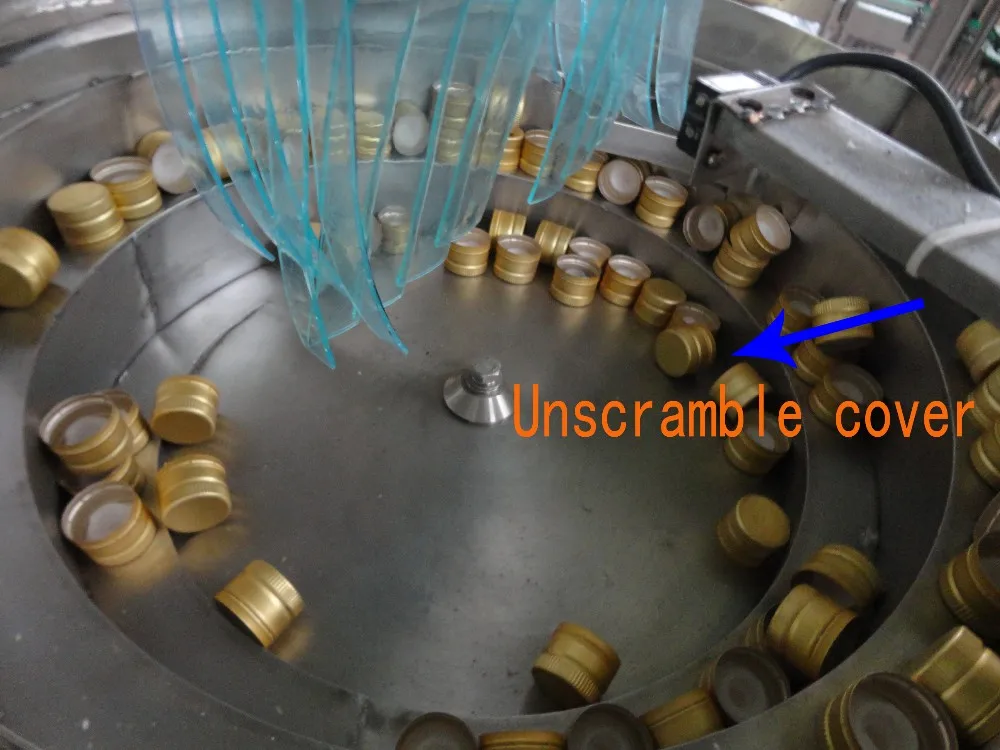

Unscramble cover:

The lid is manually placed in the extractor and the lid extractor automatically arranges the lid into the lid recess. The cover is blown into the guide ring of the gland column with the aid of compressed air.

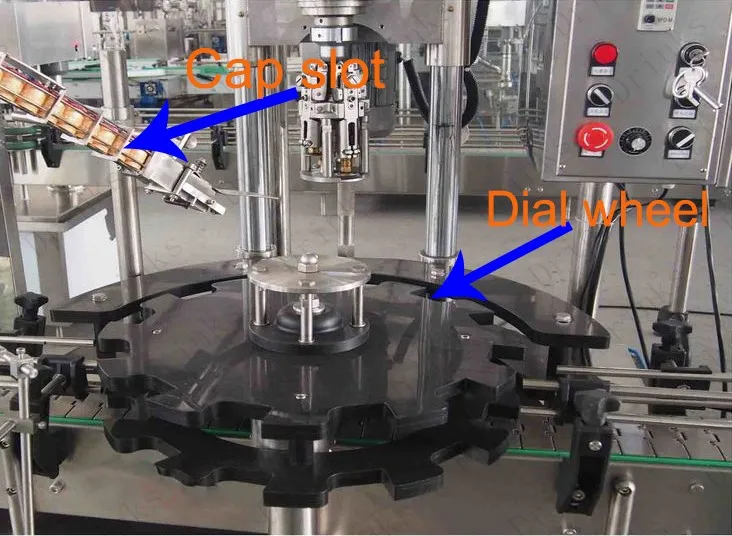

Cap slot:

The glass bottle is smoothly fed into the dial wheel by the conveyor belt. The vibrating plate sends the aluminum cover to the wearing station through the hopper and the track. The bottle dial is used to put the bottle into the cover and then sent to the rolling station; the ring around the station center The cap is pressed by the cam to press the cap.

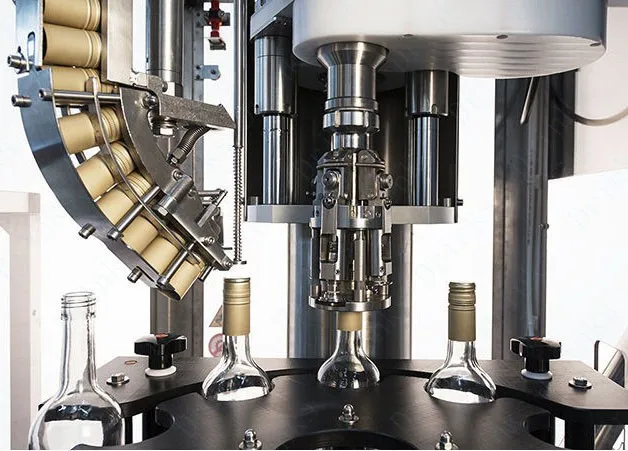

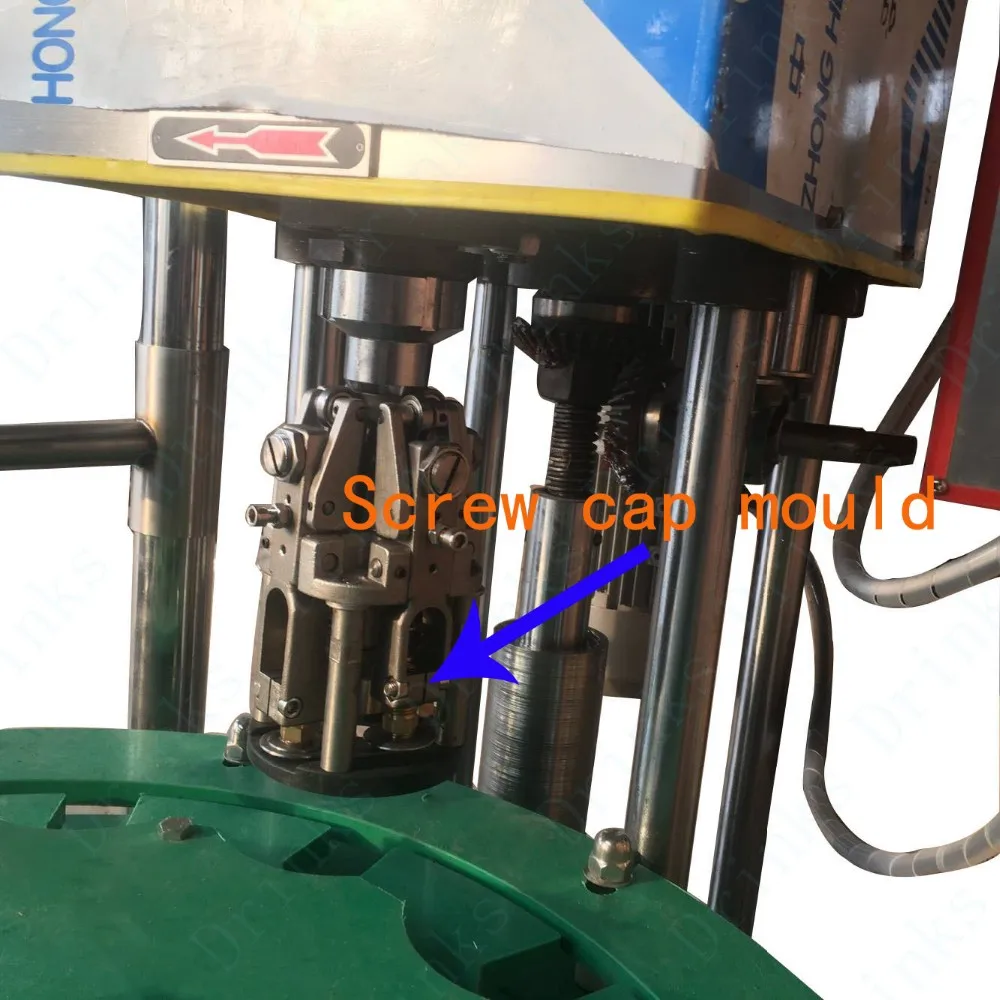

Screw cap mould:

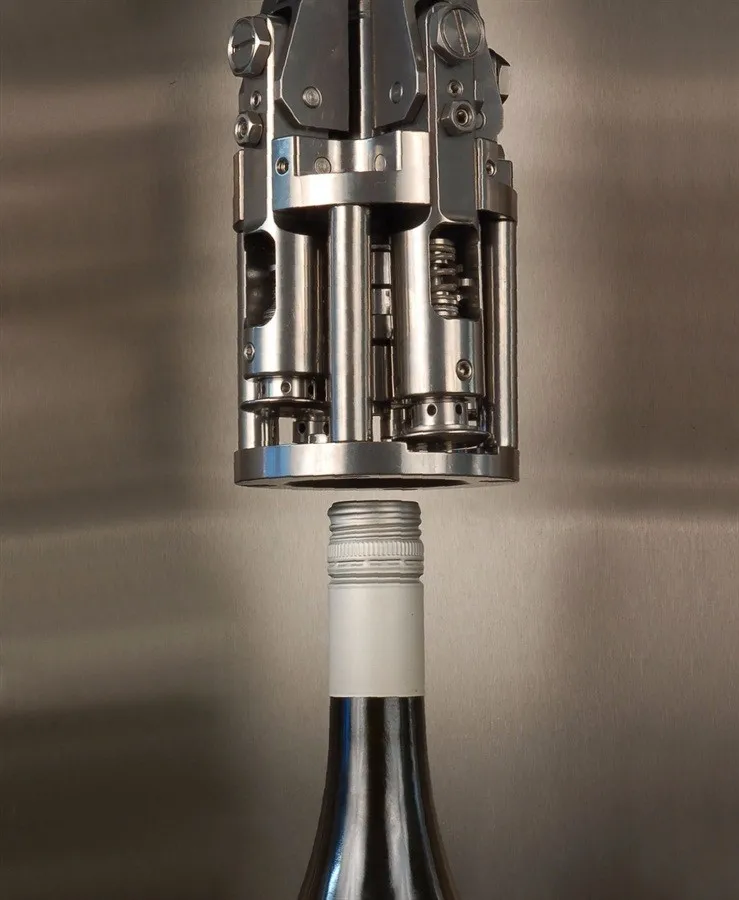

The bottle holder starts to rotate at a high speed with a glass bottle, so that the aluminum cover tightly covers the bottle mouth.Cap - turning die adopts four - claw balanced head sealing, uniform force, beautiful sealing and other advantages.

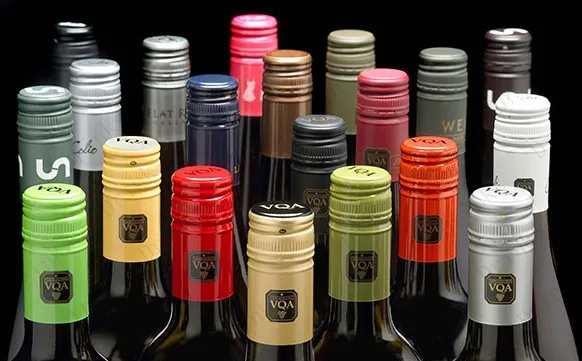

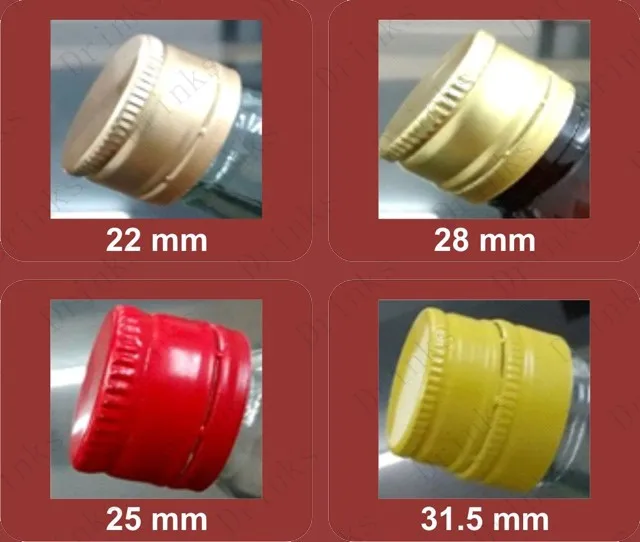

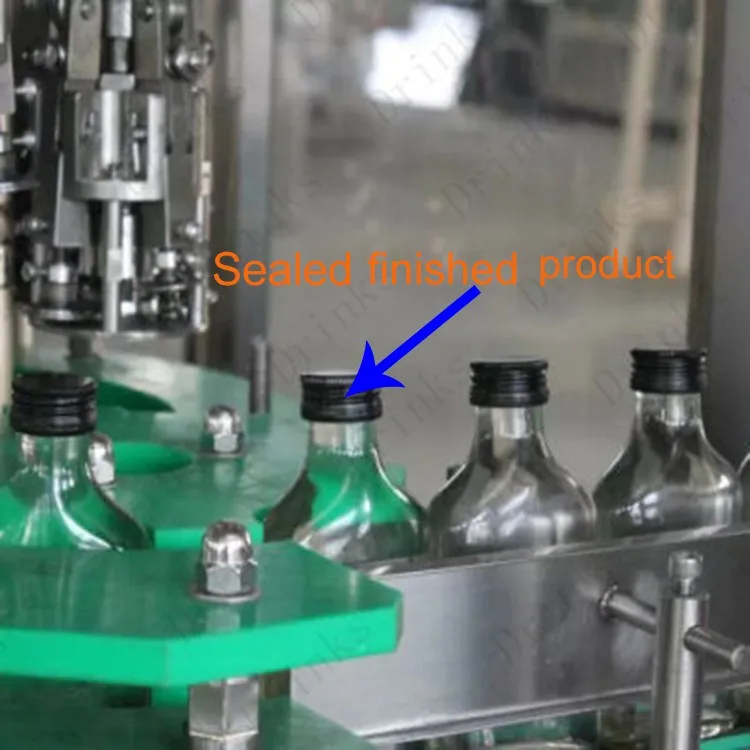

Sealed finished product:


When the capping head rotates to the highest point of the cam, it gradually separates from the glass bottle. The bottle is pulled out from the bottle dial and enters the bottle exiting track, thereby completing the entire capping process and achieving the desired capping effect.

Related Products

Glass Bottle Washing Machine

Negative pressure filling machine

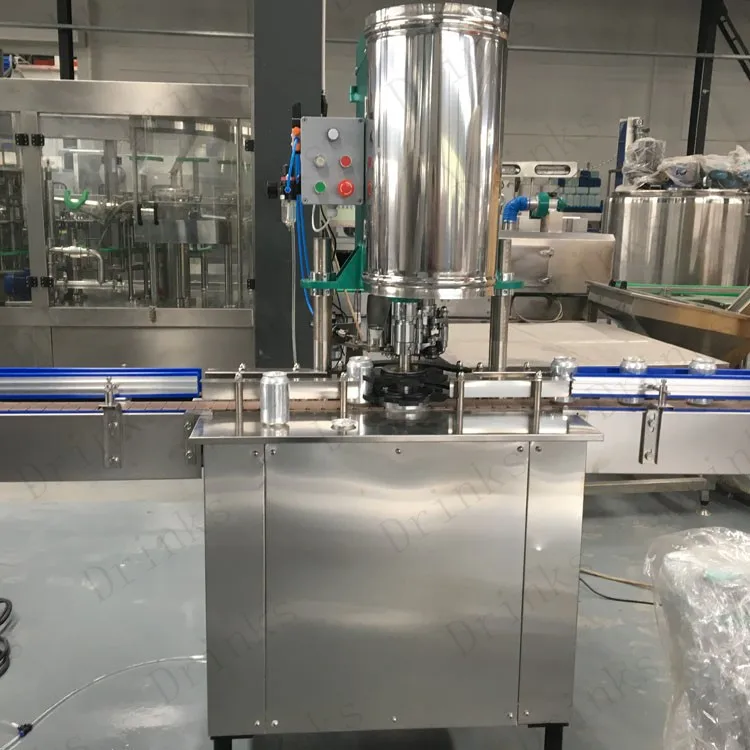

Can  sealing machine

If you want to know more products! Please click " here '' to return to the home page, All products!

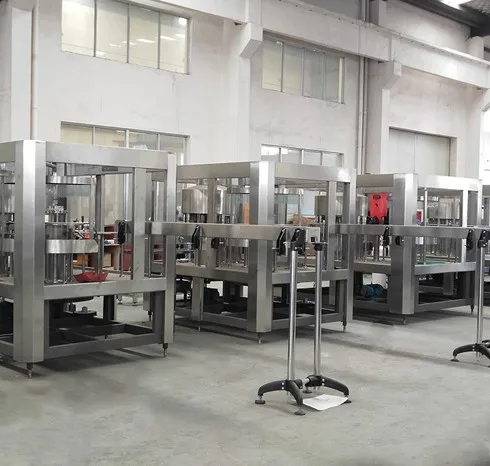

Our Company
Packing & Shipping

Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Packaging Details :Machine will be packed by PVC film+ standard wooden case or carton.
Wooden case suitable for long distance ocean shipping.

FAQ

Q. Are you a trading company or manufacturer?
A: We are manufacturer,we have our professional manufacturing teams and technicians.

Q: Do you have technical support?
A: Our company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.

Q: How is your delivery time?
A: Generally speaking, the sample order takes 5-7 days, and it takes 15-25 working days for the bulk order after receiving the payment. The exact delivery time depends on the project project and the number of orders.

Q: How do you make our business long-term and good relationship?
A. We maintain good quality and competitive prices to ensure our customers benefit;
A. We respect every customer as our friend, we sincerely do business with them and make friends with them, no matter where they come from. We are partners.
