Automatic FRP Gel Coat Sheet Production Line export to Bangladesh/Thailan/Chile/Russia 2017

FOB Reference Price:Get Latest Price
$58,000.00 - $88,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DN1500-I
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
FRP/GRP
Screw Design:
Double-screw
Automatic Grade:
Fully Automatic
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DNUO
Voltage:
380V
Power(W):
40kw/h
Dimension(L*W*H):
59m*1.85m*3.5m(L*W*H)
Weight:
12T
Certification:
ISO9001
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year, 12 Months
Color:
Customizable
Product:
FRP sheet
Type:
FRP sheet forming machine
operation staff:
3-6 people
Supply Ability
Supply Ability:
4 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy packing or customized packing
Port
Tianjin Xingang Seaport
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product description

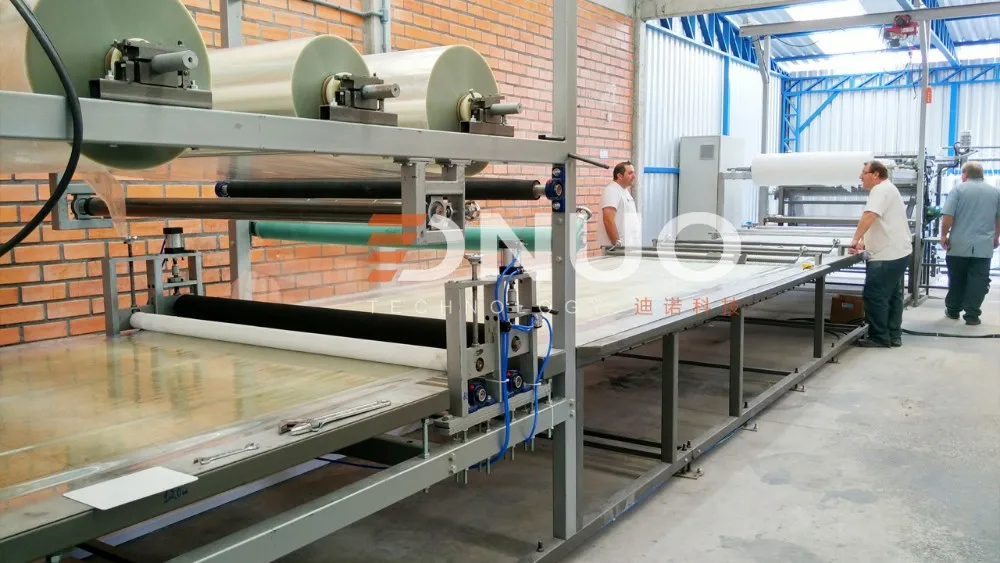

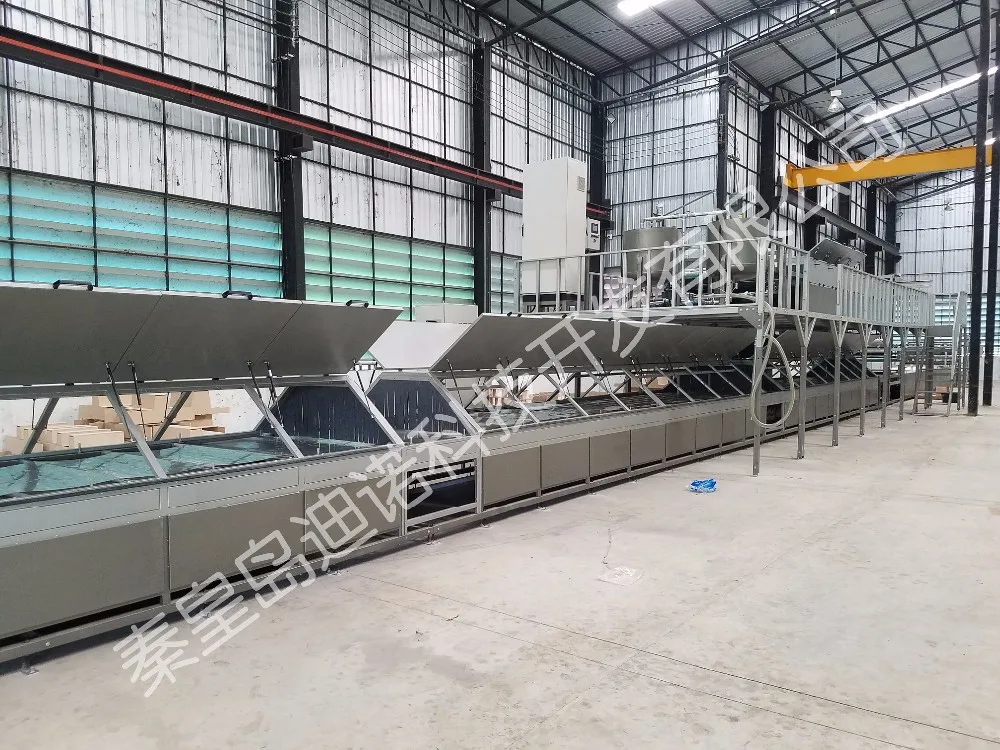

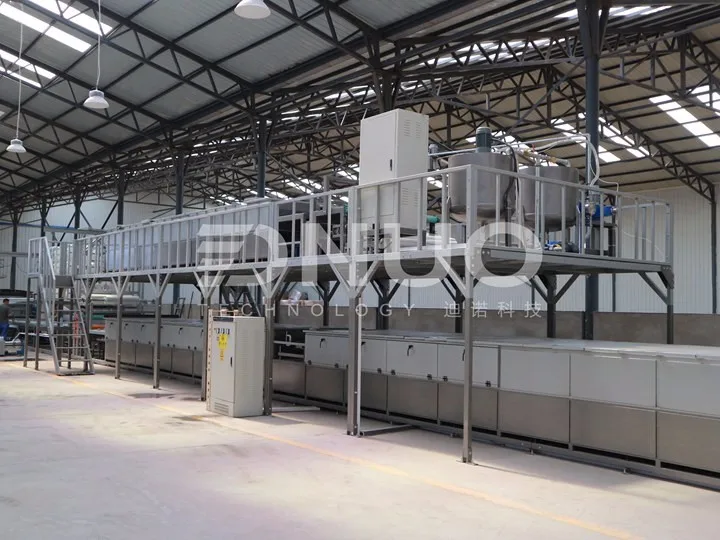

Intelligent FRP lighting sheet production line

Machine function
This machine can produce lighting sheet,color sheet and common flat sheet.
                                                                          Basic parameter
Operation Staff
3-6 person
Production speed
2-12m/min
Sheet width
Maximum effective width of flat sheet is 1500mm
Wave height
maximun 130mm
Sheet thickness
0.4-4mm
Power requirement
100kw
Machine size
59m(L)×1.85m(W)×3.5(m)
Power consumption
40kw/h
Production process

RESIN

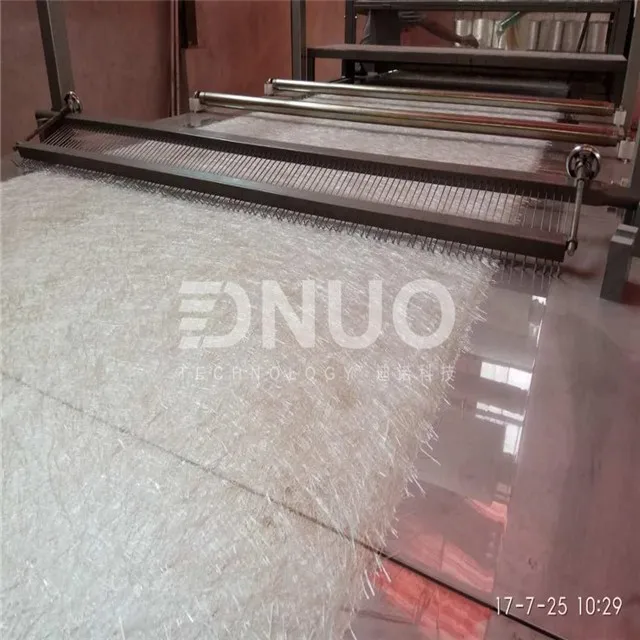

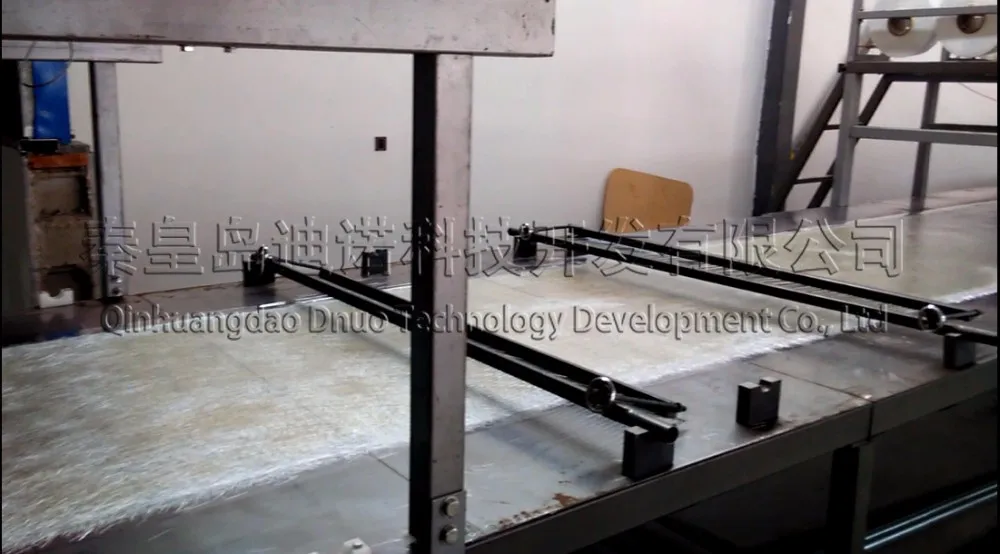

Resin and fiberglass infiltration


Heating hot oven


FRP sheet


Detailed Images

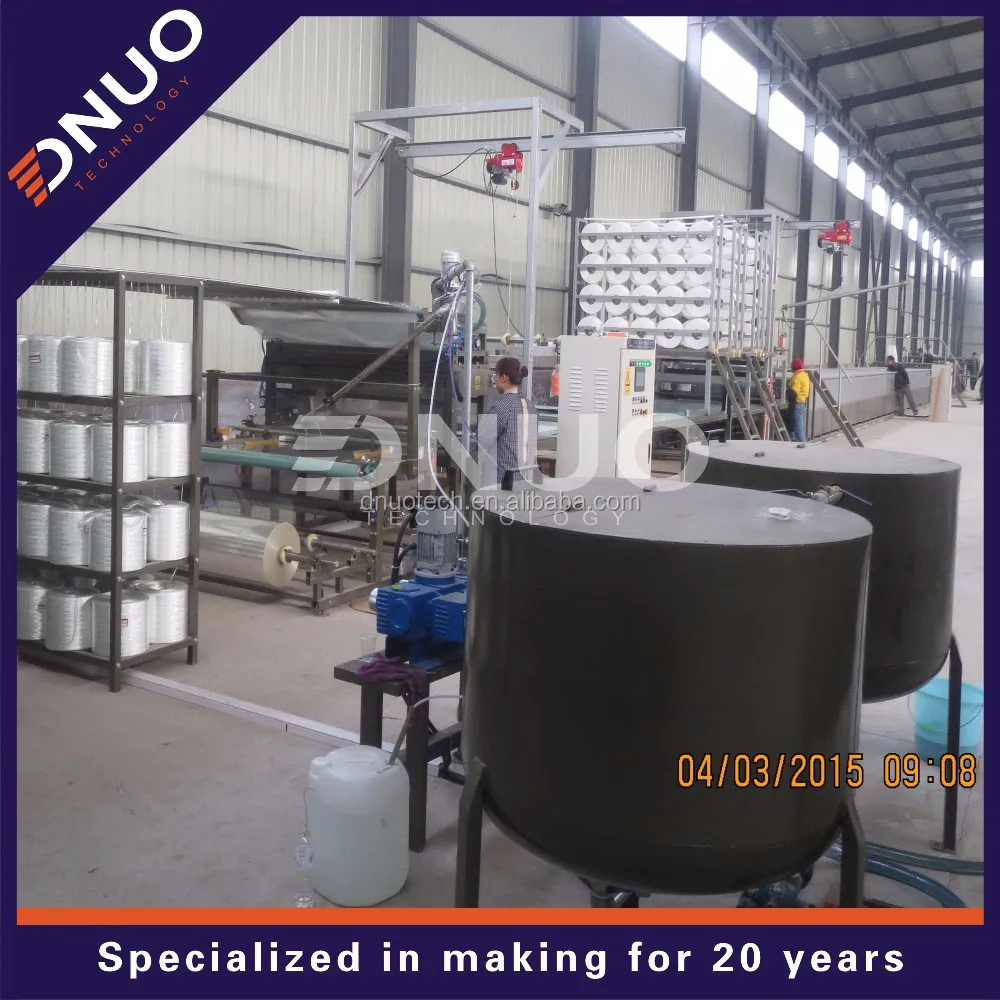

Resin storage system

the storage tank placed the agitator motor, which can mix the resin with the filler and color paste to reduce the cost of the production.

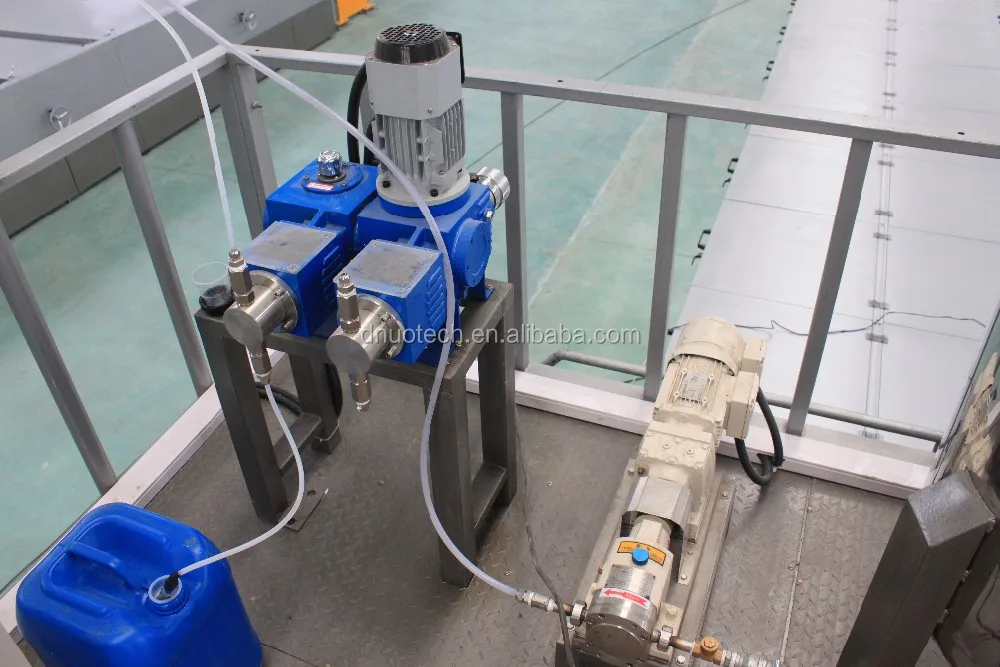

Metering system

1.Pulse-free metering system achieve the precise metering and permitted add powder fillers, that can reduce the cost of production.
2.The pulse-free metering pumps can real-time control the dosage of raw material, for different raw material we applied different pump. For example, for resin, we adopt the CAM rotor pump; for curing agent and accelerator we applied the plunger pump. The practice proved these types of pump not only assure the quality of products, but also good operation.
3. PLC intelligent control system realized every metering pump automatic match the ratio, no need set the proportion one by one.

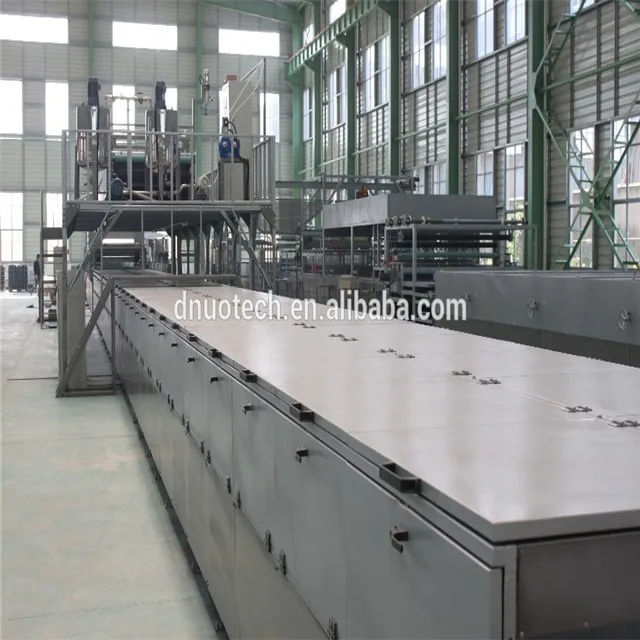

Heating oven

PID control temperature accurately, heating sectionalized, reduce power consumption under hot wind control, easily control curing of sheet, attain 90% above, can replace mould needn't shut down machine

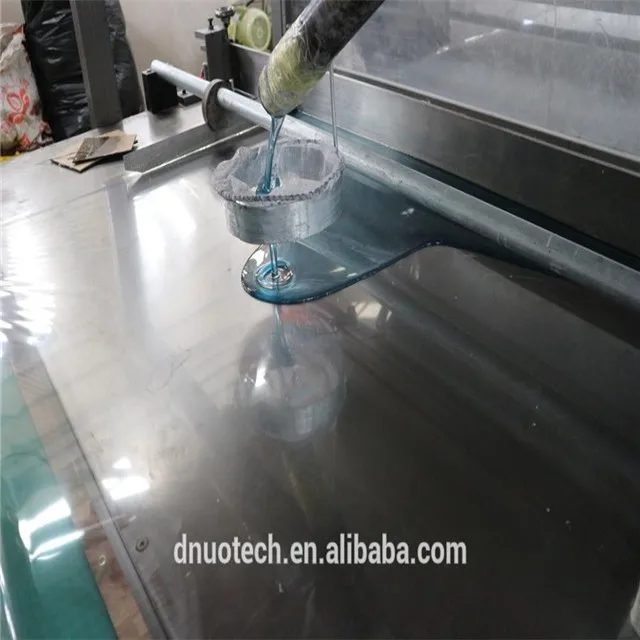

Impregnation system

multi-line independent temperature control, able to better adapt change of ambient temperature, quick impregnation, effectively improve the speed of production.


.

Sheet thickness control system

In this area have hard and soft sheet thickness rollers, can achieve precise control thickness of the sheet. These two rollers have different function, if you add the filler to the production, you should use the soft roller. Because the hard roller can’t allow the impurity pass through the film, easy to scratch the film.

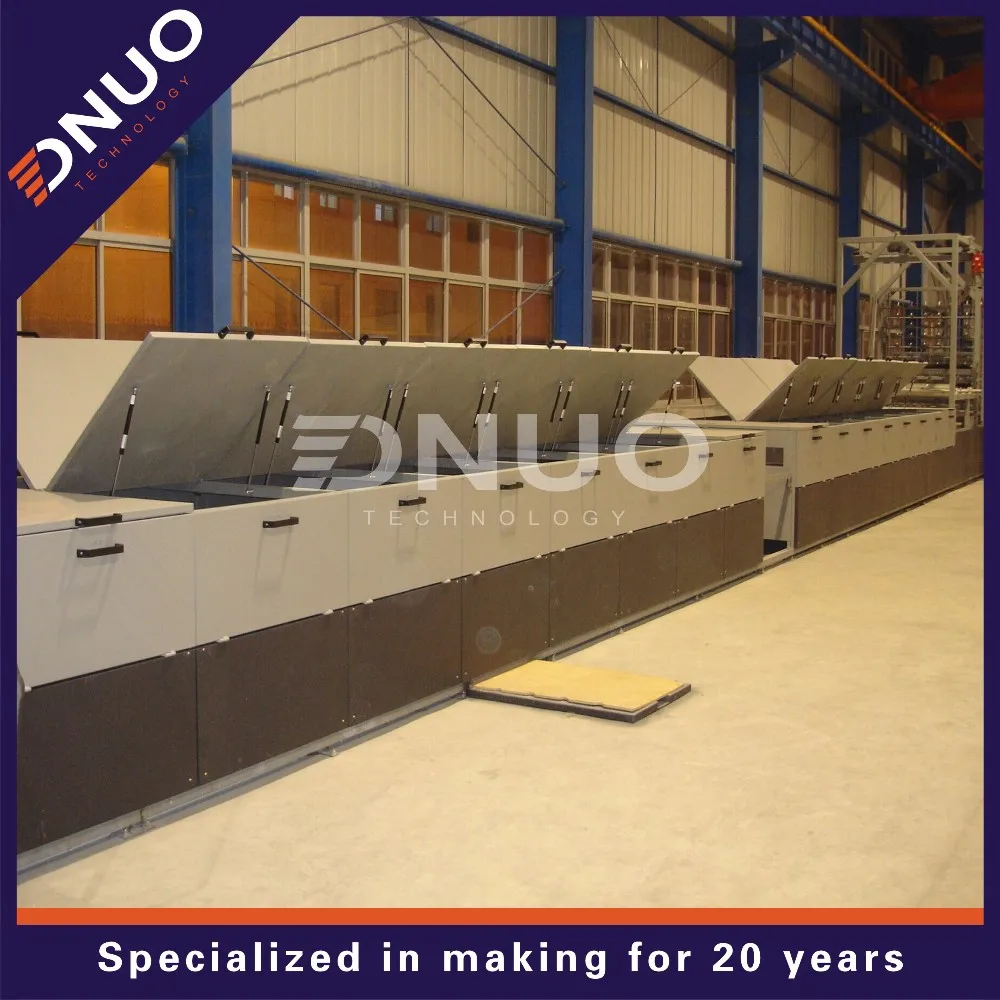

Cabinet heating system.

1, The PID control system can accurately adjust the temperature of chambers according to the ambient temperature. For example, If the temperature reached in 40 degree, it is not necessary to put on the heater of the third chamber, that greatly reduced the energy consumption. To reduce the energy, the heating ovens are often alternate work.
2.Meanwhile the heating cabinet can open from the side and upper doors. Many factories produce the chamber with upper side open, which will lose a lot of energy and because of big weight of door, it is difficult to open to change the mold or observe the effect of the sheet.
3. In chamber placed the reversible mold frame, that can realize continuous production.

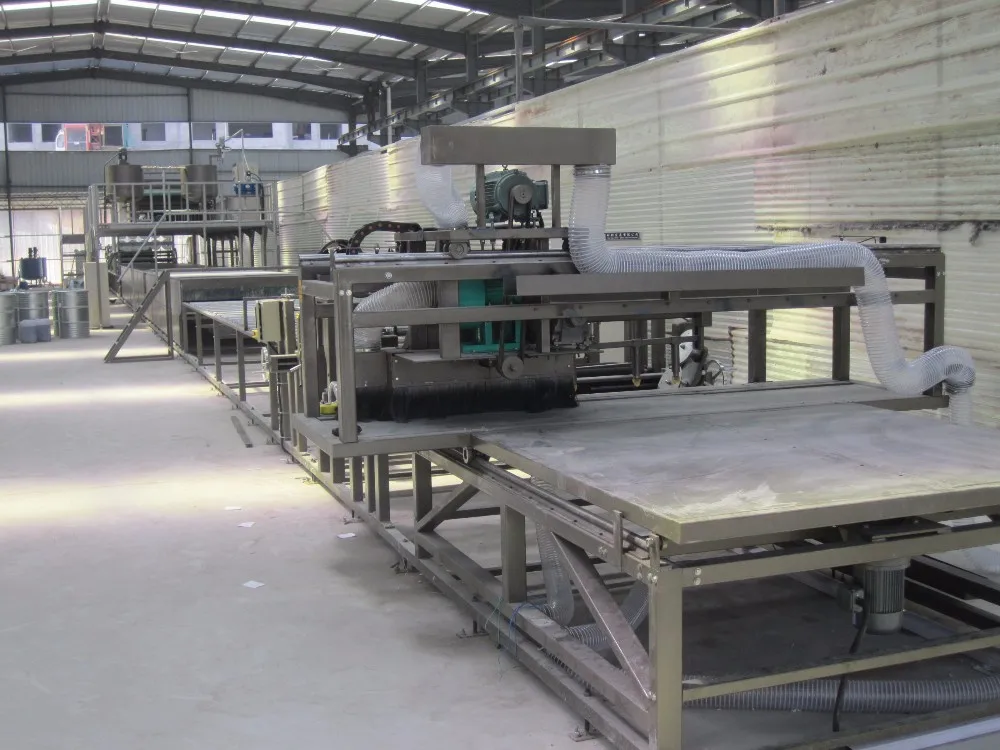

cooling and cutting system

1. we adopt the free waste edge cutting technology. It means in production we don't need cut the edge of the sheet. The advantages is greatly saving the raw material and reducing the pollution. Meanwhile, expand the space of the workshop and reduce the personal cost.
2. Special cross cutting machine can synchronize with production. Many factories can’t realize the synchronous production, because their cutting machine is static, can’t moving with the sheet. So often met the problem of off tracking
3. in air-cooling zone, our high-power fan can rapidly cooling the sheet. If the aging process is not handled properly, there will be many problems, such as secondary curing, foaming and yellowish.

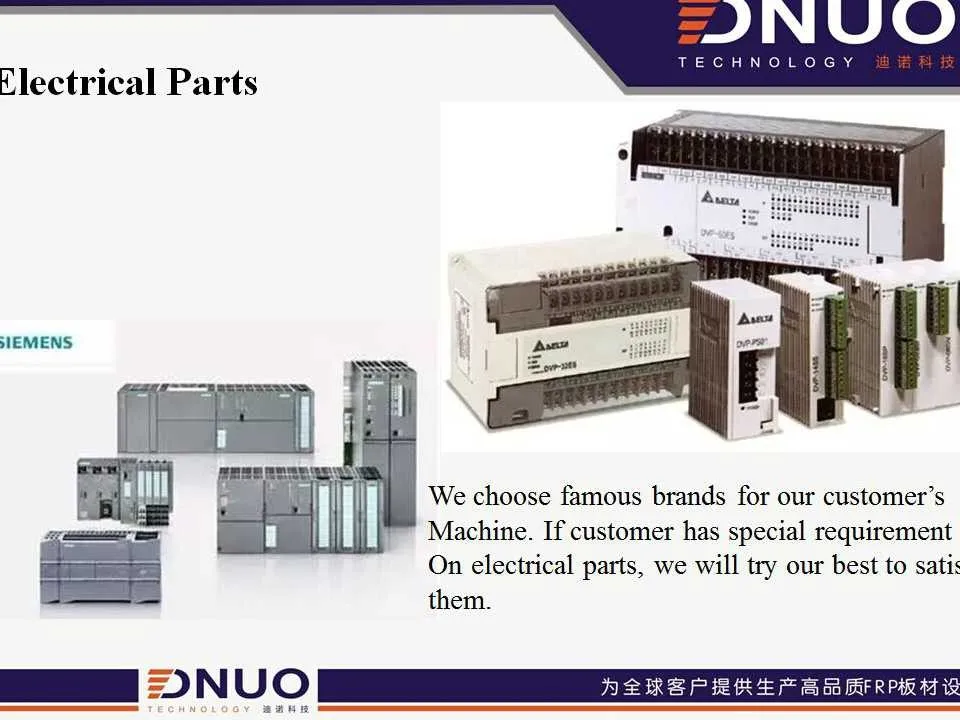

Electric control system

1. In electric control system, PLC intellectual control system as brain of production line. Operate by computers, the production task and equipment operating data is faster and intuitional. Only short-term training can make operators complete production independently.
2. For different market, we adopt different brand, because some brands is difficult to buy in many countries. In common we choose DELTA, AB, Siemens and so on. On the one hand, it can ensure the equipment running stable, on the other hand it avoid the problem, that because of changing the model or brand, the element is not match with the original machine.
3. Many companies said they configure lots of elements, rather more than our machine. But in fact, to avoid the function confusion and personnel safety issues caused by distribution of cables, we placed all electrical elements into the electrical cabinet to ensure the normal operation and clean of the workhouse.

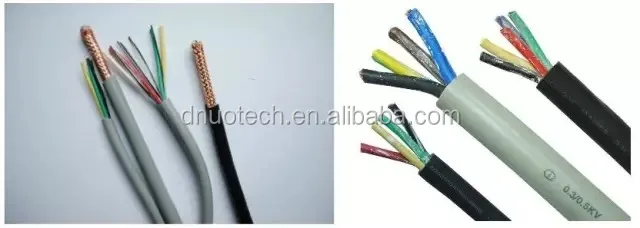

Wire and Cable

Particular parts adopt special purpose wire, durable in use. For example, in cutting system, because of high frequency of using of cutting machine, the cable is often broken. Now we apply integrated folding cable to increase the using life.

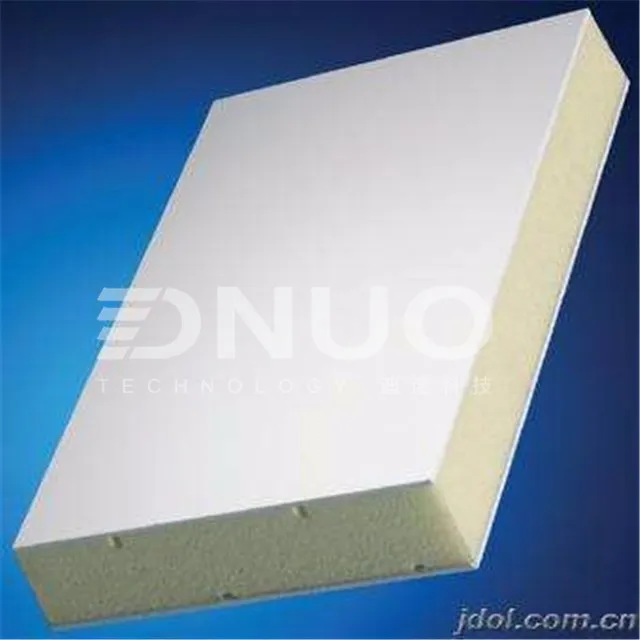

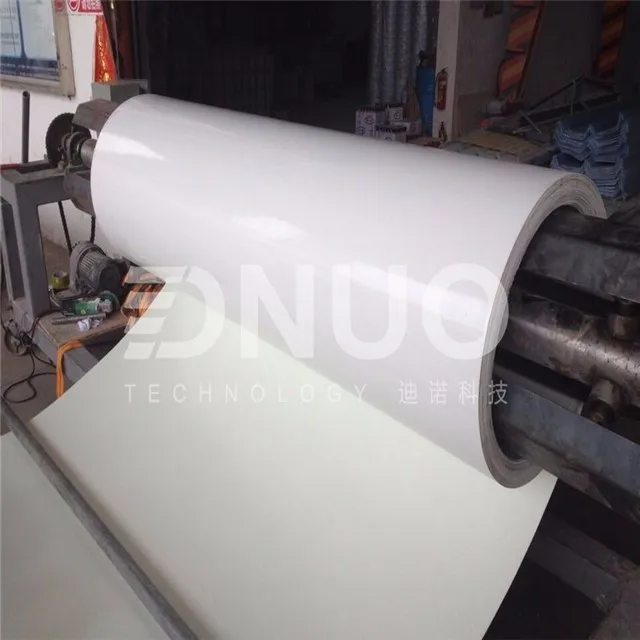

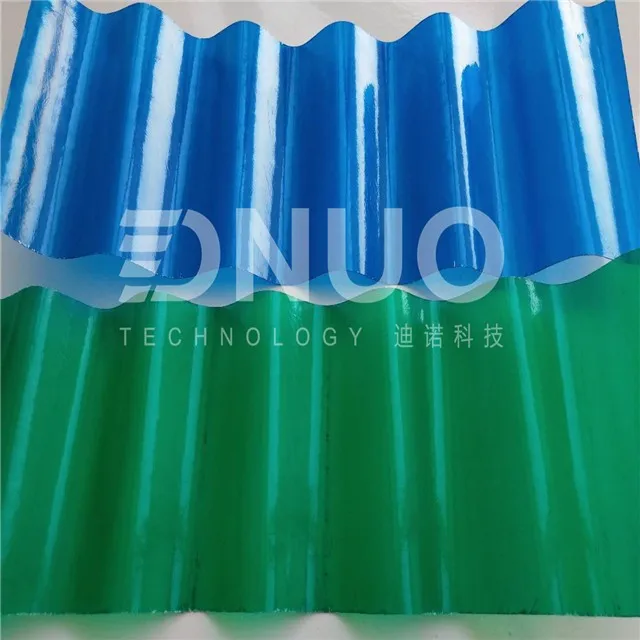

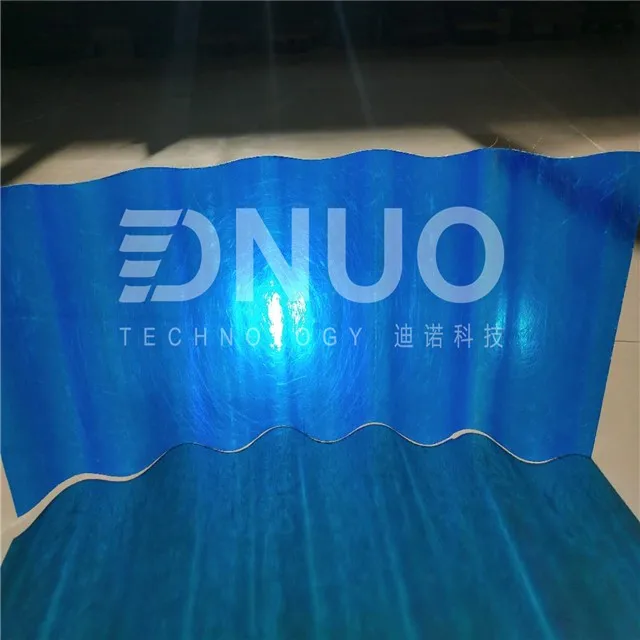

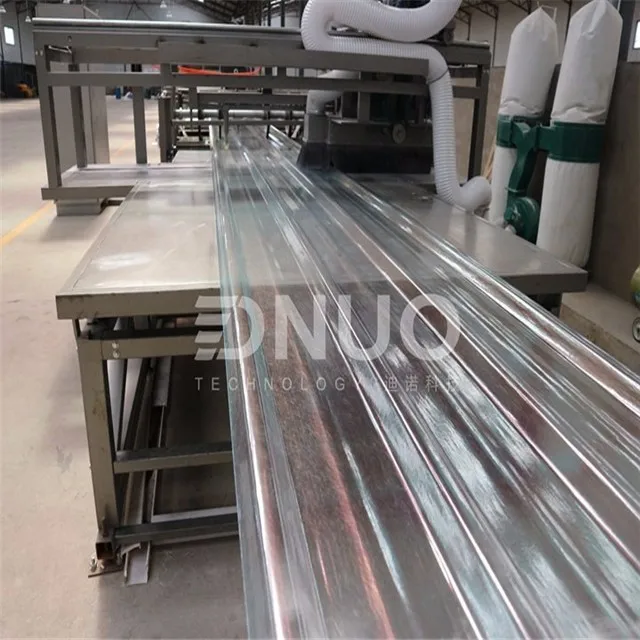

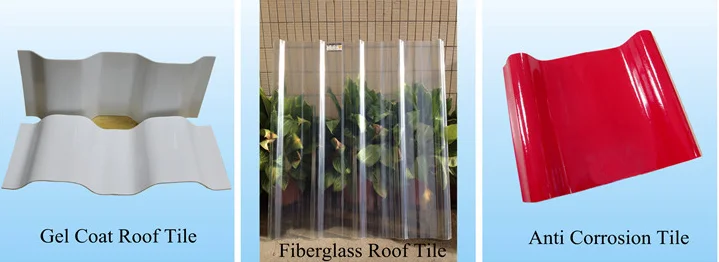

FRP sheet show

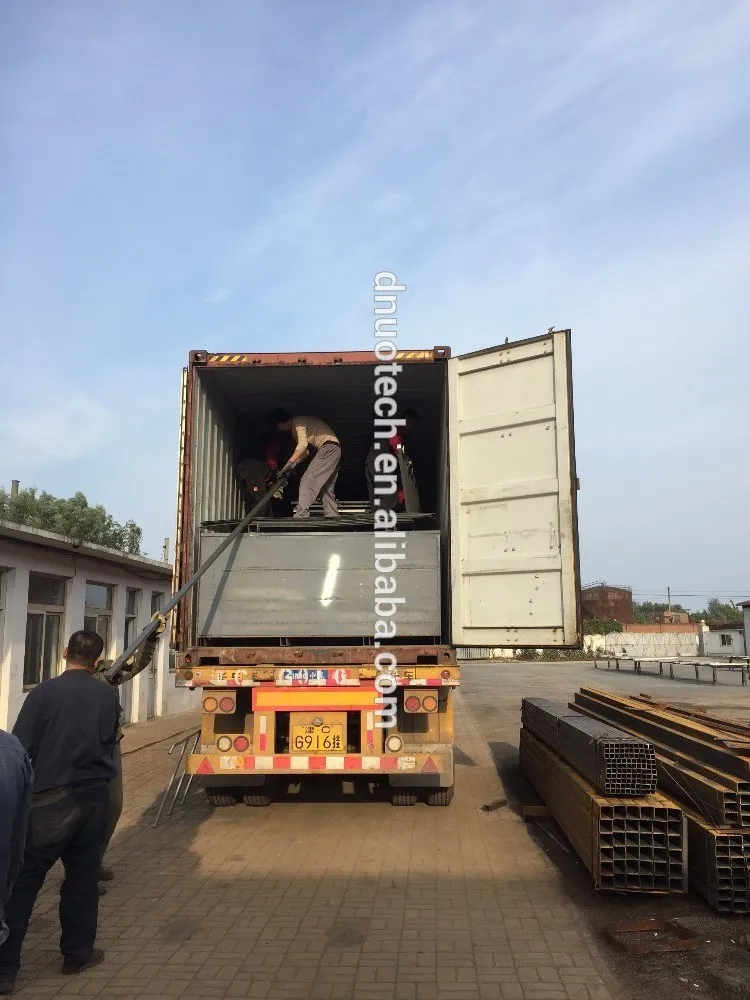

Packing & Delivery

PACKING

1. For the large seized parts, we take measures to fix them.

2. For the other parts, we pack them with polywood.

3. We garantee that we will try our best to pack our goods well to make sure the safe arrival on destination

DELIVERY

Amost 60 days after your order confirmed,depends on the machine type you choose.

Our company

We are professional manufacturer of FRP sheet production line. We are the first domestic production of FRP sheet making machine and biggest-selling company. We can provide many types of FRP sheet forming production lines, like FRP lighting sheet production line, FRP gel coat sheet production line, FRP embossed sheet production line and FRP decorative sheet production line etc. Dnuo has occupied more than 60%-70% domestic market with obvious advantage. The product has been exported to Thailand, Bangladash, Rusia, Indonesia, India, Chile y México, etc.

Over the years we have been focusing on the FRP sheet continuous forming techniques. We have successfully provided the professional FRP sheet continuous shape forming equipment to several well-known enterprises domestic and abroad. We provide a perfect solution to enterprises who aim at high efficiency production of high quality FRP sheet.

For more information please visit www.dnuo.cc


                OUR FACTORY

           PRODUCT SHELF


                      OFFICE

WE ATTEND MANY COMPOSITE EXPO EVERY YEAR

                    SINGAPORE

                      RUSSIA

                    BRAZIL

OUR ENGINEERS CAN SERVE INSTALLATION AND TRAINNING ALL OVER THE WORLD.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
