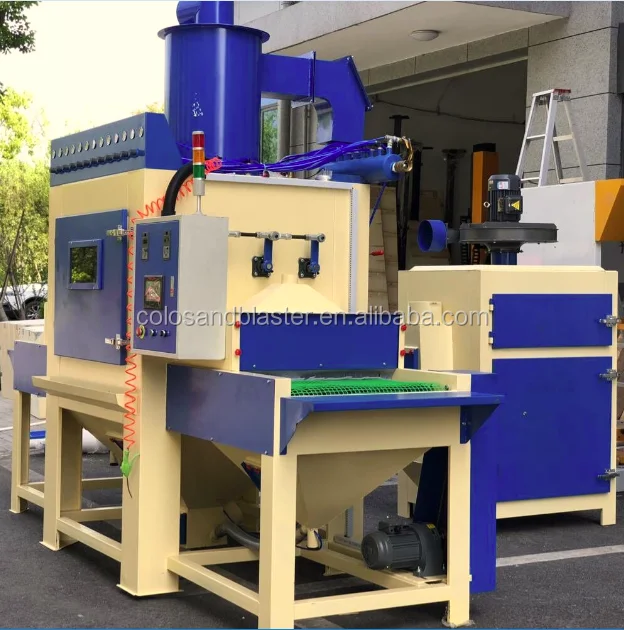

Automatic Sandblasting Equipment Conveyor Belt automatic sandblaster
Conveyor belt automatic sandblasting machine is designed for panel-type workpieces, like flat stainless steel plate, energy saving steel plate, glass plate, stone, non-stick pan, baking tray, toaster, computer case, functional DVD panel, notebook computer motherboard, iron soleplate, mobile phone shell,etc.
Machine size (mm); 3500 * 1300 * 3150MM Working cabin size (mm): 1000 * 1000 * 850MM Entrance height (mm): 300MM Gun number: 6 pcs, each gun can be individually controlled, separate voltage regulator Machine lighting: it can be adjustable within 0-20m / min,adopting frequency control Working power: 380V 50HZ; Dust collector: power 5.5HP, exhaust 75m³/ min Dust collector size: 1000 * 1000 * 2100MM Dusting fan: 5.5KW 380V 50HZ (filter bag vibration or dust dust removal) Gun frame: with automatic swing gun rack (to achieve speed) motor Shell: 2.5mm cold-rolled steel plate welded Perspective window: 2 frames Under the sand bucket: 3 pcs Air requirements: Pressure 5-8bar Conveyor belt load: 50 kg Total power: about 7KW (except air compressor) Total weight: 1.55 tons
1. This machine is a flat automatic conveying sandblasting machine, the transportation speed can be controlled by digital frequency, fast blasting speed, stable processing quality, easy operatation.
2. Place the workpiece on the conveyor belt when operation, sandblasting job is completed automatically, very simple and conveninet, and truly safe and reliable.
3. The swing arc and speed of the spray gun in the conveyor sand blasting machine can be adjusted by the inverter
4. The automatic sand blasting machine can be equipped with many spray guns, 4pcs, 6pcs, 8pcs, etc, as customer required.
How to choose sand blasting machine?
1.Based on the size of workpiece, you can choose box type sand blasting machine, mobile sand blasting machine or auto sand blasting machine.
2.The specifications of sand blasting machine refer to the shape of workpiece. There are usually fixed specifications for workpiece under 1 meter. If the workpiece is much larger, the sand blasting machine should be open type or custom-made.
3.The requirements on the workpiece’s surface depend on dry blasting or wet blasting. If dry blasting, there will be more choices for abrasives; if wet blasting, it usually takes glass-bead.
4.You need to be familiar with spare parts of sand blasting machine. Sand blasting gun and sand blasting gloves are often required to be replaced for the severe abrasion.
Kafan Finishing Machinery & Equipment Co., Ltd, is your first choice of manufacturer of various sandblasting equipment, vibratory deburring and finishing equipment. Built in year 2009, located in Hangzhou City, Zhejiang Province, we own a manufacturing base of 2000 square meter, around 100 employees and 24 sets production equipments, divided with technical department,sales equipment, production department, QC department, manage and finance department, etc.
Our production scale covers manual dry and wet sandblasting machine,high pressure sandblaster, automatic sand blasting cabinet,portable sandblast pot,polishing machine, as well as related abrasive material and spare parts.
