Automatic Small Carbonated Drink Filling Machine / 3-in-1 Machine For Soda Water Rinser Filler And Capper

FOB Reference Price:Get Latest Price
$20,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
3 KW
Model Number:
DCGF24-24-8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 2 Years
Packaging Type:
Bags, Barrel, Bottles, Cans, Case
Packaging Material:
Plastic, Wood
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage, Medical, Chemical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
COMARK
Dimension(L*W*H):
2200X2100X2200MM
Weight:
3500KG
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Function:
Bottle Washing Filling Capping
Usage:
Beverage Packaging
Material:
Stainless Steel 304/316
Bottle type:
PET Plastic Bottle
Capacity:
2000-30000bph
Name:
Automatic small carbonated drink filling machin
Machine name:
COMARK
Use:
3-in-1 machine for soda water rinser filler and capper
Supply Ability
Supply Ability:
10 Set/Sets per Month Energy /Carbonated /Soft Drink Filling Packaging Machine Price
Packaging & Delivery
Packaging Details
wooden package for Automatic Small Carbonated Drink Filling Machine / 3-in-1 Machine For Soda Water Rinser Filler And Capper
Port
shanghai port for Carbonated Soft Drink Filling Machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
COMARK MACHINE
Product Description

Product Application

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

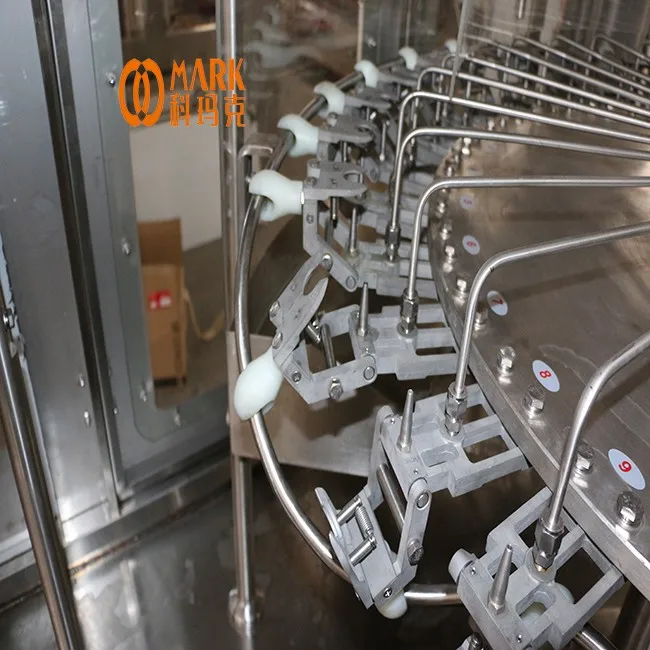

Washing heads.

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean

<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

<3> 304/316 stainless steel washing pump

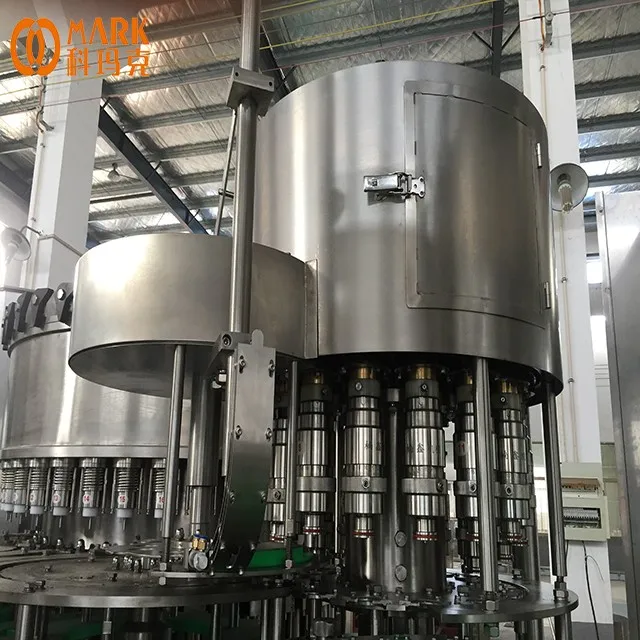

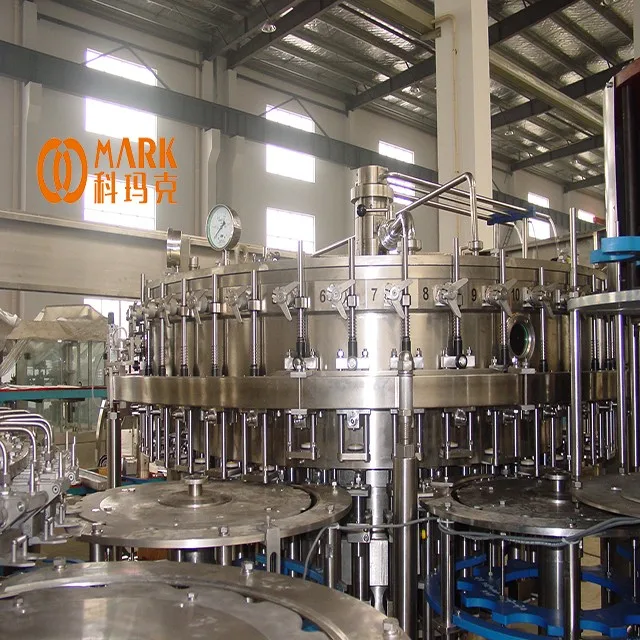

filling part

<1> 304/316 Stainless steel high precision filling nozzle

<2> Filling volume adjustable in fine rank, same liquid level after filling

<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

<4> 304/316 stainless steel filling pump

capping part.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

<2> All 304/316 stainless steel construction

<3> No bottle no capping

<4> Automatic stop when lack of bottle

Detail
Main Features.

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Auxiliary Equipment

Ro water treatment plant.

•Stainless steel high pressure film shell

•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system

•Online type pressure auto self-protection device

•Online type electricity indicator (with stable compensation)

•System safe protecting and alarm system

•System frame

blow moulding machine.

Blow molding system.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic labeling machine.

1/Heat shrink sleeve labeling machine

2/OPP Hot melt labeling machine

3/PVC label stick labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

auto warpping packaging machine.

1/PE film shrink wrapping machine

2/Half-tray shrink wrapping machine

3/Carton box packaging machine



It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Certification


factory show

Comark machinery .

1. Installation, debug

After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee

We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.


4. After sales

After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems
