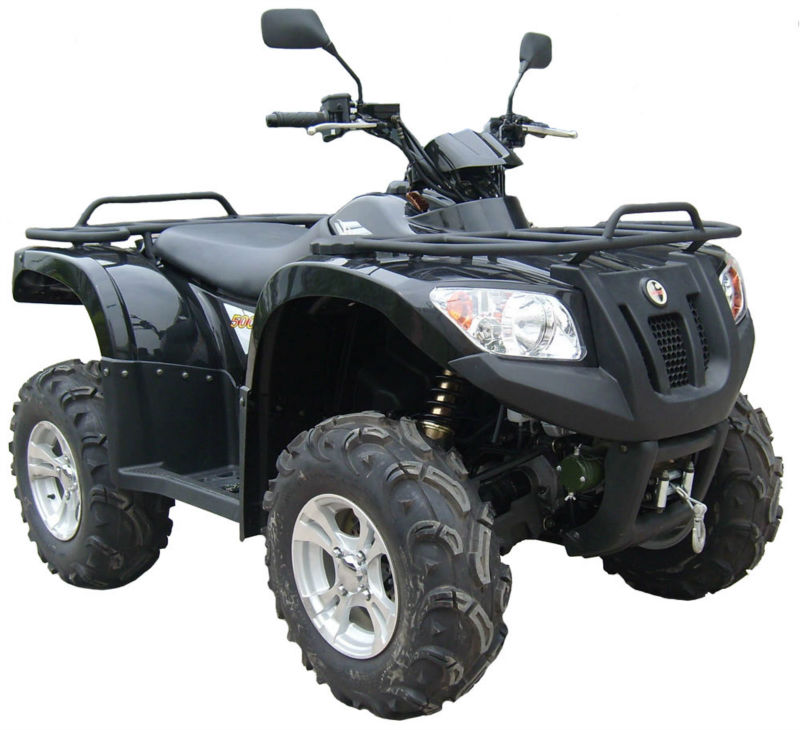

Automatic Transmission Type and Shaft Drive Transmission System 500cc quad bike( ATV500-2)

FOB Reference Price:Get Latest Price
US $5,000-5,550 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Transmission Type:
Automatic
Transmission System:
Chain Drive
Certification:
EEC
Brand Name:
---
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
ATV500-2
500cc atv 4x4:
atv for sale
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and Iron Frame
Port
Ningbo
Lead Time :
within 15days

1



Automatic Transmission Type and Shaft Drive Transmission System 500cc quad bike( ATV500-2)



ENGINE

Engine Type:

Single-cylinder,4-stroke,water-cooling, 4-valve, SOHC, single balance axle

Bore and Stroke (mm):

87.5×82

Compression Ratio:

10.2:1

Displacement (ml):

493

Max. Torque (N.m/r/min):

38.8/5500

Max. Power (kw/r/min):

24/6500

Ignition:

CDI

Max. Speed (Km/h):

99

Starting System:

Electric or recoil backup

Lubrication:

SF-15W/40 or the same grade

Transmission:

CVT, automatic, 1 low forward, 1 high forward,1 neutral, and inner reverse gear

CHASSIS

Final Drive:

Shaft drive

Parking Brake:

Mechanical lock

Front Suspension:

Independent double swing-arm, hydraulic shock absorber

Rear Suspension:

Independent double swing-arm, hydraulic shock absorber

Front/Rear Brake:

Hydraulic disc

Front Tire:

AT25X8-12

Rear Tire:

AT25X10-12

Battery:

12V/20AH

DIMENSIONS

L X W X H (mm):

2060x1200x1200

Carton Size (mm):

2310x1250x850

Wheel Base (mm):

1285

Seat Height (mm):

860

Ground Clearance (mm):

280

Turning Radius (mm):

3200

Rider Capacity:

1

Max. Climb Ability:

32°

Max. Load Weight (kg):

135

Dry. Weight (kg):

345

Fuel Tank Capacity (L):

19

Engine Oil (L):

2.5

OTHERS

Container Loading:

20"GP:8pcs          40”GP: 18pcs        40"HQ:27pcs
