Automatic a4 Paper slitting Sheet fed Die Cutting Machine

  • >=1 Sets
    $20,000.00
Model Number:
S
Power(W):
3KW
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Paper Cutting Machine
Dimension(L*W*H):
3000*3200*1700
Weight:
6700kg
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Place of Origin:
Zhejiang, China
Brand Name:
Printyoung
Voltage:
220V
Certification:
CE Certificate
Computerized:
Yes
Applicable Industries:
Printing Shops
Cutting Width (mm):
1640
Cutting Length (mm):
1600
Cutting Height (mm):
160
Front Table Length (mm):
700
Front Table Height (mm):
930
Max. Clamping Pressure (dan):
5500
Cutting Speed (times/min):
42
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case each Paper Sheet Cutting Machine / a4 Paper Cutting Machine Automatic
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated

aPaper Sheet Cutting Machine / a4 Paper Cutting Machine Automatic




Product Description

Specifications :

ParameterUnit7892115130
Cutting widthCM7892115130
Max.cutting height without assistance pressing plateCM131316.513
Max.cutting depthCM7893115130
Min cutting depth without assistance pressing plateCM2.52.533
Extended length of working tableCM64657373
Height of working tableCM86868986
Machine width including side working tableCM215233266266
Total length of working tableCM178198226241
Cutting speedR/MIN45454545
Manx. Paper pressureN30000350004000040000
Power of main motorKW3344
Motor for paper feedingKW0.750.750.750.75
Air pumpKW0.550.550.750.75
Machine weightKG2500270040003900
Overall dimensionCM210*140*195225*140*195255*160*215260*153*195



ParameterUnit137155166186
Cutting widthCM137155166186
Max.cutting height without assistance pressing plateCM16.516.516.516.5
Max.cutting depthCM145155166195
Min cutting depth without assistance pressing plateCM3333
Extended length of working tableCM74757575
Height of working tableCM91909090
Machine width including side working tableCM287314322375
Total length of working tableCM259280283355
Cutting speedR/MIN45424240
Manx. Paper pressureN45000550006000065000
Power of main motorKW45.55.57.5
Motor for paper feedingKW1111
Air pumpKW0.75*20.75*20.75*20.75*2
Machine weightKG450052005506800
Overall dimensionCM280*160*215296*165*215315*160*215340*182*230


Introduction:

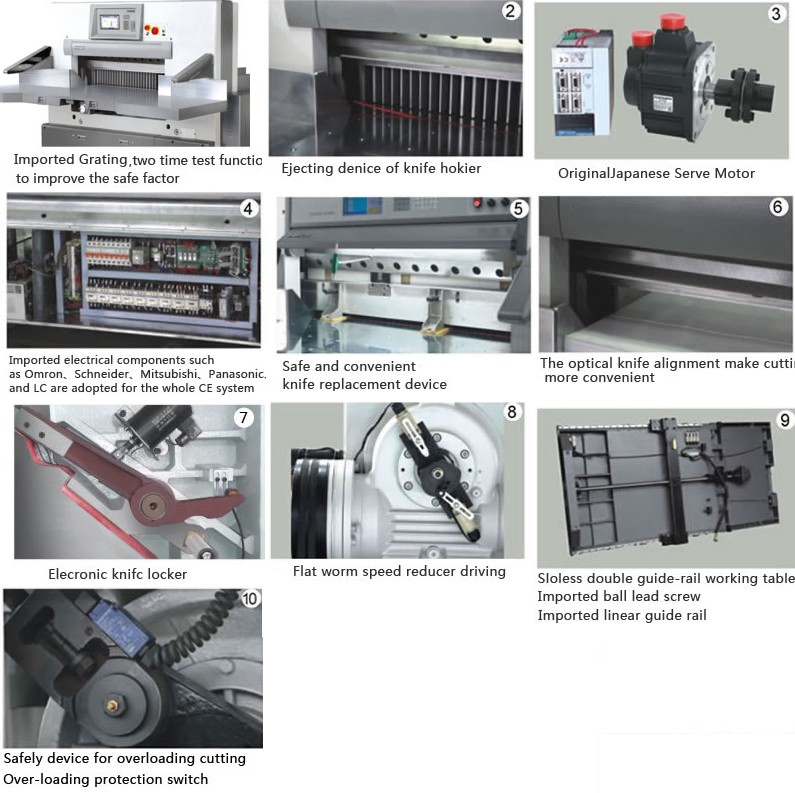

7.0 inch full touch LCD,the data resolution 0.05MM, fault self-diagnostic function and operation of model showed that 60 program group, more than 6000 different locations of the crop, can be dynamic tracking, the maximum speed of 5-10 meters push paper / min, selected imports of hydraulic components, Japan, Korea Electric components,Tanwan banll lead screw ,adopted imported bearing of low maintenance.Linear doubie guide-rail and slotless working table toensure the accuracy of cutting. Flat worm speed reducer transmission for cutting.IR ray protective device is more convenient for cutting with optical Knife-line alignment.button operated by two hangs,single cirulation cutting devlce ets.



Configuration:

No.ConfigurationBrand Producing
1Display screen+computer7.0 inches color touch screenTaiwan
2Motherboard chipsetShanghaiChina
3Drive under the knifeFlat worm reducerTianjin
4Motor driverPanasonic inverter systemJapan
5Guide-rail High-precision linear guideTaiwan
6WorktableSlotless chrome platform with air cushionHT2000 Casting
7BearingMSK BearingJapan
8SensorOMRONJapan
9SwitchSANLITaiwan
10Air switchLSKorean
11Power switchSANLITaiwan
12Locating switchPanasonicJapan
13ContactsSchneiderFrance
14Host ButtonMoellerSino-German joint venture
15  Bridge rectifierSEP Taiwan
16 SealsMERKEL Japan
17Hydraulic ComponentsYUKENJapan
18Hydraulic Fittings Japan
19Passage control systemReliefItaly
Packaging & Shipping

 transporte picture.jpg
