Automatic aluminum tube filling sealing machine

FOB Reference Price:Get Latest Price
$18,000.00 - $23,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
5.5kw
Model Number:
FWJ-60
Report Suspicious Activity
Overview
Product Hightlights
Warranty Packaging Type Packaging Material
1 Year, One Year tubes Plastic
Specifications
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Medical, cosmetic cream
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V 50HZ
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
powerrig
Dimension(L*W*H):
1850*950*1980mm
Weight:
1000kg
Certification:
CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Filling Quantity:
5-75ml/50-300ml
Capacity:
70 tubes/min
Suitable tube:
aluminum tube
Date Printed:
1-2 rows(numbers & letters)
Additional Function:
Nitrogen Blow after filling
Name:
automatic aluminum tube filling sealing machine
Usage:
Aluminum tube
Material:
SUS304/316
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Export free fumigating wooden case 2.One set in one case with film wrapped
Port
shanghai port
Video Description
Why choose Powerrig

Customize service to customer

Powerrig Machinery Company can customize whole production line for produce cosmetic cream, gel ,liquid form Processing raw material to filling ,sealing and capping ,we could design whole production line ,according to customer 's different requirement and different factory site area,

And filling sealing machine also will customize basis on customer differnt tube.

So if customer need homogenizer machine for process cosmetic or other type tube aluminum tube filling sealing machine

Could click above picture link :)

Concentration

The customer's request is our production standard,exprot machine to More than 50 countries。

Professional

Our online troubleshooting teams ,Production team,technology team prwill identify your troubles then repair them. They are available for 24hours/7days.Our overseas engineer team can be carried out to any part of world to fix problems in your line.

Engineering and marketing step by step

 We continue to innovate by listening and responding to our customers’ needs. With an emphasis on quality parts and engineering

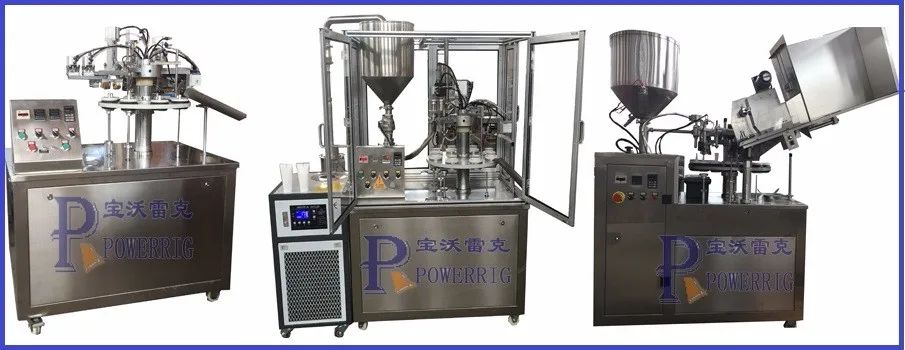

Product Parameter
Model /parameter
FWJ-L30
FWJ-L45
FWJ-L60
Application
Aluminum tube
Aluminum tube
Aluminum tube
Capcaity
     30 tubes per minunte
   45-50 tubes per minunte
50-80 tubes per minunte
Filling volume
5-75ml/50-200ml/100-300ml
5-75ml/50-200ml/100-300ml
5-75ml/50-200ml/100-300ml
Function and sealing method
Folding sealing ,semi-auto
Folding sealing, semi-auto
Strength folding sealing,automatic
Equipment overview

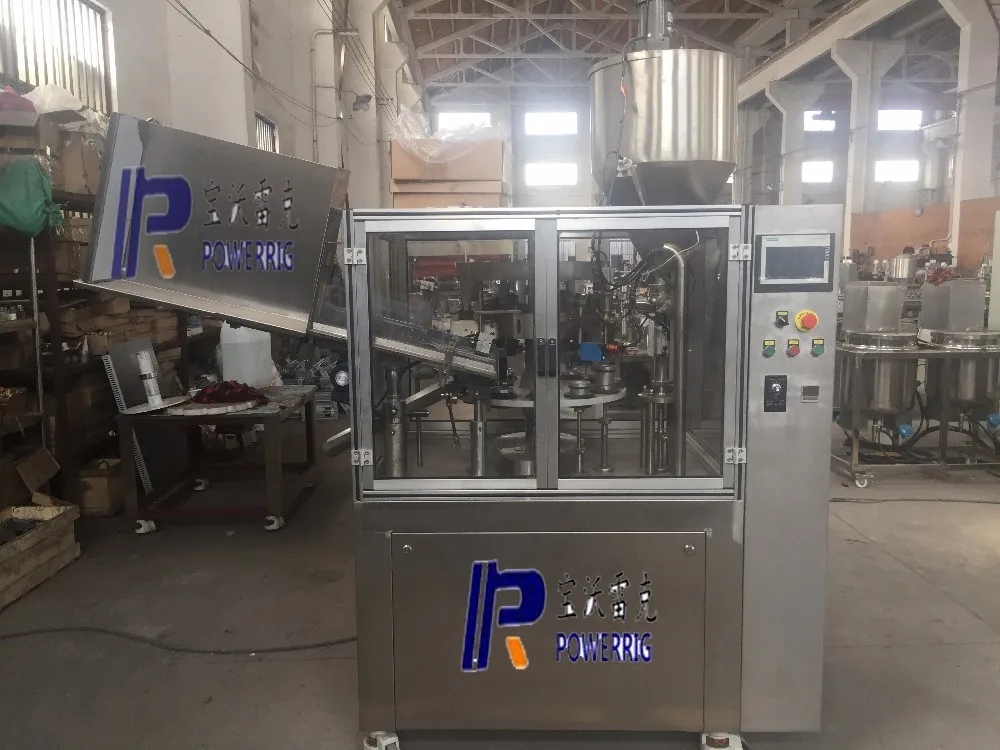

FWJ-L60 Automatic aluminum Tube Filling and sealing machine with 4 folding Stations

 It can fill liquid or viscosity into aluminum tubes, folding tubes

  It is the economical equipment for industry of glue, medical ,ointment,and etc. For example, super glue, AB glue, toothpaste and etc.
Features
Consists of automatic feeding plate, rotary plate, orientation system, filling system, folding system, ejection system.
Adopt PLC, photo sensor, rotary plate controlling system.
Adopts slot wheel dividing system to drive the turntable to do intermittent movement.
The filling is driven by cylinder, it controls the filling capacity and accuracy.
Stable performance and work without any noise and pollution.
The part, which contacts with the filling material, is made of high-quality stainless steels.
The parts which need to clean are made of quick-change device that is removable and convenient for washing.
Prodcut advantage

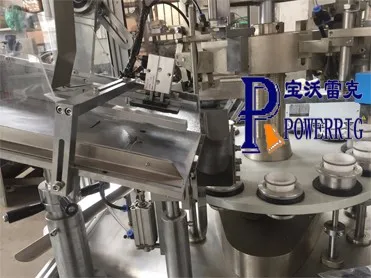

Flat and folding manipulator

All manipulators movement by machinery running.

Flat tube tail manipulator station

First station used to flat the tube tail, ensur the tube tail is flat. Then go to folding station.

Work operation turn table

Normally will have 4 folding stations, our machine all use strog tighten folding sealing

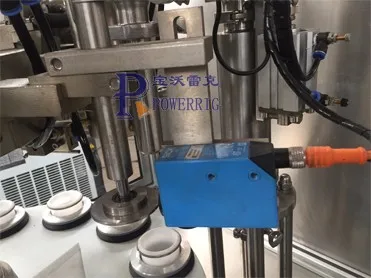

Germany sick sensor

Use Germany sick sensor orient the tube position

The sensor check Accuracy can reach 0.03%.



Hopper

We can cusomize different hopper according to customer's different material

Can customize heating hopper, mixer hopper. Anti-corrosion hopper

Also can match automatic loading material pump and transfer material system to machine's hopper.

Auto loading tube hopper

 Automatic loading tune into the tube holder mould

And the press head will orient the tube position automatically

Before tube into next station

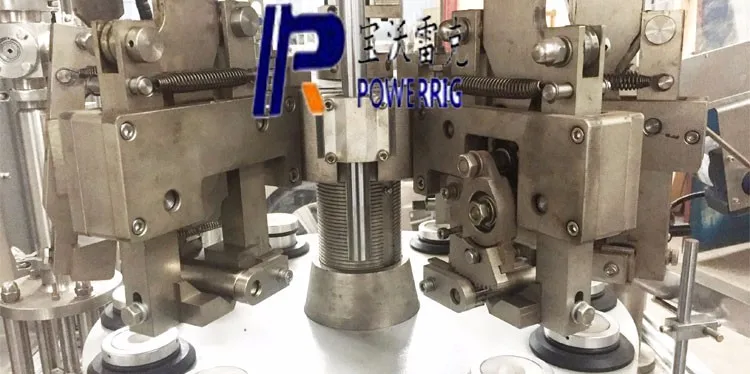

Folding and Reverse folding

 Normally tube tail need folding 2-4 times
Accoring to customer need different sealing effect
We could customize different fold manipulator station.
Our machine fold part use manchinery control
Strong sealing ,ensure sealing tight and beaty
Won't leak material


FAQ

Q:How Can I get a detailed quotation from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect homogenizer with filling machine in whole line?

 I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form homogenizer to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person. .

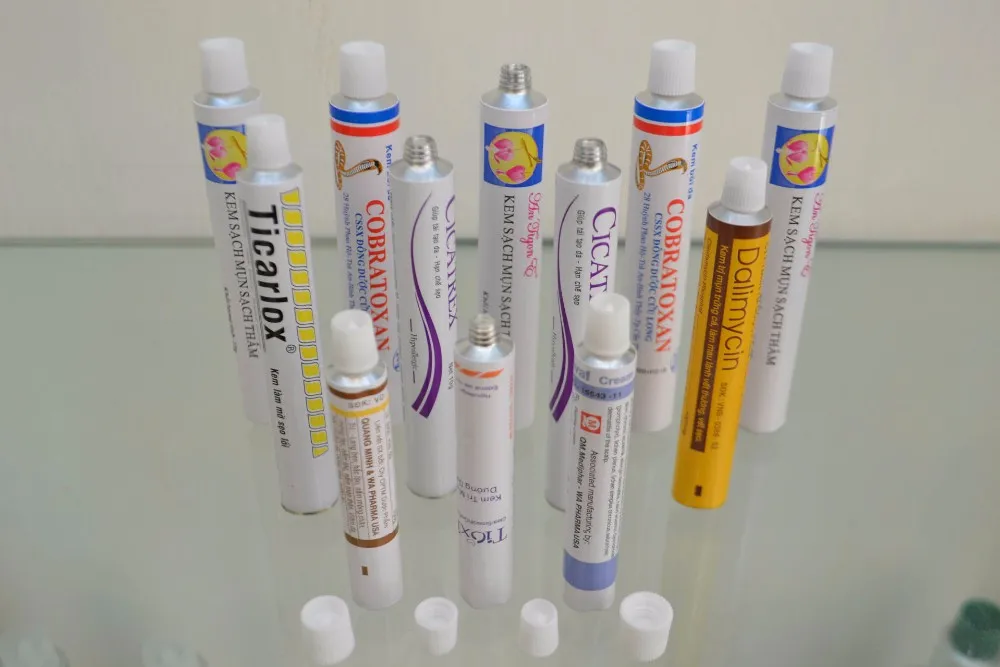

Suitable package

Can customize different type filling .sealimg and packing machine acordng to customer's different packages
