Automatic beer bottle filler and capper

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
2.5 kw
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Beierde
Dimension(L*W*H):
2260*1260*1900
Weight:
2500kg

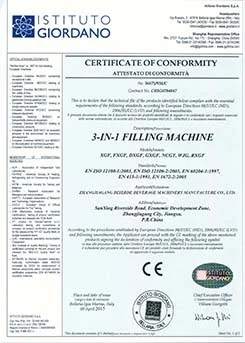

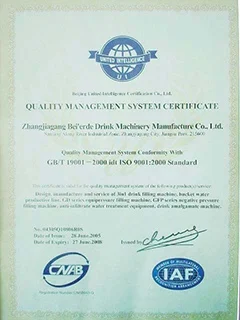

Certification:
CE ISO
Filling method:
Isobaric filling
Processing Types:
Washing Filling Capping
Material:
Stainless Steel 304
Usage:
Beverage Packaging
Capacity:
2000BPH
Operator:
1 worker
Warranty:
One Year

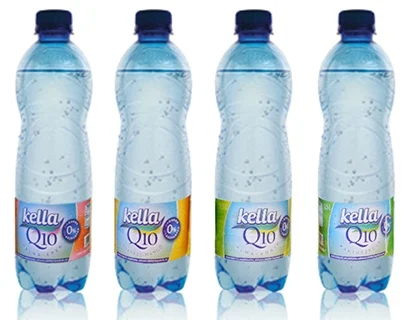

Bottle type:
PET bottle
Filling material:
Soft drink
Machine name:
Automatic soft drink filling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details

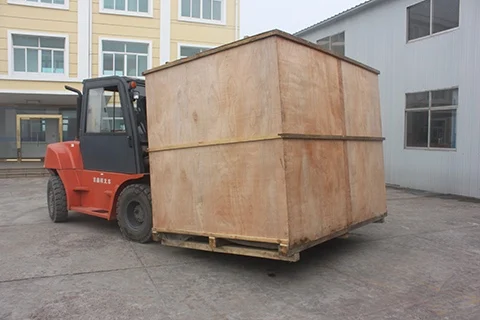

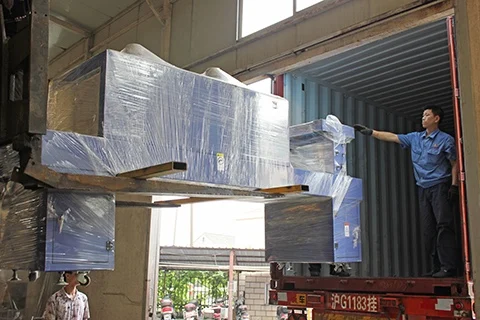

Seaworthy wooden case as the general export package.We use carton as inner packing ,in case of damage in the course of carriage.We also could pack it according to the client's requirments.
Port
Shanghai Port




Product Application

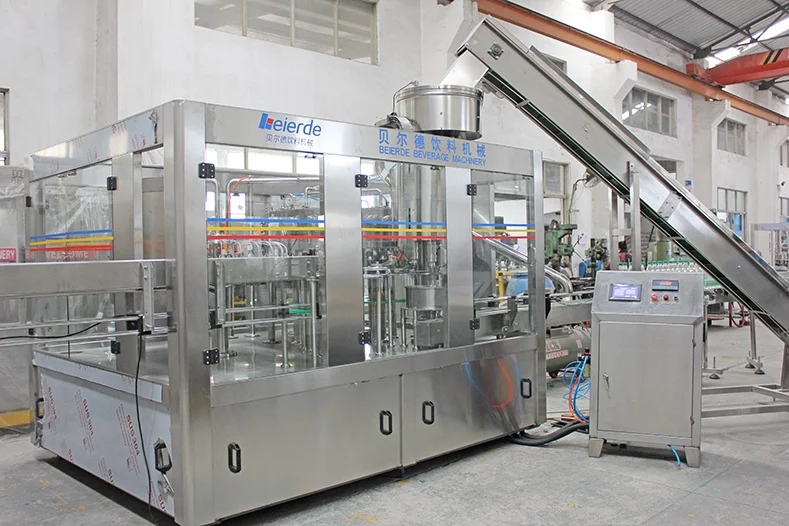

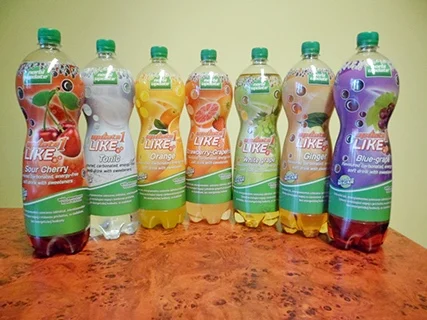

DGF series filling machine is a professional machine, which is special designed for carbonated drink. It is multifunctional, which can be used for washing ,filling and capping. It is a kind of advanced filling machine integrator, which is innovated following the process requirements of filling gassy beverage based on the importing and assimilating the foreign advanced technology. It is applied mostly in washing, filling, and capping plastic cap for soda, cola, champagne and sparkling water. It is the perfect selection to a beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.

SPECIFICATIONS FOR DGF SERIES 3-IN-1 CARBONATED DRINK FILLING MACHINE
Model
DGF 8-8-4
DGF 14-12-5
DGF 18-18-6
Capacity (BPH)
1000-1500
2000-3500
4000-6000
Bottle washing position
8
14
18
Bottle filling position

8
12
18
Bottle capping position
4
5
6
Suitable cap diameter (mm)
28/30
Suitable bottle diameter (mm)
50-105
Filling pressure
Isostatic pressure
Bottle shape
Square and round
Machine size (mm)
1,800×1,200×2,000
2,400×1,600×2,100
2,800×1,750×2,100
Machine weight (kg)
1,650
2,100
2,900
Machine power (kw)
1.5
2.5
3.8

Main Features

1. Machine has compact structure, good appearance, ease operation, high automatism and low labor intensity.
2. Bottle transportation adopt neck handling technology, not need to adjuster height, only replace relative parts, such as arc board, thumb etc.
3. Special design for bottle rinser gripper, with full stainless steel structure, it does not contact with the bottle neck thread spot, avoids the second pollution.
4. All the parts which contact with the material directly is made of food grade stainless steel, easy to clean.
5. Uses pneumatic butterfly valve to control liquid flow, which can guarantee low liquid level changes inside the tank and high filling precision.
6. Open valve device is driven by the air cylinder, according to bottle signal to open the valve timely, action is accurate and reliable.
7. High speed and high flow rate, high accuracy filling valve, high filling speed, stable liquid level.
8. Capping heads adopt magnetism permanent torque device, which can guarantees the quality of sealing cap, and also it will not damage the cap.
9. Uses the high effective cap sorter and automatic cap feeding system. It has perfect cap feeding and cap protection device.
10. Bottle outlet thumb wheel adopts the spiral-down way. There is no need to adjust the bottle conveyor height when changing the bottle shape.
11. Equipped with perfect over-load protection. It can protect the machine and operator's security effectively.
12. Main electrical parts, electrical control valve, frequency inverter etc. adopt famous foreign brand product to insure the quality.
13. All the components in the air system adopt famous foreign brand product.





Machine Part

Name: Bottle washing module

Material: 304 Stainless steel

Bottle neck lock part features: bottle locking steady and low bottle neck damage

Water jetting nozzle features: high-efficiency bottle washing and low water consumption

Bottle conveying star wheel features: high-speed bottle conveying and low bottle neck damage

Machine part

Name: Bottle filling module
Material: 304 Stainless steel
Liquid tank features: Inside and outside of liquid tank is polished

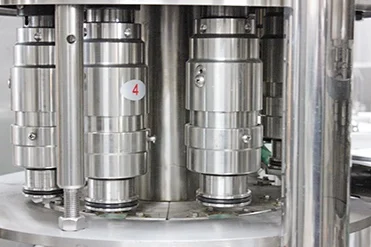

Filling valves features: Flow rate can be adjusted and controlled accurately

Machine Part

Name: Bottle capping module
Material: 304 Stainless steel

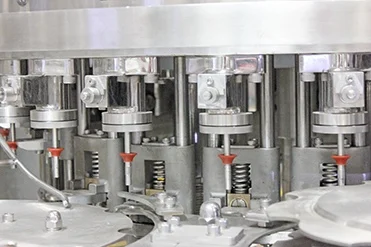

Capping positions features: cap sealing movement accurately with lower cap damage

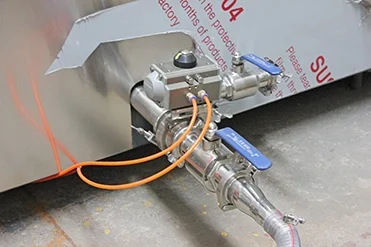

Machine Part

Name: Pneumatic valve
Function: Contact the carbonated drink mixing machine and the carbonated drink filling machine. It is used to control the flow rate from the mixing machine and it can keep the liquid flow steady.











About us

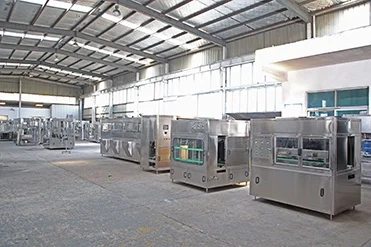

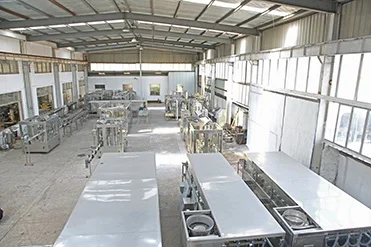

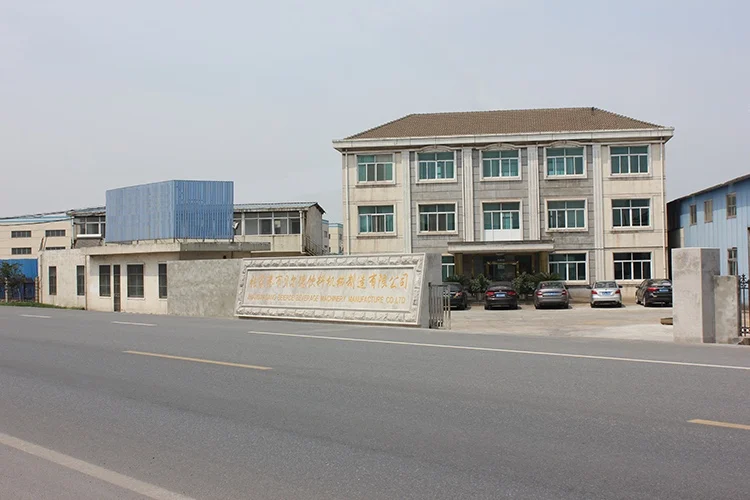

Zhangjiagang Beierde beverage machinery manufacturer Co., Ltd. is located in Sanxing Yanjiang Economic Development Zone, Zhangjiagang City, which near Shanghai. We are the professionally researches, develops, manufactures beverage-packaging machines and own 3,000 m² workshop.

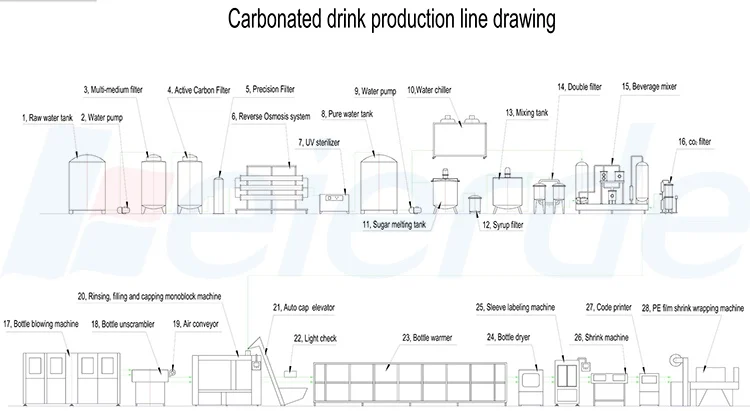

Our main products include water, juice, carbonated drink production line, semi-matic and automatic bottle blowing machine system, juice, carbonated drink preparing system, 3 gallon and 5 gallon water packing line and so on. We have more than 500 productions lines service in the whole world.
Now we can offer:
1. 2,000-20,000 BPH Drinkable Water Bottling Line
2. 2,000-20,000 BPH Hot Bottling Line
3. 2,000-15,000 BPH Carbonated Beverage Bottling Line
4. 100-2,000 Barrels/Hour 3-Gallon & 5-Gallon Water Filling Line
5. PET Preform Injector and Bottle Blow Moulding Machine
6. 1-30 Ton per hour Water Treatment
7. 1-20 ton per hour juice and carbonated drink preparing system
