Automatic carbonated drink soft drink mixing system connecting/industrial carbonated beverage mixer/ C02 beverage blending mixer

FOB Reference Price:Get Latest Price
$800.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, Cans, Any
Packaging Material:
Glass, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
2.42 (1500), 3.15 (3000), 6.3 (6000), 7.85 (8000)
Place of Origin:
Henan, China
Brand Name:
TAIDING
Model Number:
TD- carbonated beverage mix machines
Dimension(L*W*H):
customizable
Weight:
customizable
Certification:
CE ISO
Capacity (bottle / hour):
1500, 3000, 6000, 8000, 15000, 20000
Syrup and water adjustment range:
1: 3-1: 10
Water content (CO2: H2O volume ratio):
> 2.5
Chilled water inlet temperature (℃):
0-4
Pre-carbonization tank, syrup tank:
0.05-0.09 (Mpa)
Storage tank working pressure (Mpa):
0.2-0.5
Work video:
available
Material:
Stainless Steel
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Package in export carton, covered with the damp proof film material,or as your demand
Port
China port
Lead Time :
5 working days after received your payment
Product Description

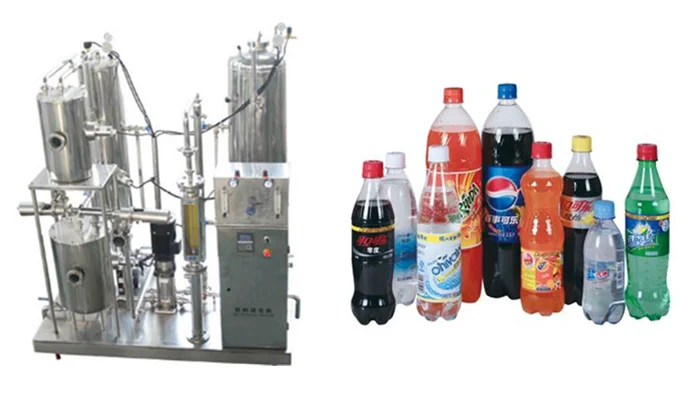

Product Application

The Automatic carbonated drink soft drink mixing system connecting/industrial carbonated beverage mixer/ C02 beverage blending mixer is used in the production of juice drinks and tea drinks, which is the key equipment for the former processing equipment. Mainly used in the preparation of juice, syrup, water and other beverages.

Main Features

1) The Automatic carbonated drink soft drink mixing system connecting/industrial carbonated beverage mixer/ C02 beverage blending mixer adopts the advanced technology of the chemical industry- static mixer( carbide), the gas- liquid mass transfer area is large, small resistance loss, high efficiency, low energy consumption, simple structure, and adopts the multistage centrifugal pump of reliable performance, low noise, improves the performance of the whole machine.

2) The mixture ratio is accurate, easy to adjust, the machine does not need to change parts, so it can easily adjust the yield and the proportion of syrup and water.

3) The machine adopts carbon dioxide reflux to deoxidize, which can save both carbon dioxide gas and the purpose of deoxygenation, so that the deoxygenation water has better precarbonization effect.

4) The Automatic carbonated drink soft drink mixing system connecting/industrial carbonated beverage mixer/ C02 beverage blending mixer can easily adjust the content of air content, according to the requirement of the beverage volume, and the proper operation adjustment is completed.

5) Equipped with perfect automatic control system, it has the advantages of movement coordination, simple structure, continuous production and high degree of automation.

6) The machine is equipped with in- situ cleaning process, which is reasonable and convenient for chemical sterilization, thermal disinfection and water flushing, which is in line with the requirements of the food hygiene law.

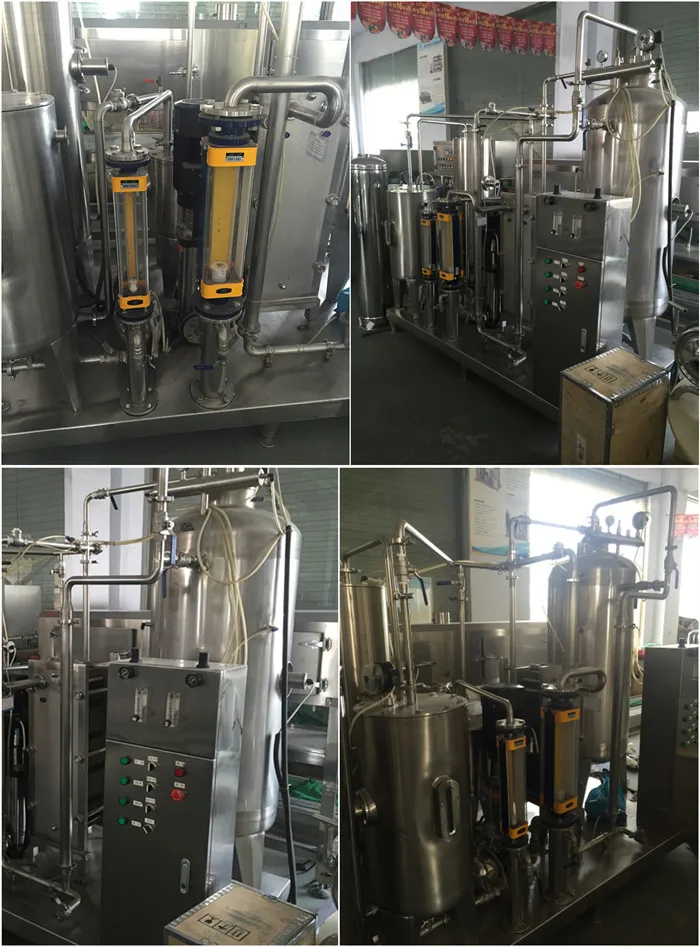

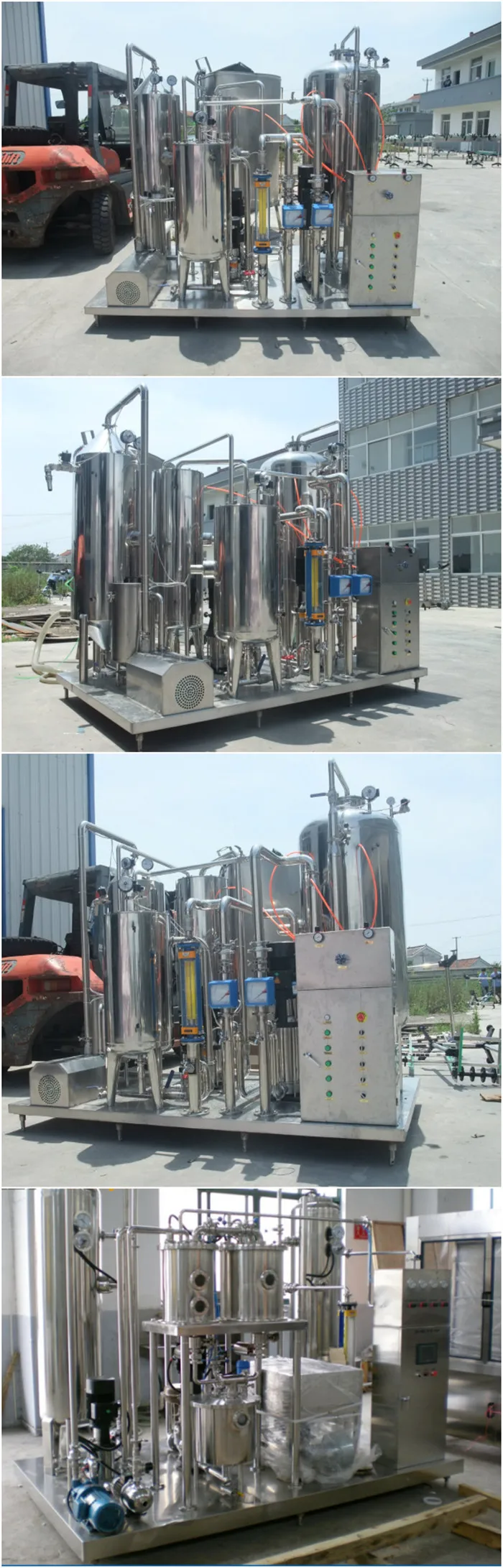

Detailed Images
Our Service

1. Pre-sale services:
1) Select proper equipment model;
2) Design and manufacture products according to customer' actual requirements;
3) Arrange for visiting our factory.


2. Services during the sale:
1) Make sure goods prepared within delivery time;
2) Pre-check and accept products ahead of delivery;
3) Prepare documents required to help customer clear the customs.


3. After-sale services:
1) Assist our customers to prepare for the first construction scheme;
2) Install, debug and examine the equipment;
3) Train technical personnel the first-line operators.

Packing & Delivery
Packaging
Size
Customizable
Weight
Customizable



Packaging Details
The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

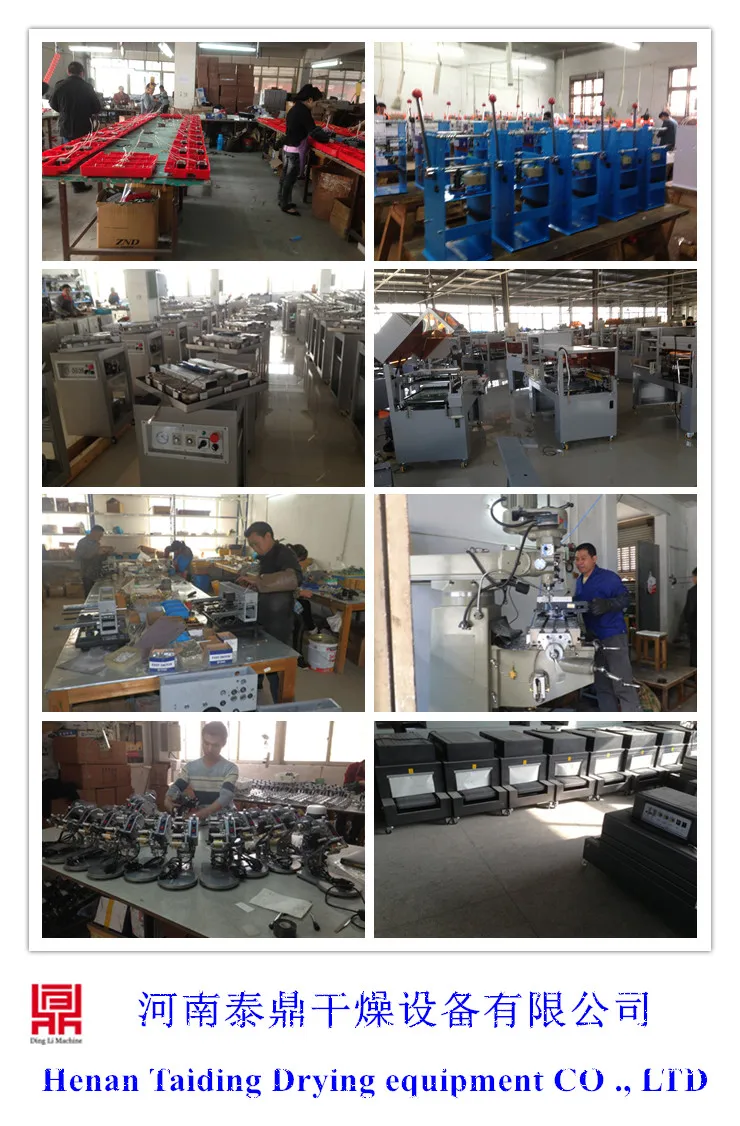

Our Company

Henan Taiding Drying equipment CO., LTD is speialized in filling machine, dryer machines, shrink packing machines, sealing machine, and strapping machine. The company has been in this field for more than 11 years with rich experience since 2006. With well-equipped testing equipment and strong technical force, the company insist to supply good quality, reasonable prices and new stylish designed products. The products are extensively used in national packaging field. And most products are widely recognized and trusted by customers as it could meet continuously changing economic and social needs. The company has 200 staffs in charge of business in market and 50 staffs in the after sale service. And 10 people on the technology department. Now, we pay more attention to extend international market. With the aspirations of the team, we hope to make perfect cooperation with all national friend. With the guide of "quality first, credit first, service first, customer first," the enterprise brings in continually advanced.

Contact Details
Any question about our mixing machine, please contact with me at your convenience.
