Automatic cnc punching machine/ turret punch press tool grinding machine

Feedback Ratings
  • 1-4 Sets
    US $50000.00
  • >=5 Sets
    US $45000.00
Model Number:
CNC turret punching machine
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Mechanical
Place of Origin:
Shandong, China (Mainland), CN;SHN
Brand Name:
BESCO
Voltage:
220V/380V
Power(W):
10000
Weight:
10ton
Dimension(L*W*H):
5500mmm*3500mm*2300mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training
Product name:
CNC Turret Punching Machine
Type:
Mechanical
mold station:
12/16/20/24/32
Bed Stucture:
C or O optional
range of one time processing:
1250mm*2500mm
Air pressure:
0.55mpa
Punch frequency:
160/240hpm(double speed)
Motor power:
10kw
Machine weight:
10ton

Packaging & Delivery

Selling Units:
Single item
Single package size:
550X350X230 cm
Single gross weight:
10000.0 kg
Package Type:
Export Package
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(day) 45 To be negotiated
Video Description
Product Description

Product Application

Applied to the sheet punching, stretching and other shapes of hole machining. It is suitable for batch or sample
processing to reduce mold investment and reduce production costs. It is mainly used in a variety of high and lowvoltage switchgear, control panel, case, cabinet, shell, metal furniture, kitchenware and advertising industry


1,International pneumatic components and electrical components to ensure the reliability of the overall performance.

2,CNC turret Punching machine Using high-quality production of large lead ball screws, linear guides ensure that the transmission accuracy.

3,With a hard brush and ball mixing table, the machine not only reduces the noise and vibration at work, but also played a very good surface protection for processing sheet.
4,CNC turret punching machine  Using the O-closed steel welded body, by the second aging treatment, making removal more thoroughly stress.

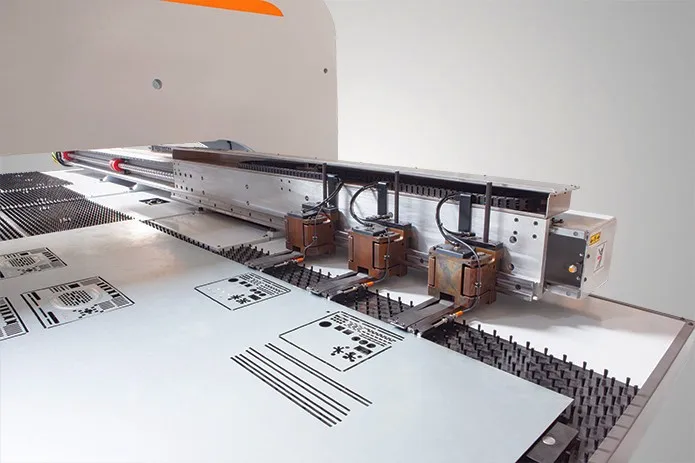

5,Use floating clamp, clamping force big, stable feeding; integral dovetail carriage, rigid, clamp easy to move.

Name
Unit
Specification Parameter
Nominal Force
kn
300
range of one time processing
mm
1250*2500
Max movement speed
mm/min
40
Max thickness of workpiece
mm
6
mold station
set
16/20/24/32
self rotated mold
set
2 ( C station) optional
process precision
mm
0.1
punch frequency
hpm
160/240 (double speed)


The mold distribution list of the diffient stations(Can be customized)

Type
Size of mold
16 station
20 station
24 station
32 station
A
¢1.5-¢12.7
8 pcs
8 pcs
8 pcs
16 pcs
B
¢12.7-¢31.8
4 pcs
8 pcs
12 pcs
12 pcs
C
¢31.8-¢50.8
2 pcs
2 pcs
2 pcs
2 pcs
D
¢50.8-¢88.9
2 pcs
2 pcs
2 pcs
2 pcs

Main Features

 1, Standard of thick, using intemational 85 series die, the long guiding, strong versatility, high stability, lateral

positioning taper pin;
2. C-open type bed or O-type closed bed, good rigidity, small deformation, stable feeding support
3, CNC punching dedicated system, WINDOWS interface, pure Chinese prompt, easy to learn, easy to operate
4. The span of bed rail is large and level. Support is good to ensure precision and high-speed feed stabl
5. The newly added software automatically search the clamped position, without artificial participation, high
accuracy rate.
Certifications
Detailed Images

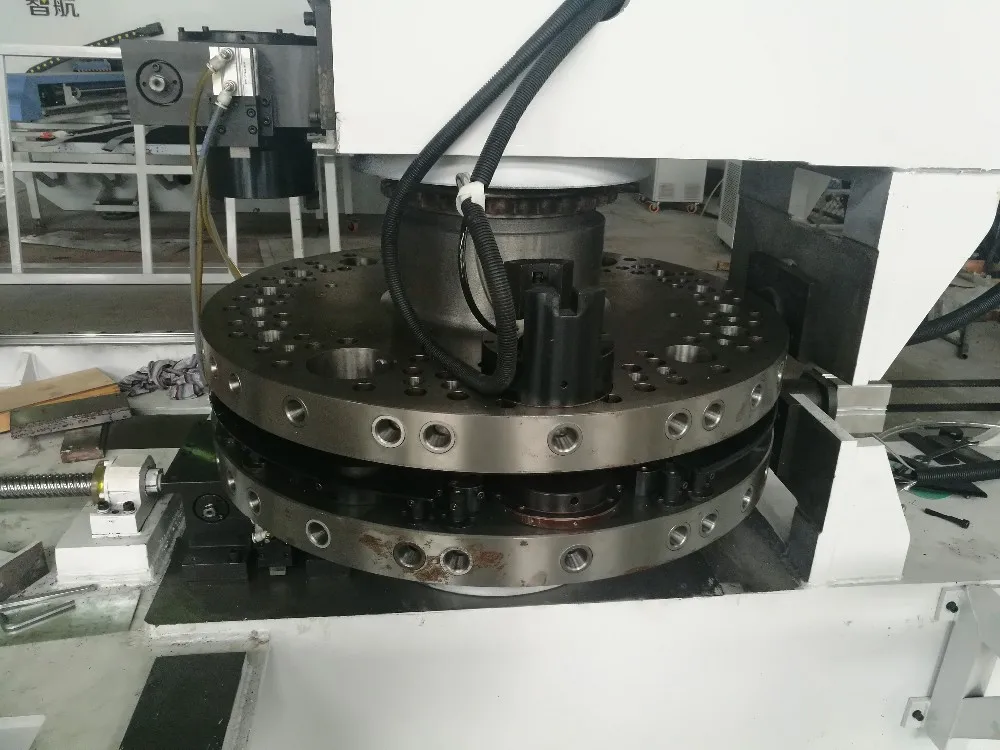

Turret

Standard thickturret,using international 85 series mold longoriented,versality,hign stability,marketing and determiantion.


CNC punching spdcial system


WINDOWS OPERATION INTERFACE. EASY TO LEARN EASY TO OPERATE.


Lathe bed guide rail

Bed rail design span, horizontal, good support, to ensure processing accuracy high-speed feeding stable.

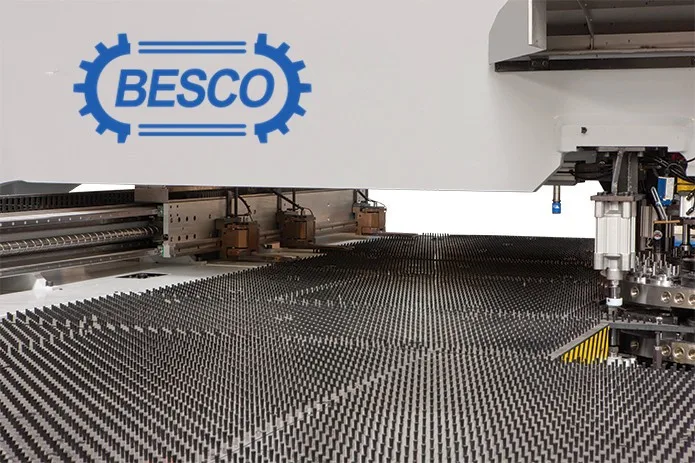

WORKTABLE

We adopt brush and universal ball mixed worktable can not facilitate processing, but also can protect the plate very well.
Our Service

Pre-Sales Service

* Technical solution
* Online video authentication machine work.
* Cutting samples provided by Business express

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training.

Our Customer
Packing & Delivery
Packaging
Size
5500mm(L) * 3500mm(W) * 2300mm(D
Weight
10.2ton



Packaging Details
We packed the machines in wooden cases and fixed them in wooden cases to ensure the integrity of the machines.
Packaging
Size
5500mm(L) * 3500mm(W) * 2300mm(D
Weight
10.2ton



Packaging Details
We packed the machines in wooden cases and fixed them in wooden cases to ensure the integrity of the machines.
FAQ

Q: How long is your delivery time?

A: That depend on the stocks.

Q: What is your terms of payment ?

A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.

If you have another question, please feel free to contact us as below:


Related Products

J21&J2Series Mechanical Parameter

94.6% Response Rate

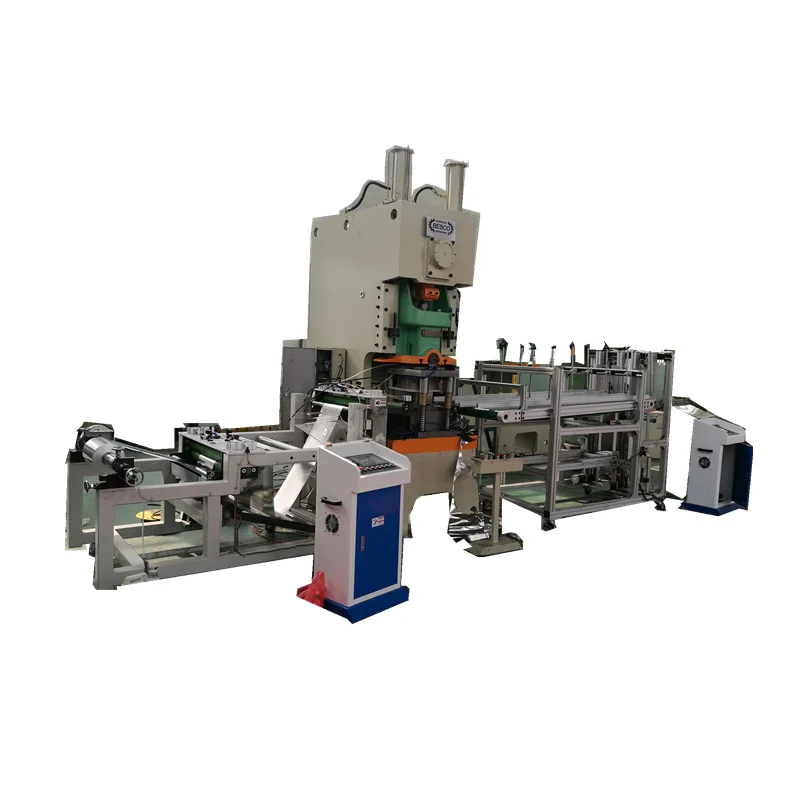

Aluminum foil production line
