Automatic coil winding machine equipment for transformer

FOB Reference Price:Get Latest Price
$80,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Haoshuo
Model Number:
coil winding machine
Condition:
New
Certificates:
CE, ISO
Warranty:
12 Months
Axis length:
≤800mm
Winding speed:
0-200r\min
Outer dimension:
2500mm*1300mm*1200mm
Total weight:
1600kg
Voltage:
380V
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Lead Time :
Shipped in 45 days after payment
Product Description

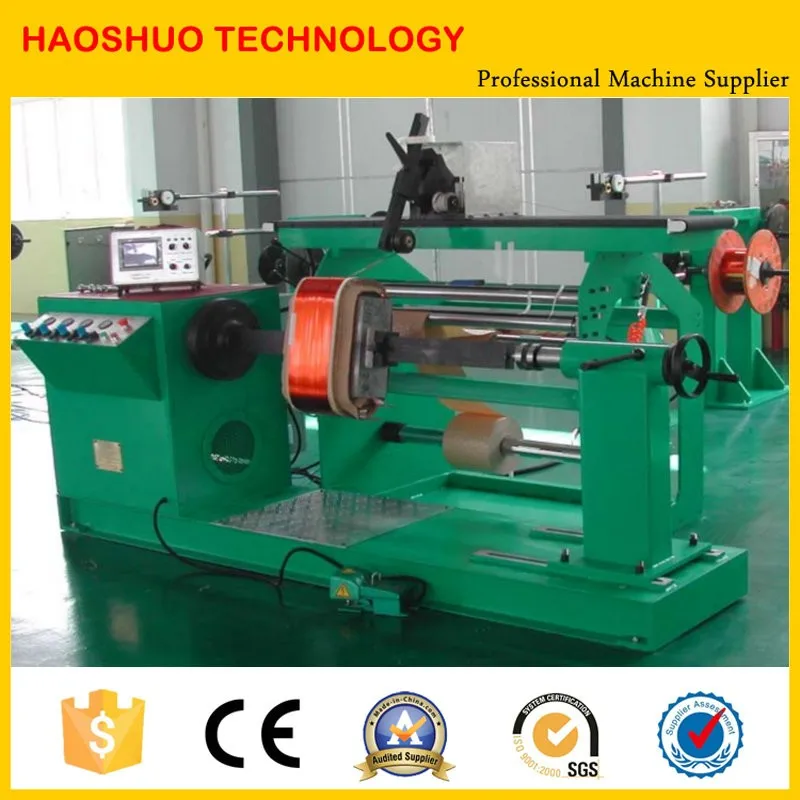

Automatic coil winding machine equipment for transformer

Product Application

automatic coil winding machine is suitable for all types of small and medium sized distribution transformer coil winding. It consist of winding main machine, automatic wire arrangement, layer insulation supply device, a two-axis tension wire decoiler, pneumatic system, PLC and servo control system, etc. This machine is able to do coil winding axial tightness and firmness, especially suitable rectangular coil winding.

Automatic coil winding machine equipment for transformer
Item
Parameter
Suitable coil outer diameter
≤600 mm
Suitable coil inner diameter
≥80 mm
Axis length
≤800mm
Total weight
≤500kg
Wire spec
width 0.4 mm -10 mm, round or flat
Work torque
600NM
Winding speed
0-200r\min
Counter max set
9999.9
Auto wire arrangement
wire distance min 0.01mm
Total weight
1600kg
Outer dimension
2500mm*1300mm*1200mm
Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Alibaba with SGS assessment (Audit report can be provided).

Contact us
