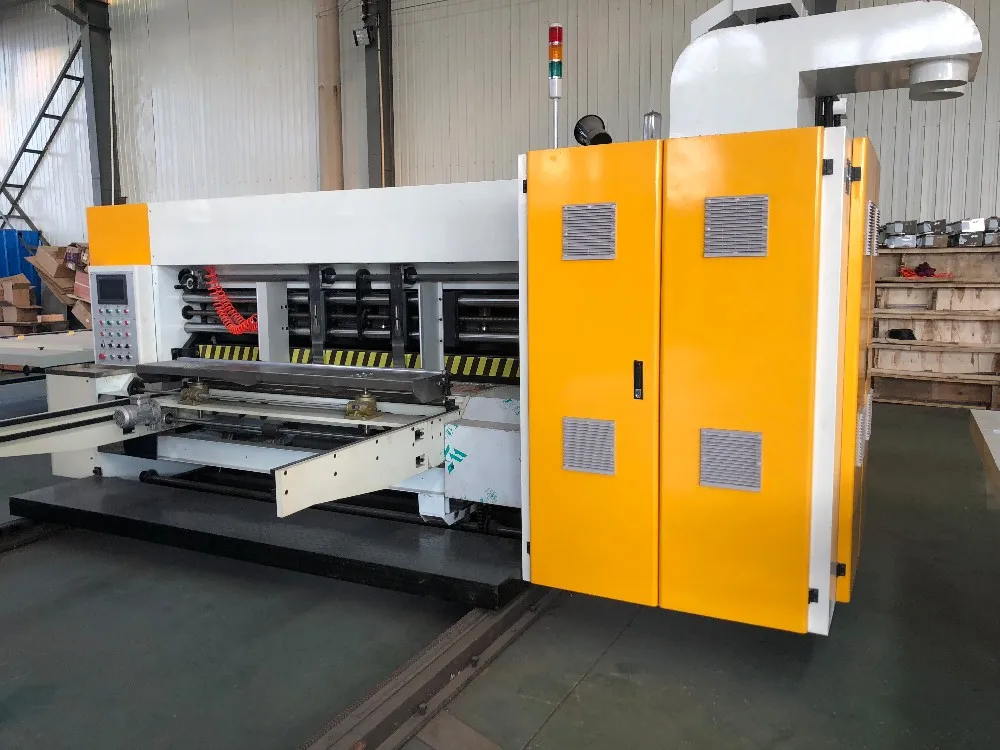

Automatic corrugated paperboard printing machine slotting machine used for sale small box

FOB Reference Price:Get Latest Price
$30,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Advertising Company
Type:
Automactic Carton Box Printing Machine
Warranty:
12 Months
Application:
Corrugated Carton Box
Place of origin:
China (Mainland)
After-sales service provided:
Engineers Avalible Overseas
Automatic grade:
Atuomatic
Speed:
0-120 Sheets/min
Plate Type:
Flatbed Printer
Voltage:
220V/380V/440V
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plastic film packing
Port
Tianjin Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Product Application

◆This machine consists of leadedge feeding, printing, die cutting parts, can be done printing, die cutting process one time
◆The wall thickness is 50mm, material is HT250, high strength and high precision
◆Transmission system all adopt the big spiral Angle oblique gear, low noise, enhance the strength of gear, improved the gear transmission stability. All drive gear adopt 40 cr alloy steel
◆Bears adopt HRB brand.
◆Clutch at each unit with alarm, ensure the worker's safety.
◆Modular design can be arbitrary increase or decrease in the unit
◆ Motor adopts stepless speed regulation; electrical part use Schneider electrical
◆ Anilox roller adopts JiangSu Haili makes high-quality anilox roll

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

Machine Parts

Name: Lead edge part

◆The lead edge suction wind system
◆7.5 KW high pressure centrifugal fan, inverter control air volume, according to the cardboard warping degree of regulation control the wind pressure, to ensure accurate warping board and thin board can be transmit with high speed.
◆Interval feed device, can choose paper according to need
◆Installed 7 inch touch screen, can automatic display working quantity and working speed, can set the woking quantity

Main Features

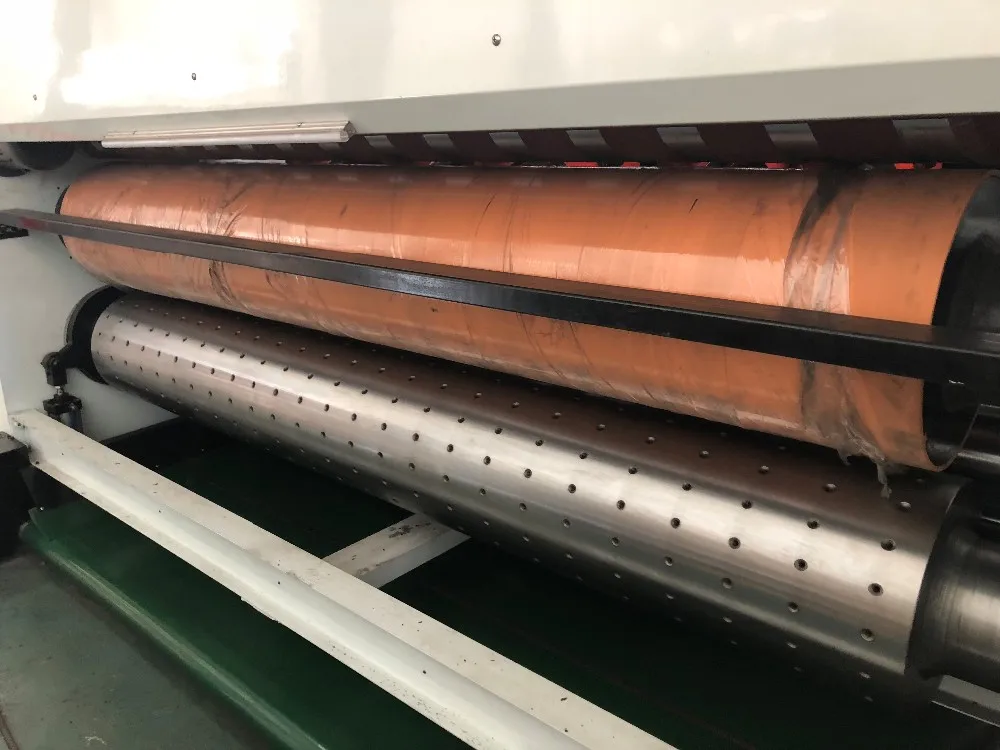

Name: Printing part
Printing roller
◆High quality steel plate material, surface grinding, hard chromium plating
◆Balance correction, smooth operation
◆Ratchet fixed volume edition axis

Anilox roller
◆Steel pipe surface after hard chromium plating
◆The dots are consistent,the  ink evenly
◆Pneumatic lifting anilox roller
◆The gap of printing roller and anilox roller showed on the dia, adjust by manual, adjust range is 1-8mm,adopt crosshead shoe structure

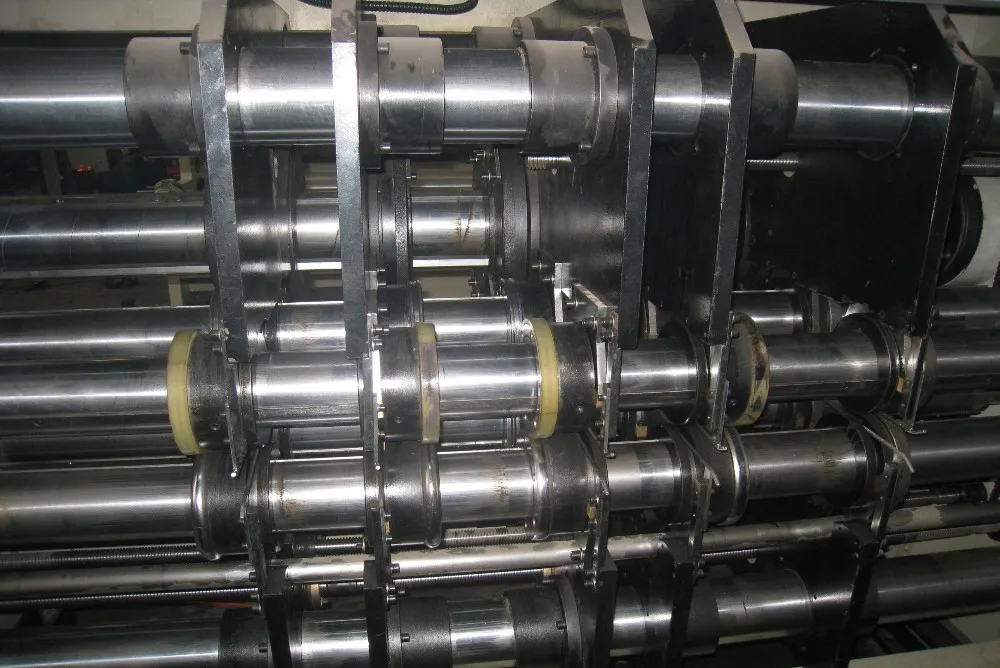

Slotting part

◆Upper roller diameter 156mm
◆Under roller diameter 124mm
◆Pressure roller diameter 86mm
◆Upper knife diameter 408mm
◆Under knife diameter 240mm
◆Slotting knife width 7mm

Die cutting part

◆Steel materials, surface finishing grinding, chromium plating.
◆Balance correction
◆Thickness of wood die plate is :16-18mm(suitable for three layers plate) and 17-19mm(suitable for five layers plate)
◆Electric digital 360 ° adjustment.
