Automatic disposable coffee paper cup making machine

FOB Reference Price:Get Latest Price
$17,500.00 - $18,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HLD-C12
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Power(W):
11KW
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HLD
Voltage:
380V 3 phases
Dimension(L*W*H):
1880mm*1450mm*1900mm
Weight:
2500kg
Certification:
CE
Production Capacity:
70 to 80 pcs/min
Paper cup top diameter:
Min 45mm to Max 104mm
Paper cup bottom diameter:
Min 35mm to Max 75mm
Paper cup height:
Min 35mm~~Max 115mm
Paper cup size range:
2 ounces to 12 ounces
Paper weight range:
180gsm to 350gsm
Speed:
70 to 80 pcs/min
Air comsumption:
0.15 cbm/min
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
One set packed in wooden case with fumigation or according to customer's request.
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 35 To be negotiated
Video Description
Product Description

Automatic 12 ounces disposable coffee paper cup making machine

Model
HLD-C12

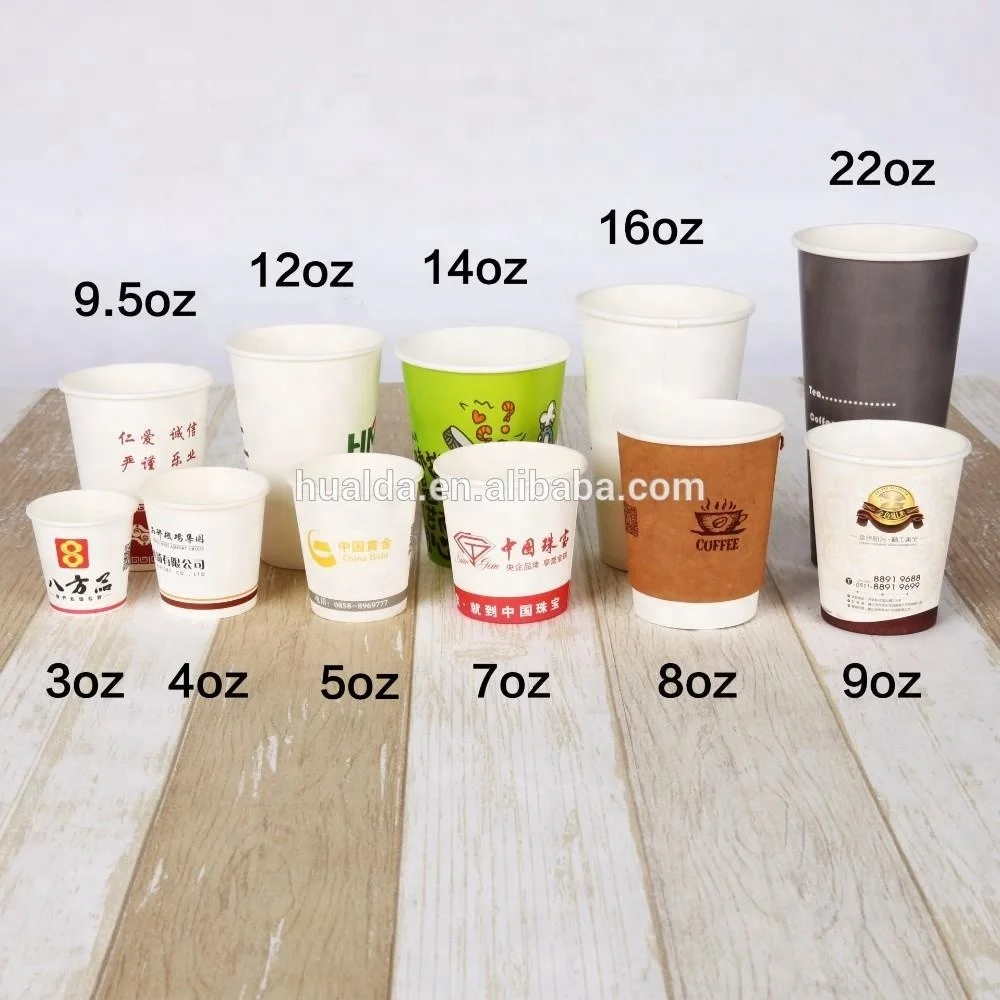

Paper cup size
2-12oz (adjustable mold)
Paper cup top diameter
45-104mm
Paper cup bottom diameter
35-75mm
Paper cup height
35-115mm
Forming paper cup speed
70-80pcs/min
Paper cup Material
180-350gsm
Main motor power
11kw
Power supply
380v/220v
Dimension
1880mm*1450mm*1900mm

Main Features

1. Paper cup bottom sealing by Leister Hot Air System.

2. Cup side sealing by ultrasonic system.

3. With our unique original designed bottom knurling system, single shaft, Korea type, this ensures the
low leaking ratio and high quality of paper cups.

4. Paper sucking system adopt the vacuum pump, big power and stable running.

5. With unique Open Cam design, the drive system is conducted by the stable gear system,
it would be more stable when machine running at a high speed.

6. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.

7. Every cam will be harden to ensure it can run for a long long time.

8. Machine is designed with double turning plate.

9. Equipped with automatic cup collecting stacking and counting system.

10. Bottom paper we have a special pre feeding system, so the bottom paper feeding is “0” waste.

11. Bottom is die cut and feed in to the finished cup body directly, so its more efficient and less
malfunctioning from bottom.

Application

The Machine Is Mainly Used to Produce Many Different Kinds Of Plastic Lids , Food Containers, Plastic Bowl, Plates , Toys Package, Food Trays , Hardward Trays, Medicine Trays and Etc.The Sheet Material Can Be HIPS, PVC, PET, PS.Custom Mould Is Welcomed.

Just CLICK the photo to check the details


Our Service


1 year machine quality warranty

24 hours online technical support, and online presale guide.

Oversea technician service is available, which will ensure you trouble free.

Welcome to contact us whenever you need us.

we are ready to offer you the best quality, best price and best service  for you!

Workshop
RFQ


1. Q: Are you a factory or trading company?

A: We are a factory .

2. Q: How does your factory do regarding quality control?

A: Quality is our Culture , We have passed CE certifate and we have a special QC department in charge of products' quality.

3. Q: How long is the warranty period ?

A: one year warranty .

4. Q: What's the main market of your company?

A: We have exported machines to Canada, Spain, Brazil, Russia, Korea, Vietnam, Philippines, Thailand, Indonesia, U.A.E,

Algeria, Syria, Pakistan, Iran, Saudi Arabia, Africa, South America and etc

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: Can we see the machine operation in your factory?

A: Yes , We can arrange to run the machines when you come to visit our factory.

7. Q: How to reach our factory?

A: Wenzhou Airport to our factory , about 50mins ; Ruian Train Station to our factory , about 15mins.

8. Q: How about After-sale service?

A: Engineers available to service machinery overseas and training how to install & run the machine.
