Automatic fish meal/power/oil making machine with CE approval

FOB Reference Price:Get Latest Price
$10,000.00 - $29,999.00 / Sets | 1 Set/Sets Automatic fish meal/power/oil making machine with CE approval (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
FISH MEAL MAKING MACHINE
Automatic Grade:
Automatic
Production Capacity:
200-400kg/h
Place of Origin:
Henan, China (Mainland)
Brand Name:
PAND
Model Number:
PD-YF-3
Voltage:
220/380V
Power(W):
22kw
Dimension(L*W*H):
1100x1300x1200mm
Weight:
4200kg
Certification:
ISO CE
Name:
Automatic fish meal/power/oil making machine with CE approval
Function:
Making fish meal
Material:
Stainless Steel, carbon steel
Advantage:
Easy Operation
Capacity:
300kg/h
Use for:
fish, shrimp
final product:
fish meal, fish oil
Usage:
Fish processing amchine
Application:
Fish oil extracting
Item:
Automatic fish meal/power/oil making machine with CE approval
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
9999 Set/Sets per Year Automatic fish meal/power/oil making machine with CE approval
Packaging & Delivery
Packaging Details
Automatic fish meal/power/oil making machine with CE approval
in film
Port
Shanghai, ningbo, qingdao, etc
Lead Time :
in 10 days Automatic fish meal/power/oil making machine
Product Description
Automatic fish meal/power/oil making machine with CE approval
Total size
4m*2m*4.5m
Processing capacity
2000kg/day fresh fish
Process time
6times/24hours
Heating type
320#conduction oil,using tempreture is150-260°C
Total power
45.6kw
Shipping type
one 20 container
Recommend working area
20m2(4*5m),with height about 5m
Final products
400-500kg Defatted Fish MealMoisture≤12%

Description of Automatic fish meal/power/oil making machine with CE approval

Mini Integrated Fish Meal Machine is designed for small capacity fish meal plant like 500kg-5000kg per day. Machines could operate automatically and efficiently.By using conducting oil as thermal carrier, through the electric heating method, customers would save the investment of buying steam boiler which is usually needed for fish meal plant.
Our machines are very suitable for fish processing plant that would have fish offal like fish head, fish bone, fish skin, etc.
Besides, our machines are widely used in some islands, fishing piers when the fish capacity is not big.

Process of Automatic fish meal/power/oil making machine with CE approval

Raw material will be cooked by cooking machine first, and then it will be delivered to pressing machine where the liquid and solid will be separated.
The solid which we get from pressing machine will be sent to drying machine. After drying, we will get dry fish meal.
The liquid which we get from pressing machine will be sent to fish oil processing line. After processing, we will get fish oil.

Detailed Images

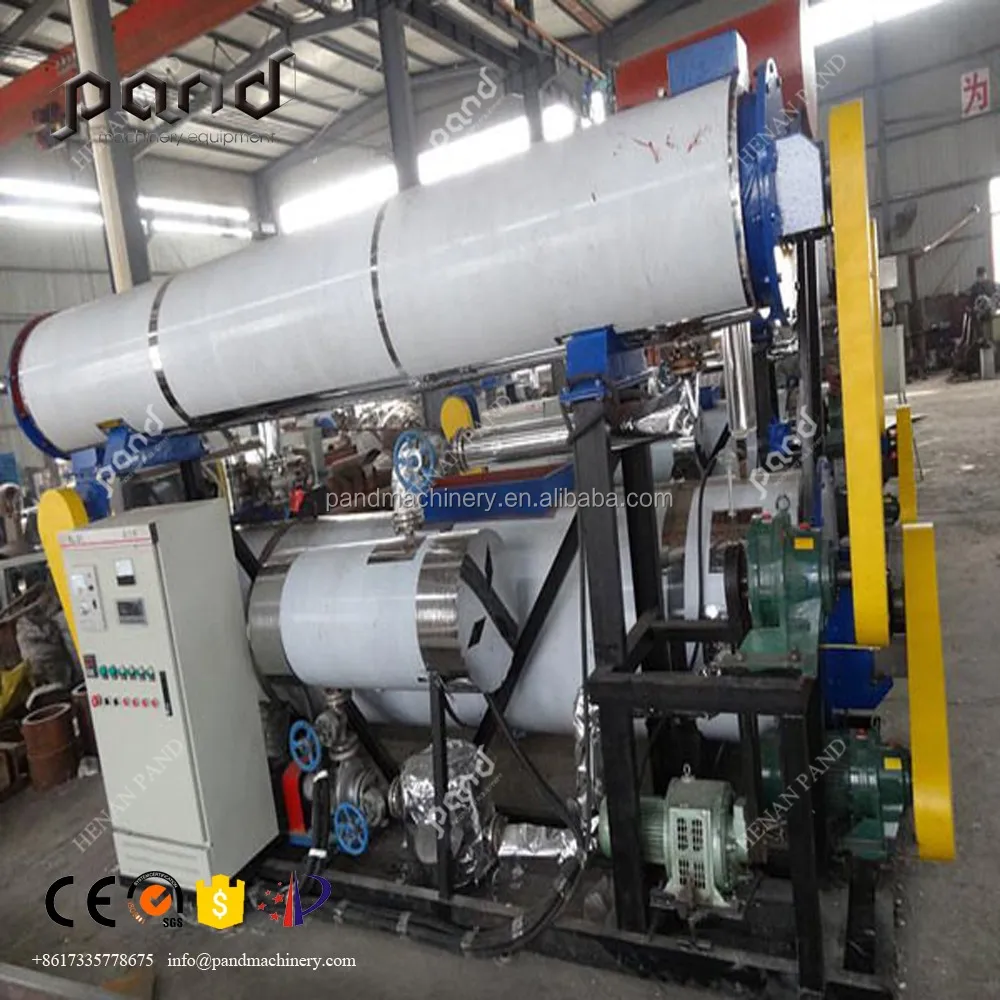

Equipment list of Automatic fish meal/power/oil making machine with CE approval

1. Screw conveyor φ170×4000 equipped with reducer 1 set, made of SUS304
2. Electrical cooker φ377×3500
    material of outer heat preservation made of SUS430,thickness: 0.7mm;
    inner and outer cylinder made of Q235B;
   driving power: 1.5kw (speed adjusted by magnetization).
3. Screw press φ219×1000
    outer cover made of SUS430,thickness 0.7mm;

    seive mesh applied SUS304;
   driving power: 1.5kw.
4. Dryer φ820×3500
    inner and outer cylinder made of Q235B;
    preservation made of SUS430, thickness 0.7mm;
    driving power: 4kw, V=30r/min;
5. Thermal oil pump driving power:1.5kw
6. Electric control box

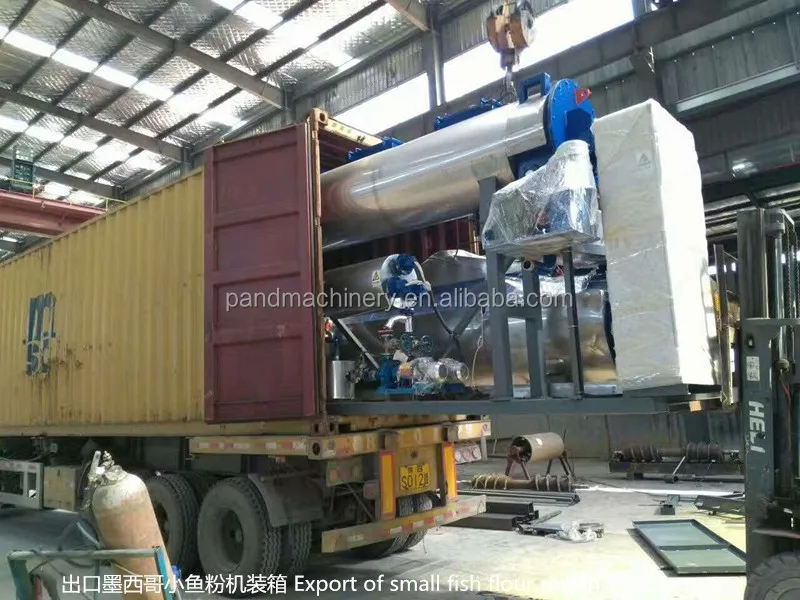

Packing & Delivery

Automatic fish meal/power/oil making machine with CE approval


1. about 10 days after receiving the deposit.

2. need a 20gp.

Certifications

Automatic fish meal/power/oil making machine with CE approval

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Automatic fish meal/power/oil making machine with CE approval

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Automatic fish meal/power/oil making machine with CE approval

Contact

Name: Jean Yang

Tel&Whatsapp&Wechat&Skype: + 86 17335778675

QQ: 2170797006

Automatic fish meal/power/oil making machine with CE approval from China

Related Products

Steel bar cutter

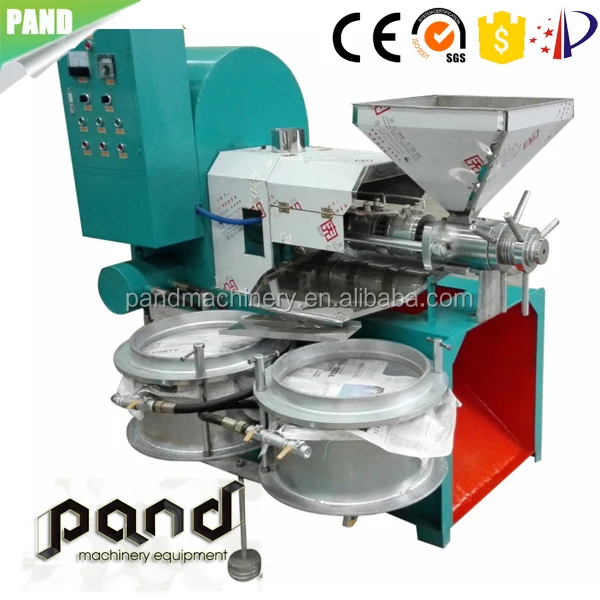

Oil press

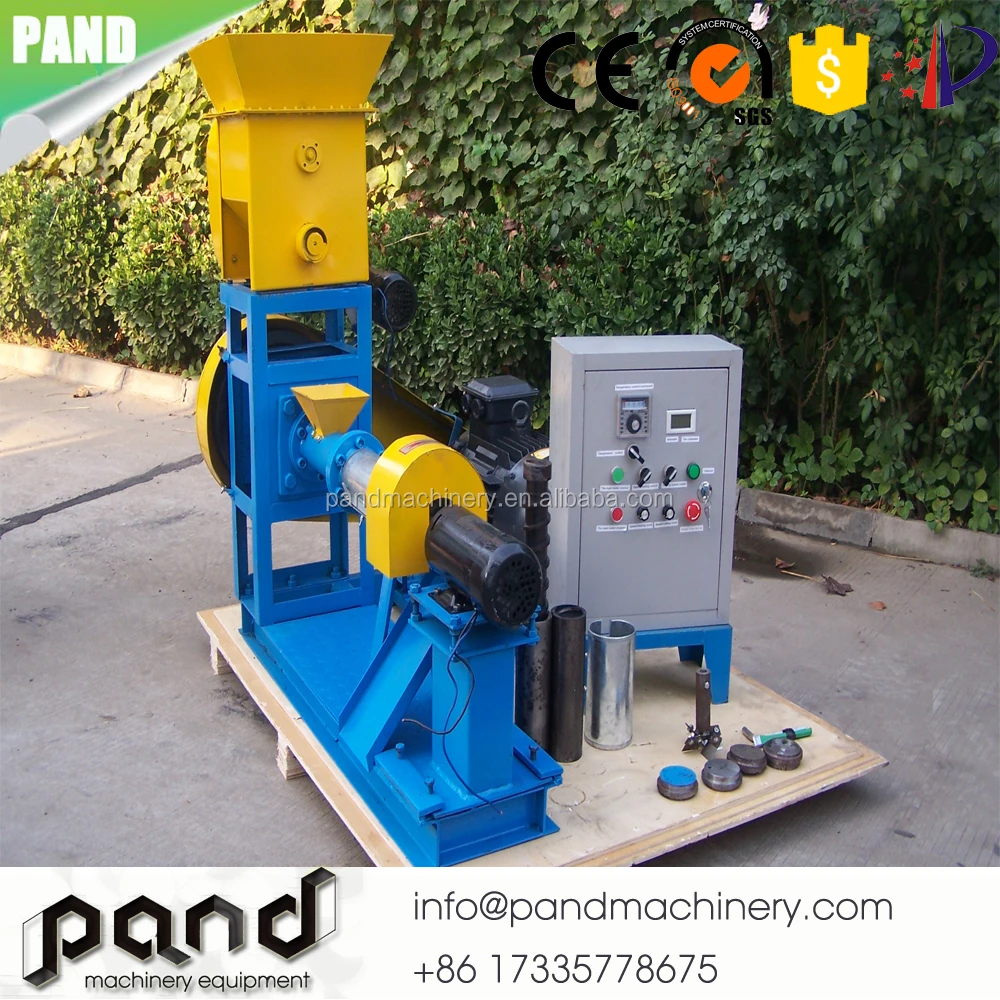

Pellet machine

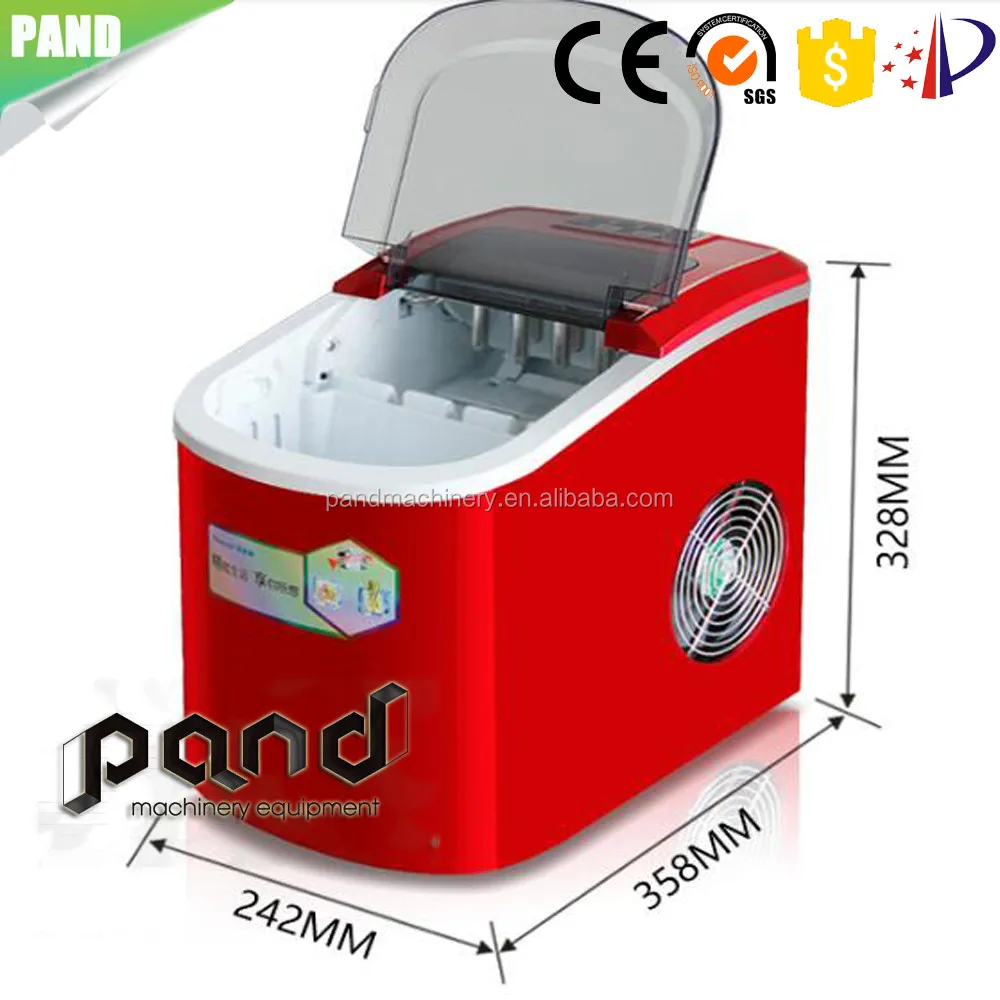

Ice maker

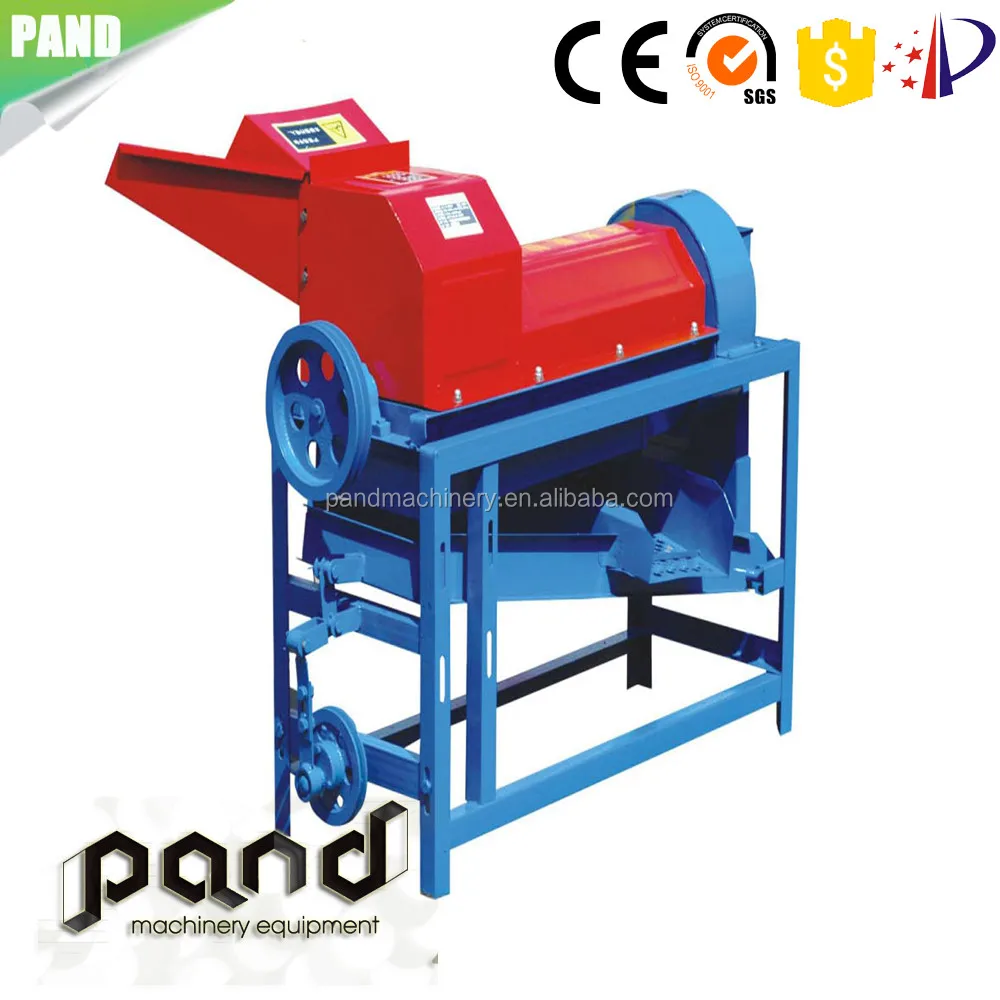

Sheller
