Automatic five gallon Drinking Mineral Water Bottle Filling Machine Liquid filling machine

FOB Reference Price:Get Latest Price
$8,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
6kw
Model Number:
TXG-600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 2 years
Packaging Type:
Barrel
Packaging Material:
Plastic
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
U Tech
Dimension(L*W*H):
5.9m*1.5*1.8m
Weight:
2500kg
Certification:
CE,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
3-5gallon barrel water filling machine
Model:
TXG-600
Capacity:
600BPH
Bottle type:
PET,Plastic
Filling volume:
3gallon-5gallon
Material:
SUS304/316
Function:
5gallon barrel washing filling capping
Filling material:
pure drinking water
Processing:
Washing-filling-capping Mono-block
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case for 5 gallon barrel water washing filling capping production line
Port
shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description
Automatic 5 gallon barrel water washing filling capping production line machine price/pure water bottling plant cost

Introduction

This TXG series barreled water fiiling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon.And different models can offer production capacity from 100 to 2000B/H.The whole production process operates as follows:Empty barrel are conveyed into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal bursh washing machine to take all-round ringsing with hot alkali and pure water.After ringsed,barrel will be sent to ringsing filling capping machine,where bottles are ringsed inside with hot alkali,disinfectant liquid and pure water.and then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.

Outside Washing Parts

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

Inside Washing Parts

using three steps to make the barrel inside clean. hot alkali-----disinfectant liquid-----pure water

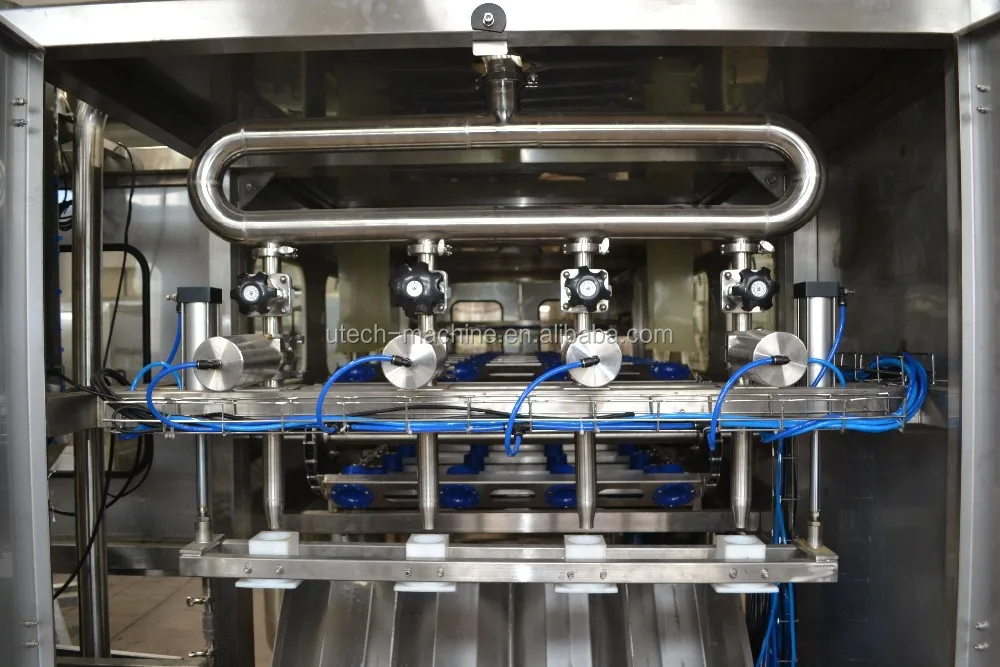

Filling Parts

1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Parts

1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

Advantages

1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.

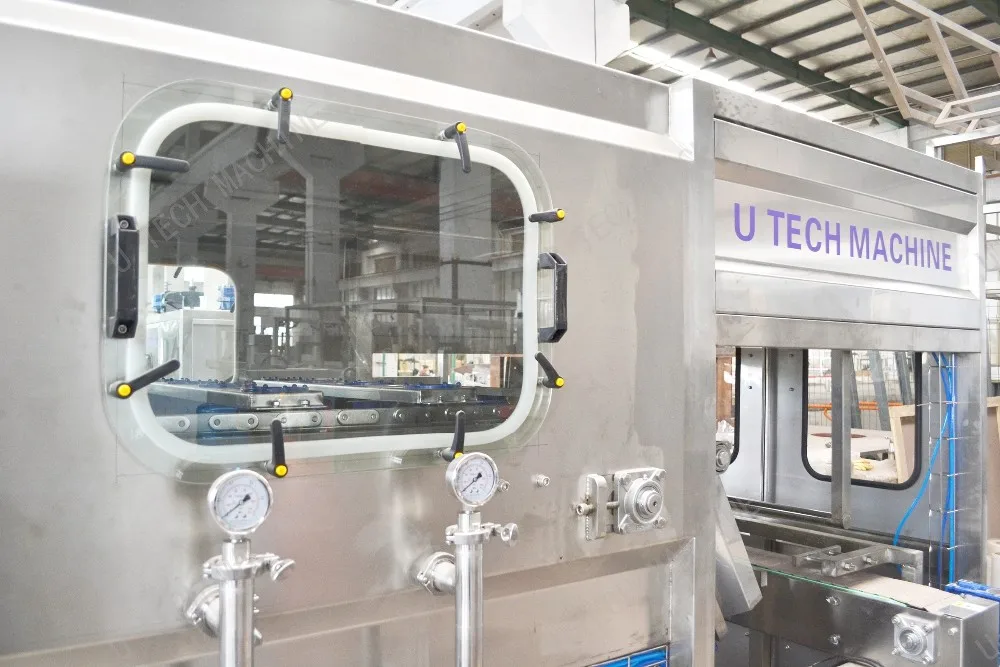

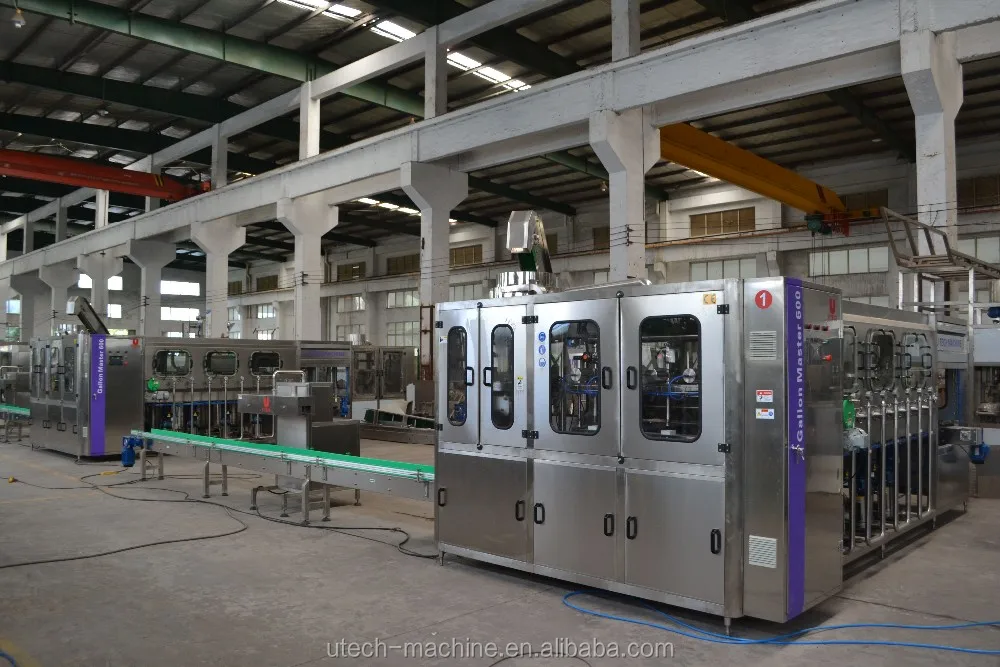

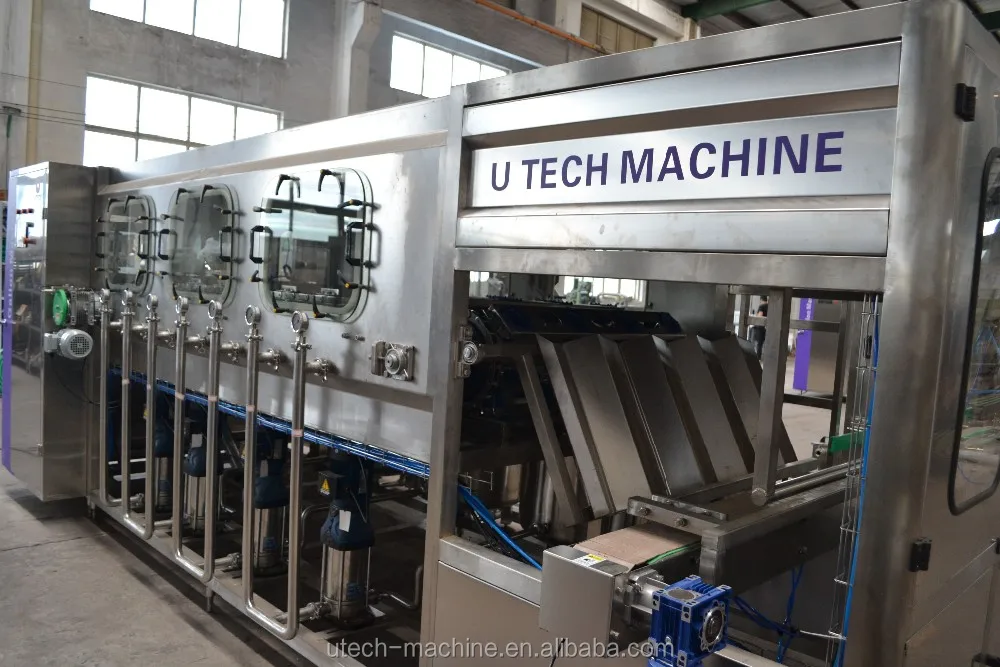

Machine Pictures Show


Technical Parameters


Model
TXG-100
TXG-150
TXG-300
TXG-450
TXG-600
TXG-900
TXG-1200
TXG-1500
TXG-2000
Working position ,filling heads,
capping heads


3,1,1


5,1,1


7,2,1


9,3,1


11,4,1


13,8,1


15,10,1


17,12,1


21,15,1
Capacity
(5gallon)
100bph
150bph
300bph
450bph
600bph
900bph
1200bph
1500bph
2000
bph
bottle specifications (mm)
3gallon-5gallon

D=265-273mm H=150-360mm
Main motor power(kw)

1.41

1.5

6

30

32

35

40

45

52
Related Products

Automatic 5 gallon barrel water washing filling capping production line machine price/pure water bottling plant cost

5 Gallon Water Production Line

1.Water Treatment System

The company's Water Treatment  System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.

Water Treatment Flow Chart

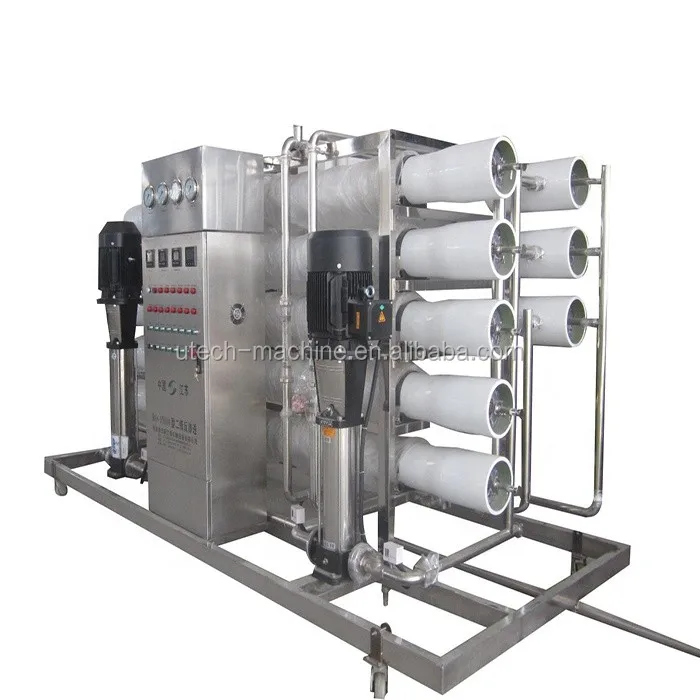

RO Water Purifier

The RO water purifier system adopts the most advanced American RO assembles and with a preset systerm. It enables the water to pass the reverse osmosis film with a diameter of one ten-thousand of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics, pharmacy, electronics and food industries.

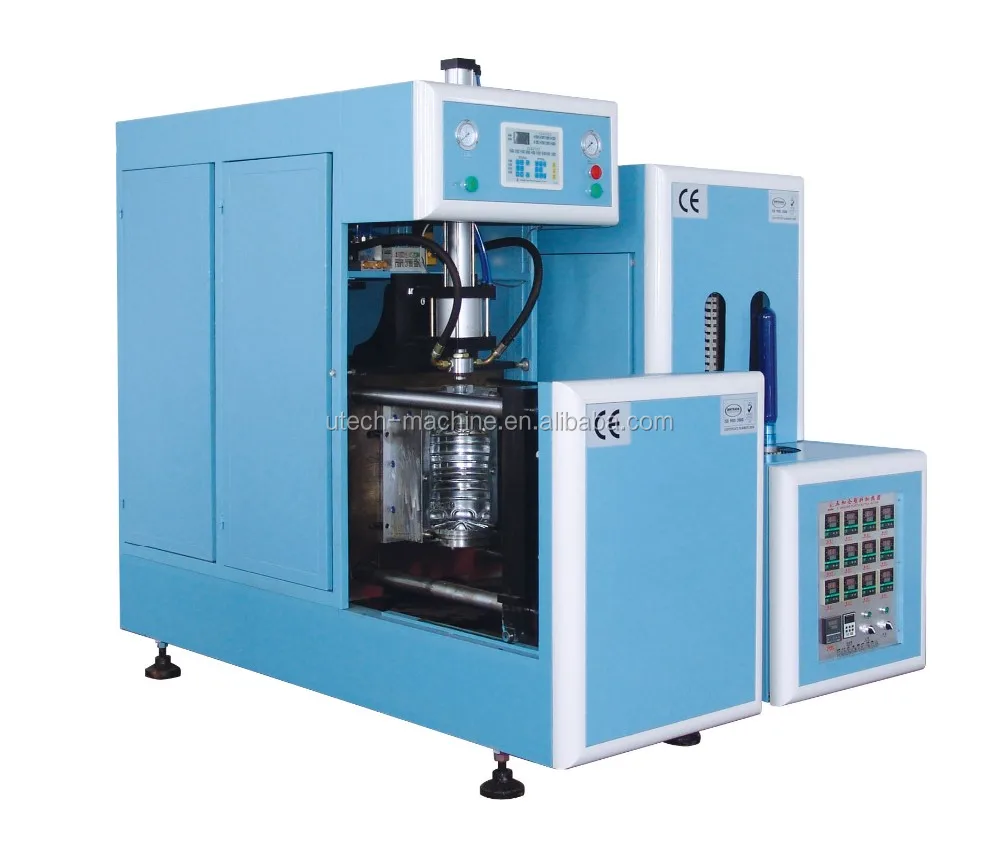

2. 5 gallon Barrel Blow Molding Machine

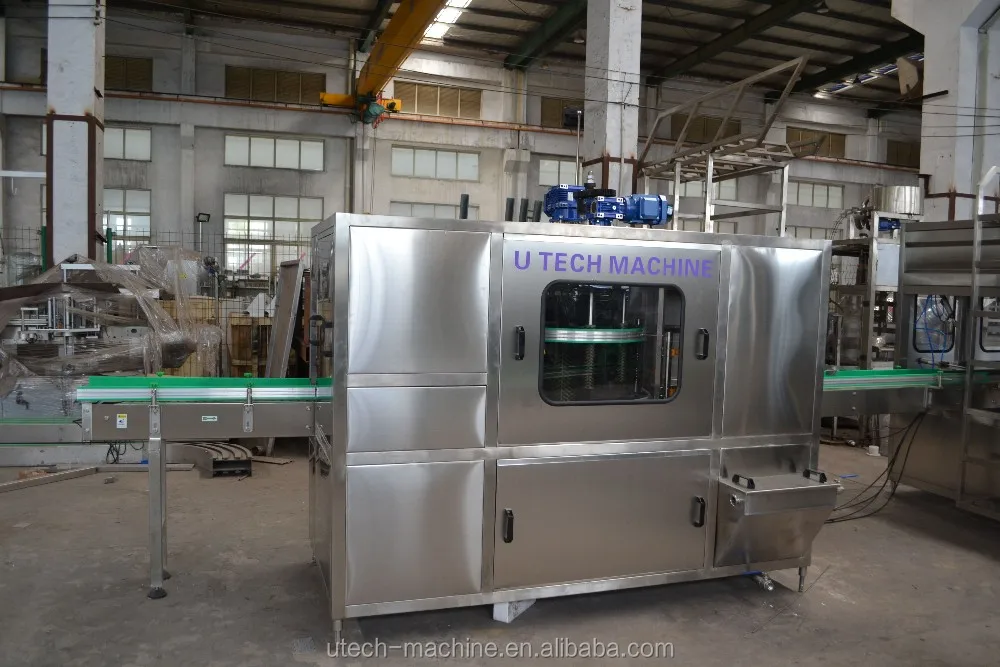

3.Barrel Outside Brush Machine


4.Steem Heating Shrink Tunnel


About U-TECH

Automatic 5 gallon barrel water washing filling capping production line machine price/pure water bottling plant cost

Company profile

Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.

Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.



Our customer


Our Service

Automatic 5 gallon barrel water washing filling capping production line machine price/pure water bottling plant cost

Before order service

We will according to your requirement make details quotation for you.

We can send you some our machine running video similar to your product.

If you come to china,we can pick you up from airport or station near our city.

After order service

We will start to make machine,and take some picture by 10 days of our production process.

Our engineer can design the layout according to your requirement.

We will supply commission service if customer need.

After-sales service

We will testing machine ,and take some video and picture to you if u not come to china inspect machine.

After testing machine we will packing machine ,and delievery container on time.

We can send our engineer to you country help you install and testing machine.we can training you technical until they can running machine independent.

Our company will give you all machine with 2 years guarantee.in 2 years you can get all spare parts free from us.we can send you by express.

Certifications
FAQ

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory, can give u best service .


Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years


Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.


Q4:How can I install my machine when it arrives?

A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.


Q5:How about the spare parts?

A5:After we deal down all the things , we will offer you a spare parts list for your reference.
