Automatic hot filler Fruit Juice filling packing machine Juice bottling production line Juice Filling Capping machine

  • 1-2 Sets
    $250,000.00
  • >=3 Sets
    $230,000.00
Power:
7.5 kw
Model Number:
XGF 50-50-15
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $530.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $530.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Cans, Bottles, Bags, Pouch
Packaging Material:
Plastic, Metal, Glass
Type:
Filling Machine
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
China
Brand Name:
Higee
Voltage:
380 v 50 hz 3 phase
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel
Weight:
8000 kg, 10 ton
Automatic Grade:
Automatic
Certification:
CE ,ISO 9001
Driven Type:
Electric
Dimension(L*W*H):
3100 * 2100 * 2100 mm
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Name:
Automatic juice filling and bottling machine
Model:
XGF 50-50-15
Washing head:
50
Filling head:
50
Capping head:
15
Bottle type:
Glass bottle PET ,CAN
Bottle capacity:
500 ml 1000 ml 1500 ml 2L
Filling speed:
8000 BPH
keywords:
automatic juice filling capping packing line
Product Certification certification
CE Certified.
Valid from 2018-01-18 until 2023-01-17

Packaging & Delivery

Selling Units:
Single item
Single package size:
319X210X210 cm
Single gross weight:
100000.0 kg
Package Type:
Wood case for juice filling machine ,liquid filling machine
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

Automatic Fruit Juice filling machine/Juice packing machine

Juice bottling production line/Juice Filling Capping machine



juice filling packing  (1).png



juice filling 750 (2)juice filling 750 (9)juice filling 750 (4)



Application:

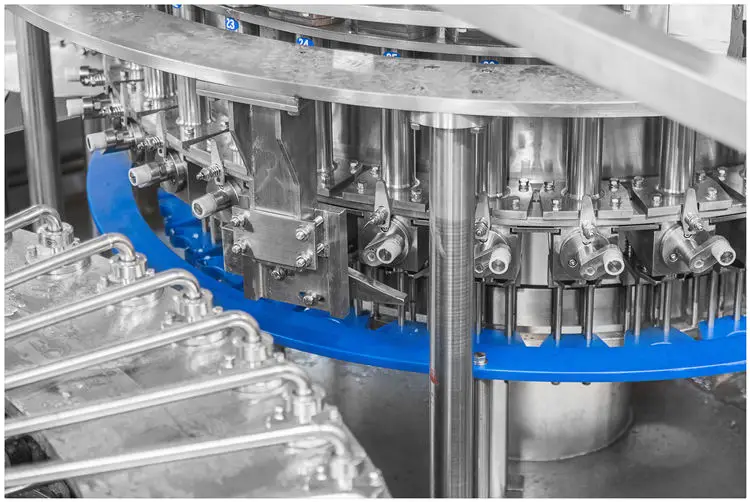

These series drinking juice filling machine integrates bottle washing, water filling and capping into one monobloc, and the three processes are carried out full automatically. It is used in the filling of juice such like apple juice ,mango juice ,orange juice ,pineapple juice  Banana juice Cherry tomato juice Lemon juice etc ,coffee ,tea , and other non-carbonated beverage. For electricial elements, we use Mitsubishi, Omron, Schneider, Airtac, etc. which are famouse brand and with assured quality. Each machine element that contacts with the liquid is made of high quality stainless steel. The quality reaches the international advanced level. It is the best choice for new and old beverage production line investors



Features:



1. This juice filling machine has a compact structure,perfect control system,easy to operate and highly automated.

2. The parts contact with filling machine  is made of quality SUS, anti-corrosive, and easy to clean.

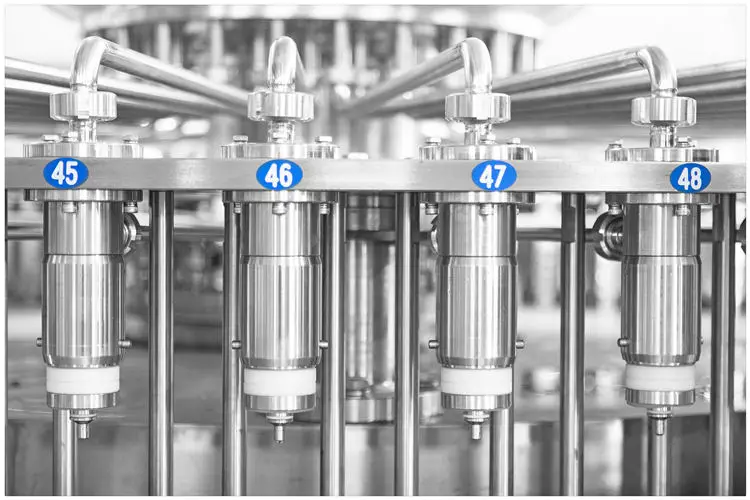

3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

4.Only by changing the bottle block, star-wheel, can realize to fill the changed bottle shape.

5. The filling machine adopts perfect overload protective device can ensure the operator and machine safe.

6. This machine adopts frequency converter, which can adjust the capacity suitably.

7. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

8.The control system has many functions, such as control producing speed, and production counting etc.

9.The electric components and pneumatic components are all introduced from world famous brand products.



Technical Specification:



Model                     CGF50-50-15

Washing head

50

Filling head

50

Capping head

15

Production capacity

8000BPH@500ml

Air source pressure

0.5-0.6MPa

Rinsing water pressure

0.15-0.2 MPa

Bottle height

150-340MM

Bottle diameter

Φ50-Φ110MM

Power

3ph, 380V/50Hz,7.45KW

Weight

100000Kg



Company Introduction



Higee Machinery

                                         -- Filling Capping Labeling solution expert provider!



Higee Machinery(Shanghai) Co., Ltd. is an industry-leading manufacturer of automatic filling, capping, labeling and packaging machinery. We have an experienced research and development team that specializes in customized solutions. Our factory builds its machines under the strict accordance of ISO 9001 and CE quality management system.



Our professional team provides clients with comprehensive tailored solutions for all kinds of beverage filling machinery with mature technique and first-class quality. More than 60% of our machines are exported globally to 52 countries.



Our Beverage Line including:

Water treatment system,

Water rinsing, filling and capping machine

Beverage preparation system

Drinks and Beverage 3 in 1 filling line

Juice hot filling machine

Beer filling machine

wine/liquor filling machine

other liquid filling machine

Pasteurization system

Blow moulding machine



Labeling and packing machine including:

Sticker Labeling machine

Hot glue labeling machine

cold glue labeling machine

Shrink sleeve wrapping machine

Plastic film wrapping machine

Sealing machine

Packaging machine
