Automatic maxi roll toilet tissue paper making machine

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XY-TQ-1575B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Toilet Tissue
Processing Type:
Paper Slitting and Rewinding Machine
Power(W):
4-10 KW
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Applicable Industries:
Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Xinyun
Voltage:
380V 50HZ
Dimension(L*W*H):
6200X2750X1800mm
Weight:
4.2T
Certification:
CE
Production Capacity:
230m/min
Machine for:
Automatic maxi roll toilet tissue paper making machine
High speed:
150-230 meter/minute
Width of Jumbo Roll:
1.2m---2.8m
Embossing Roll:
Steel to Rubber
Embossing pattern:
Full or edge embossing
Automatic Function:
Embossing--Perforating--Tail gluing--Edge Trimming--Rewinding
Option:
Color printing or as per request
Best selling:
Low price and easy operation
Machine design:
Customized service
Color:
milky
Supply Ability
Supply Ability:
500 Set/Sets per Year China toilet tissue paper making machine
Packaging & Delivery
Packaging Details
Automatic maxi roll toilet tissue paper making machine
will be separated into two parts and packed in Standard Export Packing Wooden Case
1x40 foot container
Port
Xiamen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 To be negotiated
Product Description

Hot selling toilet paper rewinding machine


XY-TQ-B


Outline

XY-TQ-B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 140-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

This equipment can process raw paper of 1.3m(1092B type) in width. There are two types of this model: one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.

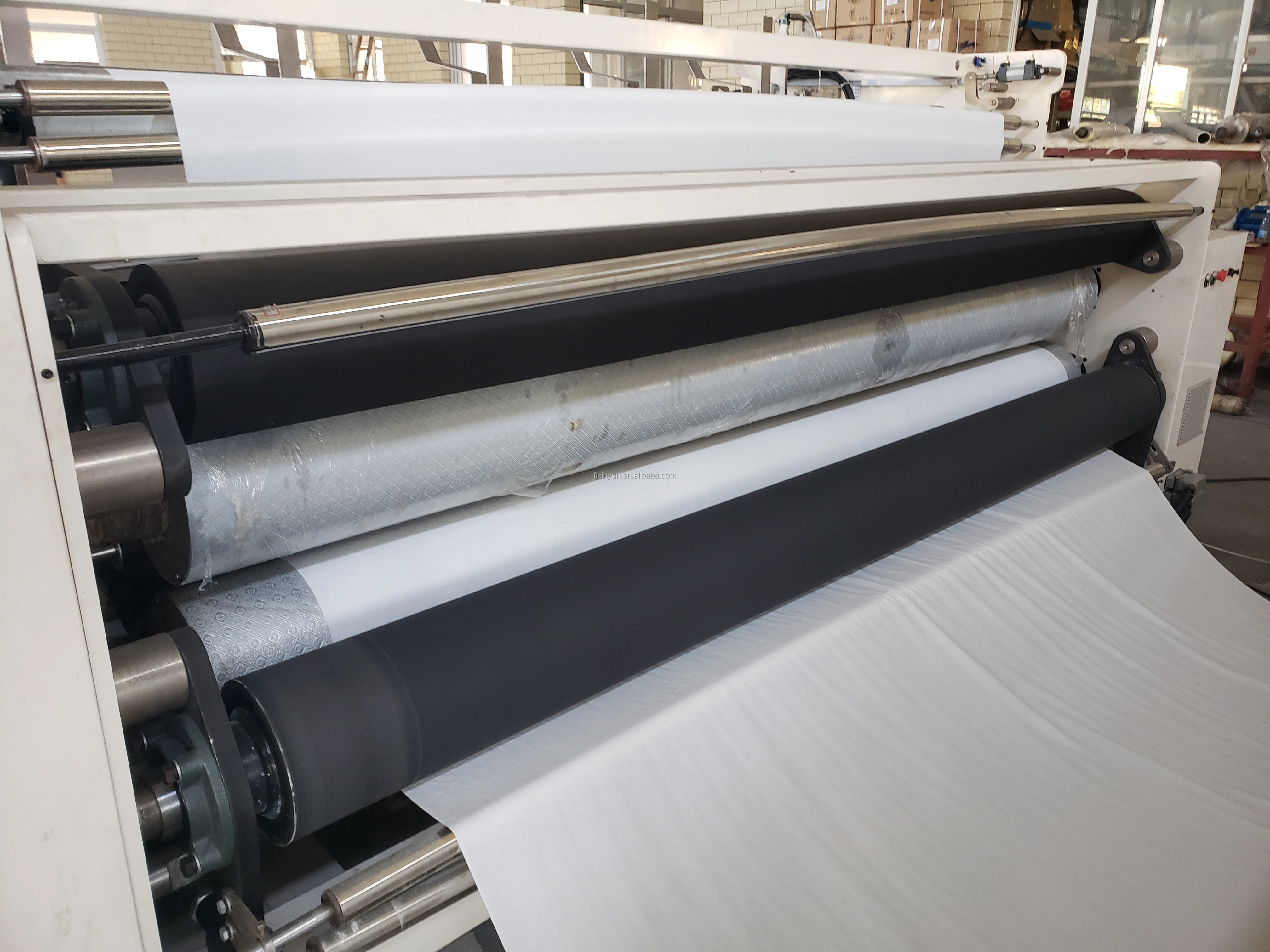

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system. The production process is : unreeling -→ embossing -→perforating-→furl-→slitting.

Function and characteristic

1.This model is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.

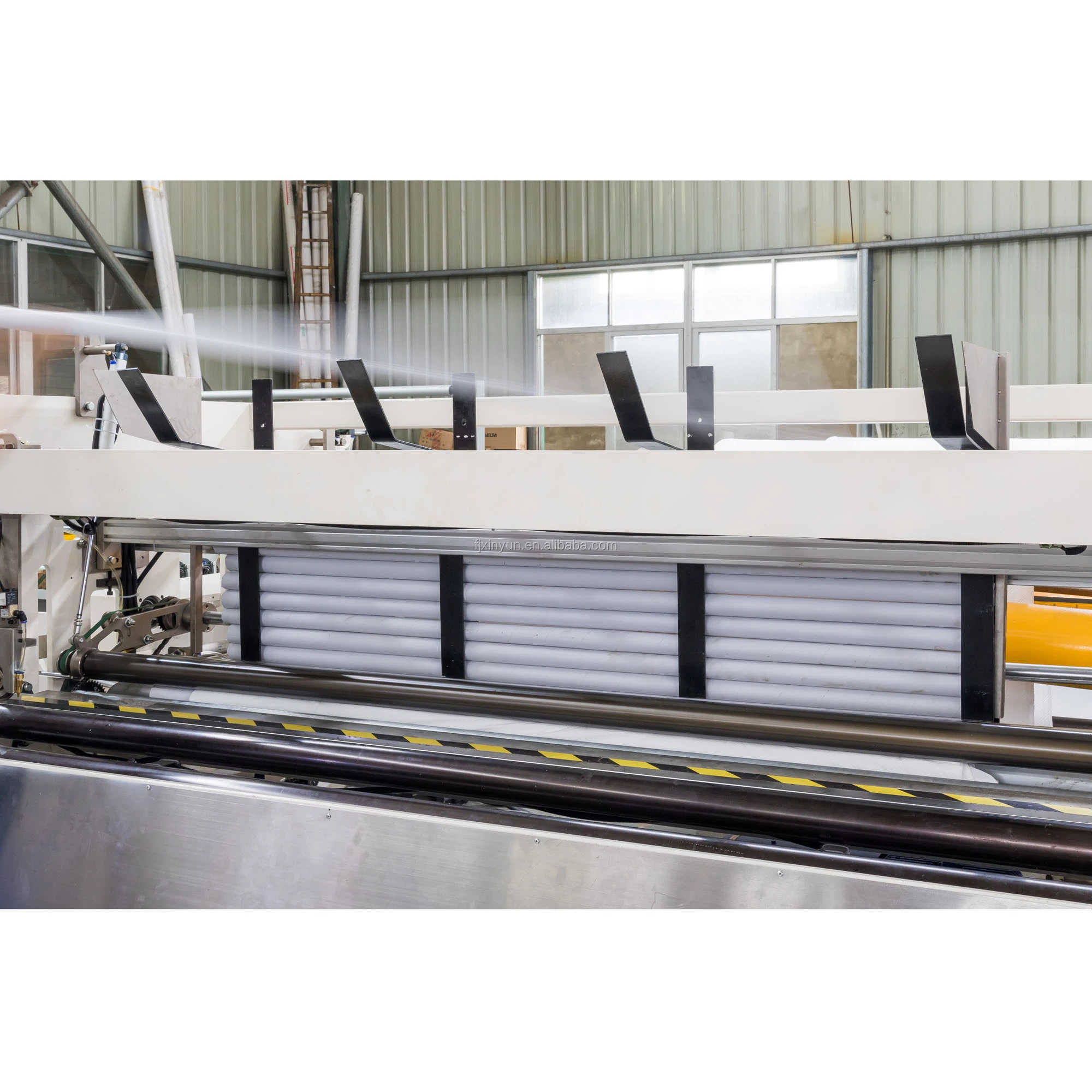

2.It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.

3.When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.

4.Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.

5.Automatic alarm for breaking off of paper.

6.Equipped separate tension control for each unwinding jumbo roll.

7.It is convenient to change the feature to produce any other core pipe winding.

8.Left paper remind after sealing of product for convenient use.

9.Jumbo roll stand is installed by pneumatic.

Technical parameter

Production speed
0-180m /min
Power of equipment
5.5kw (380v,50/60hz)
Maximum diameter of rewinding
130mm
Overall size(mm)
5800X1850X1900 (LxWxH)
Weight
About3.2T
Specification of raw paper
Width of raw paper
1000MM-1200MM
Diameter of raw paper
700mm-1200mm
Thickness of raw paper
14g/,m2-20g/ m2
Diameter of paper core
76mm
Detailed Images
Related Products

Automatic toilet paper production line


XY-AI-280

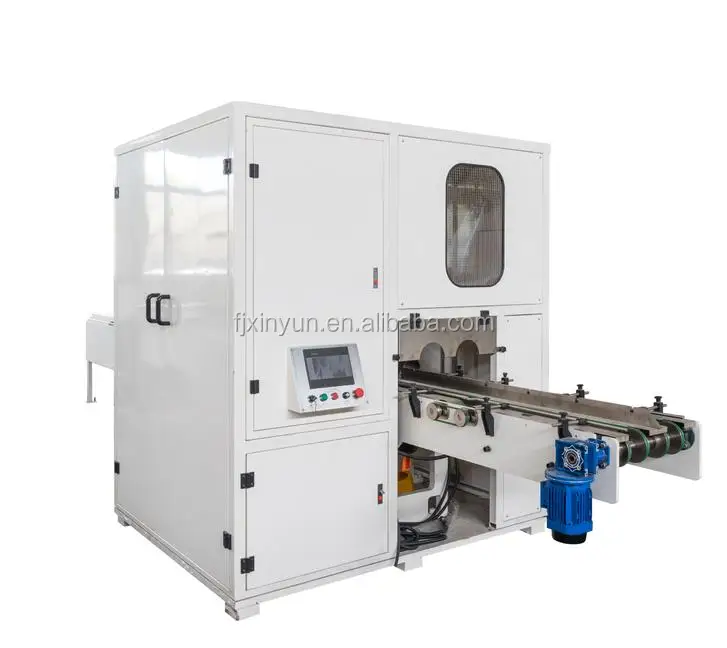

Automatic toilet paper roll cutting machine

XY-AI-398

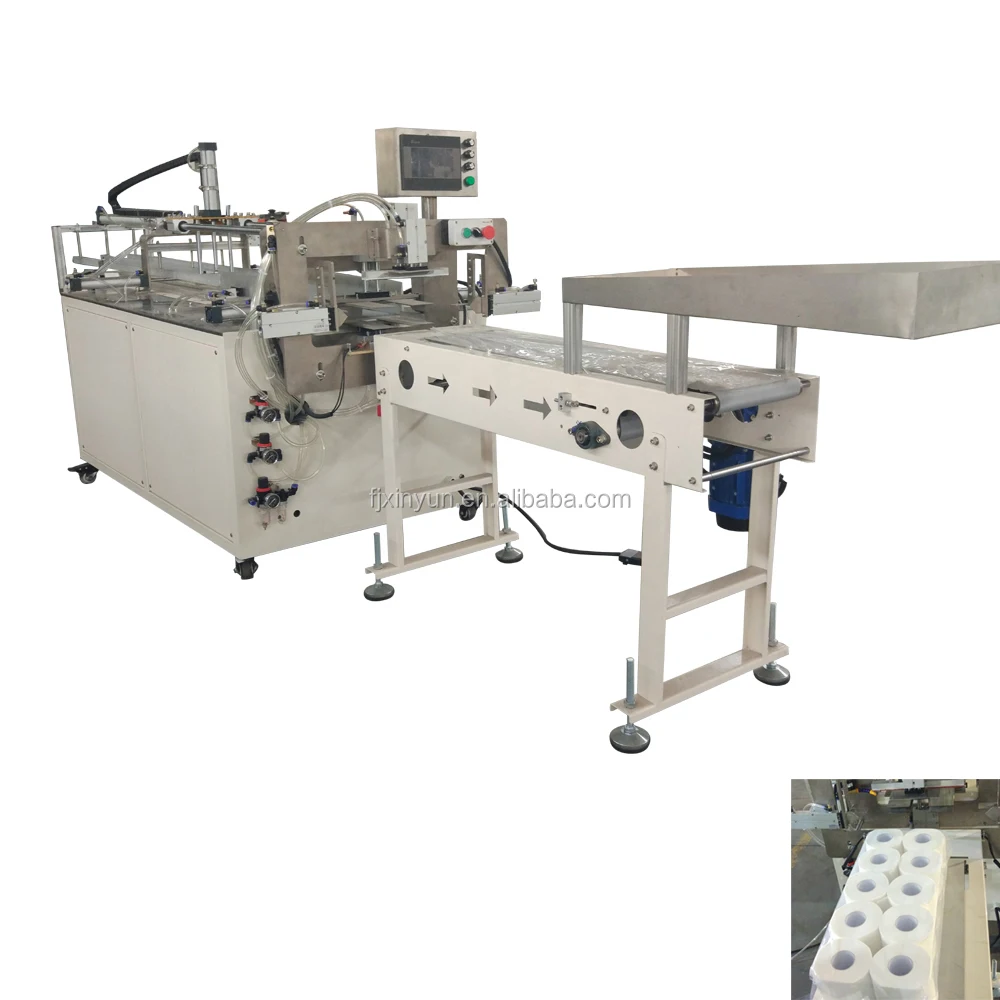

Semi-automatic Multi rolls Packaging Machine

Packing & Delivery
FAQ

1.What can i get during I buy the paper mahine from your coropration?
first of all,we will provide best serves sincerelly to our customer ,then we'll offer the good quality paper machine with resonable prices to you
second The prices are clearly and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.

2.How long dose it take freight transport to finaly destination from city ?
Reguarlly !The freight transport it would takes time about 1-60 days.

3.Is there have any engineers to instruct me to how to operate machine ?
Of cause! I'll send a professional engineer to instruct your wokers how to operate and maintain the machine in your local factory!

4.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Our Company


Fujian Xinyun Machinery Development Co.,Ltd

We are a Corporation What Good at

Paper Converting Machinery

Manufacture.


Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.e etc.
