pipe punching machine
Steel Metal Punching
Hydraulic Prsee Work
Packaging & Delivery
Single package size:
Single gross weight:
1 - 5
To be negotiated

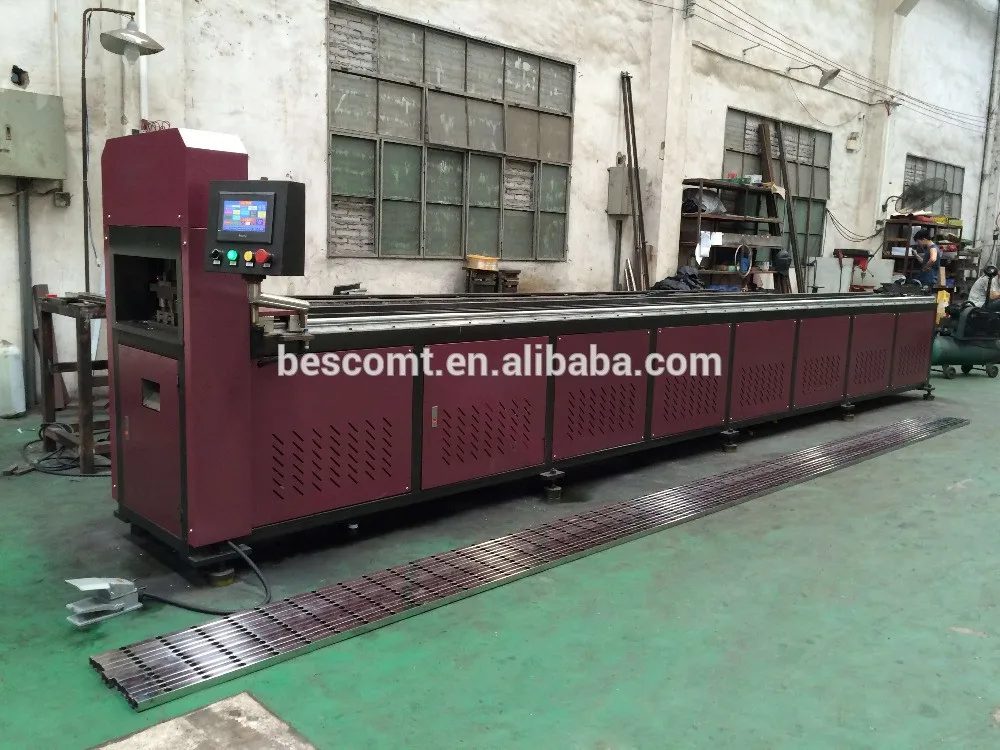

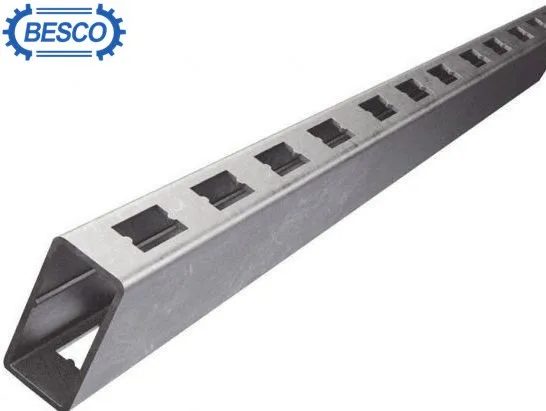

Fully automatic CNC pipe punching machine, the main parts adopt imported and domestic high-end components manufacturing, automatic feed and return the whole machine adopts high precision servo motor control material, through the touch screen interface to set parameters and switching operation, simple operation, suitable for metal pipe punching, and metal processing, one can also blunt two same tubing or two with hole is apart from the different kinds of pipes, pitch can be arbitrary set, adjustment, high precision.Adjustable single face and double face, is the current pipe punching industry advanced CNC punch.
Single line, Double line
Processing catagory set :
Single punch, not equidistant punching, equidistant punching rotary 360 degree ( can be customized )
Diameter and thickness of punching processing :
Φ 50 × t 3 --- Φ 40 × t 12mm
Punching hole distance :
0.1mm - 11900mm
Punching speed :
0.8-1.5 secound/ per hole, max 180mm stroke.
Maximum punching distance :
12000mm ( can be customized )
Standard length of processing :
12000mm ( can be customized )
Transmiss parts :
flock and pinion drive, ball screw drive

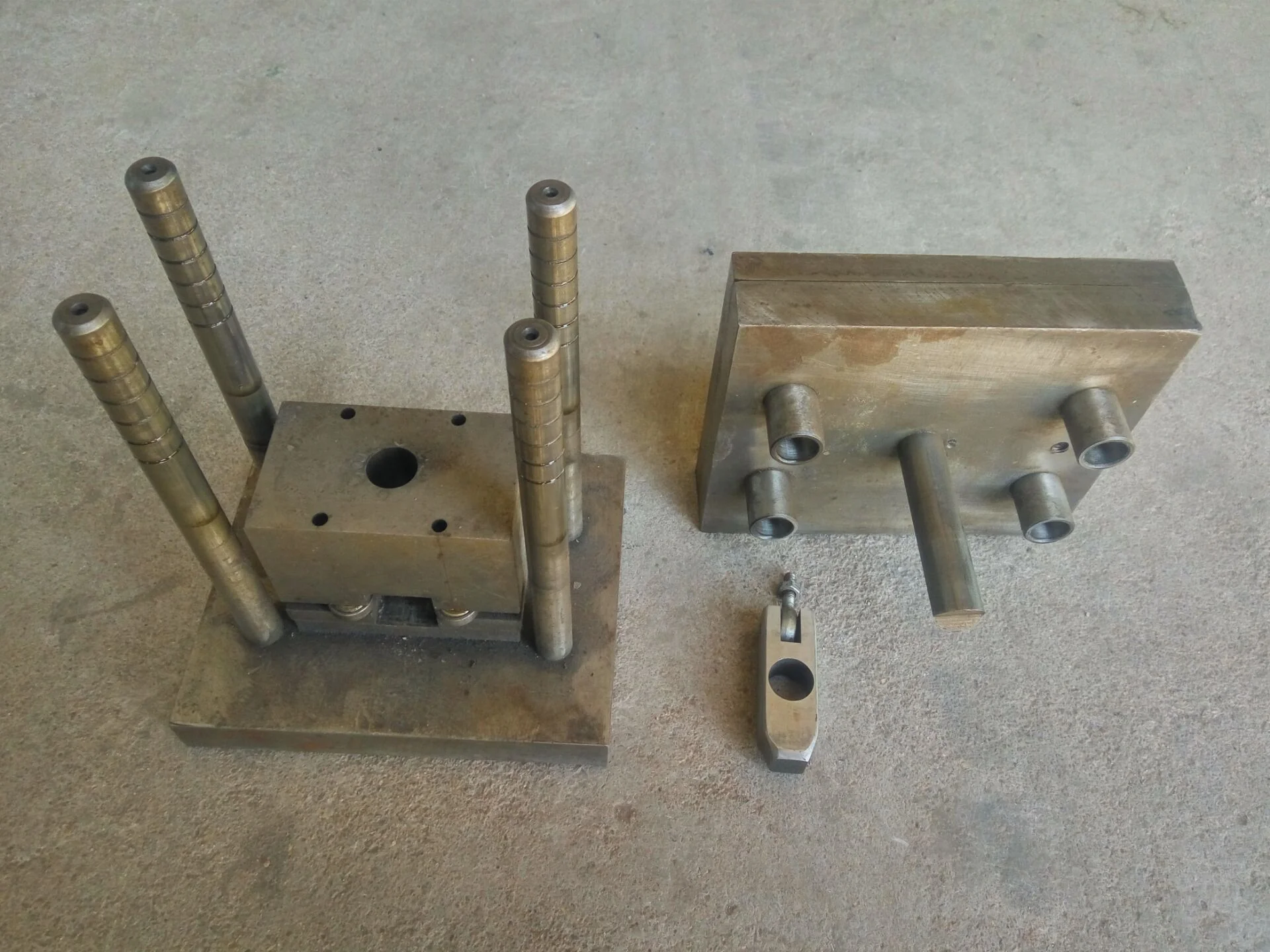

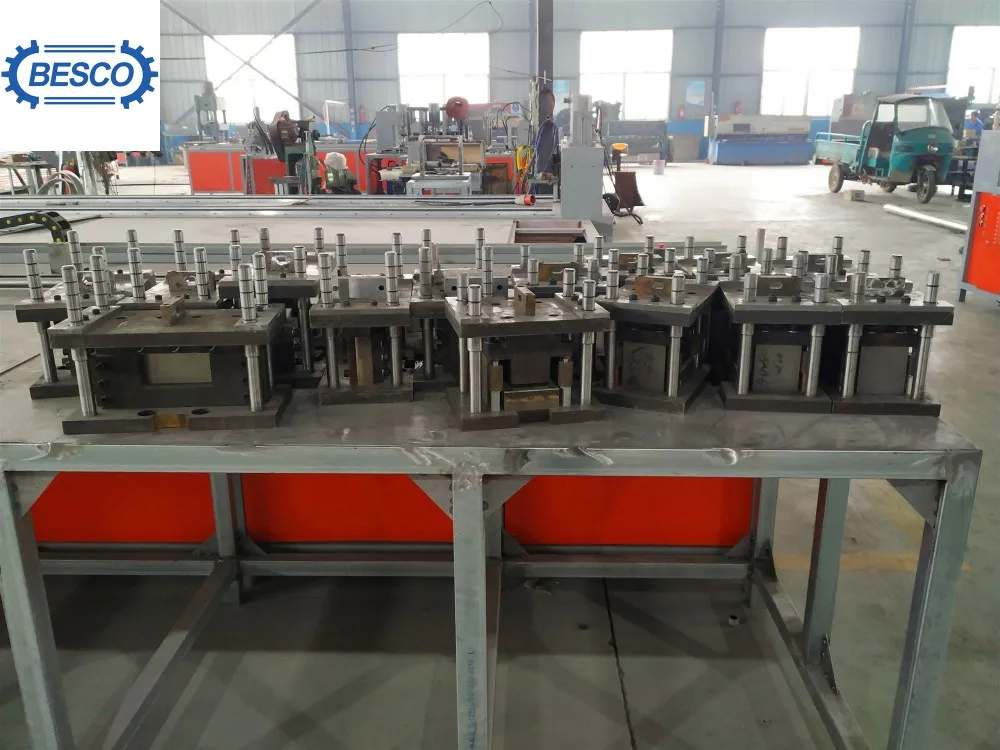

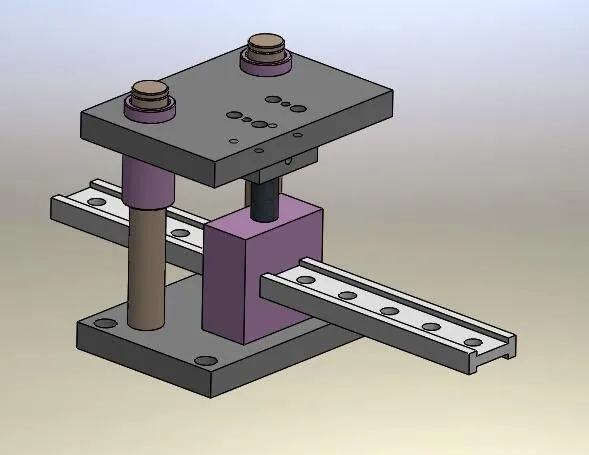

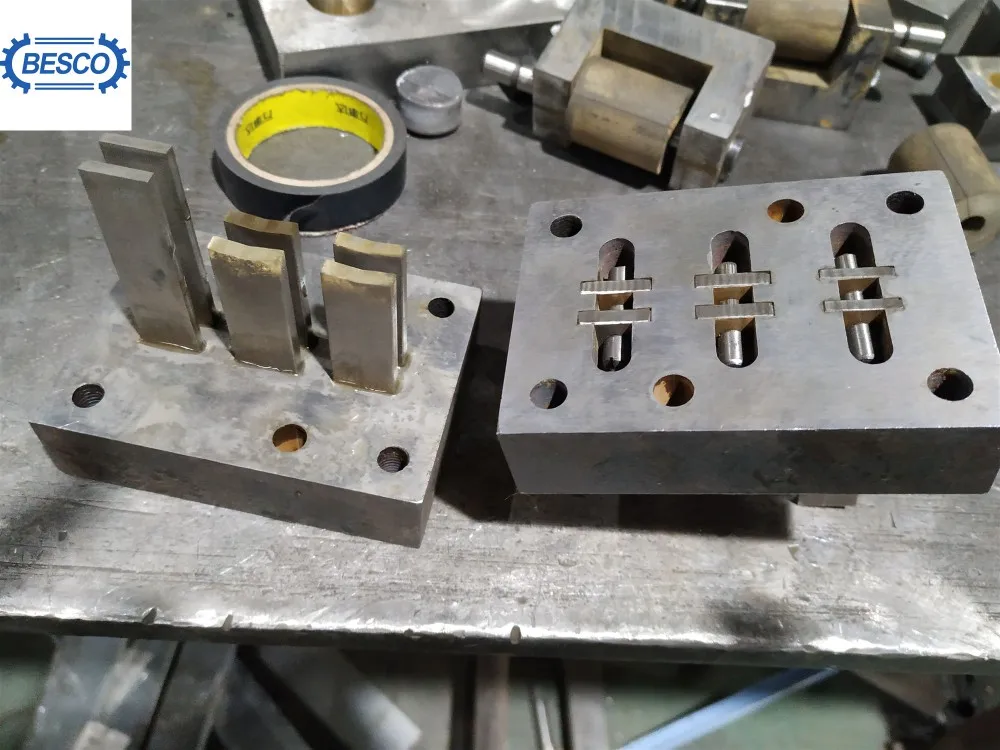

1.Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function. 2. Structure:Steel plate welded structure 3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes. 4. Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching. 5. Hydraulic and Servo System. 6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
* Technical solution * Online video authentication machine work. * Cutting samples provided by Business express
* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training.
Packing & Delivery
We packed the machines in wooden cases and fixed them in wooden cases to ensure the integrity of the machines.
(1) Q: How long is your delivery time?
A: That depend on the stocks.
(2) Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
