Automatic steel sheet coil slitting machine line slitter steel coil slitting line

$351,000.00 / Unit | 1 Unit (Min. Order)
Model Number:
SPS3.0-12*2200
$351,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
150 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sino power
Warranty:
18 Months
Condition:
New
Voltage:
220V/380V/420V/450V
Rated Power:
100kw-500KW
Dimension(L*W*H):
6*45m
Weight:
2-30tons
Certification:
ISO,CE,SGS
Name:
steel coils slitting line
Slitt:
<10 pcs
Coil Thickness:
3-12 mm
Coil Width:
900~2200mm
Speed:
80m/min
Coil Weight:
≤35tons
Coil Inner Diameter:
508mm,610mm,760mm, 820mm,etc
Coil Outer Diameter:
≤2200mm
Coil Material:
CR, HR, GI, PPGI, ETC
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single volume:
60 cm 3
Single gross weight:
80000.0 kg
Package Type:
wooden box and other
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 150 To be negotiated
Product Category

ERW steel pipe making machine.

For making carbon steel pipe/tube.

Used for building, scaffolding, furniture, cars, water, gas...etc

Coil slitting machine.

For slitting coil strip, coil sheet.

can processing HRC, CRC, GI, PPGI, ST37, ST52, SS...etc

Cutting to length line.

For cutting and shearing steel plate, steel sheet.

Thickness from 0.3 to 25mm.

Slitting Machine

Automatic steel sheet coil slitting machine line slitter steel coil slitting line

Supplied Machine: metal coil slitting machine line


SINO POWER slitting is applicable to coils of various specifications. aluminum slitting is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. stainless steel slitting has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1: Specification of slitting machine line

Model
SP0.2-1.8×500
SP0.3-4.0×1250(1600)
SP1.0-6.0×1600
SP3.0-12.0×2000
Coil Material
HR,CR,PPGI,GI, steel coil, copper coil, aluminum coil.
Coil Thickness
0.2~1.8mm
0.3~4.0mm
1.0~6.0mm
3.0~12.0mm
Coil Width
100~500mm
800~1250(1600)mm
800~1600mm
1000~2000mm
Coil Weight
≤15T
≤20T(25T)
≤25T
≤30T
Coil Inner Diameter
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ610mm,φ760mm,φ820mm
Coil Outer Diameter
≤φ1600mm
≤φ2200mm
≤φ2200mm
≤φ2200mm
Strip Width
≥25mm
≥30mm
≥50mm
≥80mm
Number Of Strip
5~25
8~20
5~15
4~15
Slitting Accuracy
±0.1mm
±0.1mm
±0.15mm
±0.2mm

Mark: About are our standard series, we also accept customized. We have 0.2-2.0, 0.3-3.0, 1-8mm, 2-10mm, 2-12mm, 3-16mm, 4-20mm, 5-25mm,etc.


2: Whole review of slitting machine line

3: Final products produced by our steel coil slitting machine line

Our slitting machine can produce HR, CR, PPGI, GI, SS, Aluminum Copper coil to strip, the min width can be 20 mm.

HR,CR,PPGI,GI strip

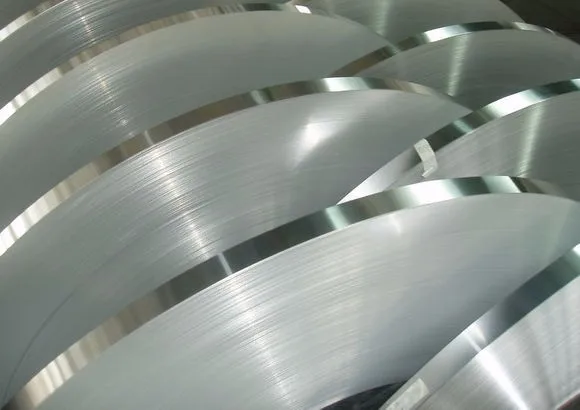

Aluminum strip

Copper strip

Flow Chart & Machine

Standard Flow chart of rewinding and slitting machine:

Hydraulic bracket-Carrying coil car-Hydraulic single arm decoiler-Feeding guide plate fitting-pinching machine,coil head shearing-Front looping table-Side guiding fitting-Disc shear-Curling machine-Back looping table-Tension table-Recoiler-Discharging car-Hydraulic bracket-Hydraulic control-Electric control

Step 1:   Uncoiling of  rewinding and slitting machine

Step 2: Leveling of rewinding and slitting machine

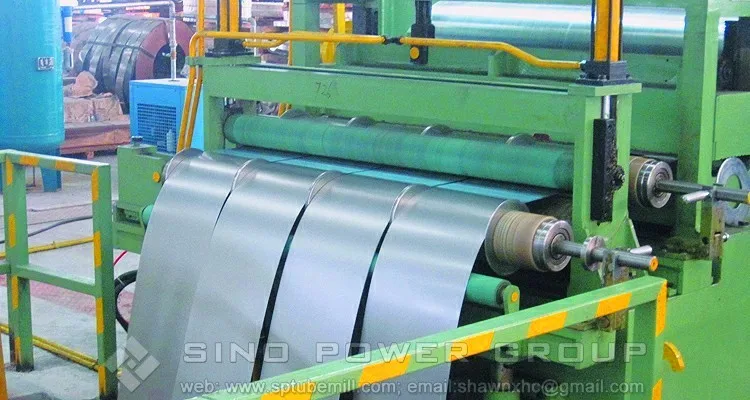

Step 3: Slitting of rewinding and slitting machine

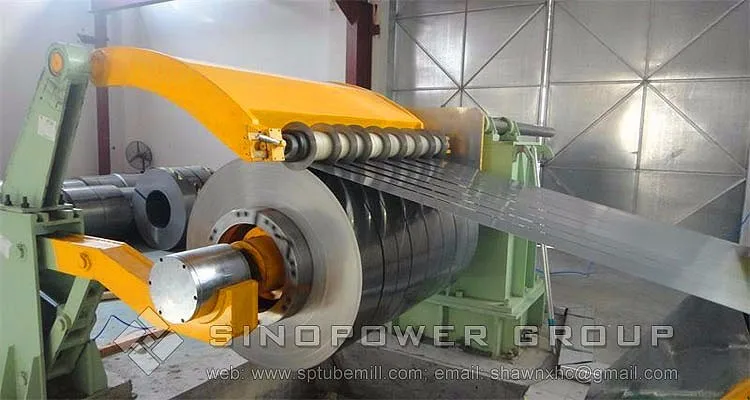

Step 4: rewinding of rewinding and slitting machine

Packing & Delivery

Package by plywood case, Load in containers, and Shipping by Sea/ Truck / Train.

Company Introduce

1: Introduce

Sino Power Group is the professional manufacturer with the factory covers an area of 85,000 Square meters and has more than 200 employees and over 25 years on steel pipe making machine, slitting machine, cut to lenth machine and other metal cold forming machine design, manufacturing, sales and after-sales experience.

SINOPOWER INDUSTRIAL have With the ISO9001 quality control system, ISO1400 management system and CE / SGS standard of European Union,, also presented quite a few patents rights. Besides, we also become a member of the CE warranty system. For this pipe mill line, we added the PLC encoded control by Touchscreen, with intelligent processing method, it can control the exact details of the output pipes in a method that is actual precise.

2: Certifaction

Our slitting machine remain CE, ISO9001, then SGS passed, that incomes the quality remains same trust-worthy meantime, we as well apply a portion towards recover the procedure then superiority for our patrons.
We have a lot of patents,such as uncoiler patent / slitting machine patent / leveling machine device patent / decoiler patent etc.

3: Contact Us

You are greatest welcome to visit us when you have a trip to China. Please feel free to contact us when you need further support. We'll feedback you within 24 hours!
