Automatic vertical circulation parking system

FOB Reference Price:Get Latest Price
$2,900.00 - $4,900.00 / Set | 1 Set/Sets (Min. Order)
Height (mm):
Customized ≥7500
Width (mm):
1850
Parking lot:
Customized
Lead Time:
Quantity(Sets) 1 - 500 >500
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
Zhihang Hongye
Model Number:
PCX
Type:
Carport
Warranty:
1 Years
Loading Capacity:
≤2350kg
Drive mode:
Motor + chain or wire rope
Size of car (L*W*H):
5300mm * 1900mm * 1550mm (2050mm)
Operation Mode:
IC Card/Key board/Manual
Power supply:
3 Phase AC 380V 50Hz
Safety device:
Emergency stop device Fall arrester Parking size detecting device
Power pack:
50kw (depending on the plan)
Platform material:
Wave board assembly
Finishing:
Aluminum or aluminum composite panel or punched plate or glass
Storey:
5-7 levels
Lifting Height:
Actual height depends on the levels
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Steel frame structure is fixed with tarpaulin and steel
Some parts are packed in wooden cases
Some electrical appliances are packed in carton
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 500 >500
Est. Time(days) 30 To be negotiated

Automatic vertical circulation parking systemAutomatic car Puzzle parking system

1. The floor space is small, and the parking space of two parking spaces can be stopped for 6-10 vehicles;

2. The price is low, the investment in exterior decoration and fire protection is small, and the construction period is short;

3. The exterior decoration can only be covered with a ceiling, and fire protection can use fire hydrants;

4. Simple structure and reliable operation;

5. No need for forced ventilation, no need for large area lighting, saving energy.

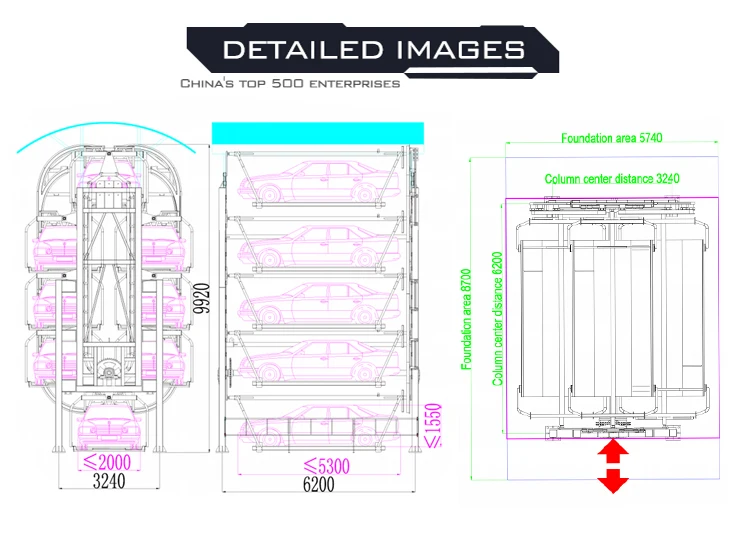

file (2)2.jpg-1.jpg



Type
PCX
Lifting motor power
18.5 kw
Lifting speed
50-70m/min
Sliding motor power
0.2 kw
Sliding speed
50-70m/min
Safety device
Emergency stop device
Fall arrester
Parking size detecting device
Vehicle accidental device
Car size indicator
Noise
<70db
Lift drive
18.5 kw
Lifting Height
Actual height depends on the levels
Control voltage
24v
Access vehicle mode
Reversing warehousing and backward warehousing
Storey
5-7 levels



More product

Automatic car Puzzle parking system

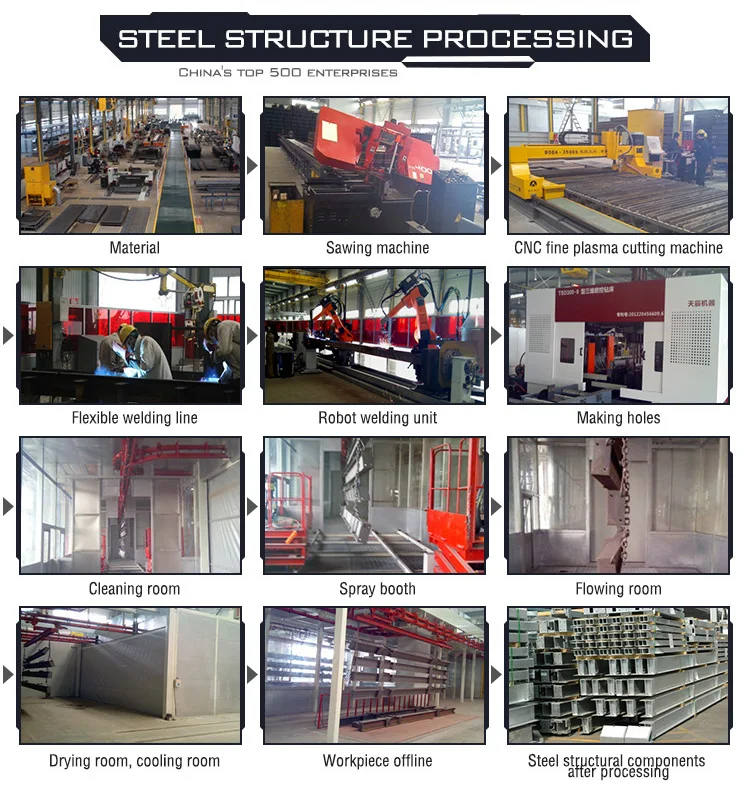

Automatic car Puzzle parking systemAutomatic car Puzzle parking systemSince 2001, the company has been engaged in the parking industry over 18 years. At present, it has become a professional mechanical parking system company with integrated services including sales, development, design, manufacture, commissioning, installation, maintenace, after-sales service, and it has the right to export products that covers nine categories in  current parking industry with more than 90 types. The company has a modern production workshop with a construction area of more than 60,000 square meters and a research office building area of over 15,000 square meters. We are equipped with 11 advanced and professional automatic production lines and more than 50 large-scale precision equipments. At present, our parking equipment has been used in residential, commercial plazas, supermarkets, hotels, schools, government, public security bureaus, prison administrations and other scenarios.

The company has a powerful technical research and development team, some domestic technical experts, over 20 senior engineers, engineers and experts, over 40 development and technical designers and over 20 sales engineers. In addition, more than 150 patents. Among them, the unique vertical horizontal PSH parking system, anti-fall tracking device and stroke control device technology occupy the leading position in the same line.

Through the development in over 10 years, the company has taken the first placein mechanical parking system market share, ranked on the top in demestic industry. It has won excellent enterprises in the industry for many years, and its products are sold at home and abroad. It has solved the parking problem for more than 150 cities across the country. There are nearly 500,000 parking spaces in the country. Using. And exported to the US, Russia, Greece, Malaysia, Singapore, the Middle East, Japan, Vietnam, Thailand, Myanmar and other countries. We are committed to designing the best solution according to the project address, selecting the most efficient equipment, while providing customers with the most complete maintenance services, so that customers throughout the worry-free.Automatic car Puzzle parking systemProfessional Technical Support and After-Sale Service
Zhihang hongye already has more than 9 years experience in this area. Our equipments are installed over 90 countries overseas, we provide most detailed technical support douments for our customers, and our engineers are avaliable for overseas installation, maintaince and inspection.Automatic car Puzzle parking systemAutomatic car Puzzle parking systemAutomatic car Puzzle parking system1. Could the puzzle parking system be used outdoor?
Yes. Firstly, the structure is zinc coating with a better water-proof. Secondly, extra covers could be installed to prevent from rain, snow, and heavy wind.
2. Could all series be used for parking SUV?
Yes.PSH puzzle car parking system could be customized for SUV, for detailed requirements please contact ZHHY parking.
3. What's the voltage requirement?
The standard voltage should be 380V, 50Hz. Some local voltages could be customized according to clients' request.
4. Can this product still operate if electricity failure happens?
No, if electricity failure happens often in your area, we recommend you to have a stand-by generator to supply power.
5. Can be installed by customer themselves?
If you're new for the car parking system, we recommend you with one of our engineer to guide the installation and we will provide you with the installation manual and drawing.
