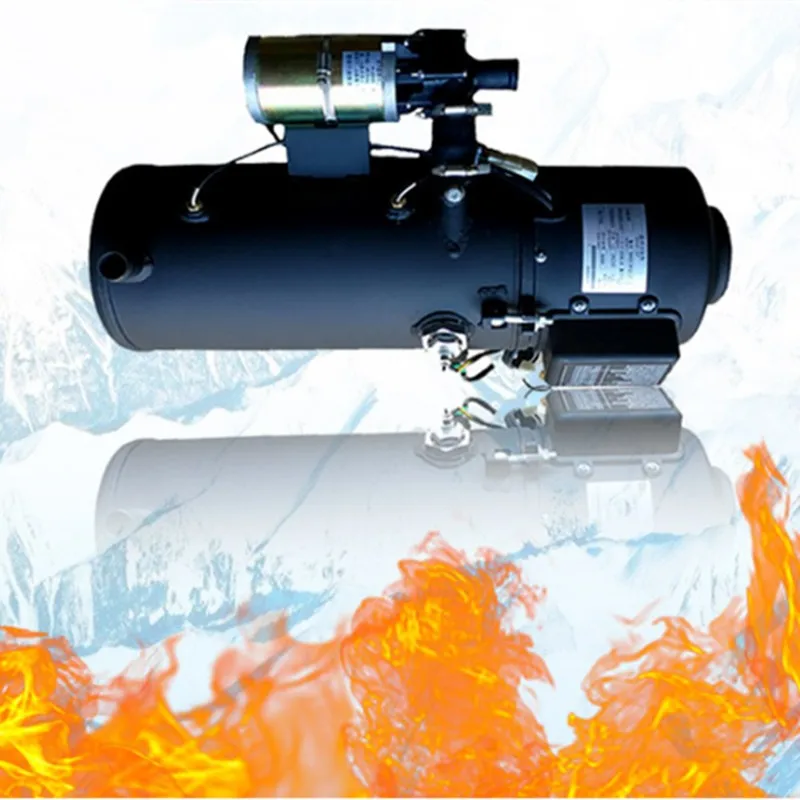

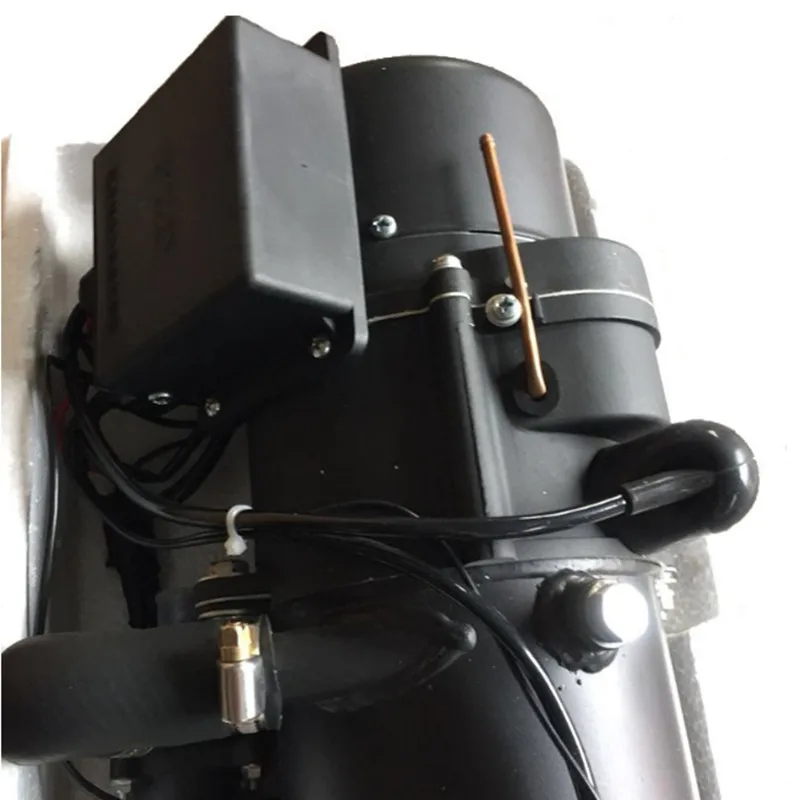

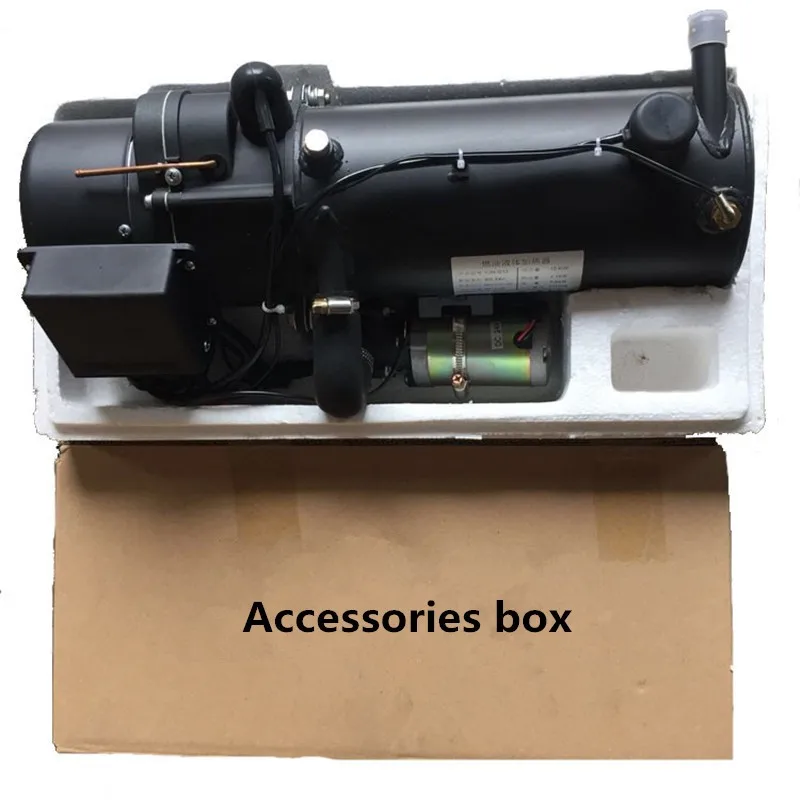

1.Heater main engine
5.Inlet air pipe
1 - 1
2 - 30
31 - 60
To be negotiated
Heater indicator failure flash code table
Unable to start (not ignited twice). Five short and one long cycle strobe
The flame is extinguished (at least 5 times). Five short two long cycle strobe
Power supply undervoltage or overvoltage alarm. Five short three long cycle strobe
Overheating sensor overheat alarm during operation. Five short four long cycle strobe
Open circuit alarm of the ignition sensor . Five short five long cycle strobe
Open circuit or short circuit alarm of the water temperature sensor. Five short six long cycle strobe
Solenoid valve open or short circuit alarm. Five short seven long cycle strobe
The motor open circuit or short circuit alarm. Five short eight long circle strobe
Pump short circuit alarm. Five short nine long cycle strobe
Open circuit or short circuit alarm of Overheat sensor. Five short ten long circle strobe
Open circuit or short circuit alarm of the glow plug. Five short eleven long cyclic strobe
After the automatic shutdown delay. The heater did not stop running. Five short twelve long cycle strobe
Specifications: 1.Rated voltage: DC 12V/24V 2.Heat flow: 10KW 3.Oil consumption: 1.1KG 4.Machine size: 390*210*180mm 5.Net weight: 7.5kg 6.Applicable models: truck, engineering van, sedan

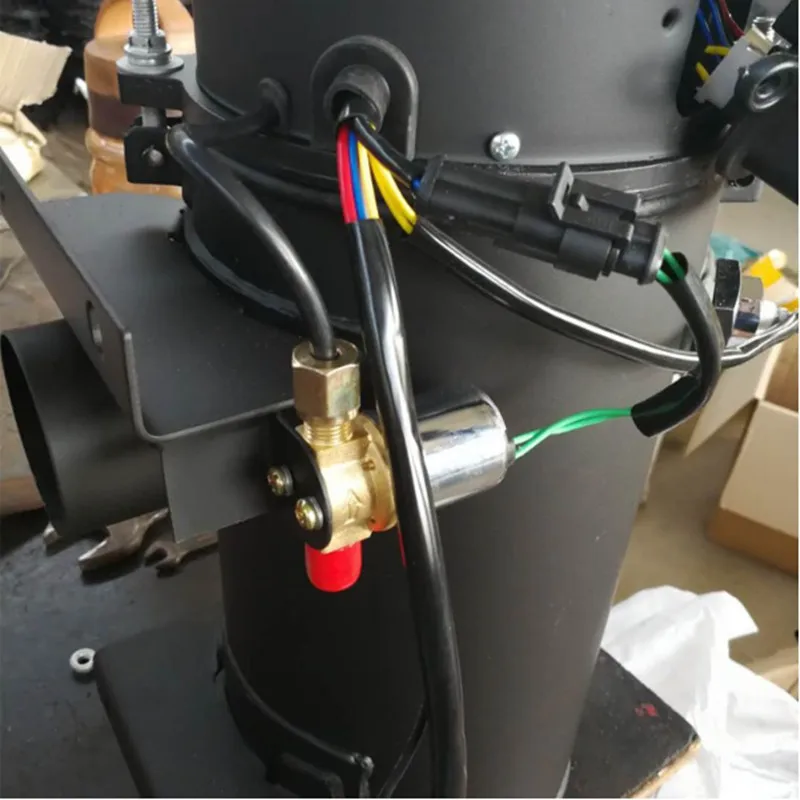

Machine principle: The main motor of the heater drives the plunger fuel pump, the combustion-supporting air fan and the atomizer to rotate. The oil pump sends the sucked fuel to the atomizer through the oil pipeline.
The atomizer mix the air sucked by combustion-supporting air fan and atomized by fuel oil in main chamber through the action of centrifugal force. The air is ignited by the hot glow plug, and fully burned and then folded back in the rear combustion chamber.

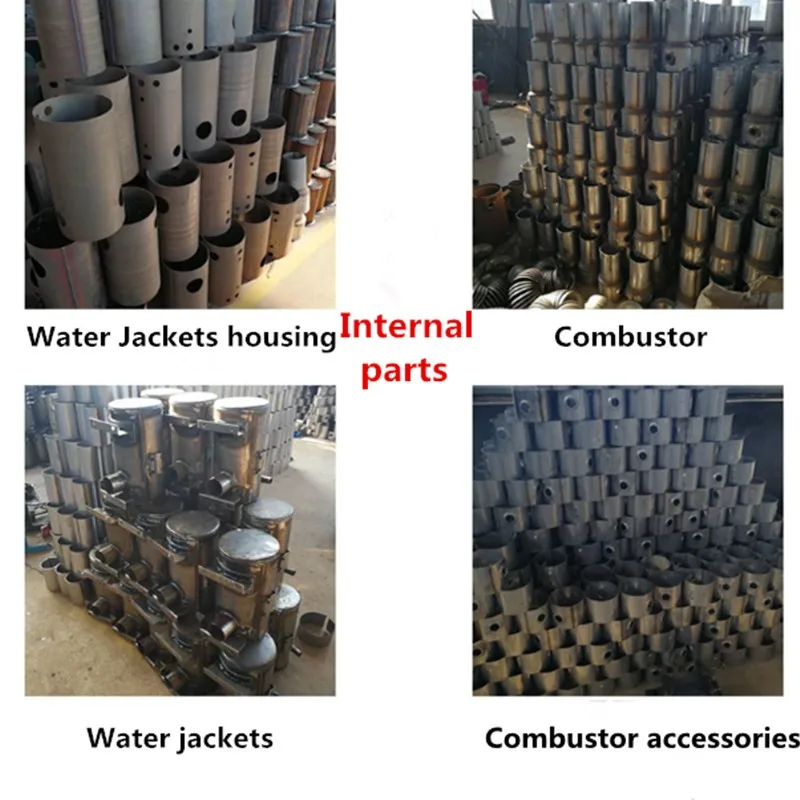

Through the inner wall and the heat sink above of the water jacket, the heat is transferred to the medium in the water jacket interlayer - the coolant.
After heating, the medium circulates through the entire pipeline system under the action of circulating water pump (or heat convection) to achieve the purpose of heating. The exhaust gas burned by the heater is discharged by the exhaust pipe.
Instructions: Can preheat the engine and the car at the same time without starting the engine, so that you can enjoy the warmth of home when you open the door in the cold winter.
Applications: Stand-alone water heating parking heater are widely used in low temperature start-up, defrosting and heating of water-cooled engines in various types of vehicles such as cars, commercial vehicles, passenger cars, trucks, special vehicles, construction vehicles, boats, ship and yachts.
It can also be used in heating, heat preservation and preheating engines of various types of vans and sprinklers, sanitation vehicles, food carts, and plant-specific vehicles that use water (antifreeze) to reduce engine wear and extend their service life.
