B&TON 1000base-bx SFP 3km/20km SC Connector SFP Transceiver

FOB Reference Price:Get Latest Price
  • 20 - 99 Pairs
    $14.00
  • 100 - 499 Pairs
    $13.00
  • 500 - 999 Pairs
    $12.00
  • >=1000 Pairs
    $11.00
Lead Time:
Quantity(Pairs) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
BT-OC24-03A/BS, BT-OC24-03A/BS
Product Name:
B&TON 1000base-bx SFP 3km/20km SC Connector SFP Transceiver
Factory:
B&TON
Data rate:
1.25Gbps
distance:
3KM
temperature:
0℃ to 70℃
Compatible:
Cisco, Juniper, H3C, HP...
warranty:
1 year
Label:
Customized
OEM:
YES
Supply Ability
Supply Ability:
500 Piece/Pieces per Week 1000base-bx SFP 3km/20km SC Connector SFP Transceiver
Packaging & Delivery
Packaging Details
Standard EXPORT Packaging!
Port
SZ
Lead Time :
Quantity(Pairs) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

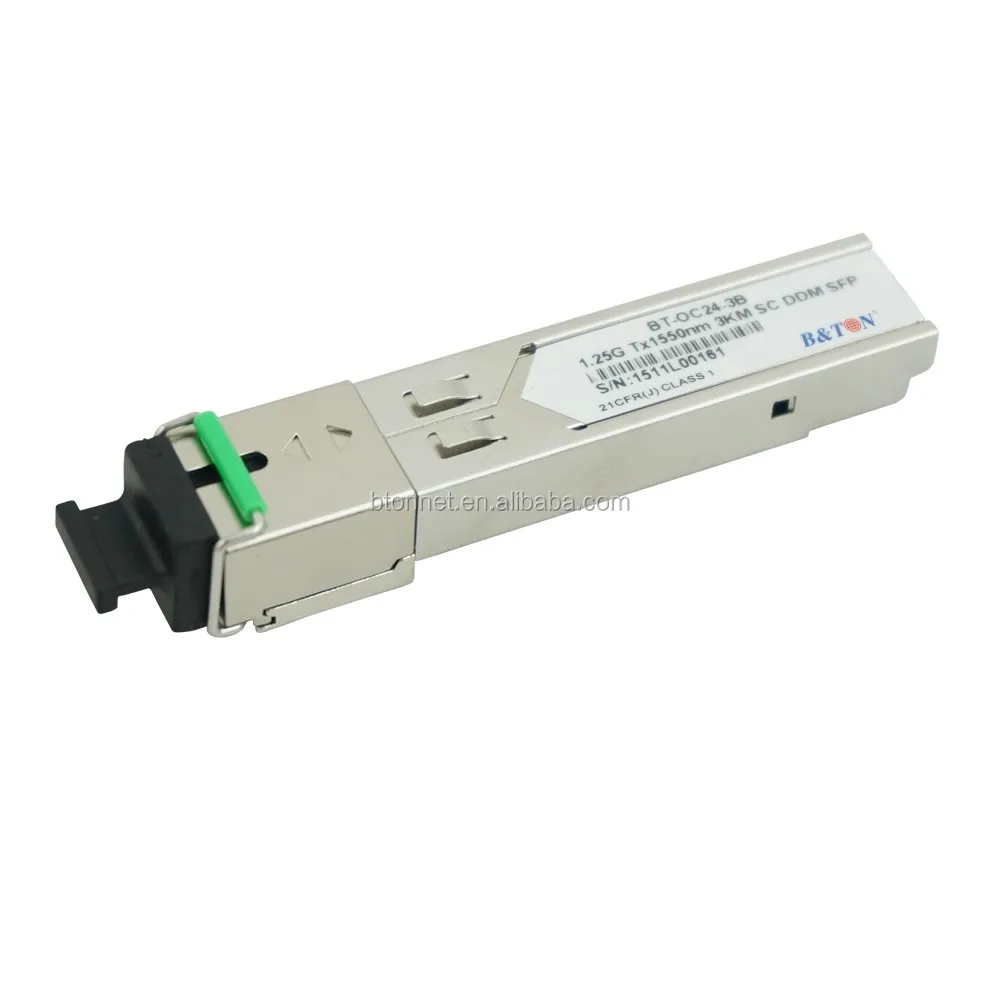

B&TON 1000base-bx SFP 3km/20km SC Connector SFP Transceiver


BT-OC24-03A:  1.25Gbps SFP Bi-Directional Transceiver, 3km Reach

Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 2km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

►Dual data-rate of 1.25Gbps/1.063Gbps operation
►1310nm FP laser and PIN photodetector for 3km transmission
►Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
►Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
►Compatible with SONET OC-24-LR-1
►Compatible with RoHS
►+3.3V single power supply
►Operating case temperature:
Standard : 0 to +70°C

Application

►Gigabit Ethernet
►Fiber Channel
►Switch to Switch interface
►Switched backplane applications
►Router/Server interface
►Other optical transmission systems

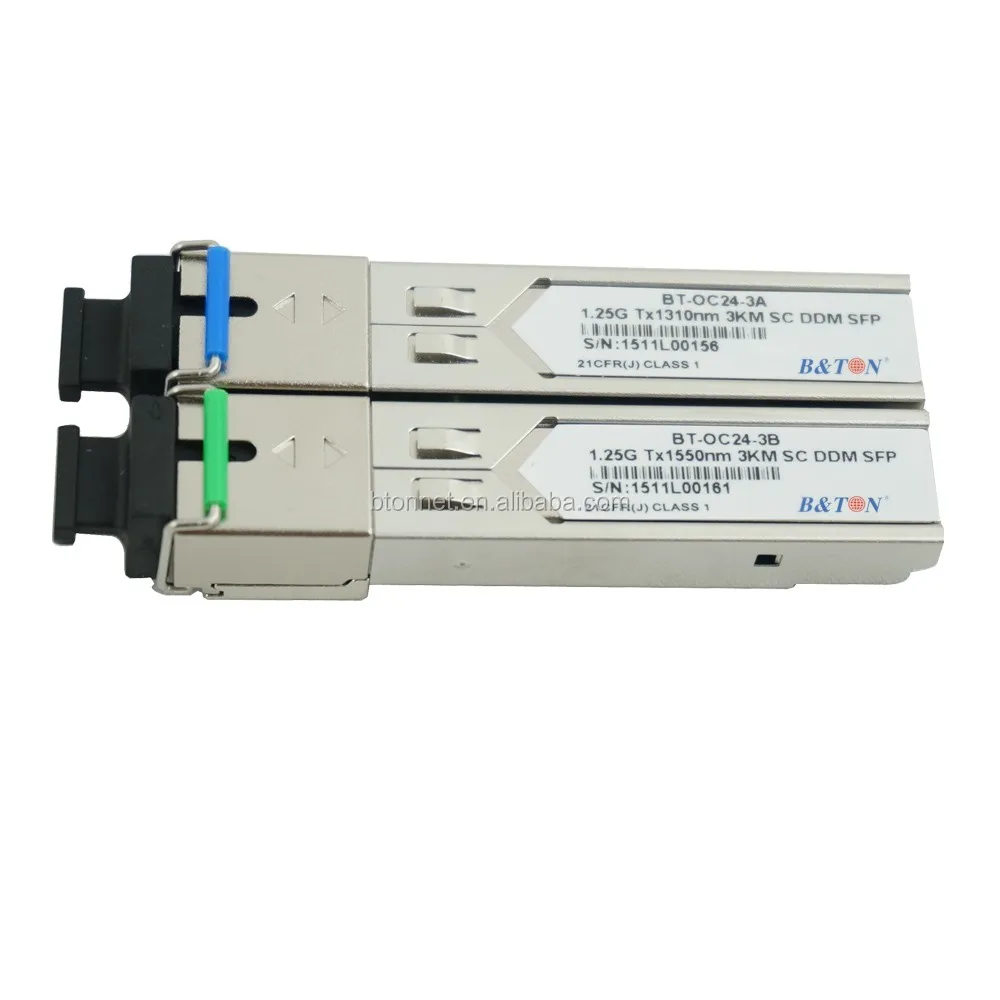

Detailed Image
Order Information
Part Number
Data Rate
Wavelength
Distance
BT-OC24-03A
1.25G
1310nm/1550nm
3km
BT-OC24-03B
1.25G
1550nm/1310nm
3km
BT-OC24-03AS
1.25G
1310nm/1550nm
3km SC
BT-OC24-03BS
1.25G
1550nm/1310nm
3km SC
BT-OC24-20A
1.25G
1310nm/1550nm
20km
BT-OC24-20B
1.25G
1550nm/1310nm
20km
BT-OC24-20A
1.25G
1310nm/1550nm
20km SC
BT-OC24-20B
1.25G
1550nm/1310nm
20km SC
BT-OC24-20A+
1.25G
1310nm/1490nm
20km
BT-OC24-20B+
1.25G
1490nm/1310nm
20km
BT-OC24-40A+
1.25G
1310nm/1490nm
40km
BT-OC24-40B+
1.25G
1490nm/1310nm
40km
BT-OC24-40A
1.25G
1310nm/1550nm
40km
BT-OC24-40B
1.25G
1550nm/1310nm
40km
BT-OC24-60A
1.25G
1310nm/1550nm
60km
BT-OC24-60B
1.25G
1550nm/1310nm
60km
BT-OC24-60A
1.25G
1490nm/1550nm
60km
BT-OC24-60B
1.25G
1550nm/1490nm
60km
BT-OC24-80A+
1.25G
1310nm/1550nm
80km
BT-OC24-80B+
1.25G
1550nm/1310nm
80km
BT-OC24-80A
1.25G
1490nm/1550nm
80km
BT-OC24-80B
1.25G
1550nm/1490nm
80km
BT-OC24-100A
1.25G
1490nm/1550nm
100km
BT-OC24-100B
1.25G
1550nm/1490nm
100km
BT-OC24-120A
1.25G
1490nm/1550nm
120km
BT-OC24-120B
1.25G
1550nm/1490nm
120km
Related Products

Copper SFP

1000base SFP Copper RJ45,CAT5,100m
10/100/1000base SFP Copper RJ45,CAT5,100m
100base SFP Copper RJ45,CAT5,100m

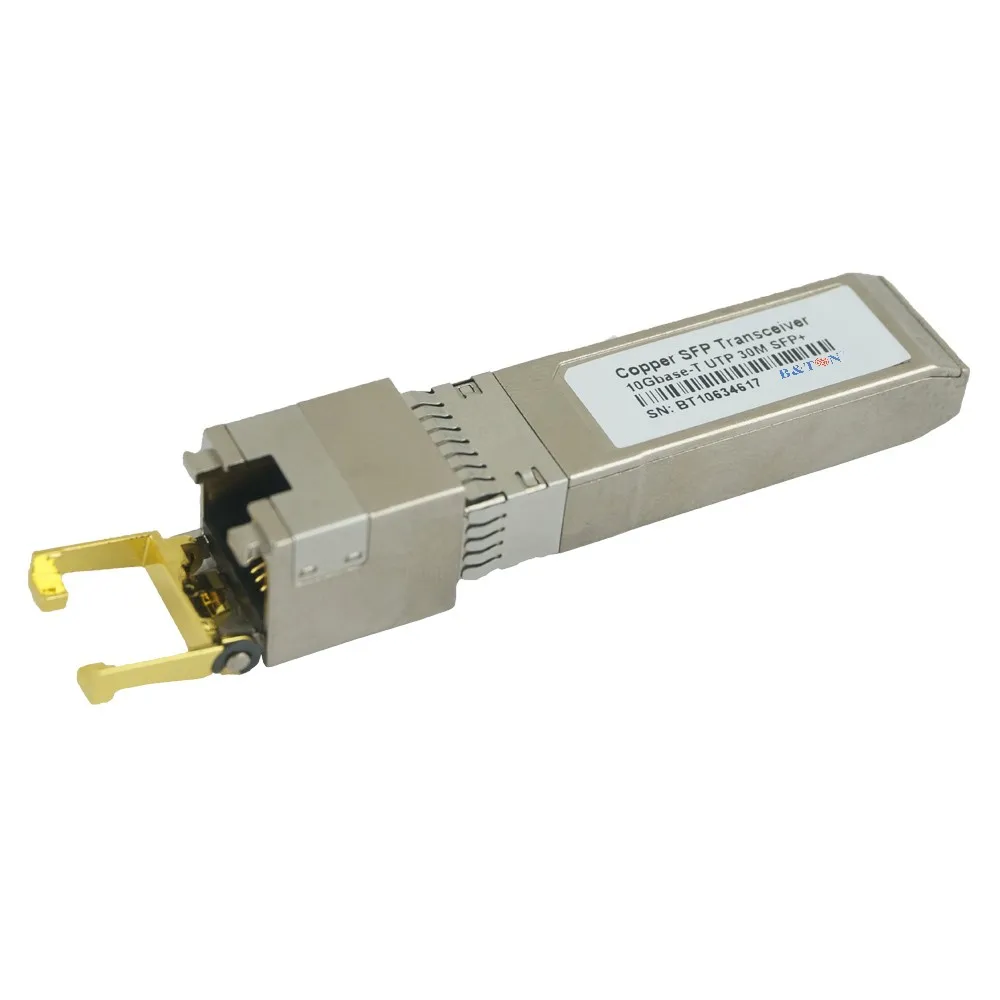

10G SFP TX COPPER RJ45 30M


155Mbps & 1.25Gbps

155Mbps 1310nm 2km

155Mbps Bidi 20km

1.25G 850nm 550m

1.25G 1310nm 20km

1.25G BIDI 20KM LC/SC
1.25G CWDM SFP

10G SFP, SFP28 25G/16G

10G SFP SR

10G SFP LR

10G BIDI SFP+ 20KM

10G CWDM SFP+

10G DWDM SFP+

SFP28 25G SR 850nm LC 100M
SFP28 25G LR 1310nm LC 10km
SFP28 16G SR 850nm LC 100M
SFP28 16G LR 1310nm LC 10km


40G QSFP, QSFP28 100G, CFP 100G

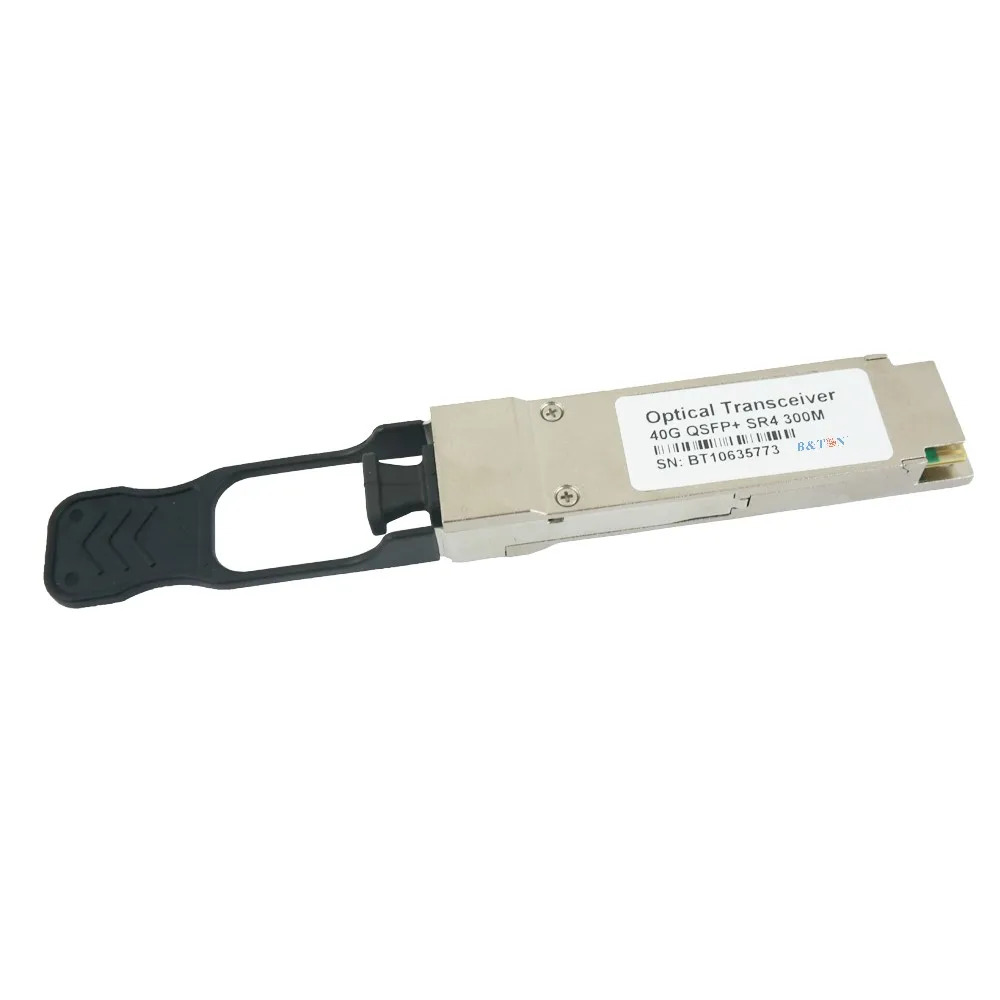

QSFP+ 40G SR MPO 100M
QSFP+ 40G CSR4 MPO 300M
QSFP+ 40G LR4 LC 10KM
QSFP+ 40G LR4 LC 40KM
QSFP28 100G 850nm SR4 MPO DOM 100m

QSFP28 100G CWDM LC DOM 2km/10km

QSFP28 100G LAN WDM LC DOM 10km
QSFP28 100G LAN WDM LC DOM 20km
CFP 100G WDM LC DOM 10km
CFP2 100G WDM LC DOM 10km

PON SFP

2.5/1.25G GPON SFP OLT SC TX1490/1310nm B+ 20km

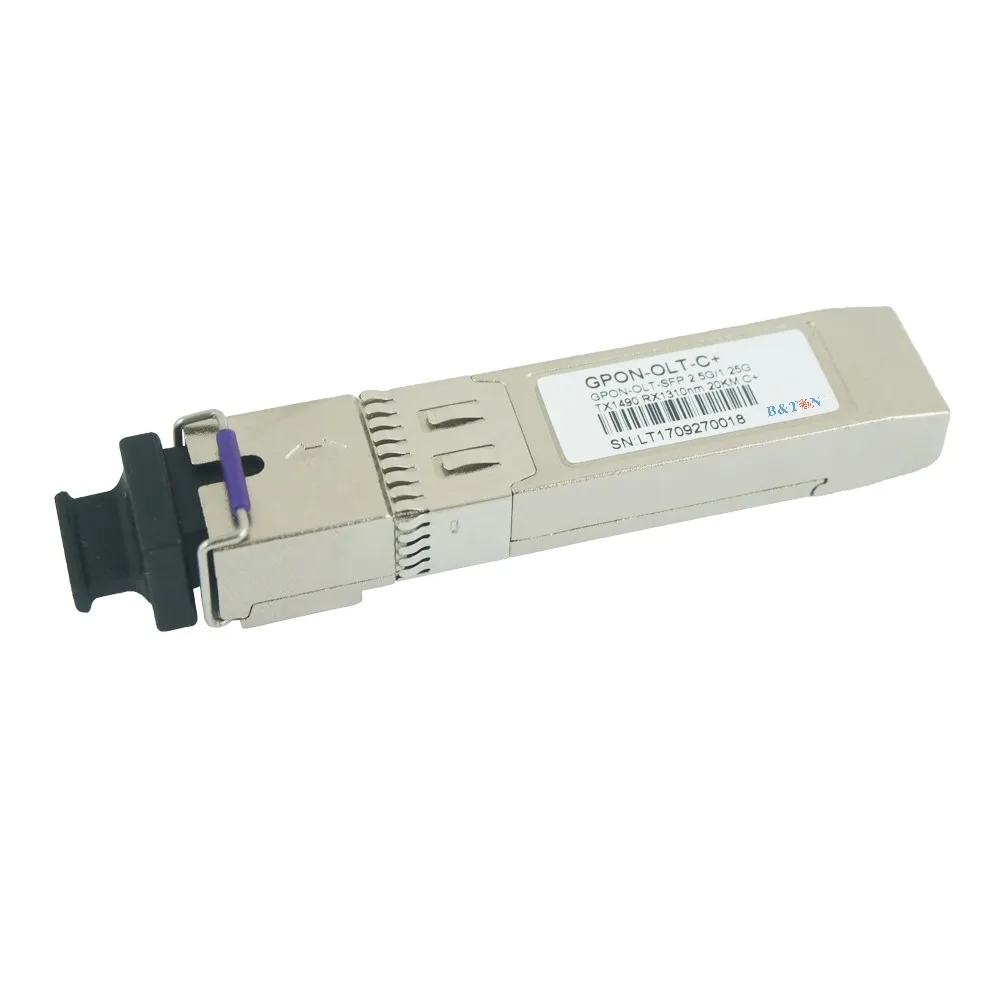

2.5/1.25G GPON SFP OLT SC TX1490/1310nm C+ 20km
2.5/1.25G GPON SFP OLT SC TX1490/1310nm C++ 20km
GPON SFP ONU
GPON SFF ONU
1.25G EPON SFP OLT SC TX1490/1310nm PX20+ 20km
1.25G EPON SFP OLT SC TX1490/1310nm PX20++ 30km
EPON SFP ONU
EPON SFF ONU

Our B&TON Company

Shenzhen BTON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China.

BTON Factory


Workshop view
India Convergence 2016
CIOE Exhibition
The China International Optoelectronic Exposition

Certificates:

BTON Products

Fiber Media Converter

10/100Mbps, dual Fiber, single fiber, 25km~120km

10/100/1000Mbps, dual fiber, single fiber , 20km~100km

Interface: SC, ST, FC, LC(optional)

Mode: Singlemode, Multmode

Chip: 113C,8306,8305,175G,101F etc,.

Support: Dipswitch(LFP), Vlan

Click for  price..

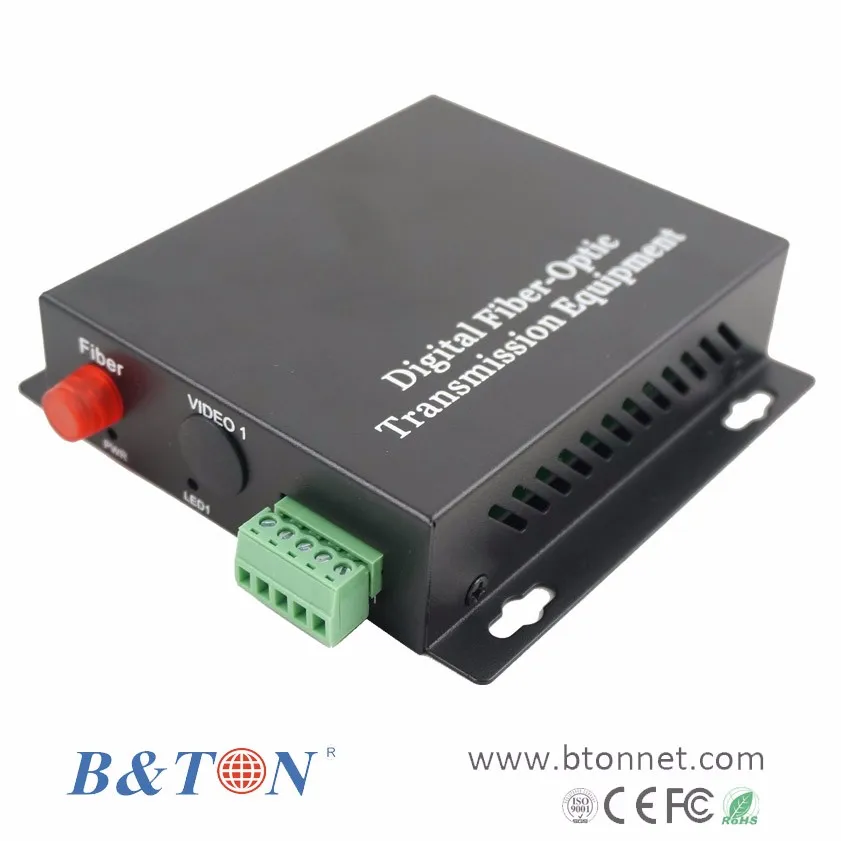

HD-TVI/CVI/AHD/PAL Analog Video over Fiber

1ch, 2ch, 4ch, 8ch, 16ch, 32channels HD-CVI/TVI/AHD/analog over one multimode or single-mode optical fiber.

Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video, 3MP, 4MP, 5MP etc.

Interface: SC, ST,  FC(default)

optional function: Audio, ethernet

Ask Price..

POE Switch

1 port POE + 1UTP/1Fiber 100M or Gigabit

2 port POE + 1UTP/1Fiber 100M or Gigabit

4 port POE + 1UTP/1Fiber 100M or Gigabit

8 port POE + 1UTP/1Fiber 100M or Gigabit

More...

Contact closure to Fiber Converter

1/2/4/8/16 channels

Bidirectional contact closure over fiber;

Unidirectional contact closure over fiber;

Single fiber, signlemode

FC

20KM

Quotation...

Unmanaged Fiber Switch

1Fiber 2RJ45

1Fiber 4RJ45

1Fiber 8RJ45

2Fiber 2RJ45

2Fiber 4RJ45

2Fiber 8RJ45

8Fiber 2RJ45

ASK PRICE..

SFP/LC To Fiber Switch

1SFP 1RJ45

1SFP 2RJ45

1SFP 4RJ45

1SFP 8RJ45

2SFP 2RJ45

2SFP 4RJ45

2SFP 8RJ45

8SFP 1RJ45V  Ask price..

Telephone Fiber Optic Converter(RJ11)

1-32Channel voice access, supports caller ID feature and reverse polarity billing functions;

Voice port supports FXO and FXS port, EM2/4 audio interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;

Ask Price...

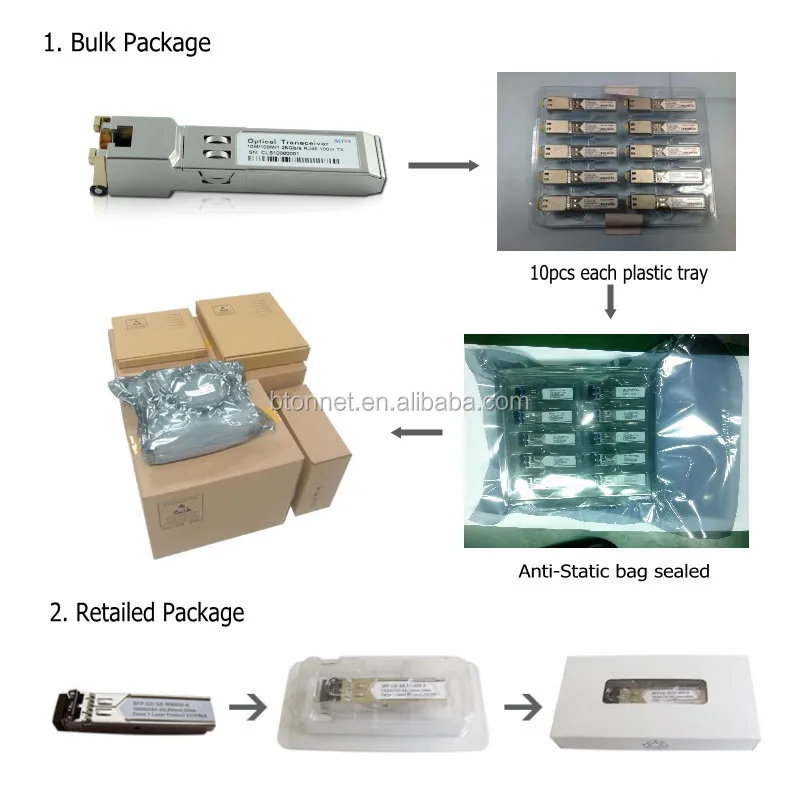

Packing & Delivery
