BAKON BK5600 AC Static elimination desktop mini ESD Ionizing Air Blower

  • 1 - 29 Pieces
    $46.00
  • 30 - 49 Pieces
    $40.00
  • >=50 Pieces
    $36.00
Type:
Centrifugal Blower
Rated Power:
18W/310W
Max Air Flow:
100CFM
Samples:
$135.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Rated Voltage:
220VAC/50HZ
Place of Origin:
Guangdong, China
Brand Name:
BAKON
Model Number:
BK5650
Application:
Air Blower
Pressure:
High Pressure
Power Source:
Electric Blower
name:
Desktop Ionizing air blower ,Desktop electric ion fan
Ion Balance:
0±10v
Capacity:
40cmx100cm
Dimension:
150(L)X85(W)X250(H)mm
Max Power:
25
Ion balance:
±10
Input Voltage:
AC220V/50HZ
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
individual package
Port
ShenZhen
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated

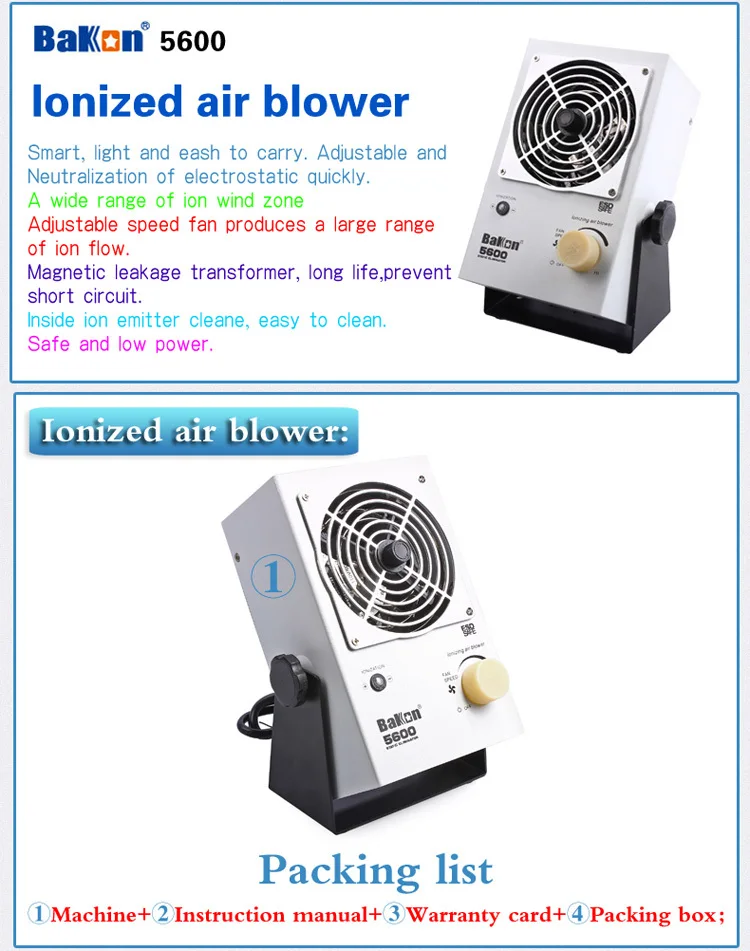

Hot sale Static elimination desktop mini ionizing air blower,Desktop Ionizing air blower ,Desktop electric ion fan

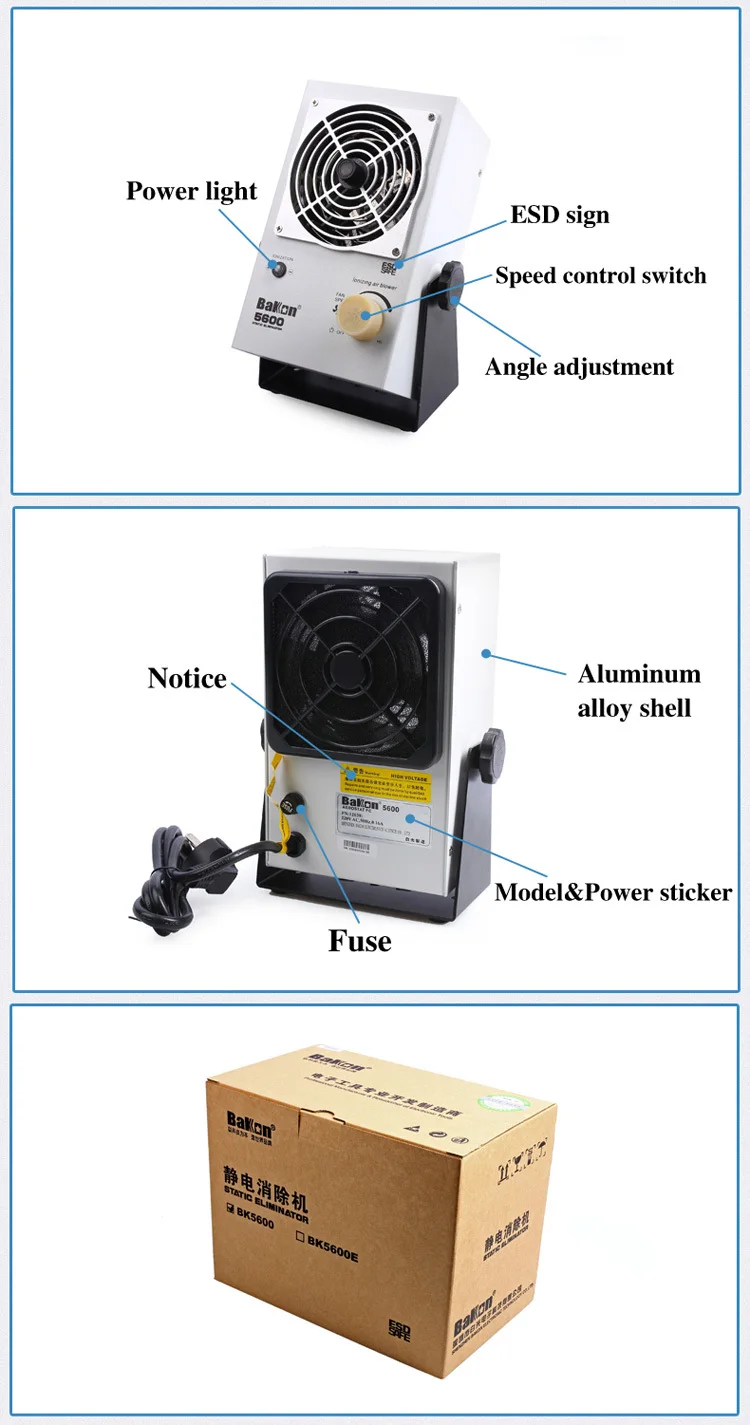

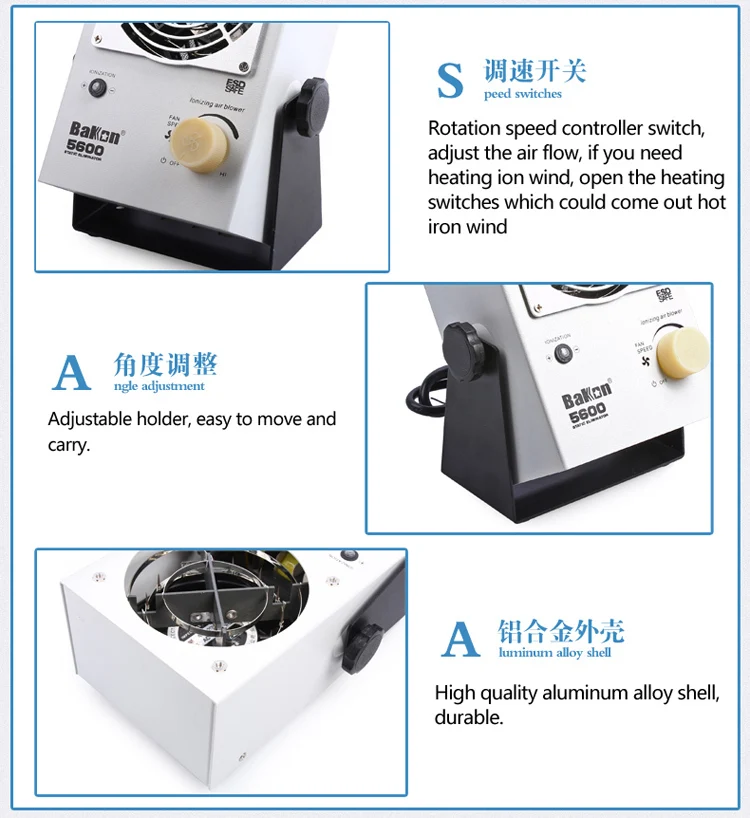

Features in structure

♦ The front double layer cover can inspect the ion balance and isolate potential interference signal.
The ion emitter set before the air blower gives a sufficient ion mixture which result in better static eliminating performance.
♦ Hot air blowing function is optional to meet seasonal requirements
♦ It is easy to take off the back cover and clean the emitter and blades.
♦ Build-in circuit switch turns off once back cover is removed,safe for maintenance work.
♦ Ion emitter installed simply by pluging in, easy to replace.


Features in electronic





LCD display: Bright contrast,visualize, display ion balance and working time, menu functions.
♦ Micro Processing technology: friendly interface, compatible with computer communication and monitor
each ionizer within the network.
♦ Five-speed fan: the imported air blower runs at 3000-5000 rotation/min and blows very strong air, the volume ranged from 1 to 5 controlled by the program
♦ Warning function: the ion balance could be set manually,once it is out of the standard ion balance, a warning will be
given by a beep and the display flashes.
♦ Password lockout function: Password setting function could avoid unauthorized setting
♦ Ion balance adjustment: the ion balance could be adjusted by the program within 50V to get the ideal static eliminating performance.



Specification




Input Voltage 220VAC/50HZ
Rating Power 18W/310W
Dimension 150(L)X85(W)X250(H)mm
Ion Balance 0±10v
Capacity 40cmx100cm





Discharge Time Test







Operating voltage:0/220VAC Testing voltage:2KV Temperature:25°c
Distance (CM) 30 50 70 90
Discharge time(S) 1 2 3.5 5
Ion balance (V) 0±3 0±5 0±7 0±10
fan speed (1-5) 5 5 5 5



Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.






Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.





Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage

  Direct Manufacturer, 20 Years History, No.2 in China;

  Cooperate with Gree Electric From Year 2012.

  OEM or ODM service provided

  Certificate: CE/RoHS/ISO9001/SGS;

  Strict Quality Control:  Pre-test, Casual inspection, Inspection of finished product;

  Factory D&R / production/ sales/ and sales service together.

  Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

  Imported chip capacitors to form high-quality circuit boards.

  • delivery

  We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

  Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

  The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.

  Finally, finally, welcome
