BFRP Basalt Fiber Reinforced Polymer Bar for Bridge

FOB Reference Price:Get Latest Price
$0.01 - $5.00 / Meters | 3000 Meter/Meters BFRP Basalt Fiber Reinforced Polymer Bar for Bridge (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
XSY
Model Number:
XSY-FRP-1958
Application:
Chemical industry, metro station,seaport construction
Surface Treatment:
All thread / sand blast
Technique:
Pultrusion
Dimensions:
4-40mm
Item:
BFRP Rebar
Chemical compositon:
Basalt rebar & Vinylite resin
Type:
BFRP Basalt Fiber Reinforced Polymer Bar for Bridge
Length:
Cut as per your requirements / Coils
Color:
Custom
Sample:
Available
Tensile strength:
600-1500MPa
Yield strength:
600-800MPa
Compressive strength:
450-550MPa
E-modulus:
50-65GPa
Supply Ability
Supply Ability:
200000 Meter/Meters per Week BFRP Basalt Fiber Reinforced Polymer Bar for Bridge
Packaging & Delivery
Packaging Details
BFRP Basalt Fiber Reinforced Polymer Bar for Bridge Packing:
bundle, stretch film, pallet or as per your requirements
Port
Shanghai
Lead Time :
Shipped in 20 days after payment
Video Description
Product Introduction

Basalt Fiber Reinforced Polymer (BFRP) Rebar

BFRP is a new kind of composite material, which is basalt fiber as reinforcement material, combines with vinylite resin, padding and other curing agent, then through pultursion molding process.

The difference with steel, the density of BFRP is 1.9-2.1 g/cm3. And it has higher strength and modulus than GFRP rebar.
BFRP is a kind of rustless electrical insulator, with non magnetic, especially with great acid resistance and alkali resistance. It could develop the durability of construction.

Technical Data
Diameter
Ultimate Tensile
Cross Section
Ultimate Tensile Strength
E - Modulus
Ultimate Shear Strength
Weight
mm
KN
mm*2
MPa
GPa
MPa
g / m
6
28
28
1000





55





150
55
8
51
50.3
1000
105
10
79
78.5
1000
165
12
113
113
1000
240
14
128
133
810
280
16
142
177
800
370
18
182
227
800
460
20
228
284
800
560
22
277
346
800
720
25
362
452
800
1000
Remark:  This is just our general data.
More diameter as requirements. And we could custom produce as your technical requirements.

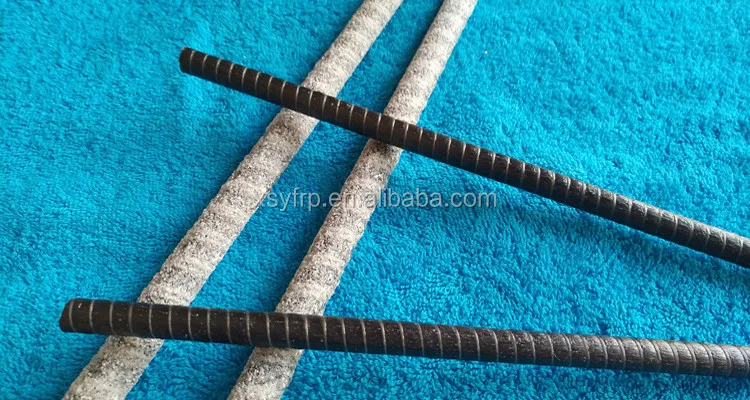

Product Details Show

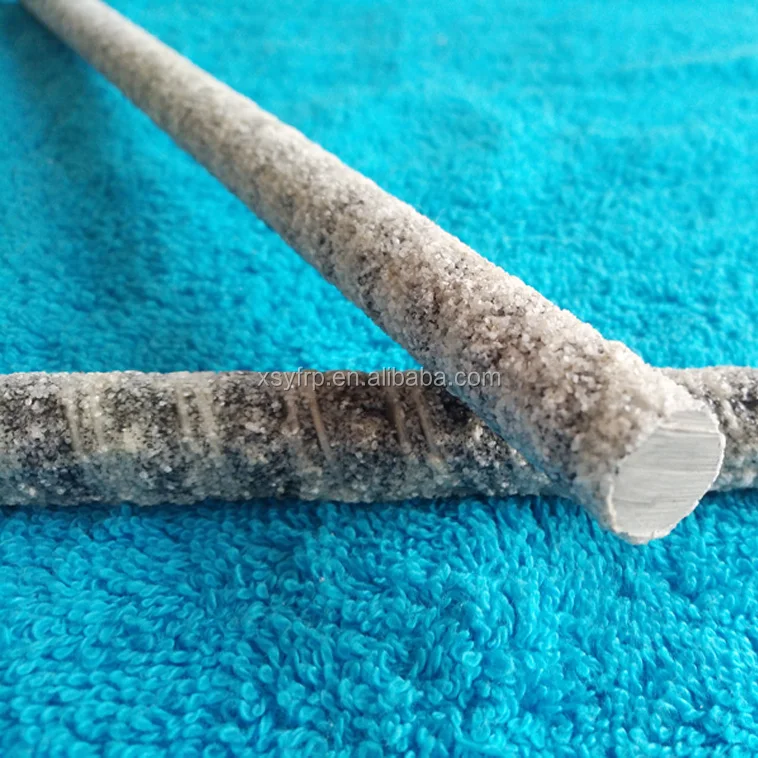

Sand Coated Basalt Fiber Rebar

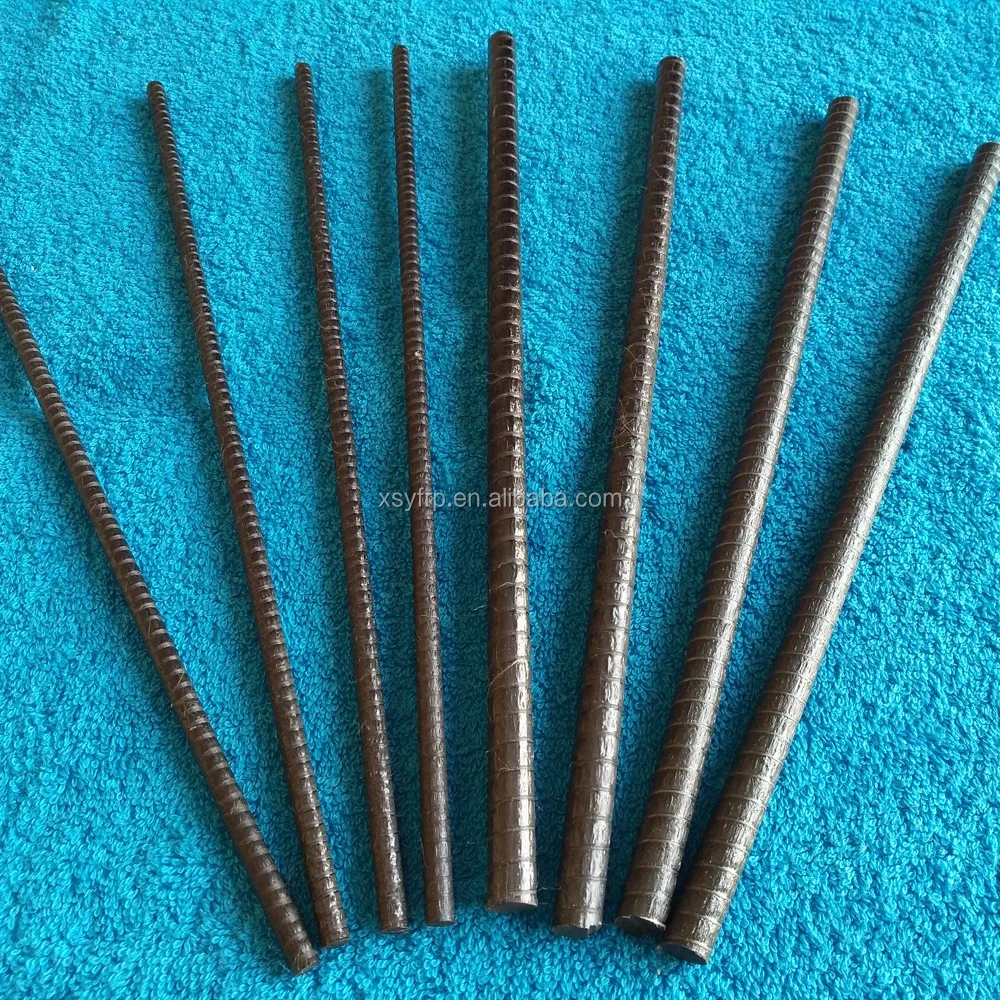

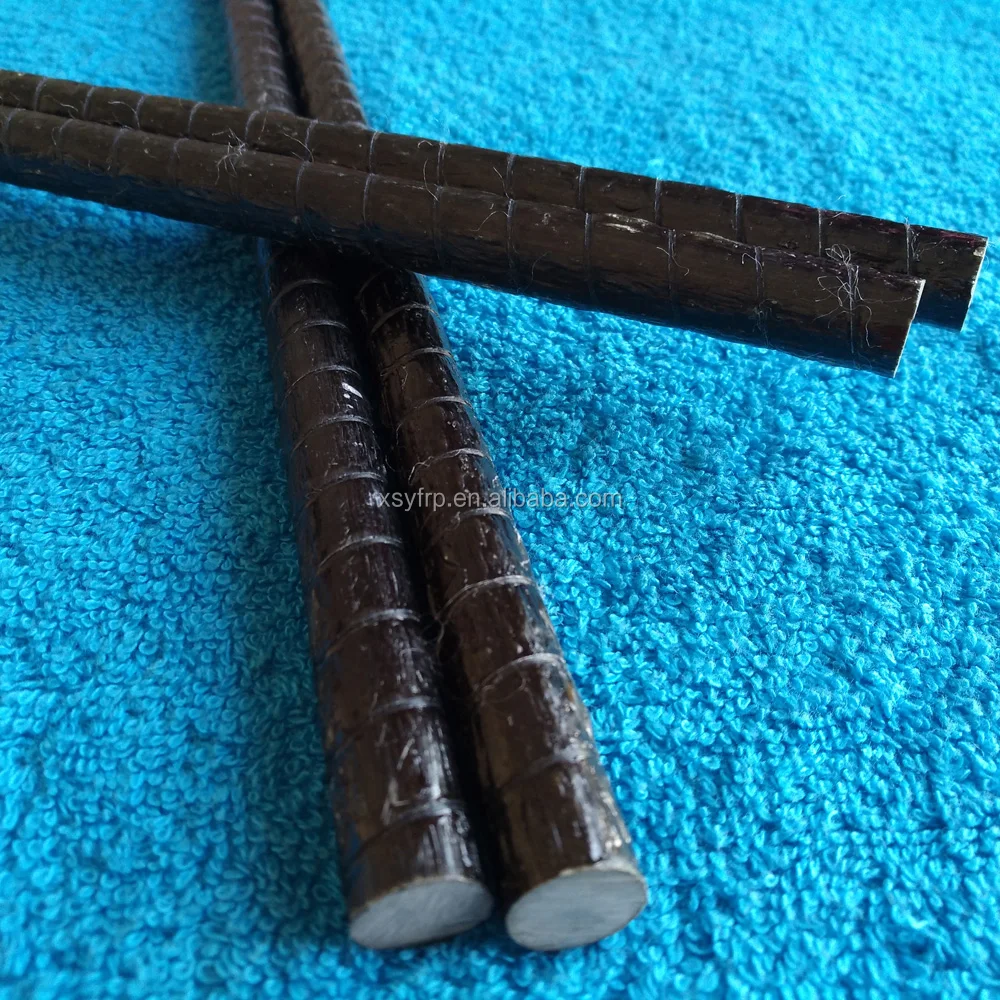

All Thread Basalt Fiber Rebar

Property

Non Magnetic, Electric insulation, High Strength, High E-modulus, Coefficient of the thermal expansion near with cement concrete,

High resistance to corrosion, acid,alkali and salt.

Application

Earthquake observing station, Seaport pier protection, Metro station, bridge, Concrete construction, Pretressed concrete highway, Anti-corrosion chemical industry, Chemical storage tank, Underground engineering, Mri facilities basis, Communication building, Electronic equipment factory, Fusion buildings, Concrete guide board ofmaglex railways, Telecommunications transmission tower, television stents and strength core of optical fiber cable.

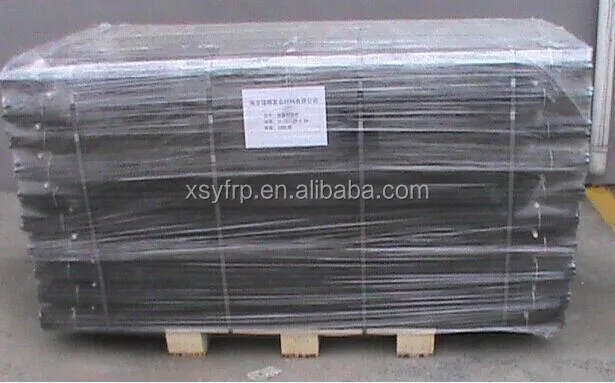

Product Packing

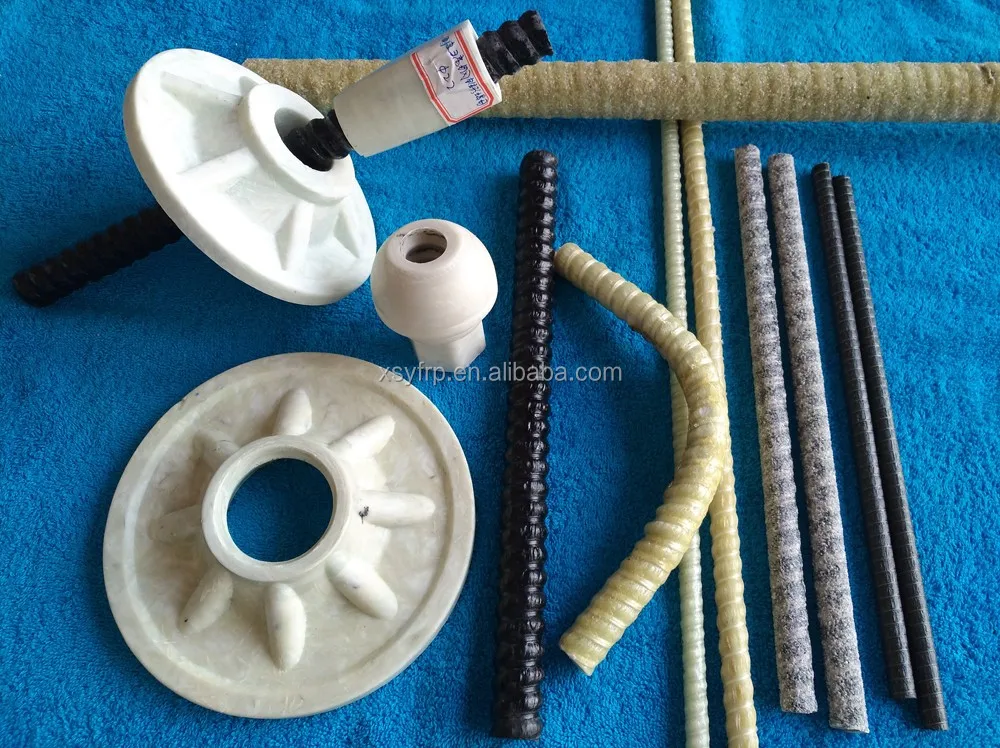

Main Products

Our company is integrated company from development, production to sales and services of FRP products. We keep cooperation with key universities and specialized engineering construction companies.


The main products of XSY are the FRP rebar and FRP rockbolt of different specifications.

Until now, our products are successful applied in coal mine roadway, foundation pit, slope protection, highway & bridge and subway& tunnel.

Our products have been exported to all over the world, such as Europe, America, Middle East and Australia.


Our products could meet domestic and foreign national and industrial standard: ACI & ASTM (USA), BS (UK), CSA & ISIS (Canada), JECE (Japan), and for world leading technical level.

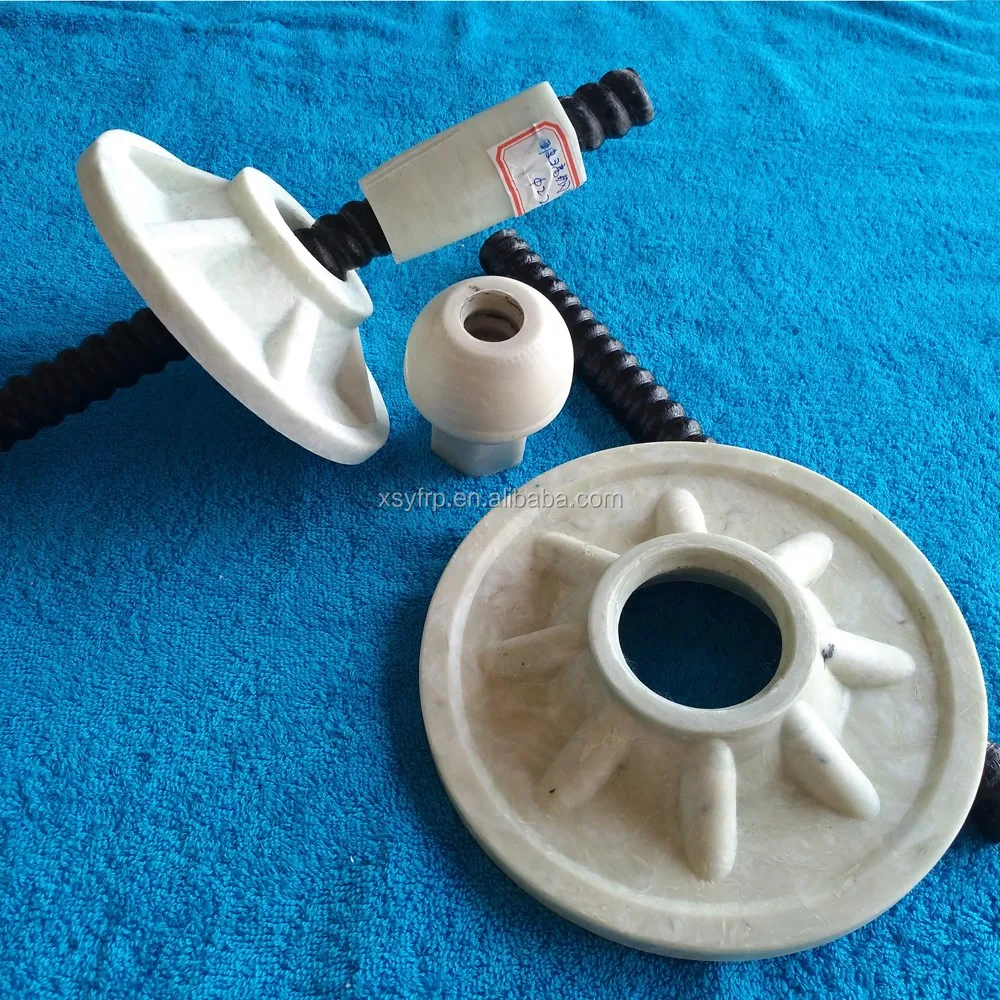

Fiberglass Rock Bolt

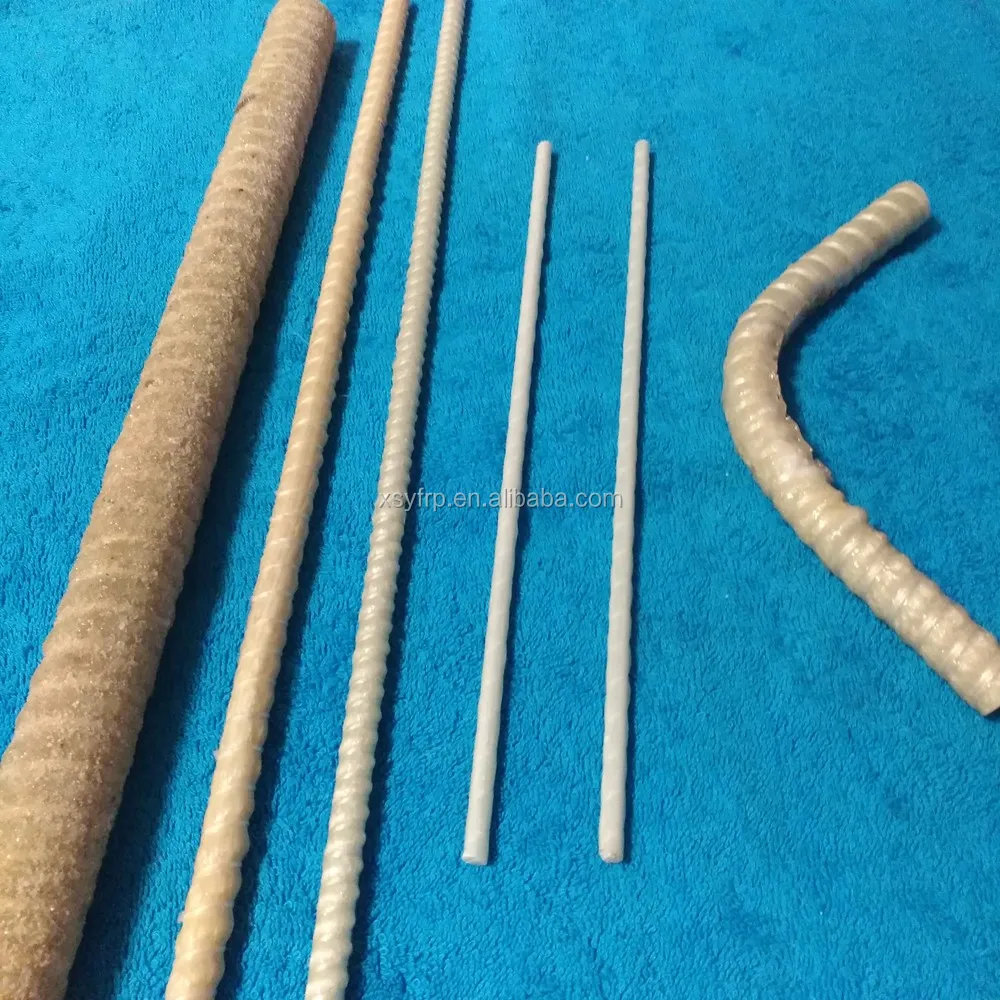

Fiberglass (GFRP) Rebar

Carbon Fiber (CFRP) Rebar

Factory Photo
Customer Visit

We have more than ten years of export experience all over the world. We win our customers due to our best quality and best service!

Contact

Please don't hesitate! Just contact us now!
You could email me directly as following:


Would you please tell us your requirements for quote?

1.  which diameter?
2.  how long of each pcs?
3. additional technical requirements? such as tensile?
4. what's your application?
5. what's your quantity?
