BIOBASE CHINA 2018 High Quality Metallurgical Microscope price

FOB Reference Price:Get Latest Price
$560.00 - $1,100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BIOBASE
Model Number:
XJD-100
Theory:
Metallurgical Microscope
Drawtube:
Binocular
Nosepiece:
Ball Beating Quadruple Nosepiece
Eyepiece:
WF10X
Objective:
Metallurgical objectives 10X,40X,100X(S,Oil)
Stage:
Double Layer Mechanical Stage 242*172mm moving range 75*50mm
Illumination:
Build-in Illumination,Halogen lamp6V/20W,Power supply 220V
Filter:
Blue,Green,Yellow
Power Supply:
AC 110/220V±10%,50/60Hz
Package Size:
300*400*520mm
Name:
Metallurgical Microscope
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
International Standard Package
Port
Qingdao

Metallurgical Microscope



Technical Parameters:

Specification

Model

XJD-100

XJD-200

XDS-1

XDS-2

4XC

Viewing Head



Monocular Head Inclined at 45?









Sliding Binocular Head Inclined at 45?









Sliding Trinocular Head Inclined at 45?









Compensation Free Trinocular Head30?







Nosepiece

Ball Beating Quadruple Nosepiece

Eyepiece

WF10X,WF12.5X





WF10X20mm







Objective

Metallurgical objectives 10X,40X,100X(S,Oil)





Infinity metallurgical objectives 4X,10X,20X(S),40X







Stage

Double Layer Mechanical Stage 242*172mm moving range 75*50mm







Double Layer Mechanical Stage 135*140mm moving range 70*50mm





Focusing

Coaxial coarse &fine focusing adjustment with rack and pinion mechanism fine focusing scale value 0.002mm

Illumination

Build-in Illumination,Halogen lamp6V/20W,Power supply 220V

Filter

Blue,Green,Yellow

Power Supply

AC 110/220V±10%,50/60Hz

Package Size

300*400*520mm

Gross Weight

12Kg

Note:110V/220V for LED lamp ,220V only for Halogen lamp

BIOBASE
Biobase Introduction


Product Certificate

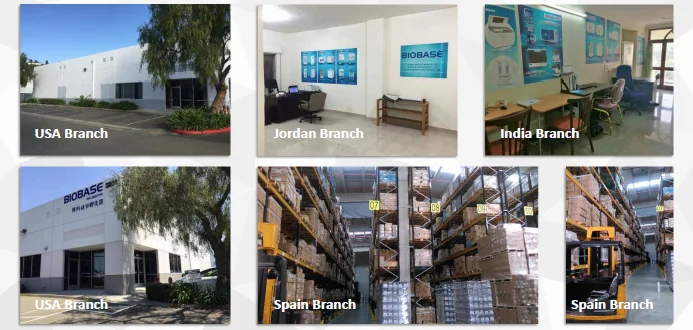

Overseas Offices

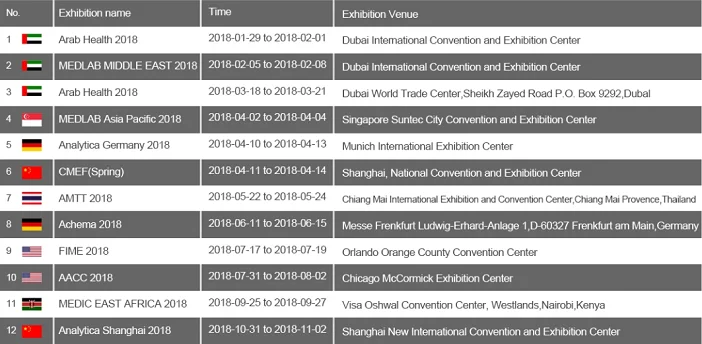

International Exhibition

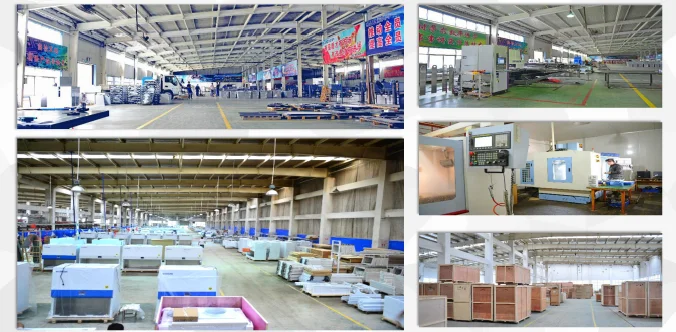

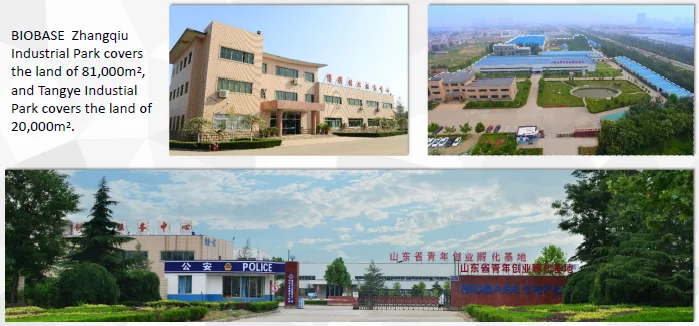

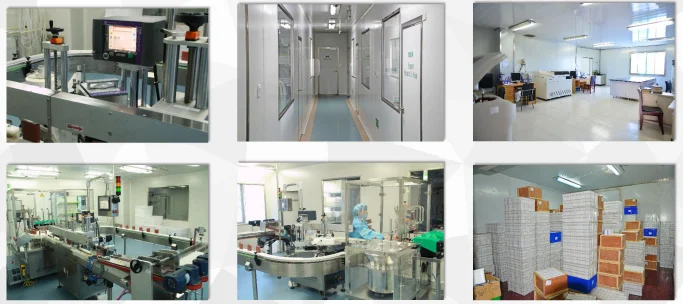

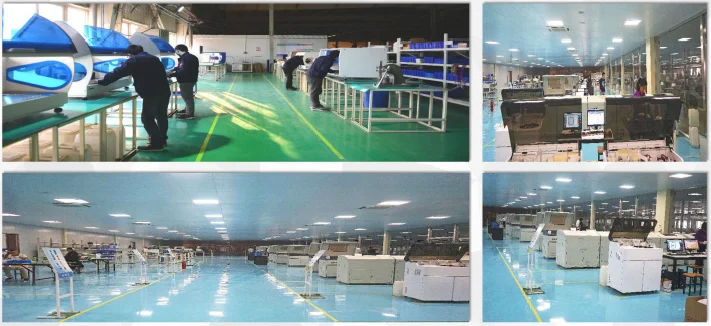

Factory & Workshop


Package & Shipping
 Mainly packed by Wooden package or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.

Welcome to BIOBASE, I will serve you!
                                                 more product>>
RFQ

Any question or help,please feel free to contact with me at any time!

Contact :Psyche Liu (sales supervisor)

Email:sales57 @biobase.cc

Tel number:86-531-82373113

mobile:008615853187153

WELCOME TO CLICK AND INQUIRY.
