BLS ss304 tahini/peanut butter making machine/ketchup making machine

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    $2,000.00
  • 5 - 9 Sets
    $1,800.00
  • >=10 Sets
    $1,600.00
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Construction works
After Warranty Service:
Video technical support, Online support
Local Service Location:
none
Showroom Location:
Indonesia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Motor
Place of Origin:
Zhejiang, China
Brand Name:
L&B
Type:
Grain Processing Equipment, Grain Processing Equipment
Warranty:
1 Year
After-sales Service Provided:
Online support
Application fields:
Vegetable processing plant, Cannery, Winery, Meat processing plants, Commercial catering, Snack food factory, Dairy products factory, Beverage Factory, Flour mill, Seasoning plant, Bakery, Fruit processing plant, Cooking oil factory
Machinery Capacity:
10-800KG
Machinery Function:
grinding
Name:
ketchup making machine
Certificate:
ISO etc
Material:
stainless steel SS304;SS316
Voltage:
110-480V designed
Application:
grinding,milling
type:
vertical,split,horizontal
technical advantage:
20 years manufacture experience
warranty:
one year
Supply Ability
Supply Ability:
400 Set/Sets per Month ketchup making machine
Packaging & Delivery
Packaging Details
PLYWOOD CASE ketchup making machine
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Description

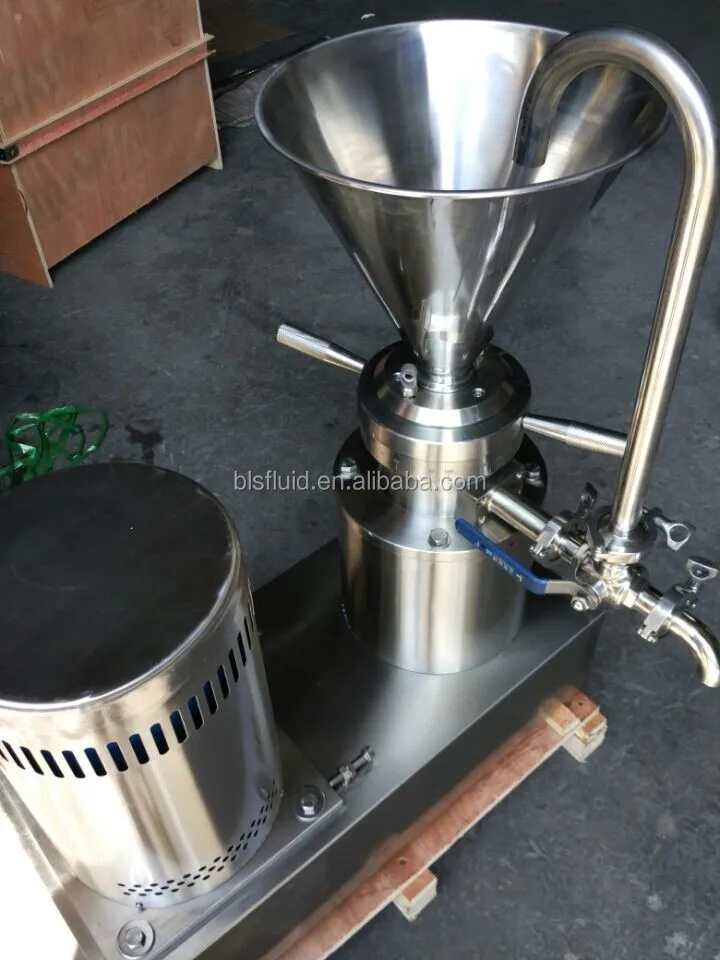

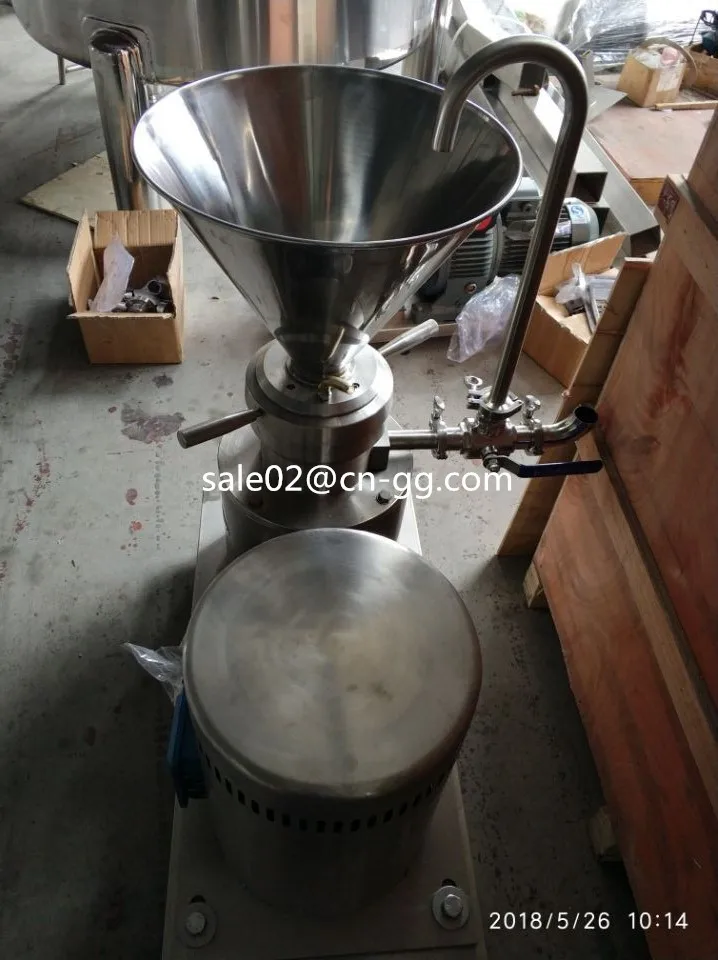

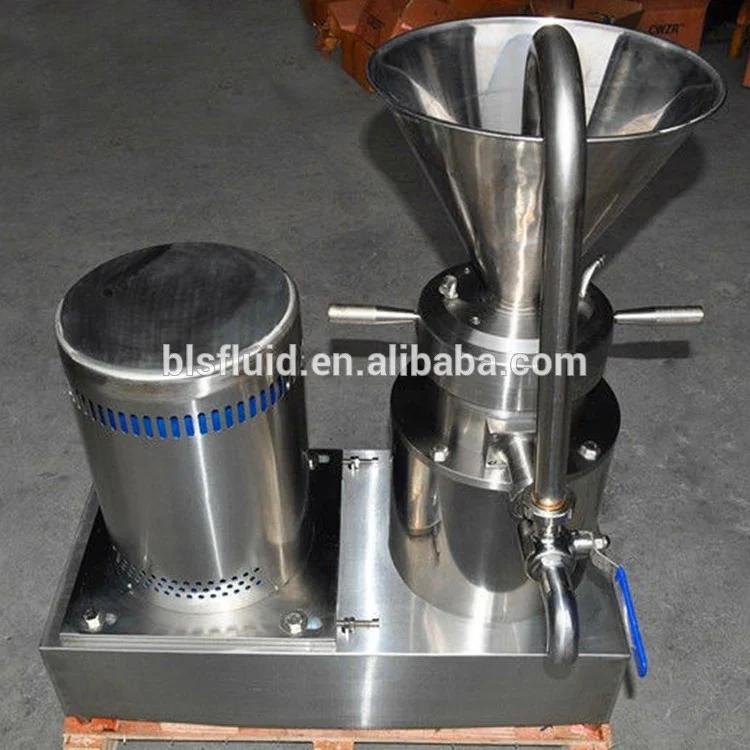

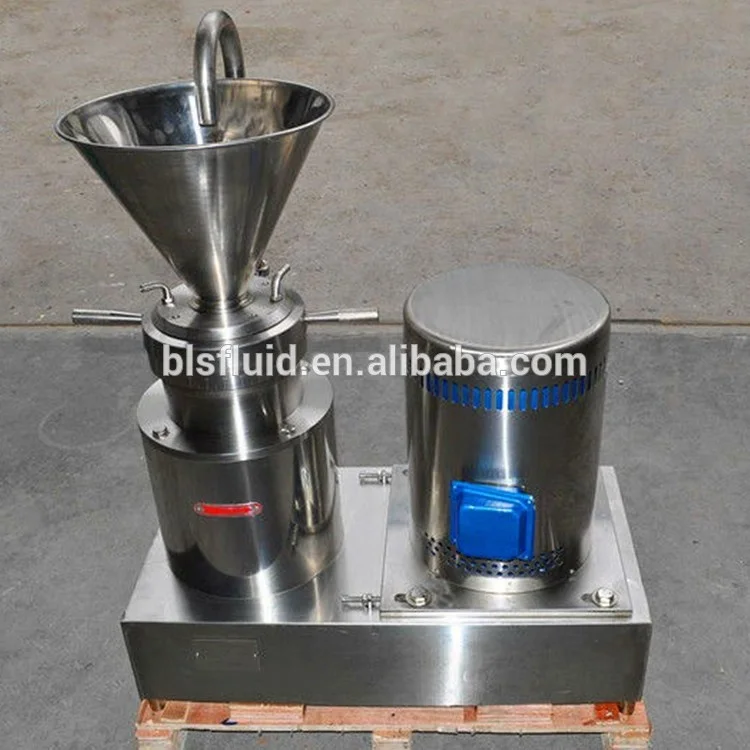

BLS ss304 tahini/peanut butter making machine/ketchup making machine

Working principle
The basic working principle of colloidal mill is shearing, grinding as well as high-speed stirring applied force, grinding is
finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and togrind,emulsify, smash,homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Direction for use
JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions.


It is widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage, etc.), pharmacy (various
syrups, nutrition liquid, Chinese Traditional Patent Medicine, poultice, etc.),

Usage:
used for mixing tank/vessel

* Description of application effect
the JM series Grinding Machine can be used to make almond milk,chilli sauce,tomato paste,sesame paste,garlic
paste,onion,carrot,red beans etc.
Product Name:
peanut butter making machine
Description:
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical
industries
Construction:
JML series;JMF series and JMW series
Material:
2cr13,ss304,ss316
Max. rev:
2800 RPM
Rotor Type:
teeth
Motor power:
1.5kw, 2.2kw, 3kw, …22KW,30KW
Voltage:
110-480V
frequency
50hz/ 60hz
Surface treatment:
Inner polished and Sandblast outside
Operated:
Electic
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case or customerized. Or as per the request of customers
Delivery details:
Usually within 15 days after receiving T/T down payment
Technical Parameter
colloid mill
um
t/h
mm
mm
mm
r/min
kw
mm
Model
Fineness
Output
Diameter of Scafe
Diameter of Inlet
Diameter of Outlet
Speed
Power
Outline Dimension
JMF-50
2-40
0.01-0.1
50
30
20
2800
1.1
255*500*700
JML-65
2-40
0.02-0.5
65
30
20
2800
1.5
270*500*700
JMF-65
2-40
0.02-0.5
65
30
20
2800
2.2
500*345*675
JMW-80
2-40
0.3-1
80
48
25
2800
3
630*380*790
JMF-80
2-40
0.3-1
80
48
25
2800
4
700*570*920
JMW-100
2-40
0.5-2
100
66
25
2800
5.5
680*370*900
JML-100
2-40
0.5-2
100
66
25
2800
5.5
390*645*980
JMF-100
2-40
0.5-2
100
66
25
2800
5.5/7.5
800*645*980
JMW-120
2-40
0.5-3
120
66
32
2800
7.5
680*370*900
JMF-120
2-40
0.5-3
120
66
32
2800
7.5
800*645*980
JMW-140
2-40
0.5-4
140
66
32
2800
7.5
680*370*900
W L F
Detailed Images

Title goes here.

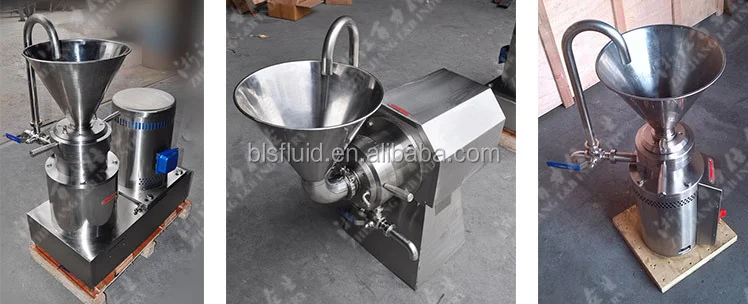

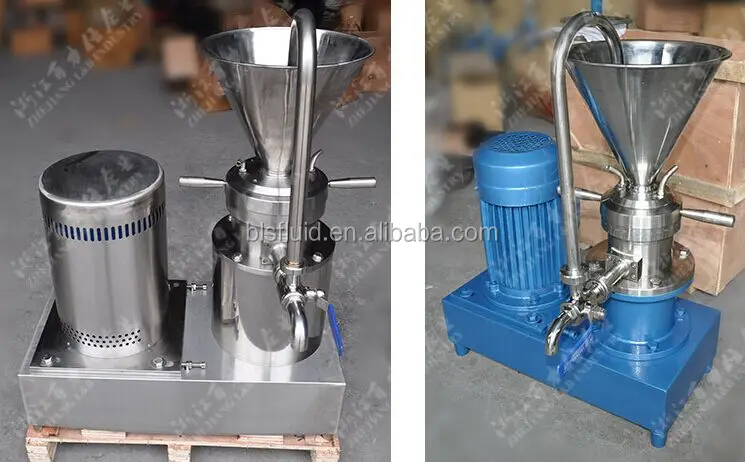

we have three different types for your reference,JMF,JML,JMW

JMF:the motor are separate with the grinding part,can avoid water splashed on the motor,it will be more safe.

JML:it is vertical installation which cover a small area.

JMW:it is horizontal installation,can cpnnect the pipe line.

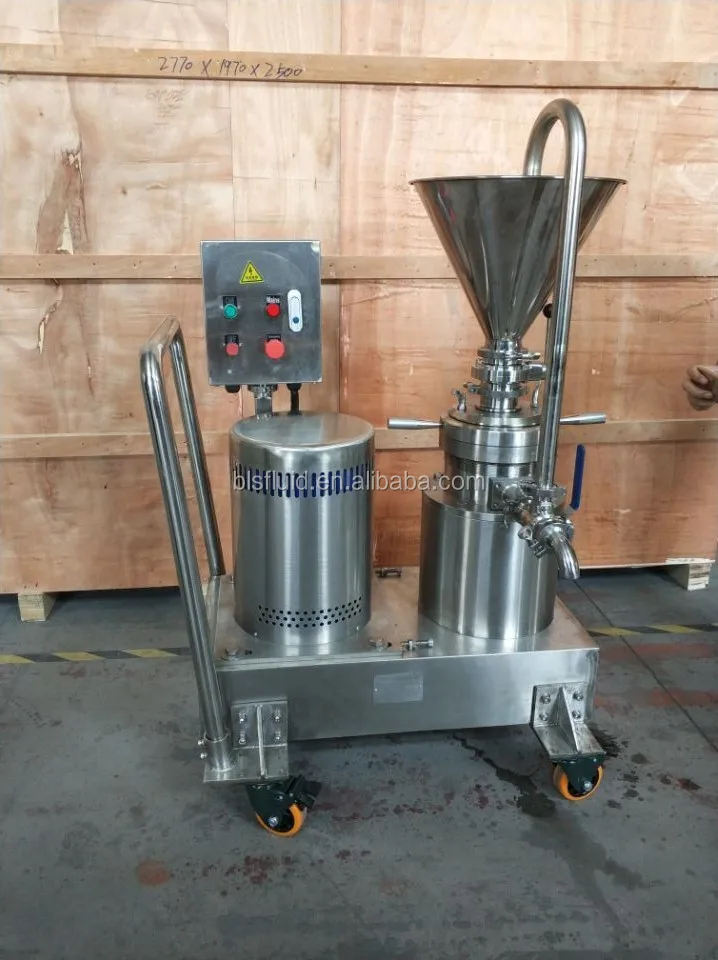

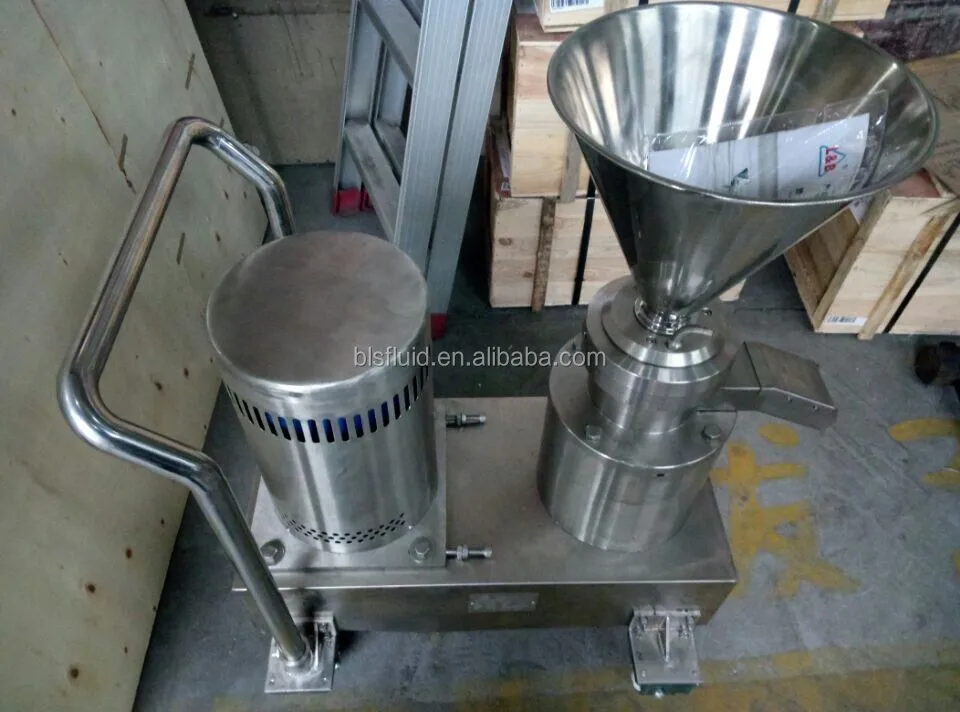

we can install trolley and control cabinet as per customer's requirement
it also can be connected to the tank and homogenizer mixer to make almond milk,you can click the picture to know more.

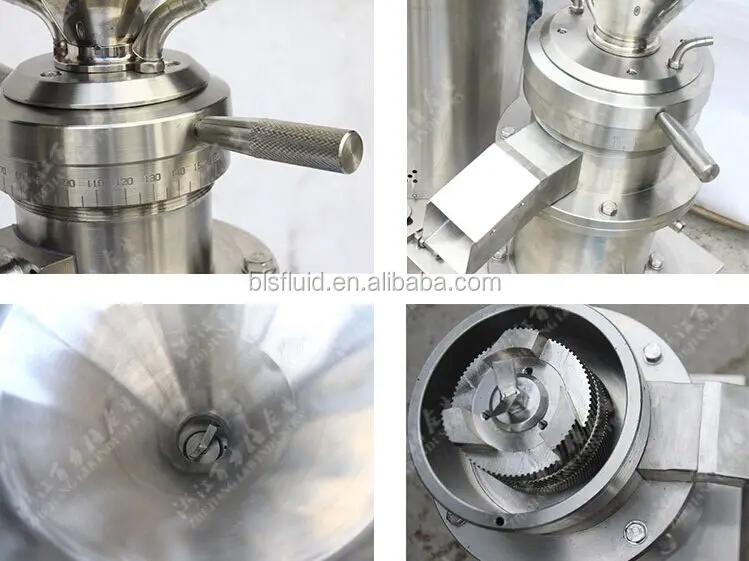

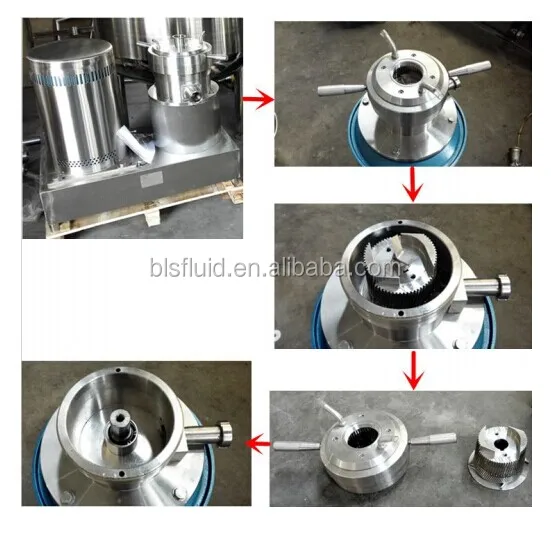

Steps:how to to dimount the grinding core to clean:
1. Remove the funnel counterclockwise
2. Turn the handle of the grinding disc counterclockwise,Loosen the static grinder
3. Pull up the static grinder
4. Counterclockwise to remove the v-shaped thruster blade
5. Use screw fixation method and pull up moving millstone
6. Installation method is reverse with this disassembly method
