BMWR-301 Manually Operated Wheelchair Ramps for van for the disabled

Feedback Ratings
  • 1-9 Pieces
    $966.00
  • >=10 Pieces
    $916.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
manual operation
Car Model:
van
OE NO.:
non
Warranty:
12 month
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Xinder
Model Number:
BMWR-301
Material:
Aluminum
Capacity:
350Kg
Platform size:
2240*810mm
overall height:
850mm
overall length:
967mm
own weight:
45KG
Packing condition:
wooden case

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X35X115 cm
Single gross weight:
63.0 kg
Package Type:
plywood case
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Product Application

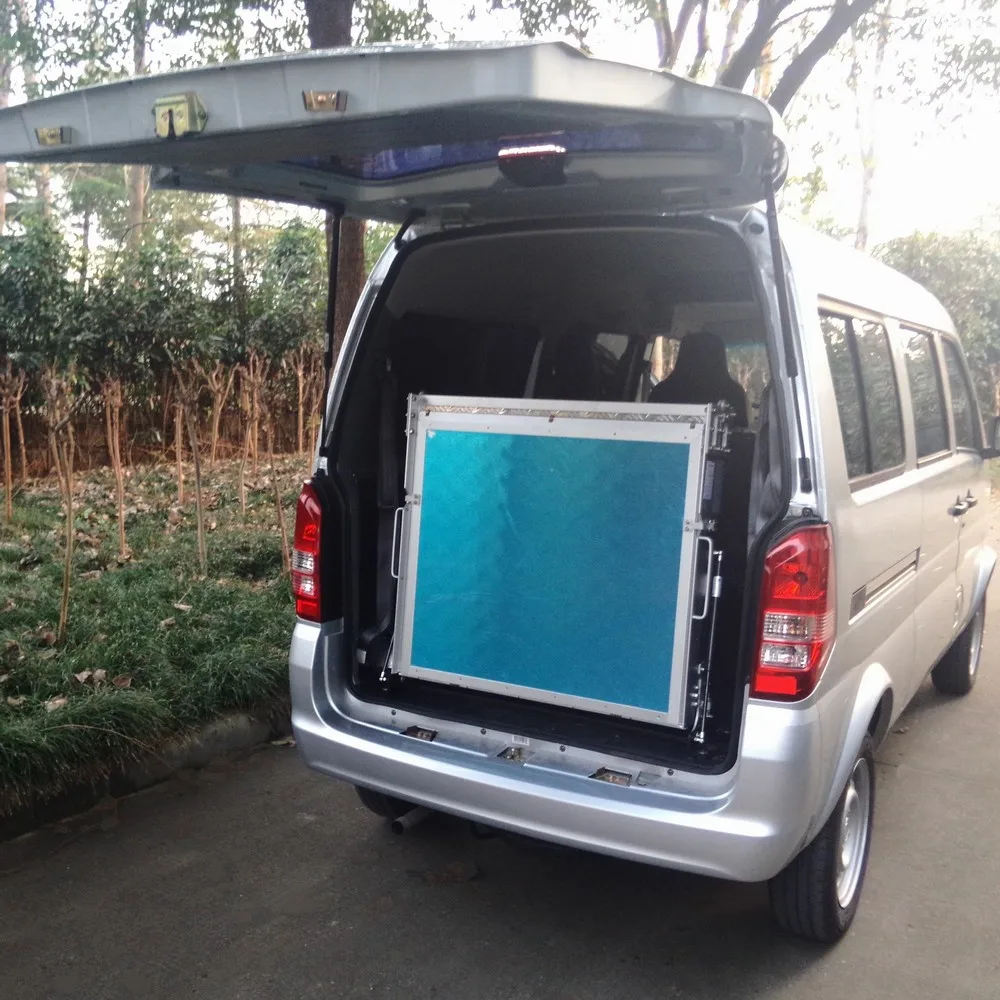

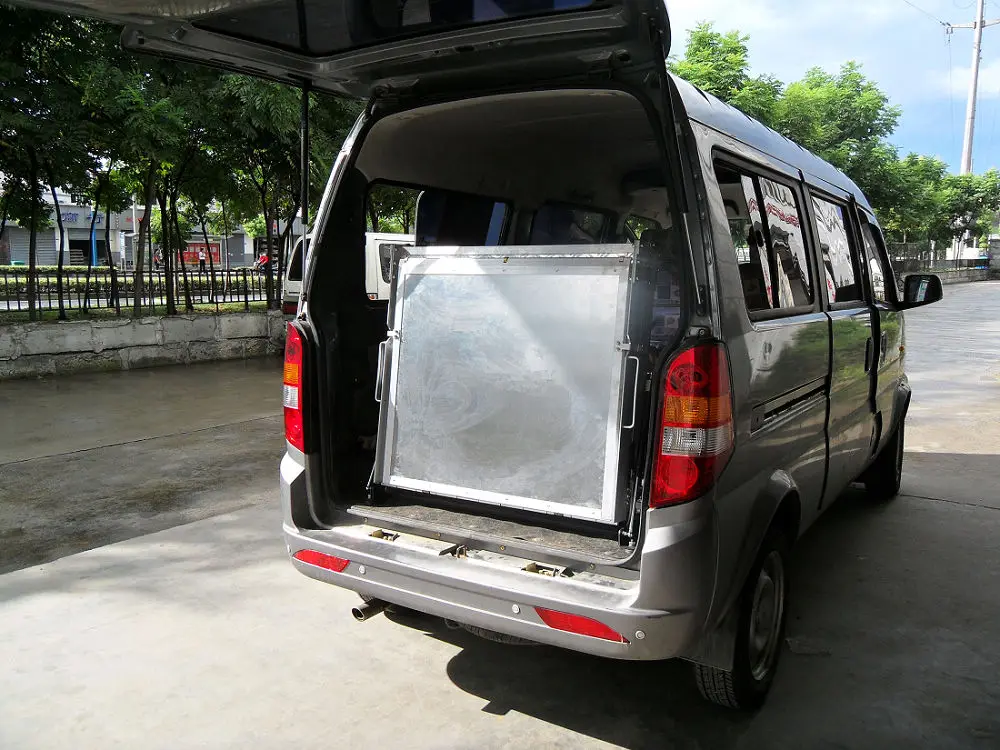

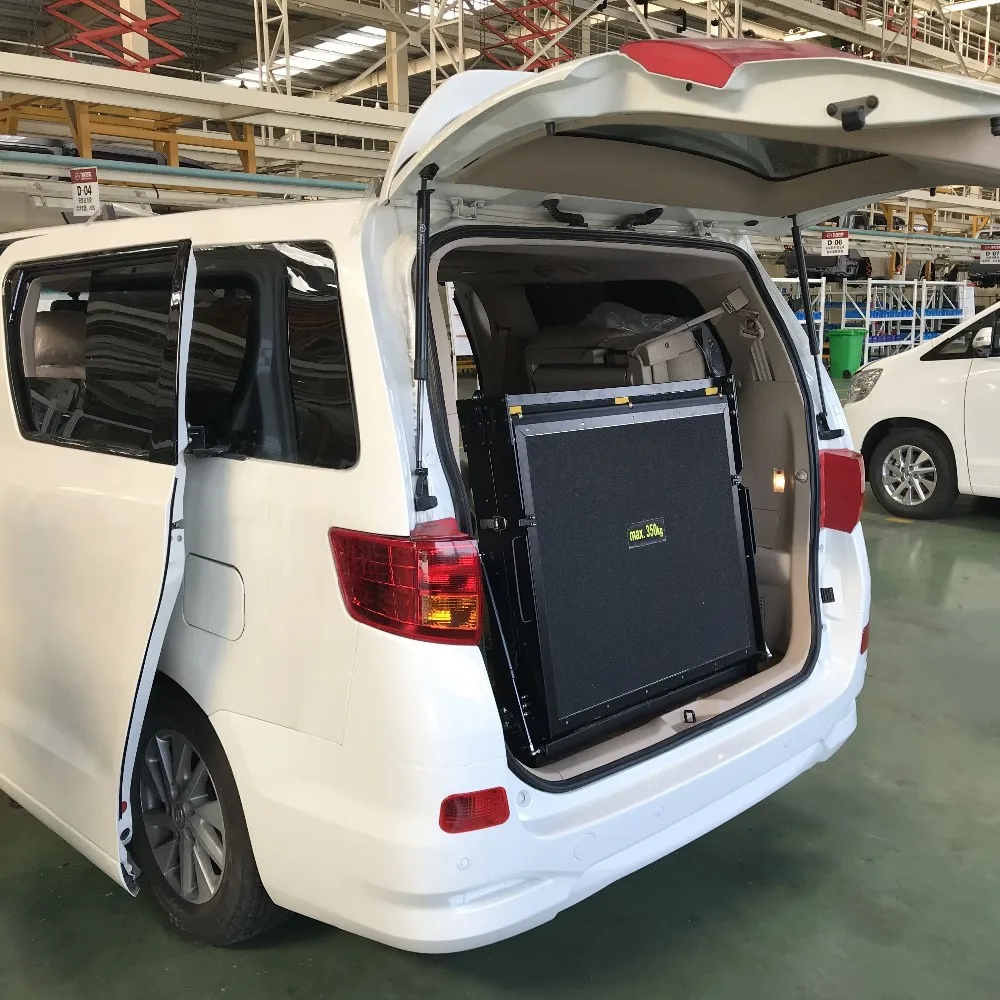

This BMWR series manual wheelchair ramp can be used for van and minivan.
This ramp consists of two or three honeycombs penal which are hinged joint to fold and unfold. One of the advantages of this ramp is that the operation is completely manual, which is simple, easy, and safety. This is the best choice for the vehicle which floor is a little high and installation space is limited.

This ramp is mainly made from aluminum profile and honeycombs penal. We apply honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load capability and so on.

There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp unfolding by itself when emergency brake.

SPECIFICATIONS
Model
platform net length A
platform net width B
overall height C
overall width D
depth E
BMWR-201
1910 mm
810 mm
1050 mm
967 mm
265 mm
BMWR-301
2240 mm
810 mm
850 mm
967 mm
265 mm

Main Features

1) operated manually which is safety and easy.

2) two gas springs at the two sides of ramp, which make the operation easy.

3) There is a setscrew at the bottom of ramp which can ensure the ramp vertical under the condition of being stowed.

4) anti-skip platform equiped with honey-combe board (anti-skip covering for option)

5) loading 350kg

6)  two handrails.

Detailed Images

Machine Parts

two handrails at two sides

Main Features

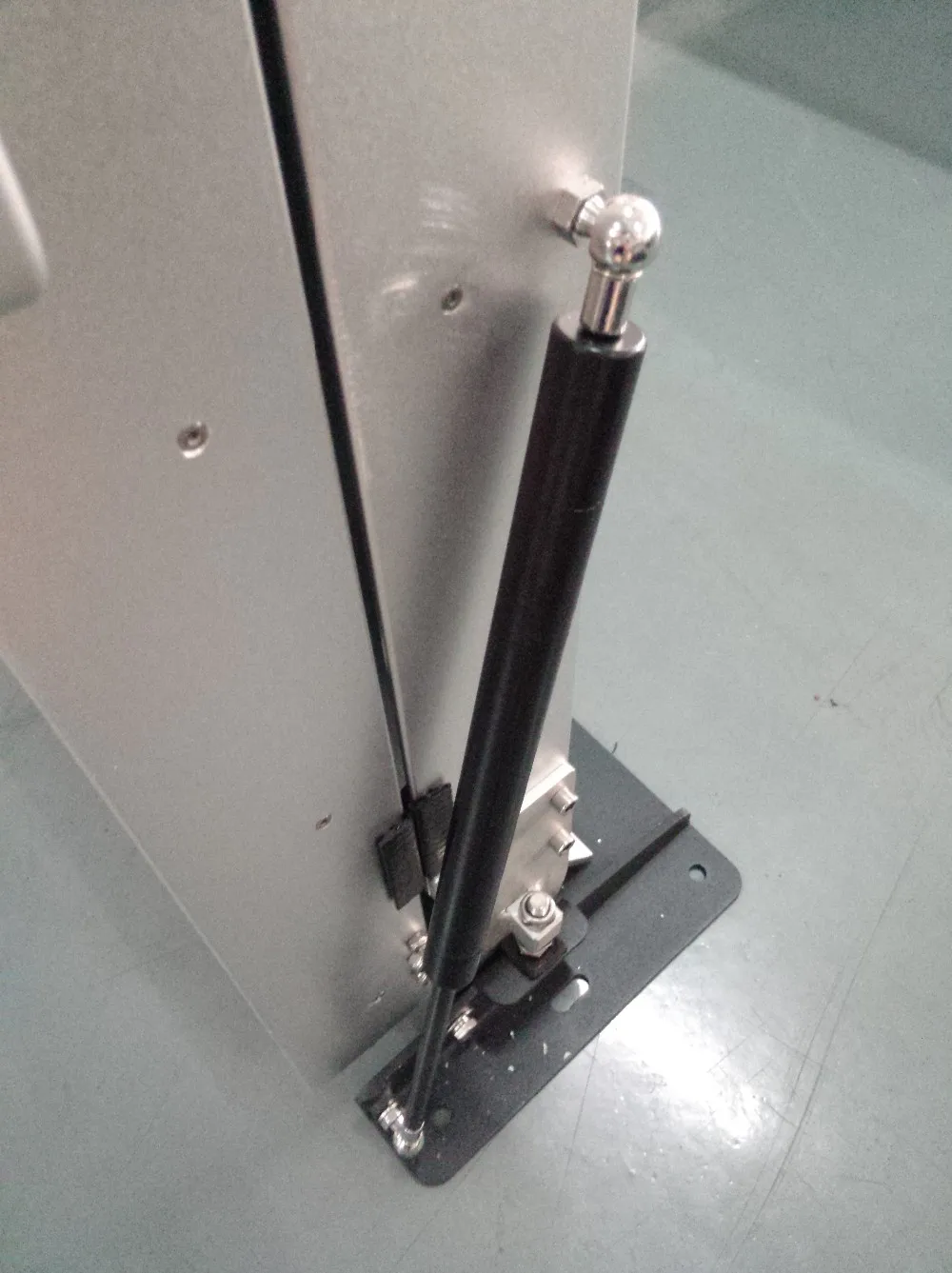

gas springs

make the operation is easy

Machine Parts

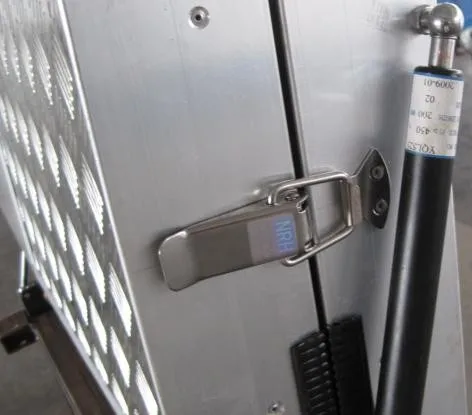

two locking device at two side

make this ramp more safe

Main Features

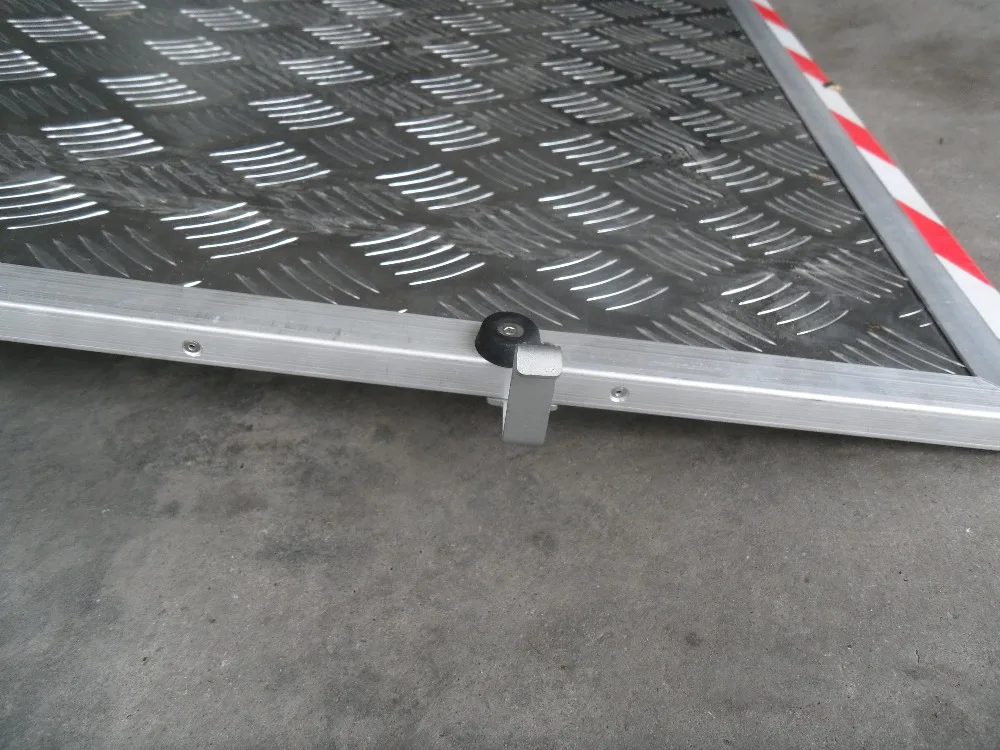

anti-skip platform

Packing & Delivery

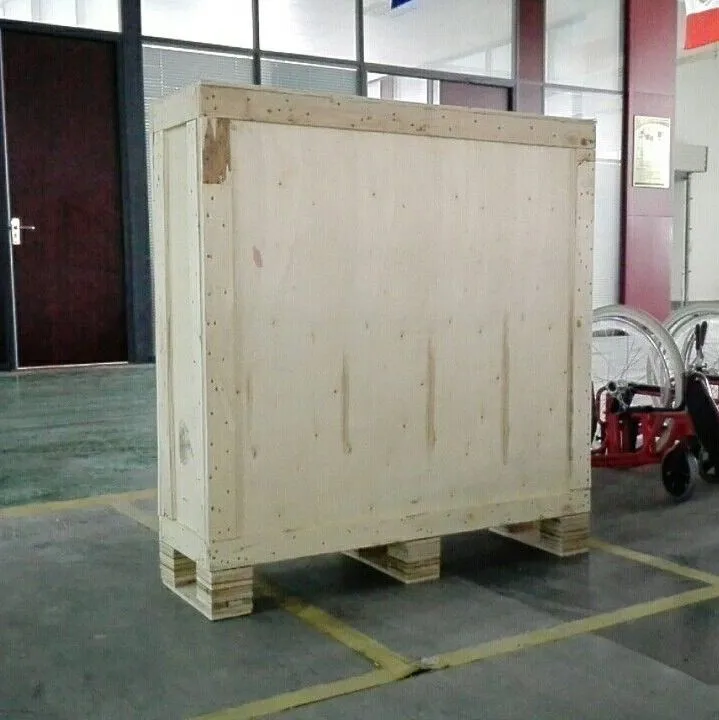

we pack 1-2 units/plywood case

plywood case

international transport cooperation
