BOFUpanels, lightweight Construction Plastic Formwork System

Feedback Ratings
$60.00 / Square Meter | 1000 Square Meters (1 lot) (Min. Order)
1 batch = 1000 Square Meters
Quantity:
- + Square Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BOFUpanels
Model Number:
construction formwork
model:
Plastic Formwork System
material:
ABS
weight:
10kg
size:
120x60x7.5cm
origin:
China
color:
black
tensile strength:
60 KN
reusable:
100 times

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
120X120X100 cm
Gross weight per batch:
1000.0 kg
Package Type:
pallet with plastic film
Picture Example:
package-img
Lead Time :
Quantity(Square Meter) 1 - 10000 >10000
Est. Time(days) 1 To be negotiated
Specification

Plastic formwork

1. light weight, high strength
2. sustainable and enviroment friendly
3. reusable about 100 times
4. save time and labor
5. easy operation

6. low average cost

Product Description

BOFU reusable plastic formwork is an easy and intuitive system of ABS formworks for building concrete walls, basements, columns. Compared with the traditional timber or steel systems, BOFU plastic formwork is handier, more cost effective and faster to set up, save time and labor charge.


BOFU plastic formwork has panels of various sizes, fastened together by means of fast-lock nylon handles. Thanks to the several possible panel combinations, and special inner and outer corner elements, the possible wall thickness goes from 10 to 40 cm.

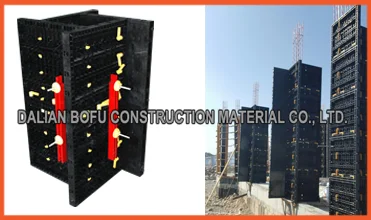

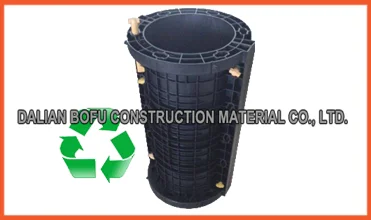

Ajustable Column

The resuable plastic formwork - column panels are interconnected using the standard nylon locking handles. Each panel will require 9 handles.


The forming face has 6 parallel rows of fixing holes to allow the orthogonal connection of the panels in a "star" shape.


The rows are placed at a distance of 100/50mm the one from the other, allowing the forming of square and/or rectangular columns with side of 150 to 600mm.

Characteristics
Products Name
Plastic formwork
Original
China
Material
ABS
Maximum Load
60KN/SQM
Reusable
100 times
Weight
11KG
Product Introduction

Handier

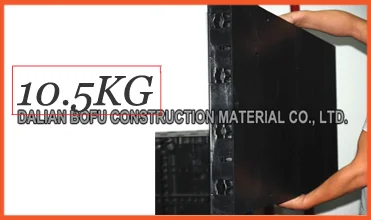

The biggest panel of BOFU reusable plastic formwork is 120x60cm, weight only 10.5kg, which can be lift and set up by only one person easily, need no crane on the site.

Easy Operation

Different size of reusable plastic formwork panels can be firmly locked by simply turn the special handles to 90 degree. The panels have rib on the back, which makes the system need not traditional wood blocks and nails.

The panels have holes to fit tie rod, guarantee the strength of the whole system.

Strength

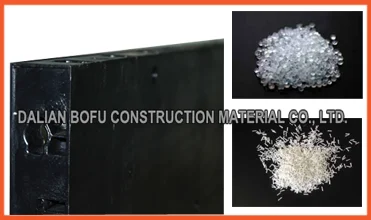

The material of BOFU reusable plastic formwork is ABS  which enable panels to hold high pressures.


The handles are made by high strength Nilon, each panel locked by at least 4 handls, which makes the whole system strong enough to pour 40cm walls.

Environmental Friendly

The plastic formwork need not cut and nail due to the variety size, and nearly need no wood, the material can be recycled after broken, will not pollute the enviroment.


In propely use, the plastic formwork system can be reused about 100 times.

Consequent

Concrete does not stick to plastic, thus the panels need no oil before using, and can be cleaned simply by water.


The surface of the wall which built by BOFU reusable plastic formwork is smooth, can be left without rework.

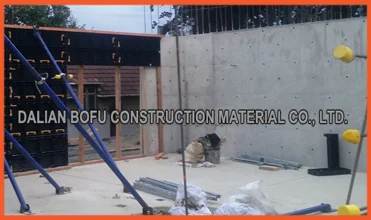

Walls and Corners

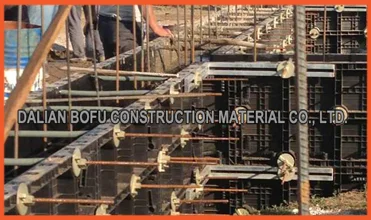

Using BOFU resuable plastic formwork, it is possible to pour up to 40cm thick and 3 meters highstraight walls one time.

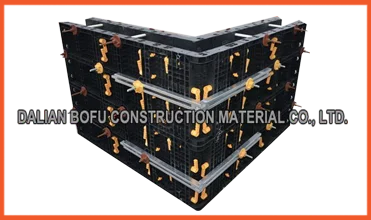

Combining with special corners and compensation panels, right angle walls, three way T-walls and four way cross walls can be fomed easily.

Basin and Elevator Shafts

The low weight of BOFU reusable plastic formwork simplifies the pouring of tanks, basins and swimming pools in areas with limited or no access to heavy equipment.


BOFU reusable plastic formwork also ideal for elevator shafts as it can use without aid of crane, can make an easy, fast and precise job by hand.

Doors and Windows

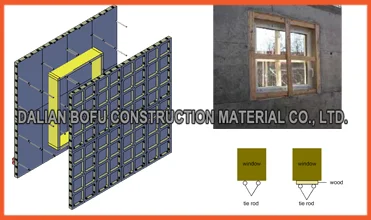

To make doors and windows by BOFU reusable plastic formwork is simple, by inserting inside the formwork a wooden frame corresponding to the size of the opening needed, and then pour the walls with doors and windows.

Set Up Showing

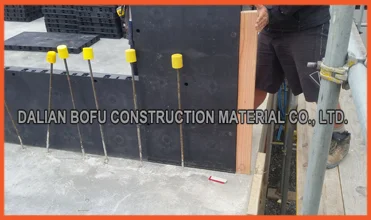

1. assemble the formwork as described earlier leaving an opening in the panels where the wood plate has to be mounted. The space remaining will be panelled off by the wood plates (do not use the wood plate along or next to corners, but in a flat area, usually about halfway along the wall)

2. to keep the plates in place and prevent them from falling, fit the spacers and the tie rods in the plates' holes


3. mount the reinforcement bars on the tie rods, one for each stay (i.e. 4 each side for a 3.00m high formwork)

4. lock the reinforcement bar in place by fastening tight the win nuts, making sure the reinforcement bar is kept horizontal. At this stage the wood plates are blocked to the system

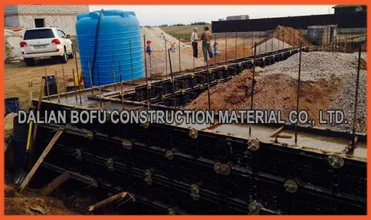

Project Sample

Project in New Zealand


Project in U.A.E.


Project in U.A.E.


Project in Russia


Project in Kazakhstan


Project in Argentina


Company
Dalian BOFU Construction Material Co., Ltd. is the professional supplier of reusable plastic concrete forms for construction and its accessories.

Thanks to our credibility and high quality products, BOFU has built long term cooperation relationship with many world class enterprises such as Saudi Arabia ATCO group, Russia Sakhalin Energy Investment Company, etc.
