Battery Cage Poultry Farm Design With Bird Cages For Layers,Layout For Bird

Feedback Ratings
  • 10-29 Sets
    $125.00
  • 30-49 Sets
    $115.00
  • 50-144 Sets
    $113.00
  • >=145 Sets
    $99.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Use:
Chicken
Type:
poultry cage
Material:
Low Carbon Steel Wire, High Quality Steel Wire
Place of Origin:
Hebei, China (Mainland)
Brand Name:
BAIYI
Model Number:
BYC-01
Surface treatment:
Electric Galvanized, Hot dip galvanized, PVC coated
Capacity:
96,120,128,160 birds/set
Size/cell:
470*360*380mm/390*360*380mm
Size/set cage:
1.88x2.3x1.5m/1.95x2.3x1.5m
Feature:
Easily Clean;Easily install, low cost,Easy to clean chicken waste
Certiification:
SONCAP, SGS, ISO,COC....
Accessories:
Nipple drinker, feeder,water pipe,water tank,stands,install tools,etc.
Automatic Equipment:
Auto feeding system;cleaning system; egg collection system,etc.
Service:
design project,supply install instruction and free change broken parts

Packaging & Delivery

Selling Units:
Single item
Single volume:
1 cm 3
Single gross weight:
67.0 kg
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description


Why use cages for your chickens?

(1)Automated controlled system;
(2)High rearing efficiency;
(3)Designed for rearing and growing;
(4)Floor saving and cost efficient;
(5)Easy maintenance and operation.

Surface treatment
Feature
Advantage

Electro galvanized
Zinc coating: 20-30g/m2;
Surface smooth and bright;
Easy to rust, but it doesn't affect use.
Service life: more than 10 years

The price is cheaper, can save your cost.

Hot dip galvanized
Zinc coating: about 500g/m2;
Surface have zinc knot, not smooth.
Don't easy to rust.
Service life: more than 20 years
Can keep not rust for long time.
PVC Coated
Service life: 15-20 years
Looks beautiful; long time no rust

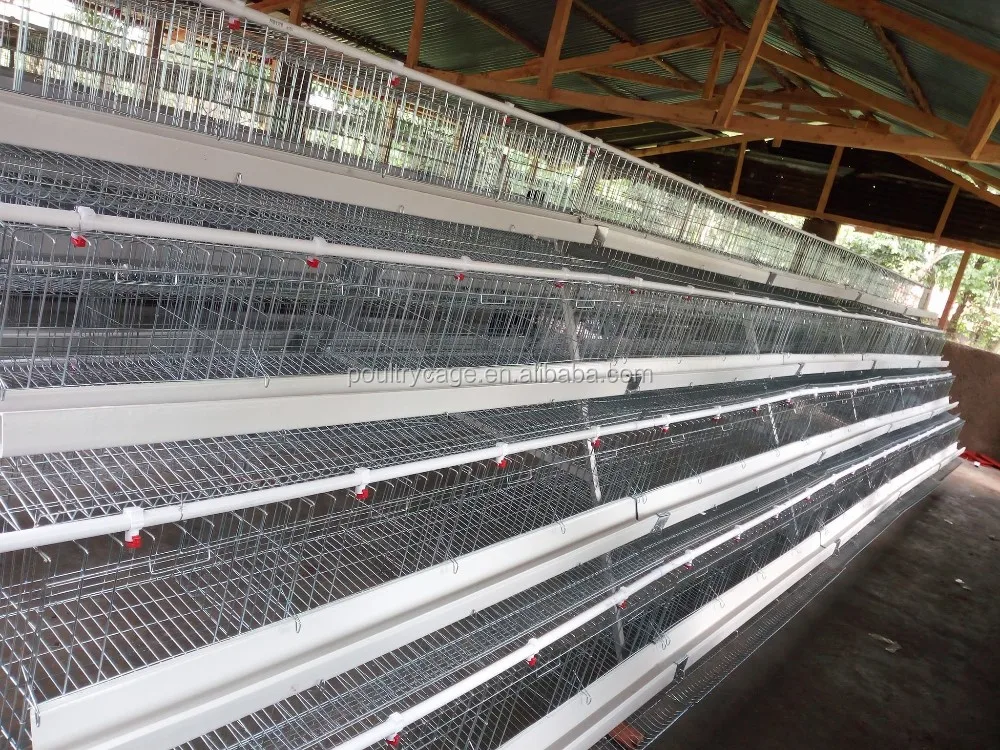

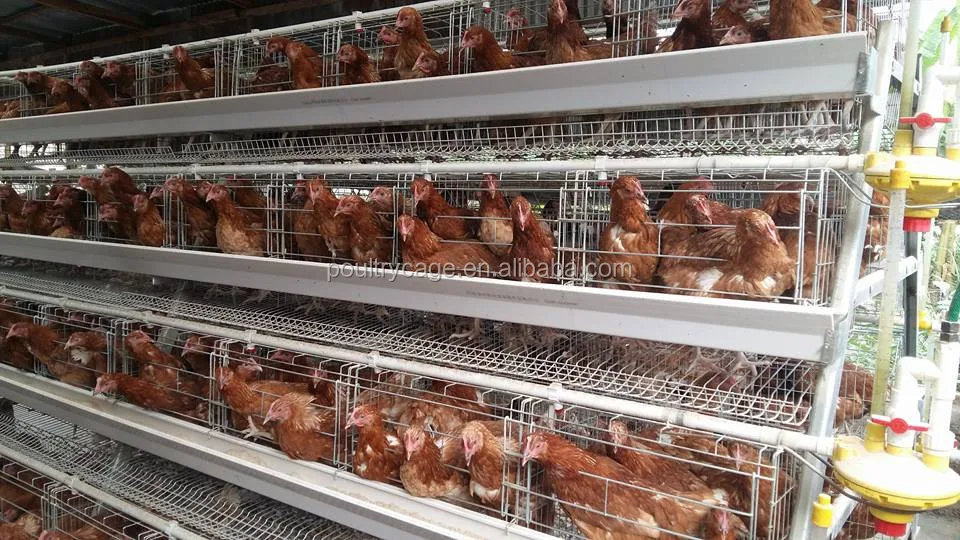

Layer chicken cage is rearing egg laying chicken, after pullet growing up to 12 weeks or 16 weeks transport them to layer cage. Its biggest advantage is increasing egg production to 98%, very easy to handle chicken waste and reduce disease transmission.

Specification

Types
3 tiers 4 doors
3 tiers 5 doors
4 tiers 4 doors
4 tiers 5 doors
Chickens/cell
4 chickens
4 chickens
4 chickens
4 chickens
Size/cell
47*35*38cm
39.6*35*38cm
47*35*38cm
39.6*35*38cm
Chickens/set
96 chickens
120 chickens
128 chickens
160 chickens
Size/set
1.88*2.3*1.5m
1.98*2.3*1.5,
1.88*2.5*1.8m
1.98*2.5*1.8m

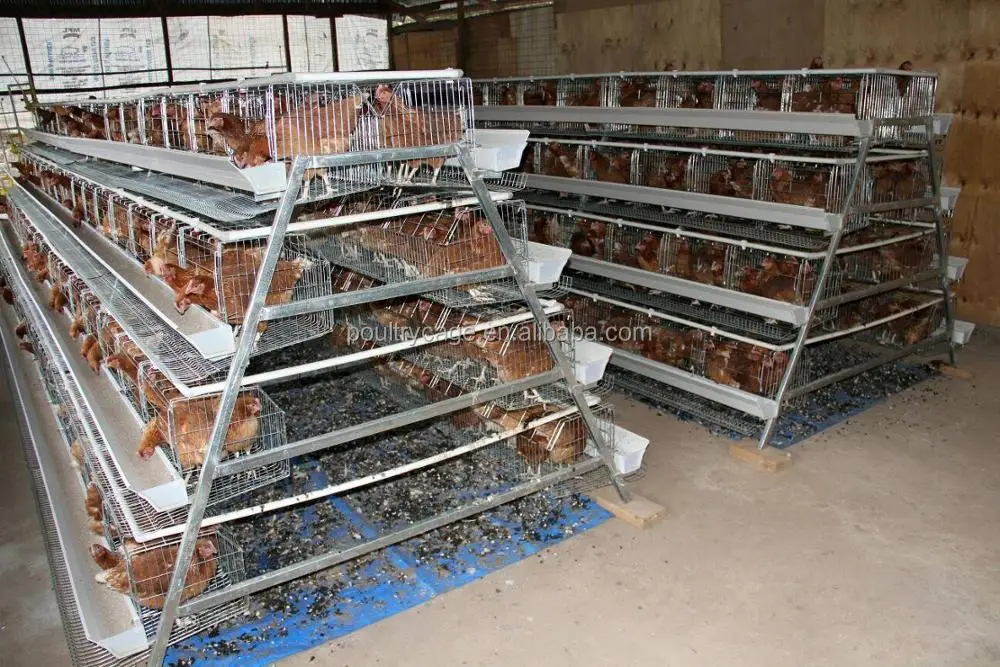

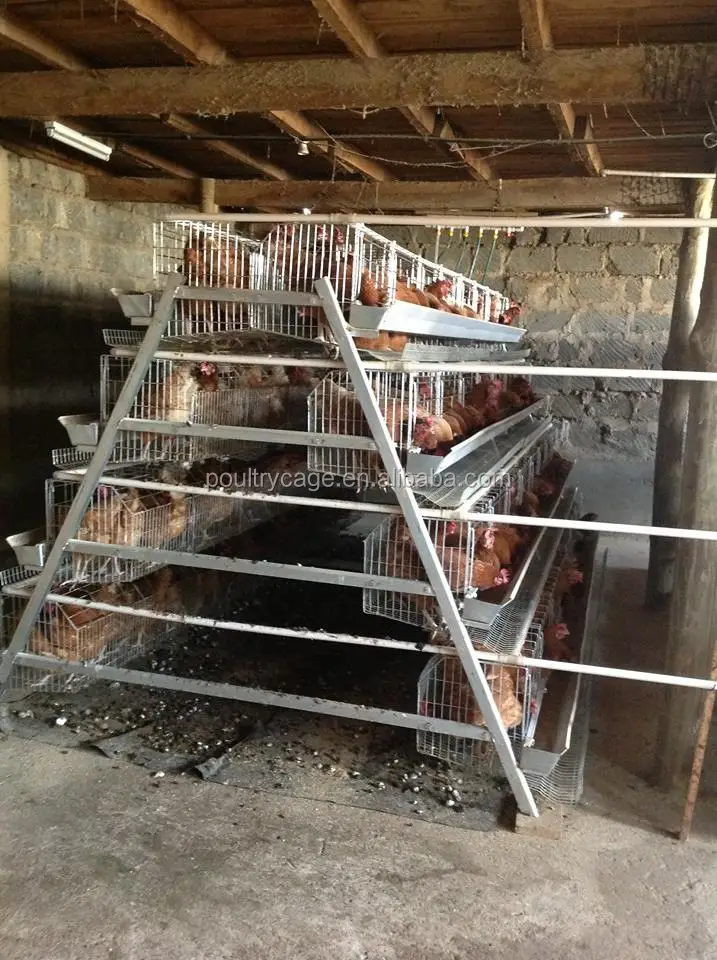

    A type 3 tiers 4 doors

           96 birds capacity

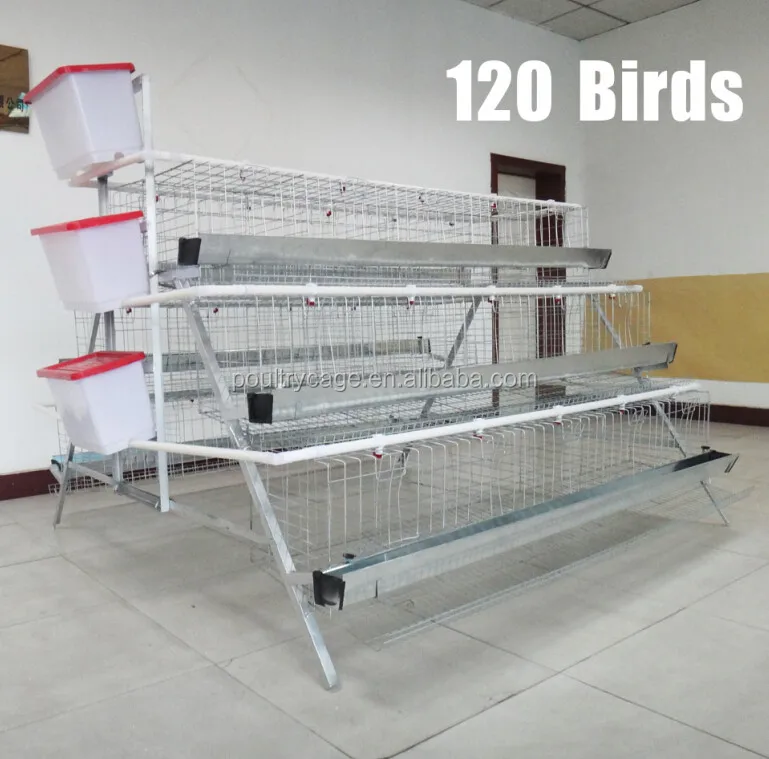

     A type 3 tiers 5 doors

                 120 birds capacity

    A type 4 tiers 5 doors

           160 birds capacity

Chicken Layer Cage Accessories:

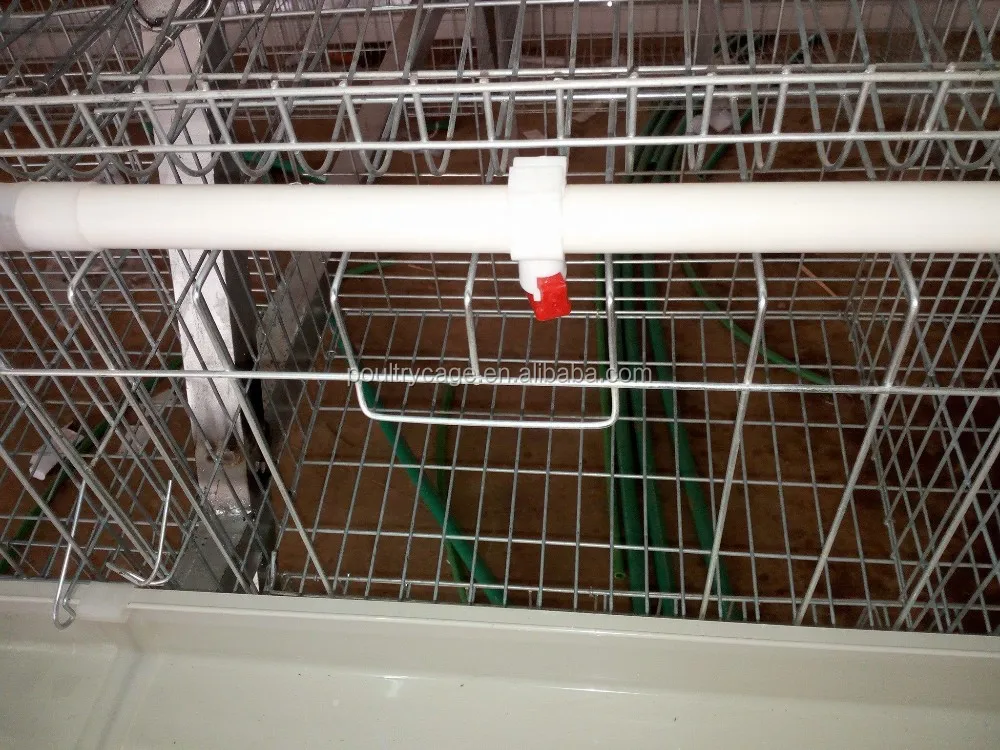

1. Nipple drinker: warranty>10 years, Stainless steel ball inside nipple drinker

2..Feed trough: loading capacity>60kg/pc, White PVC material, adults can walking on it and not easy to be damaged during transport

3.Steel cage frame: warranty>20 years, Iron bar, Galvanization surface treatment, U type frame, galvanized.

4.Water pressure controlling system:  Including the terminal device and water-split device,supply average water to the pipe

How to choose layer cage for your poultry farm?


There re many size and type of layer cage in market, you should choose as weight and size of your birds, also the climate in your country. For example, 1.5KG and 2.5KG requests for different size of layer cage. Under hot and cool weather the lifespan of same quality of chicken layer cage will be very different. So the price is no the only.

1. below 2000 birds. we advice you choose manual layer cage, drinking system is automated, workers will put food in chicken trough and picked eggs, in future if you want to enlarge your farm to 10,000+ birds, our automatic feeding equipment and automatic egg collection will be installed on the using layer cage directly.

2. between 5000 birds to 10,000 birds. beside layer cage, we advice you choose manure removal system, chicken dropping cleaning on time will reduce disease and improve egg production rate, meanwhile it will save much more time and labor cost.

3. Beyond 15,000 birds. some automatic equipment should be installed, you will own two or more chicken house, it is easy to manage, such as automatic egg collection, works once or twice a day. The following is our automatic equipment.

Automatic Equipment

ladder type feeding

The machine from the expected design all automatic feeding, simple operation, easy maintenance, standard henhouse only need seven to eight minutes, you can feed a material, can reduce the artificial feeding and waste caused by the and save manpower, reduce the production cost, improve efficiency to reduce labor intensity and is necessary for modern farming equipment.

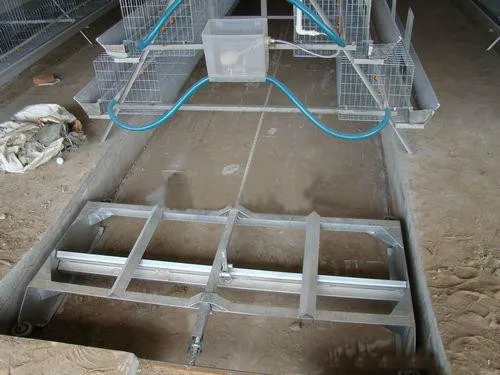

Scraper Type Manure Removal

(1) Components:driving system, scraper, angle pulley, stroke limitation, control panel.

(2) Working for 2 rows or 3 rows one time

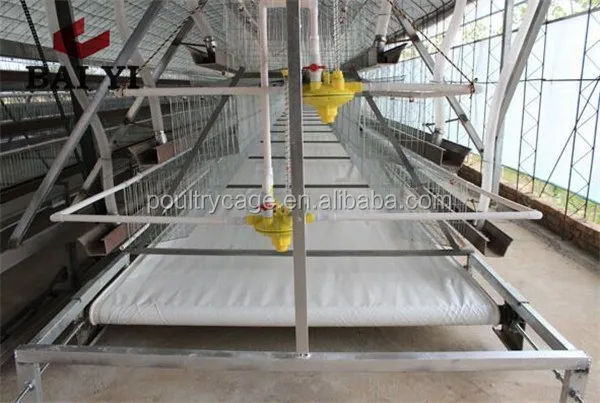

Conveyor Belt Type Manure Removal

Cleaning belt made by quality PE, Corrosion resistance, good low temperature resistance, resistance to friction. Power is 3KW, belt transporting speed 10- 12m/min, width is as house width, the length is up to 120m

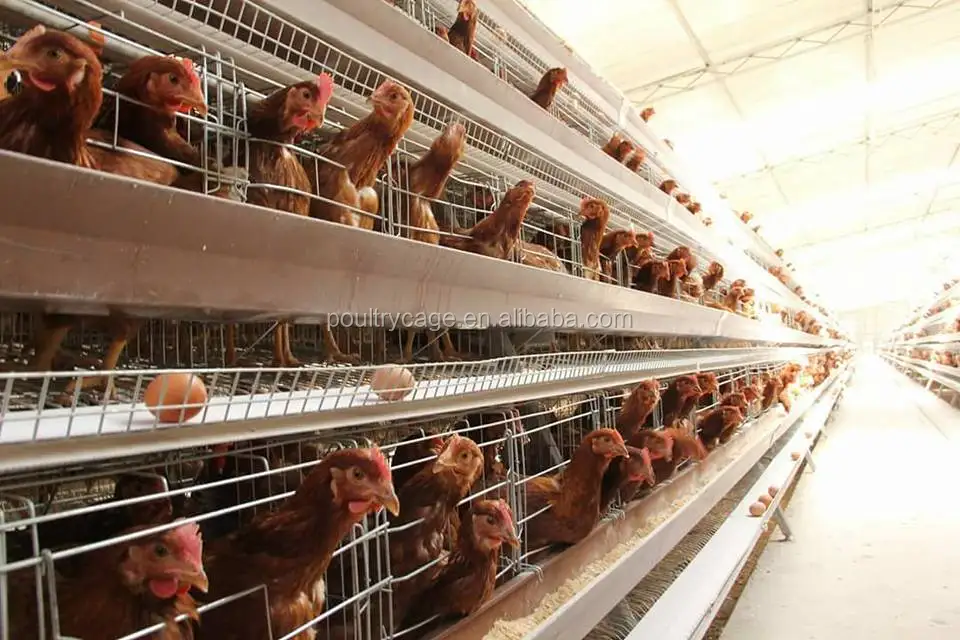

Automatic egg collection

1. Simple structure and steady performance
2. Feeding equality,and saving energy and workload
3. Durability and reliability
4. Reducing the rate of broken eggs
5. Increasing farming efficiency
6. Easy to use and manage
7. Rational structure and low energy consumption

Feed Mixer Grinder Machine

This machine is mainly used for crushing and mixing all kinds of dry animal feed. screw conveyor, crusher and mixer are concentrated in one,
so it occupy a small place and easy to install and carry.
And the crusher can absorb the raw material by itself.

Packing & Delivery

For small quantity, cages and accessories packed in wooden box.

For large quantity, nude packing for cages, accessories in bags or cartons.

Our Company

Anping County Baiyi Metal Wire Mesh Co., Ltd is located in the well know county for wire mesh- development zone in south of Anping, Hebei province. Our company is just 250 miles to Beijing airport and 200 miles to Tianjin port, very convenient. We develop, design, produce and sell all kinds of cages, such as Chicken Cage, Dog Cages,Rabbit Cage,Quail Cage, Pigeon Cage,Mink Cage, etc.Now we newly research and developed automatic cage systems. Welcome to visit our factory!

Our Service

Pre-sale service

Suggest suitable product for clients according to clients' requirement..

Service during the sale

Pre-check products before the delivery

After-sale service

Suppling video to assistant clients to solve the problem about installation.

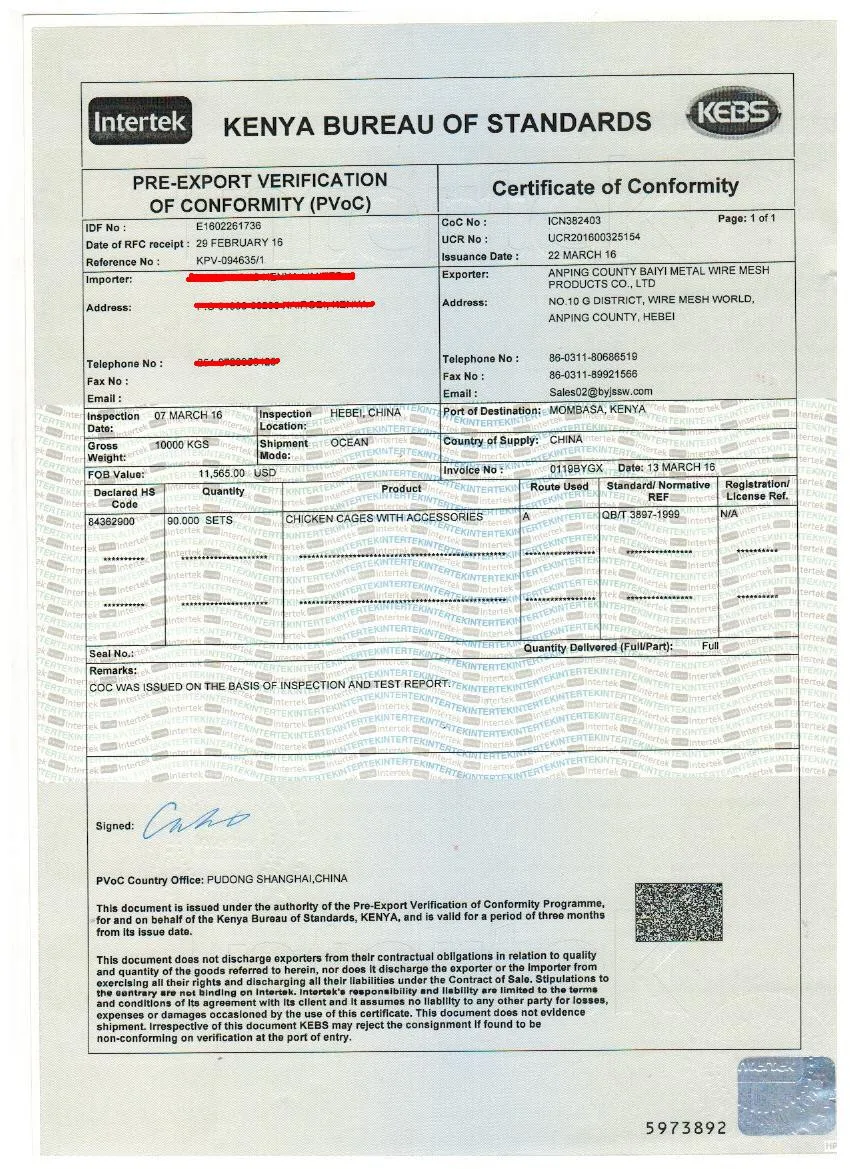

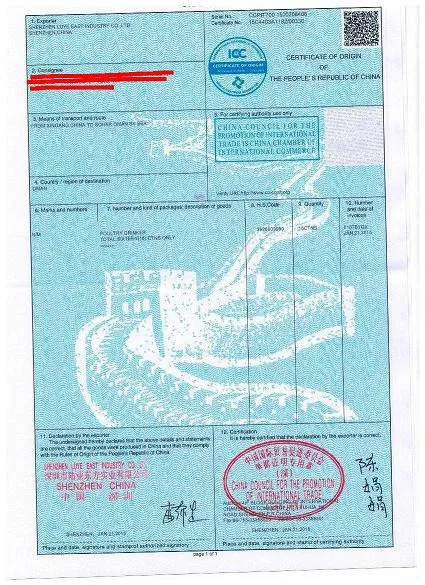

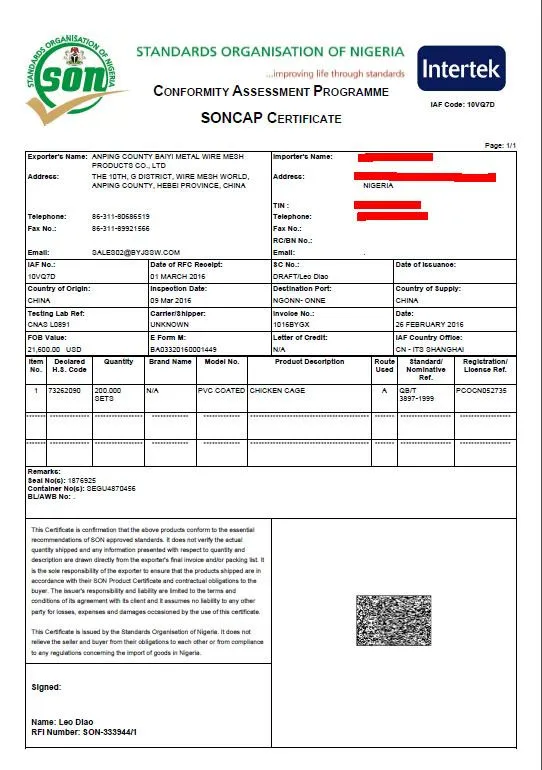

Certifications
FAQ

1. Q: What's the MOQ?
A: Usually the minimum order quantity is 10 sets. They will be packed in one wooden box.
2. Q: Are you factory for trading business?
A: We are real factory for more than 15 years. Welcome you visit our factory any time.
3. Q: How about your payment method?
A: For first cooperation, 100% TT in advance for small quantity;
30% TT in advance, and the balance 70% against the B/L copy for large quantity.
Western Union and MoneyGram are also acceptable.
4. Q: Any other payment method?
A: Yes, if you place the order through alibaba, you can also pay using credit card.
5. Q: Do you have automatic feeding system, automatic cleaning system,automatic egg collection system?
A: Yes, we can supply automatic systems, usually they used for mass rearing.
