Battery Power Motorised Galvalume Coil Transfer Cart Platform

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BWP
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan,China(mainland)
Brand Name:
TOPLD
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Product Name:
Battery Power Motorised Galvalume Coil Transfer Cart Platform
Color:
Customized
Capacity:
1-500 ton for galvalume coil transfer cart
Certification:
CE ISO SGS
Size:
Customized Size
Key Words:
galvalume coil transfer cart
Running Speed:
0-30m/min
Power supply:
Battery Power
Advantage:
Stable,flexible,turning,safe
Application:
Construction site,steel factory,Workshop
Supply Ability
Supply Ability:
600 Set/Sets per Year
Packaging & Delivery
Packaging Details
The whole galvalume coil transfer cart is packed by tarp, parts is put into the high quality wooden case.
Port
Qingdao/Tianjin/Shanghai
Video Description

Product Description

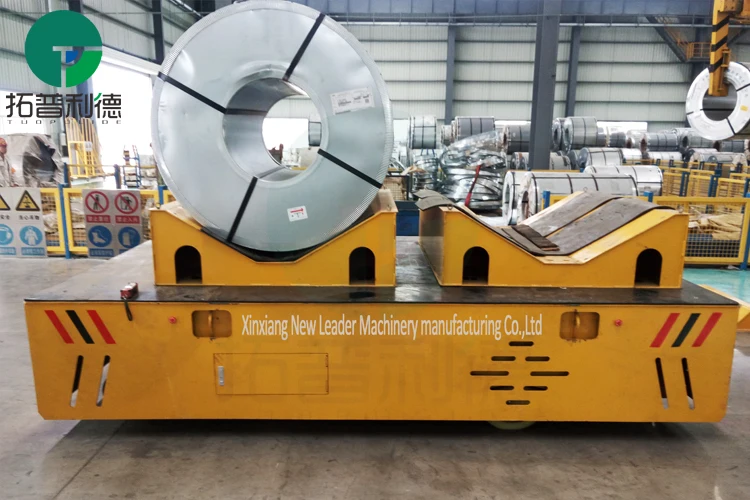

Battery Power Motorised Galvalume Coil Transfer Cart Platform

Brief Introduction about galvalume coil transfer cart
Battery Power Motorised Galvalume Coil Transfer Cart Platform a kind of galvalume coil transfer cart powered by battery and running on the ground.
This kinds galvalume coil transfer cart usually installed the V frame or E frame on the galvalume coil transfer cart table, those v frame or E frame can avoid the materials roll down from the galvalume coil transfer cart. The V frame or E frame can divided into two types: removable or non-removable.
Advantage:
  • This kinds of galvalume coil transfer cart needn’t run via the rails, which gets rid of relying for the rails.
  • It can not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning...
  • This kinds of galvalume coil transfer cart is battery powered, so only charged fully, can it run freely without limited distance.
  • Professional team for Xinxiang New Leader Machinery Manufacturing Co., Ltd, the proper solution will be provided once getting for your inquiry.
  • The galvalume coil transfer cart is customized as per your true demand.

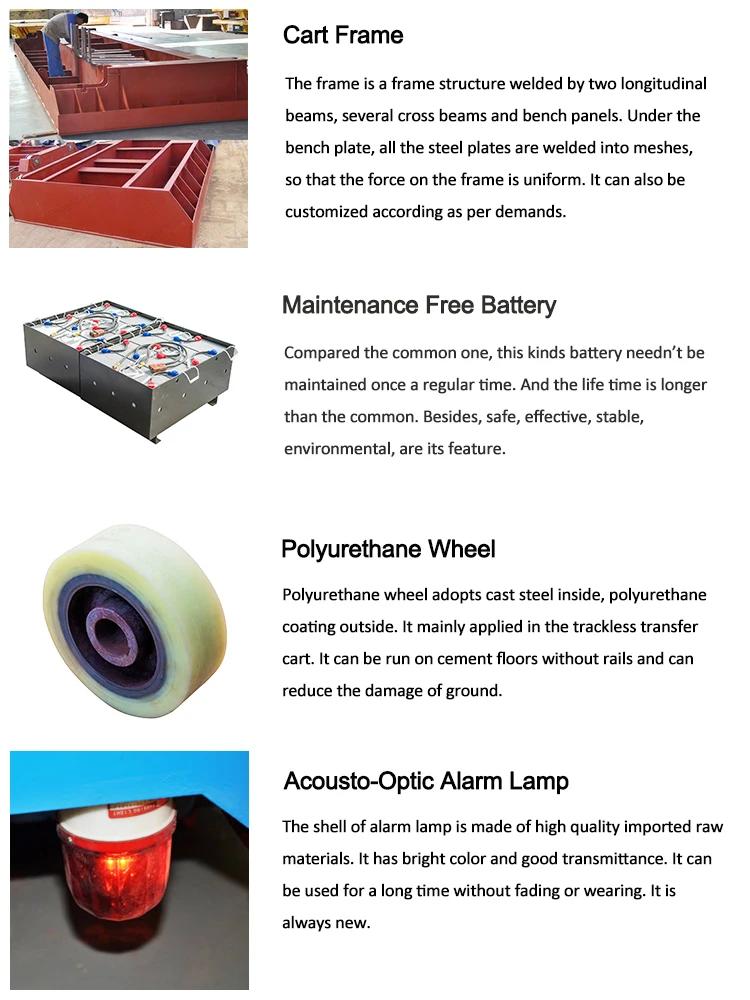

Parts Showing

Battery Power Motorised Galvalume Coil Transfer Cart Platform

Parts Showing of galvalume coil transfer cart


Battery Power Motorised Galvalume Coil Transfer Cart Platform

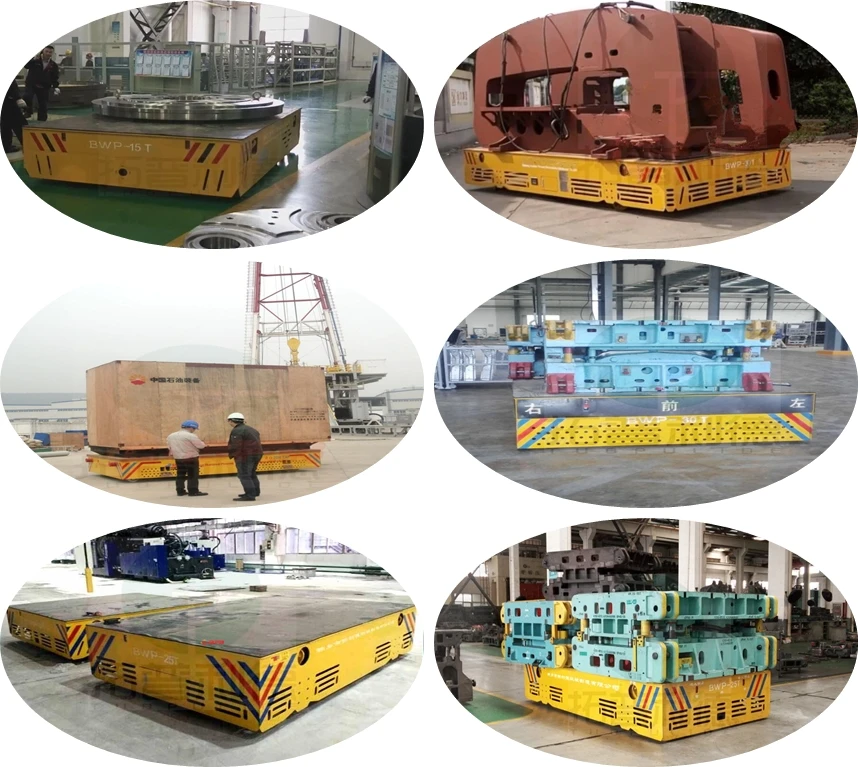

Application Showing of galvalume coil transfer cart
galvalume coil transfer cart is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.

For material transfer, it has been widely used in this field with hot market. Any requirement, welcome to contact with us. The proper solution will be provided once listening to your voice by our professional engieer.



Battery Power Motorised Galvalume Coil Transfer Cart Platform

Working Principle of galvalume coil transfer cart

Easy operation galvalume coil transfer cart is battery powered. The battery is installed in the trolleys. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the transfer trolley to start, stop, go forward, backward, adjust the speed and so on.

Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. Hope rich experience (more than 15 years) can help you well.



------All customized for you
  • The hydraulic lifting device can be equipped as per your requirement.
  • As per the transported car goes, the V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
  • As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
  • ...
Battery Power Motorised Galvalume Coil Transfer Cart Platform
Technical Parameter of galvalume coil transfer cart
Model
BWP-2TBWP-10TBWP-20TBWP-30TBWP-50TBWP-80TBWP-100T
Rated load (T)21020305080100
Table sizelength(L)2000230024003500550065006600
Width(W)1500200022002200260028003000
Height(H)4505006007008009501200
Wheel Base (mm)1080165028001650200019502000
Axle Base (mm)1380185014352700285035004000
Wheel Diameter(mm)Φ250Φ400Φ350Φ450Φ600Φ600Φ600
Wheel Quantity(Nos)4444448
Ground Clearance (mm)50505050507575
Running speed (m/min)0-250-250-200-200-200-200-18
Motor Power (Kw)2*1.22*2.22*4.52*5.52*7.53040
Battery Capacity(Ah)2502504004505008001000
Battery Voltage(V)24484848727272
Running Time When Full Load2.52.82.222.521.9
Running Distance for one Charge(Km)33.42.72.4332.42.3
Max Wheel Load (KN)14.442.677.7110.4174185190
Reference Weight (t)2.34.25.96.8814.626.8
