Bayonet cartridge reverse osmosis system water filter

FOB Reference Price:Get Latest Price
$35.00 - $45.00 / Unit | 1 Unit/Units (Min. Order)
Customization:
Customized logo (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)
Samples:
$50.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Puretal
Model Number:
PT-1170
Type:
Reverse Osmosis
Certification:
CB, CE, RoHS, WQA
Use:
Under Sink
Power (W):
0
Voltage (V):
0
Function:
Purify
Feature:
Great-tasting Drinking Water
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard export package
Port
Shanghai,Ningbo,Shenzhen
Video Description

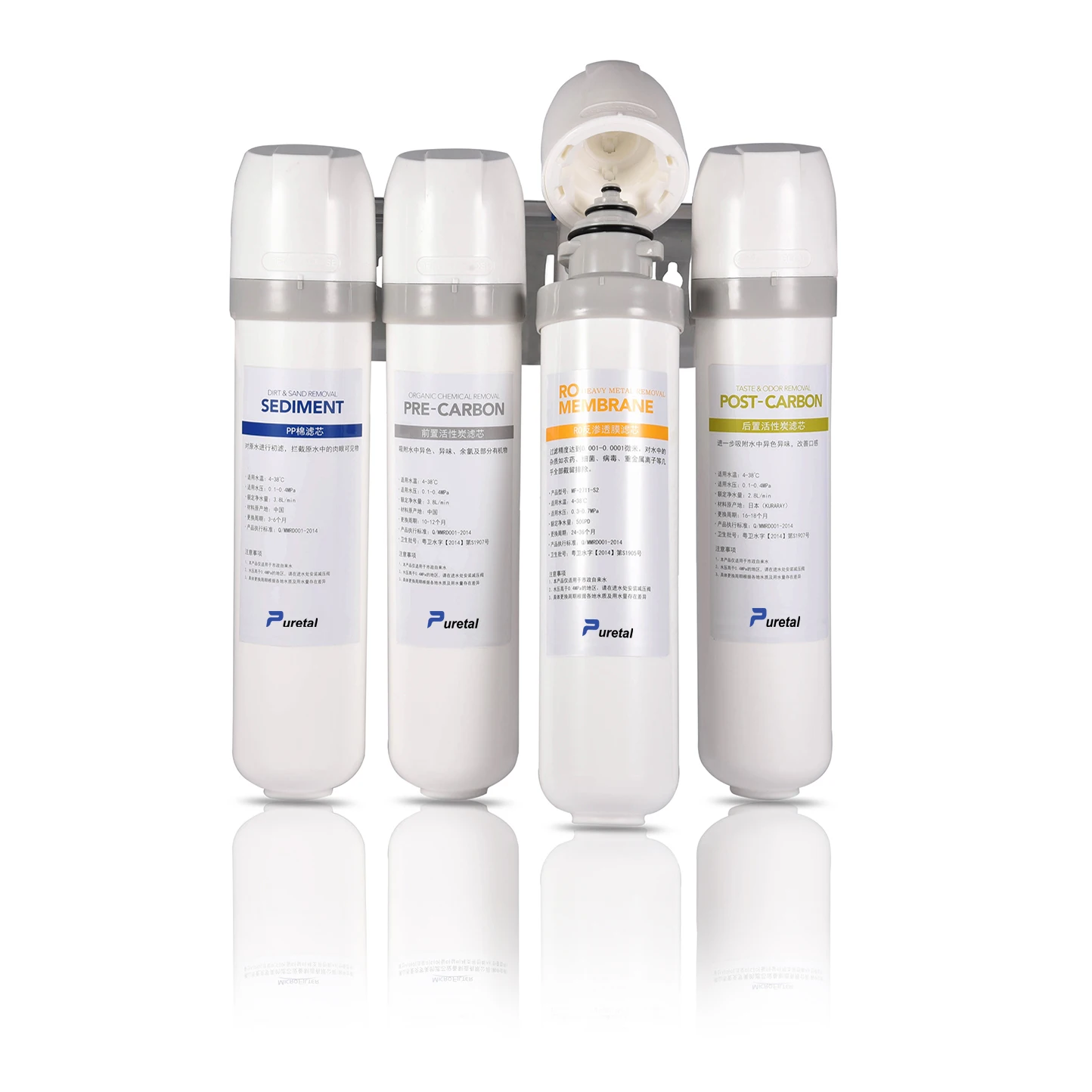

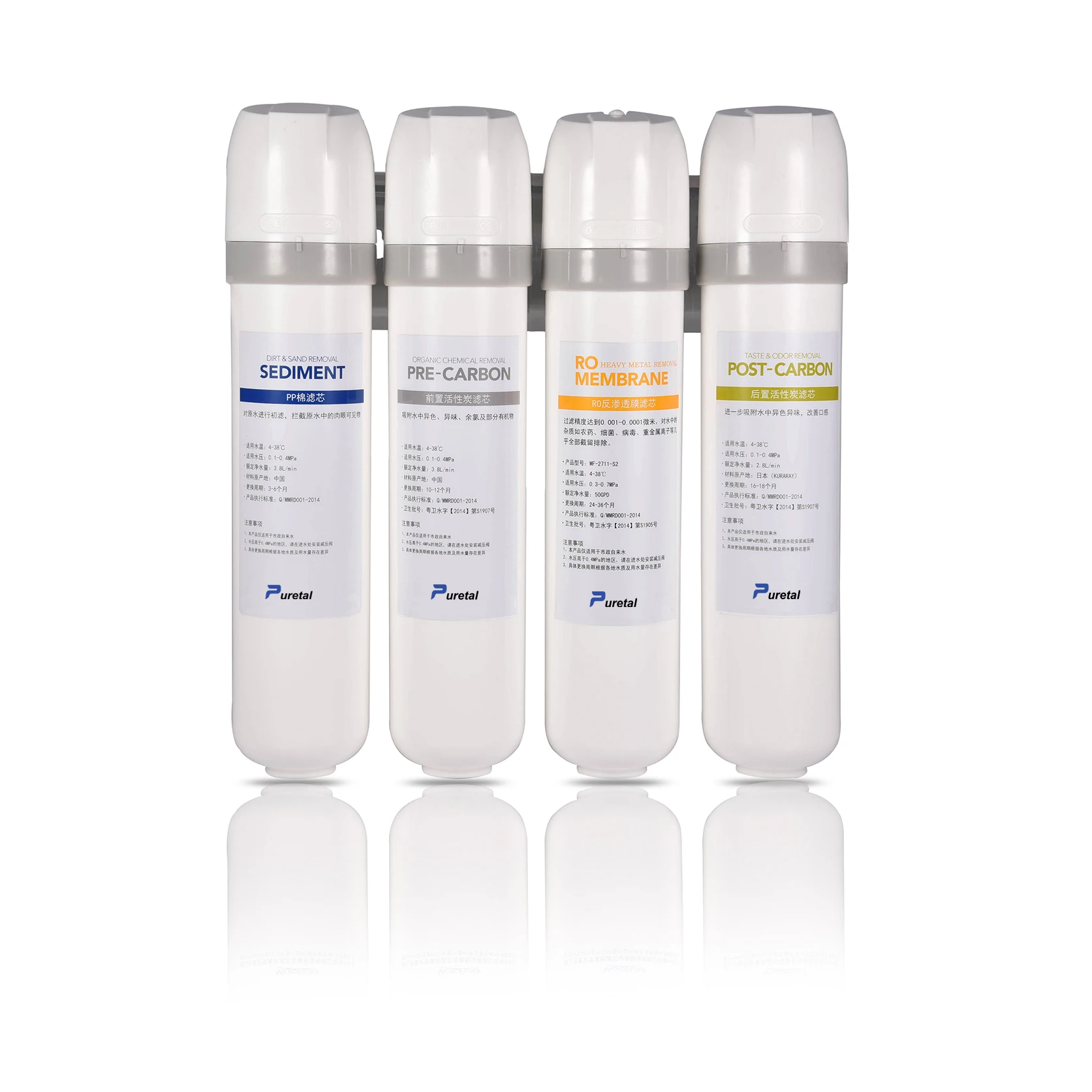

Puretal PT-1170 filter element

The first-generation quick-connection filter element of our company is designed and developed in Korea and then produced in our company, and is

divided into PP, pre carbon, ultrafiltration, RO and post carbon filter elements according to functions. M8 series filter element is the first filter element

adopting the quick-connection structure in the industry. At present, the filter element is suitable for undersink and table water purifiers, and is

divided into 6'' and 12'' according to the

Technical parameters
Item
Technical requirement
Maximum working pressure
0.86MPa
Working pressure
0.1~0.55MPa
Applicable water temperature
4~38℃
Hydraulic circulation test
No leakage at the housing and the welding part for 100,000 times at 0~1.05MPa
Bursting pressure
≥3.2MPa (whole filter, including internal filter material)
Sealability
No leakage at the housing and the welding part for 5min at 1.2MPa water pressure
Hygienic safety requirement
In accordance with Standard for Hygienic Safety Evaluation of Equipment and Protective Materials in Drinking Water (2001)

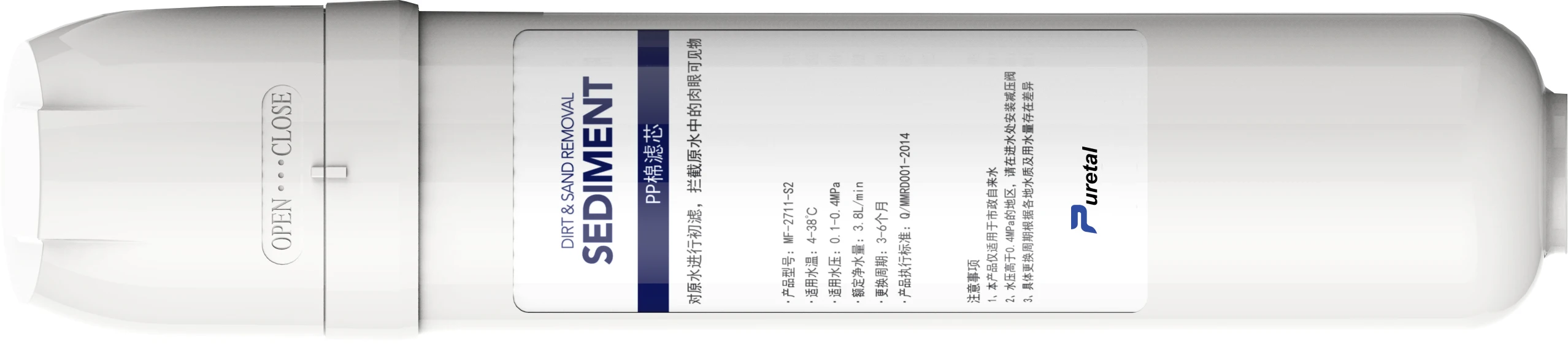

1)PP filter element

Functions: the coarse filtration filter element is first contacted with source water to remove above 5um impurities and pollutants such as rust,

sand grains and earth in the water, and to ensure normal work of spare parts contacted with the water and the membrane filter element.

Item
Initial flow rate
Service life
Turbidity removal rate

Technical requirement

≥3L/min at 0.3MPa working pressure
Water inlet condition is Beijiao running water and the total water production quantity ≥3,600L
Effluent turbidity removal rate is 50% based on ISO12103

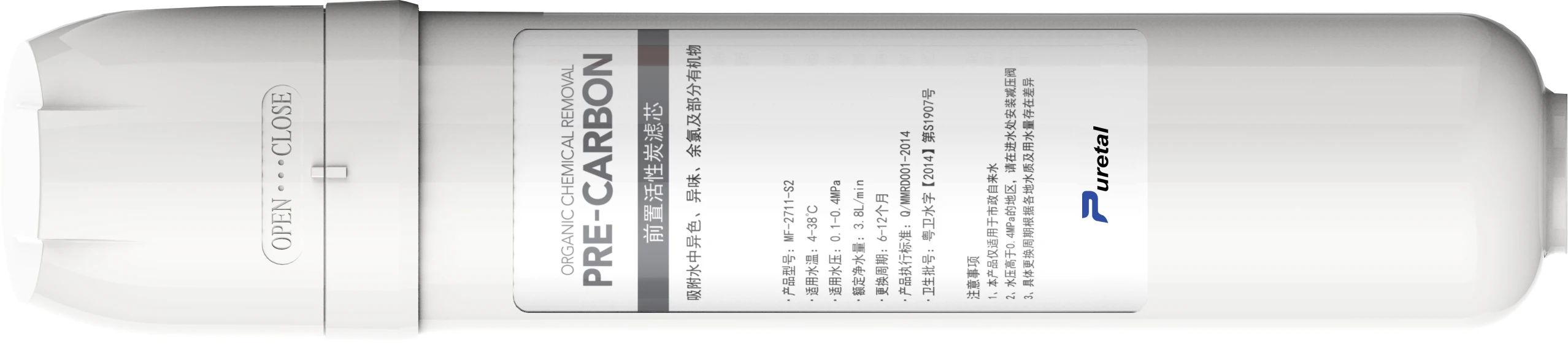

2)Pre active carbon filter element

Functions: Active carbon subjected to high-temperature treatment adsorbs and removes residual chlorine, trihalomethane (carcinogenic substance),

phenols, disinfecting byproduct, organic chemical substance, etc. dissolved in the waterso as to protect the membrane filter element, and allow it to exert normal function.

Item
Initial flow rate
Service life
Oxygen consumption removal rate


  Technical requirement
>3L/min at 0.3MPa working pressure
Water inlet condition is Beijiao running water and the total water production quantity ≥7,200L
Iodine adsorption value ≥950mg/g

3)Ultrafiltration filter element

Functions: the pressure required by ultrafiltration membrane running is lower than that of RO membrane; the ultrafiltration filter element has the

characteristic of large water purification quantity; the allowable temperature and pH range is wide; mineral substances cannot be removed; the

removal capacity of suspended substances, larger bacteria, escherichia coli, etc. is high.

Item
Technical requirement
Initial flow rate
≥2.0L/min at 0.3MPa working pressure
Service life
Water inlet condition is Beijiao running water and the total water production quantity ≥5400L
Effluent bacterium index
≤50cfu/ml
Effluent escherichia coli index
Not detected
Effluent turbidity
≤0.2NTUEffluent turbidity shall be ≤0.2NTU within 15NTU turbidity

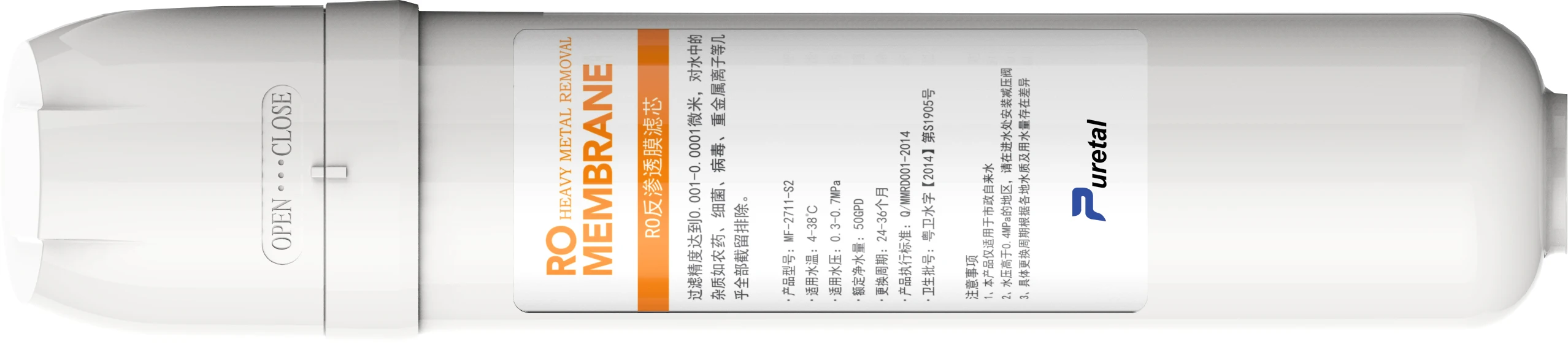

4)RO filter element (50GPD and 75GPD)

Functions: The ultraprecise reverse osmosis membrane (0.0001um: PPM of hair) removes heavy metal, bacteria, organic chemical substances

or foreign substances with molecular weight greater than 200, so that the complete machine exerts a perfect purification effect.

Item
Technical requirement
Initial flow rate
Pure water flow rate ≥50GPD

Service life
Water inlet condition is Beijiao running water and the total water production quantity (pure water) ≥7,200L. Within the service life range, pure water flow rate ≥50GPD and salt removal rate ≥96%.
Effluent bacterium index
≤20cfu/ml

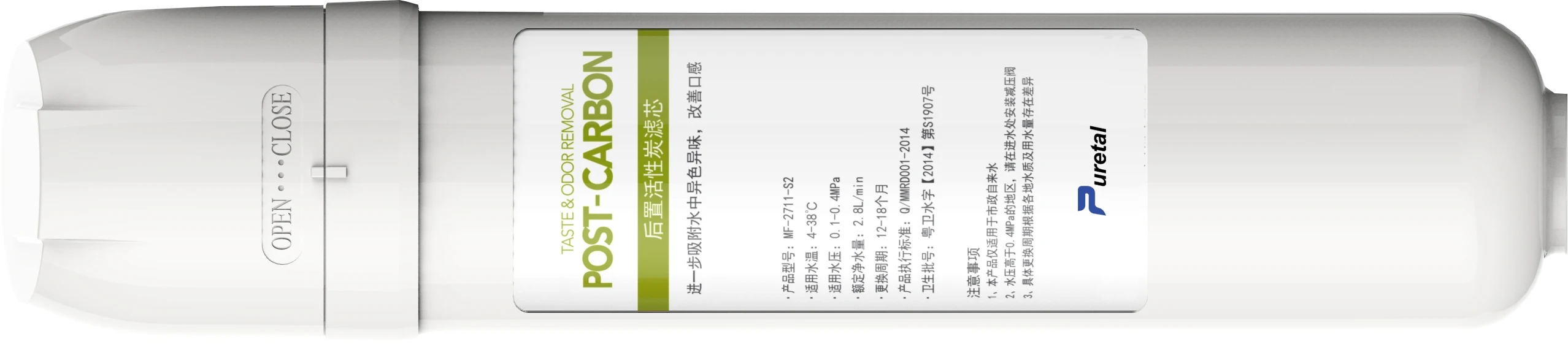

5)Post active carbon filter element

Functions: active carbon subjected to high-temperature treatment removes the peculiar smell in the water flowing in through the drinking

water pipe so as to restore the fresh taste.

Item
Initial flow rate
Service life
Iodine adsorption value

Technical requirement
>3L/min at 0.3MPa working pressure
Water inlet condition is Beijiao running water and the total water production quantity ≥7,200L
Iodine adsorption value ≥1,000mg/g
