Beat price mining machine coal scraper conveyor

FOB Reference Price:Get Latest Price
$3,000.00 - $18,000.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Slat Conveyor Other
Load Capacity:
120t/h
Model Number:
SGB520/40
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Material:
Carbon steel
Material Feature:
Fire Resistant
Structure:
Belt Conveyor
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HW
Voltage:
380/660V
Power(W):
40kW
Dimension(L*W*H):
1500*520*180mm
Certification:
ISO9001:2008,CE
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Type:
Scraper conveyor
Application:
Mine
Factory Length:
100m
Head Height:
620mm
Chain Speed:
0.86m/s
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case or as your request
Port
Qingdao, Shanghai, Ningbo
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

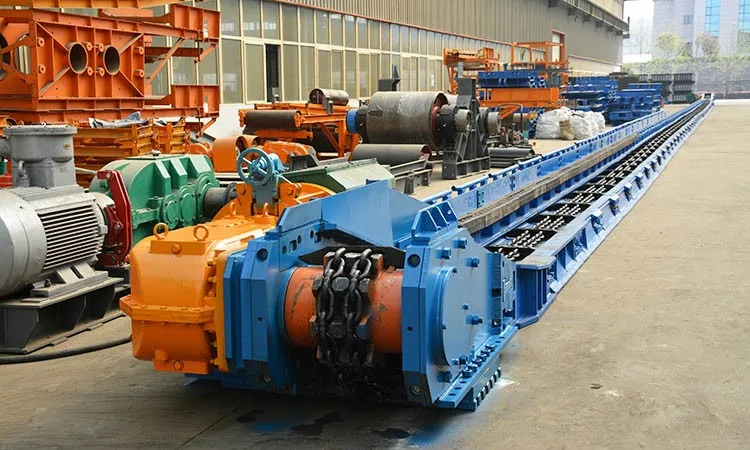

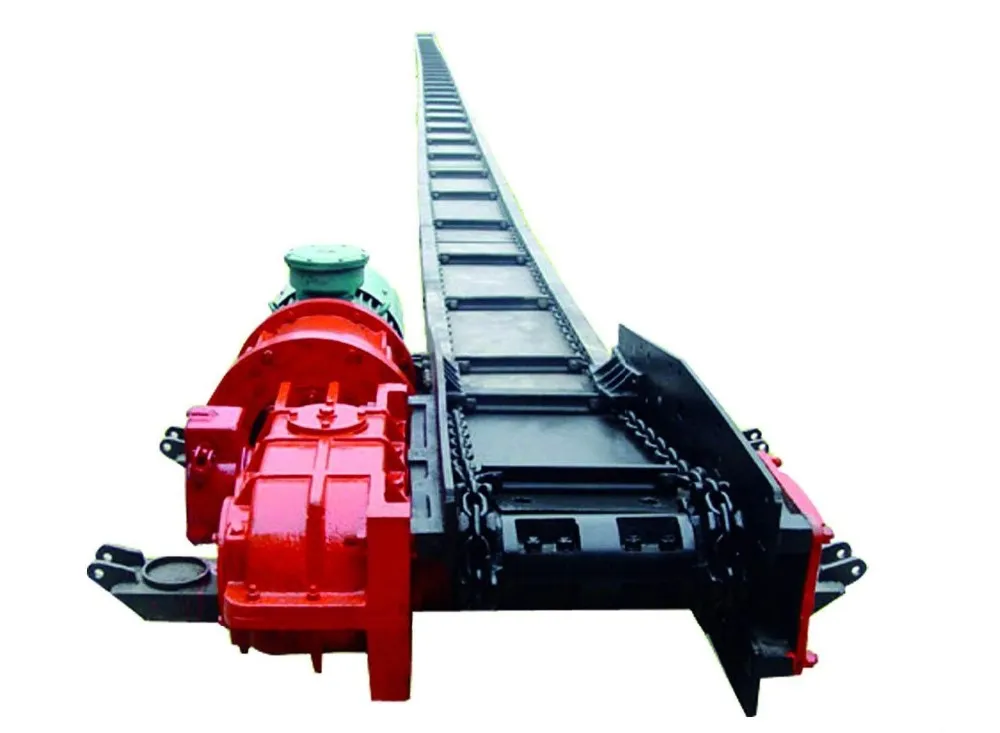

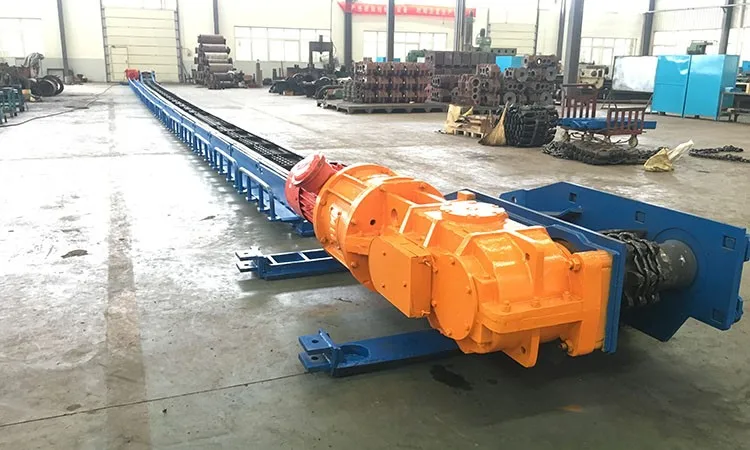

Scraper Conveyor

Conveyor that uses scraper chain to haul bulk materials in the trough is called scraper conveyor. In the current coal mining face, the role of scraper conveyor is not only to transport coal and materials, but also the running track of the shearer, so it has become an indispensable major equipment in modern coal mining technology. The scraper conveyor keeps running continuously, and the production can proceed normally. Otherwise, the whole coal mining face will be shut down and the whole production will be interrupted.

Practical application

Scraper conveyor can be used for horizontal transportation and inclined transportation. When transporting upward along inclination, the inclination angle of coal seam should not exceed 25 degrees, and when transporting downward, the inclination angle should not exceed 20 degrees. When the inclination angle of coal seam is large, anti-skid device should be installed. Flexible scraper conveyor allows bending of 2 4 in horizontal and vertical directions.

Advantages of Scraper Conveyor
1. Solid structure. It can withstand the impact, collision, smashing and pressure of coal, gangue or other materials.
2. It can meet the needs of uneven floor and bending movement of coal face, and can withstand bending in vertical or horizontal direction.
3. The fuselage is short and easy to install.
4. It can also be used as the track of the shearer.
5. It can be operated in reverse to handle the bottom chain accident.
6. It can be used as the fulcrum of the front part of the hydraulic support.
7. It is simple in structure and can be fed or unloaded at any point in the conveying length.
8. The airtight case can prevent dust from flying and polluting the environment when conveying materials.
9. When the tail of the scraper is not provided with a housing and the scraper is inserted into the stack, the scraper can be retrieved and transported by itself.
Spare Parts
Our Service

Best Service

1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
4. Training how to instal the machine, training how to use the machine.
5. Engineers available to service machinery overseas.

FAQ

1.Methods of Payment:
Normally we can work on T/T term or L/C term, sometimes DP term.
2.Handing time for an order:
Normally it takes about 3~10 days supplied from stock after getting payment.
3.Shipping Way:
By air or by sea as your required.
4.Quality Control:
We have our own experienced QC.
They will test every order strictly before shipping out.
5.After Service:
a.Our sales team will response for your questions within 24 hours.
b.Technical support will be available at any time.
c.Free replacement will be provided once the failure caused by our product quality.
6.Warranty:
One year
7.Are you factory or trading company?
We are factory, you can be guaranteed that the quality is good.

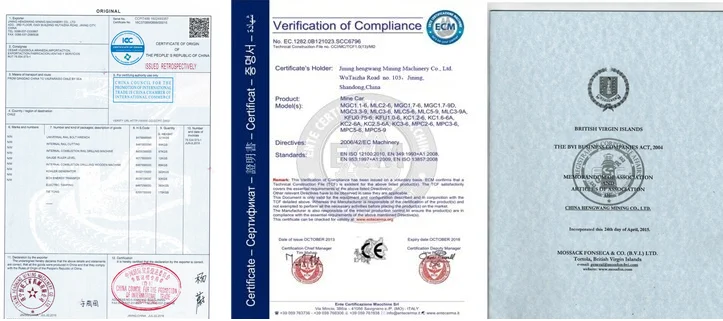

Certifications
