Besco High Quality Wholesale Custom Cheap Turret Punching Machine Price

Feedback Ratings
US $45000.00 / Set | 1 Set (Min. Order)
Model Number:
ZA SERIES CNC TURRET PUNCHING MACHINE
US $45000.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Mechanical
Place of Origin:
Shandong, China (Mainland), CN;SHN
Brand Name:
Besco
Voltage:
220V / 380V
Power(W):
10KW
Weight:
10TON
Dimension(L*W*H):
5500mm*3500mm*2300mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training
Product name:
CNC Turret Punching Machine
Self rotated mold:
2 (C station) Optional
Range of one time processing:
1250mm*2500mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
550X350X230 cm
Single gross weight:
10200.0 kg
Package Type:
Export package for turret punching machine
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 30 To be negotiated
Video Description
Product Description

Sheet Metal Shears Punch Machine Product Application

It can be applied to punching, drawing and other shapes of holes in sheet metal. It is suitable for processing of batch or sample, reducing mold investment and reducing production cost. It is mainly used in various large and low-level switch cabinets, control panels and air conditioning panels. Box, cabinet, shell, metal furniture, kitchenware, advertising industry.

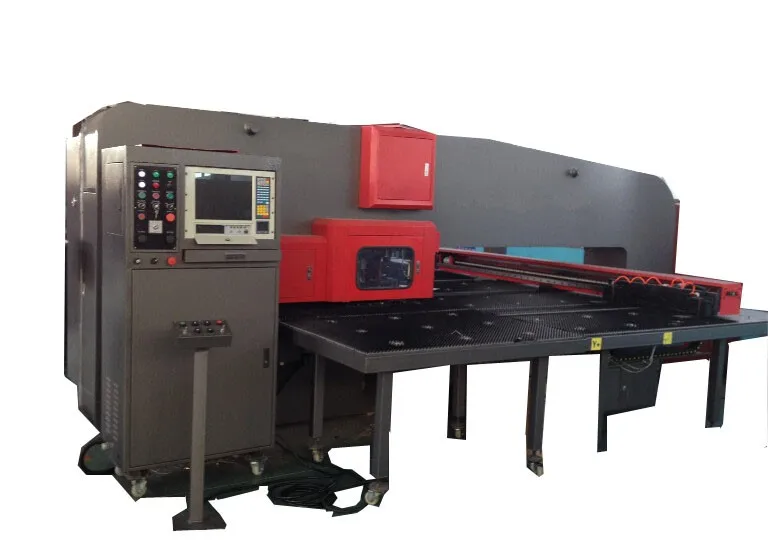

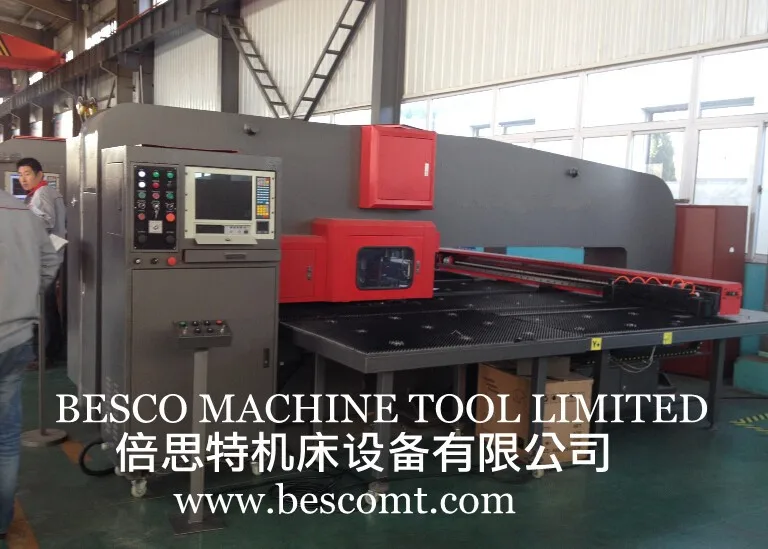

ZA SERIES CNC TURRET PUNCHING MACHINE
Name
Unit
Specification Parameter
Nominal Force
kn
300
Range of one time processing
mm
1250*2500
Max movement speed
m/min
40
Max thickness of workpiece
mm
6
Mold Station
set
16/20/24/32
Self Rotated Mold
set
2 ( C station) optiona
Process precision
mm
0.1
Punch frequency
hpm
160/240 (double speed)
Bed structure
--
C or O optional
Air pressure
mpa
0.55
Machine power
kw
10
Machine weight
ton
10
Dimension
mm
5500*3500*2300

* the mold distribution list of the different stations

Type
Size of mold
16 station
20 station
24 station
32 station
A
¢1.5-¢12.7
8 pcs
8 pcs
8 pcs
16 pcs
B
¢12.7-¢31.8
4 pcs
8 pcs
12 pcs
12 pcs
C
¢31.8-¢50.8
2 pcs
2 pcs
2 pcs
2 pcs
D
¢50.8-¢88.9
2  pcs
2 pcs
2 pcs
2 pcs

The Sheet Metal Shears Punch Machine Main Features

1) Standard thick turret, using international 85 series mold, long-oriented, versatility, high stability, marketing and determination;
2) C-open type bed or O-type closed bed, good rigidity, small deformation, stable feeding support;
3) CNC punching special system, WINDOWS operation interface, pure Chinese tips, easy to learn, easy to operate;
4) Bed rail design span, horizontal, good support, to ensure processing accuracy, high-speed feeding stable;
5) The software adds automatic search for the position of the clamp without manual intervention, and the accuracy is high.

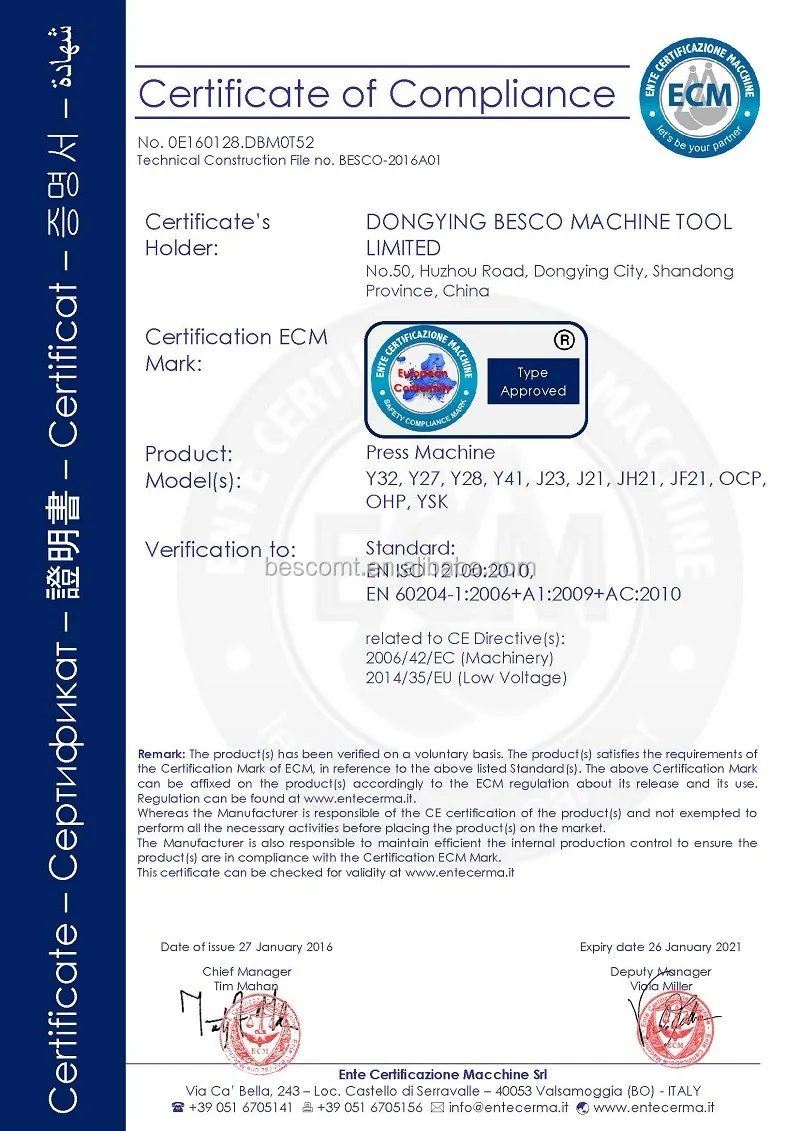

Certifications
Detailed Images

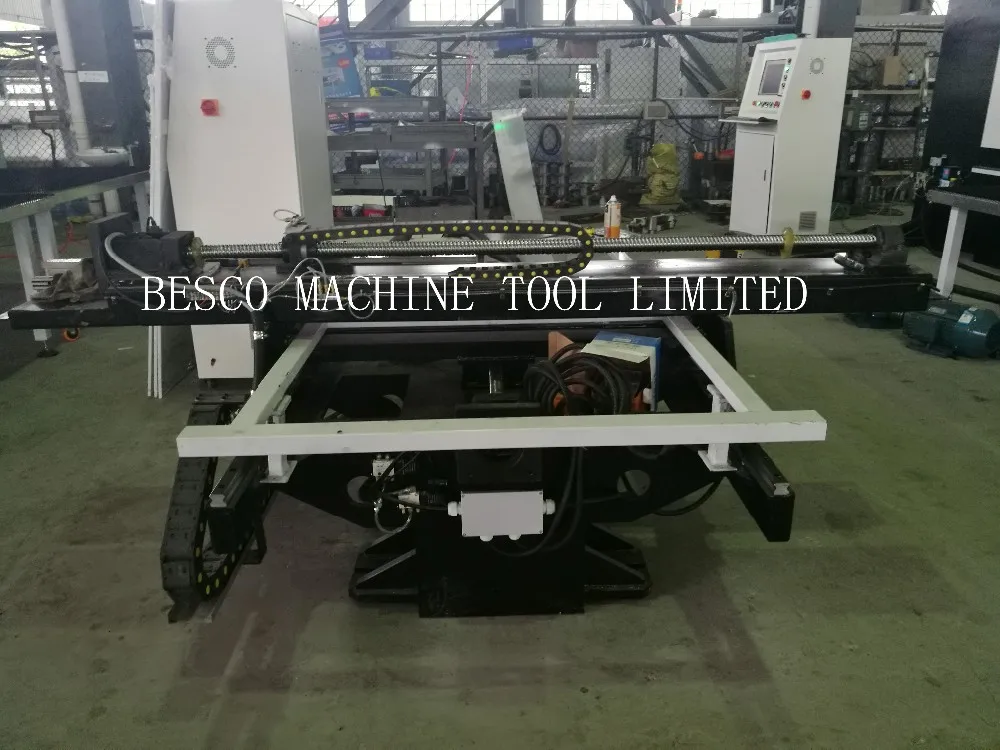

Punch Frame

Name: Stress Relieved Bridge Frame Construction
Our Hole CNC Turret Punching Machine consists of two fully enclosed box fabrications that are welded put under high load and stress relieved. The result is reduced vibration and deflection under full loads providing greater part precision, reduced tool wear, and noise reduction.

Name: Programmable Work Chute

Our turret punching machine has a large (15.7 x 23.6) programmable work chute to allow automatic discharge of parts into a parts container. This feature is available optionally on all other models.

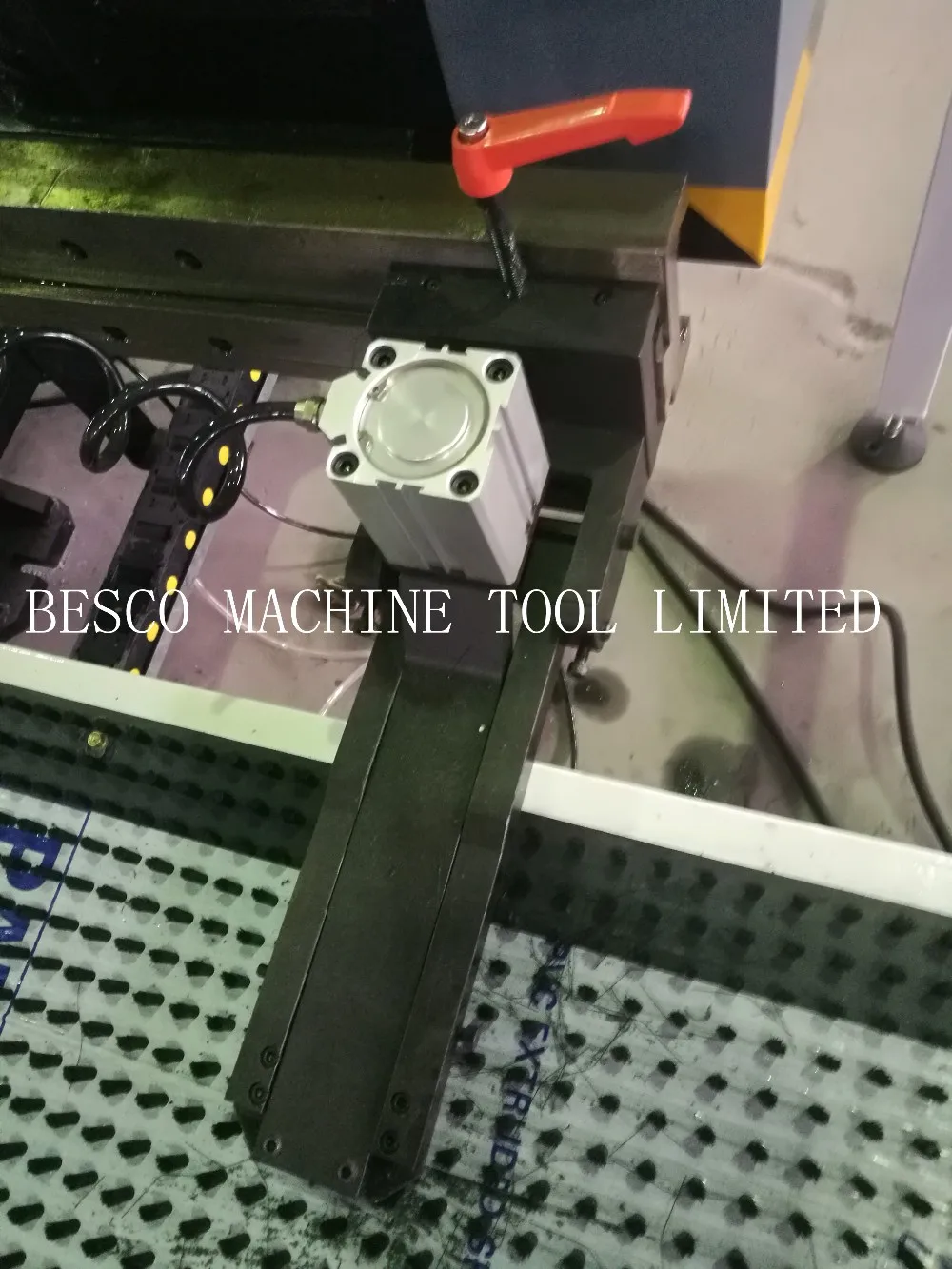

Name:Programmable Sheet Clamps

The position of the sheet clamps are automatically set by standard program information. Contact sensors automatically stop the machine if these sensors detect any movement of the sheet while it is clamped.

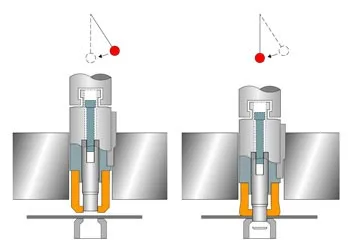

Name: Positive Strip Tooling Is A Proven Wiedemann Design

Using a mechanical link between the ram and the punch holder provides a positive push and pull motion during the entire punching stroke. The design has been field proven for its high strength, precision and simplicity of tooling. It provides the most economical tooling solution in the industry. Also available is high end guided tooling with steel strippers providing precision production and longer tool life.

Name:Indexable Multi-Tools

many stations indexable multi-tools reduce tool changes and increase flexibility. Programmable to .02° with no upper and lower mechanical connections provides perfect alignment of the upper and lower tool. Even defects or worn tools can be offset.

Flexible Turret Concepts

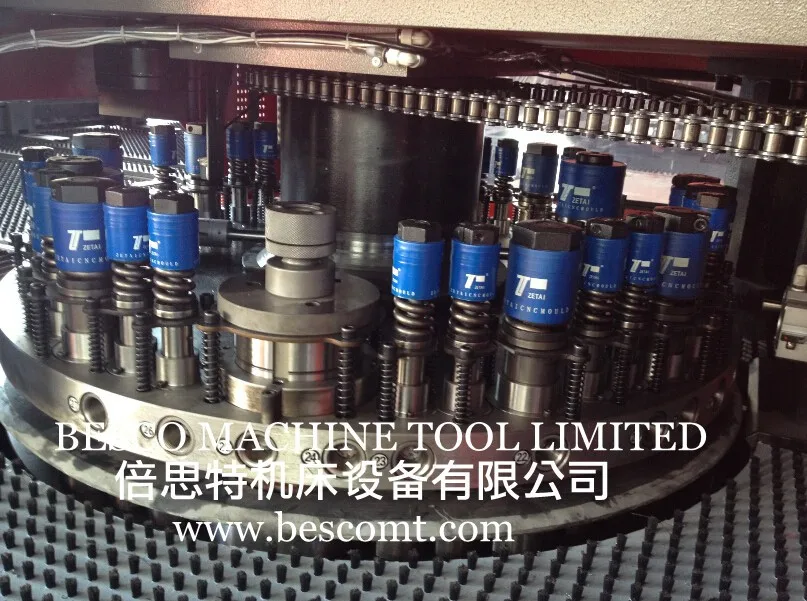

-Thick turret tooling concept is used with all stations bushed. It can be equipped with up to six indexable multi-tool stations (center). Station-to-station indexing is done in three seconds or less.
-All dies are positioned below the table surface preventing marking of the sheet. Micro tags can be reduced to minimum for more precise parts

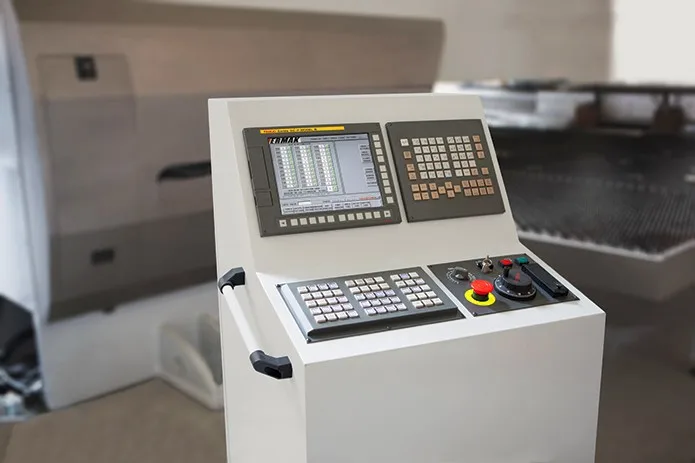

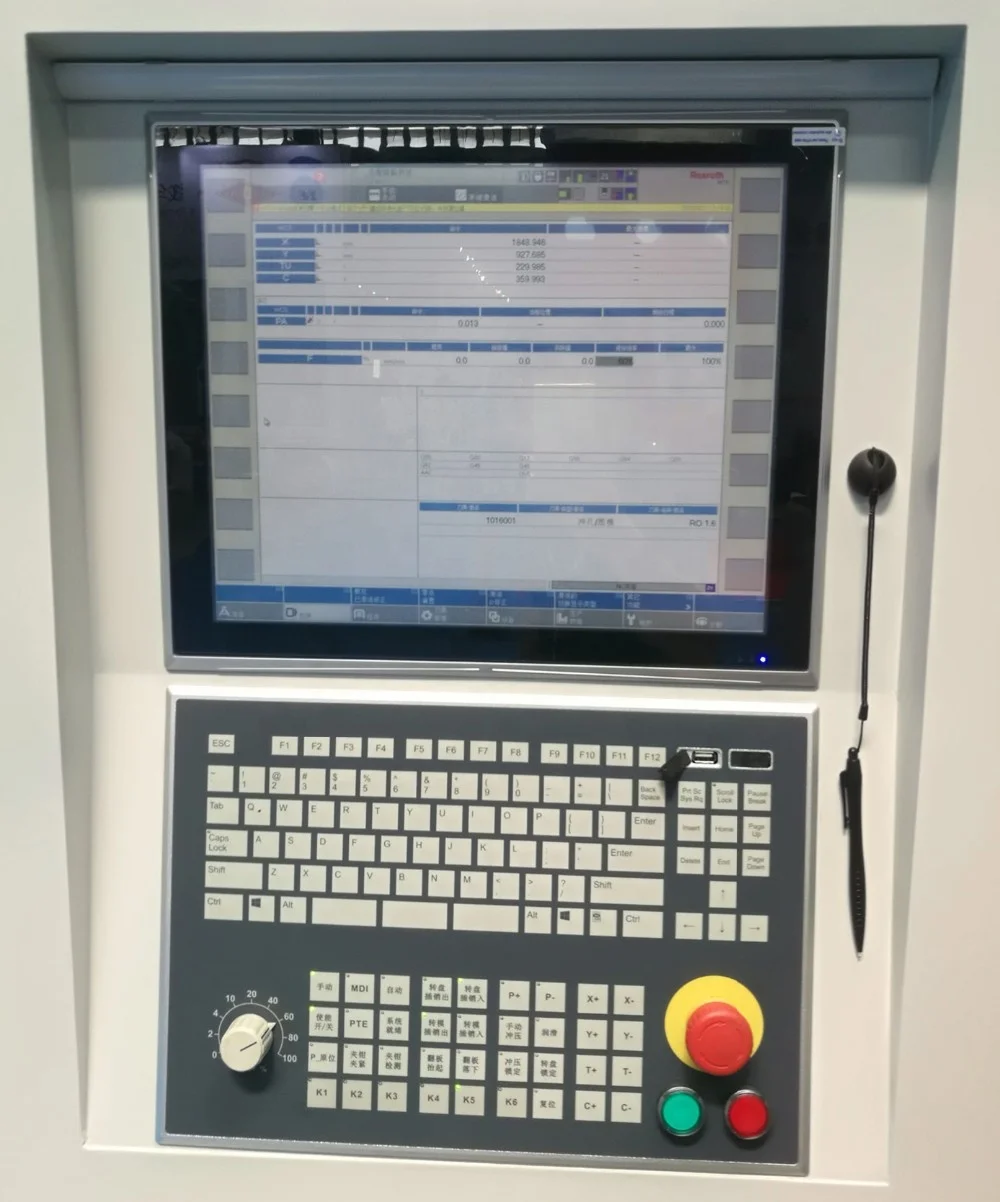

Name:Hole CNC Turret Punching Machine Control System

Siemens 840 Dsi Series CNC Control
Besco CNCsheet hole turret punching machine  has chosen the very powerful Siemens 840 DsI CNC Control, which has been specially designed for punching. Some of the features are:
•Movable Control Cabinet
•Ethernet and Network Communication Connections

•UPS Electrical Component Surge Protection System
•Internal Diagnostics w/Graphic Visualization
•Online Help Messages
•Telediagnostics via Modem (optional)
•Auto Optimization of sheet speed according to Sheet Mass

•Graphic Programming @ Machine Control
•Sheet Layout & Automatic Calculation of Sheet Layout
•Removable Software Key office or machine programming

Our Service

Pre-Sales Service

* Technical solution.

* Online video authentication machine work.
* Cutting samples provided by DHL.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers are available to service machinery overseas.

* Supplier will provide detail manual for software, hardware and trouble shooting.

Packing & Delivery
Packaging
Size
5500 (L) * 3500 (W) * 2300 (D)
Weight
10.2 T



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

FAQ & Contact:

Price : Give me reply, I will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid before shipment.
Trade terms: FOB,CIF and CFR are all acceptable.
Package : Standard exporting package .
MOQ:1 set .
Extra sincerely service :
1.Machine is simple, generally, user can understand how to operate. There is operation instruction.
2.Welcome to our factory to learn how to operate our machine, we will give good training .
3.Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .

Related Products

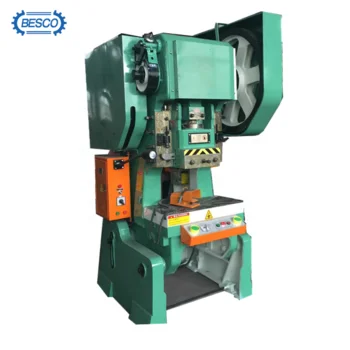

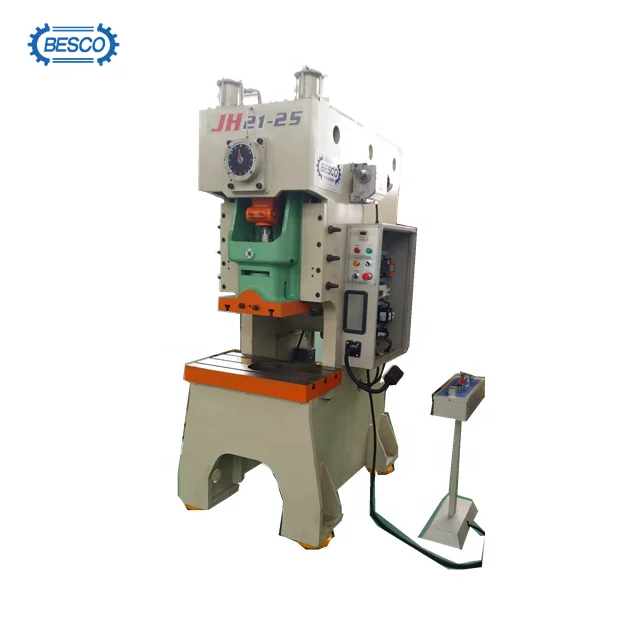

JF/JH SERIES PENEUMATIC POWER PRESS
