Best Sells Measuring Instrument Force Tensile Test Machine

FOB Reference Price:Get Latest Price
$3,999.00 - $5,999.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Force Tensile Test Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
lixian
Model Number:
HZ-1004A
Power:
Electronic
Maximum load:
200KG/ 2KN
Capacity options:
1kg,5KG,10KG,20KG,50KG, 100kg or according to the requirement.
Certification:
CE/ISO/ASTM/ROHS
Type:
Universal testing machine
Control:
Auto testing machine
Application:
Textile, paper, wire, plastics, rubber adnd so on
Test type:
Tensile test, compression test, tear test, peeling test.
Measuring accruracy:
0.2%~100%(1grade) /0.4%~100% (0.5 grade)
Power supply:
220V, 50Hz
Customize:
Accept customize
Supply Ability
Supply Ability:
150 Set/Sets per Month Best Sells Measuring Instrument Force Tensile Test Machine
Packaging & Delivery
Packaging Details
Best Sells Measuring Instrument Force Tensile Test Machine packaged by standard export wooden box.
Port
Shenzhen Port
Video Description
Product Description

Product Application

Force Measureing Instrument tensile test machine is widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.

Technical parameters
Max load
500N,1KN,2KN
Units
KG,N,LB, TON can be exchanged.
Accurate grade
1 grade /0.5 grade
Effective measuring range
0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy
the value ±1%/ the value±0.5%
Tester resolution
Max load 1/200000, constant the resolution
Load sensor
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
Effective tensile stroke
800mm;1000mm;1200mm (can be increased the height
according to customer’s requirement)
Effective testing width
300mm(can be widened according to customer’s requirement )
Range of testing speed
0.001~500mm/min
Accuracy of displacement measuremen
Tolerance: ±0.5%/ tolerance: ±0.2%
safety
Electronic-limit protection
Testing platform moving device
Fast /slow two speeds to control,can jog
Return back
Manual or automatic operation,After the test, the moving iron return
to initial position with the highest speed by manual or automatic operation
Overload protection
Overload 10%,automatic protection
fixture
A set of tensile fixture
Machine size
65x36x210cm(length*width*height)(including the height of operative table)
Power system
Panasonic AC Servo Motor + Driver
Power supply
220V,50HZ
Power
0.4KW(depending on different demand of force, using different motor)
Machine weight
(about)160 KG

Main Features

1. Good design.My company has been great emphasis on product appearance and development of many models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4.LCD liquid crystal display with backlight, can be used in low-light environment.

Certifications

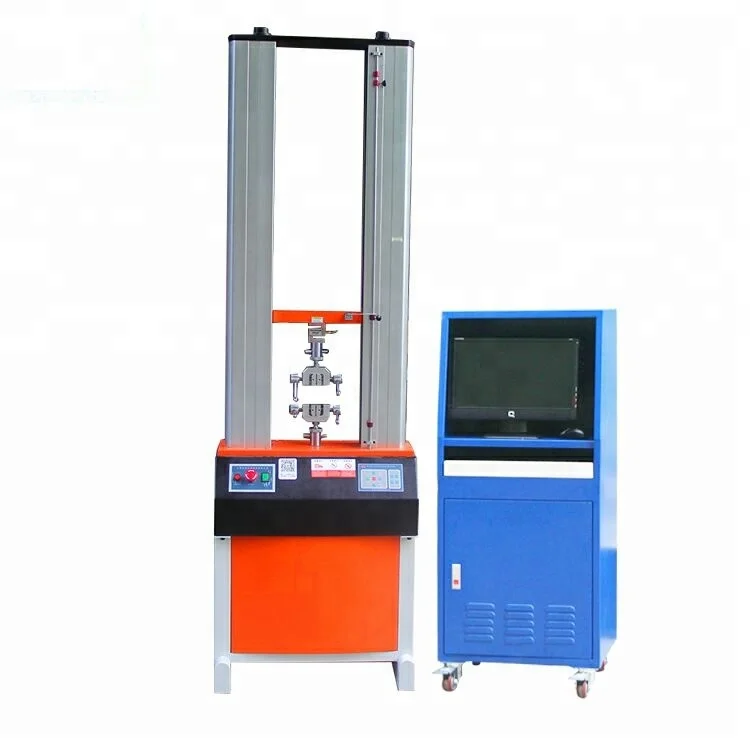

Detailed Images

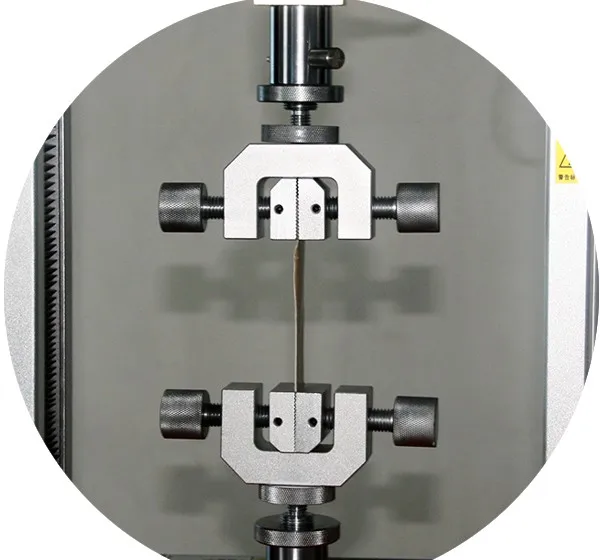

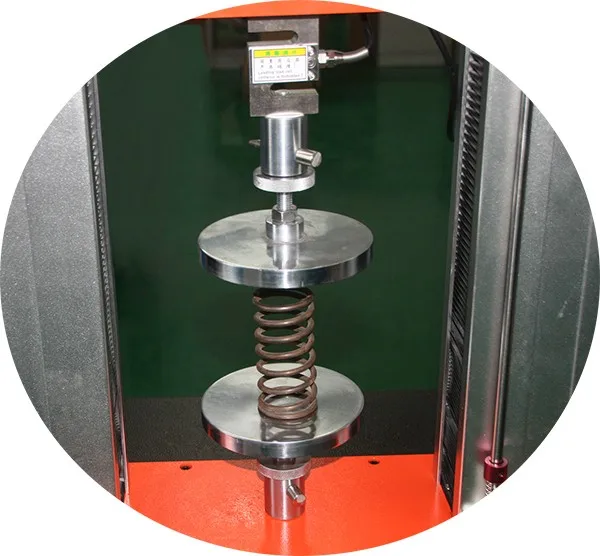

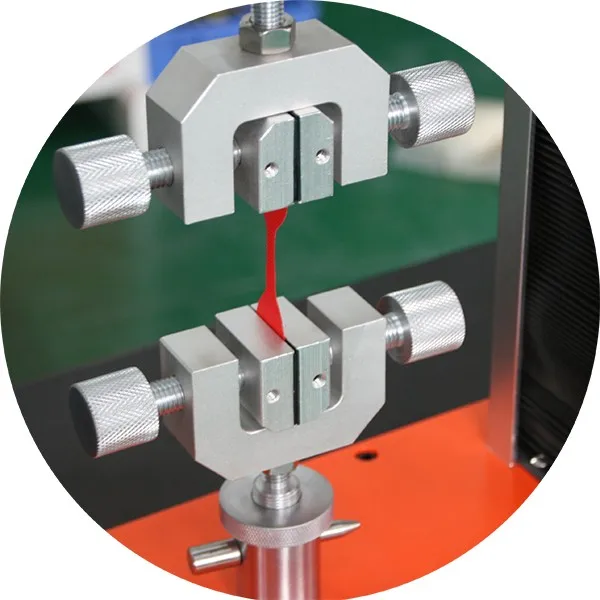

Universal Tensile Strength Testing Machinery is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.




Single determination, you can read the tension and compression peaks in both directions, and automatic and manual reset.

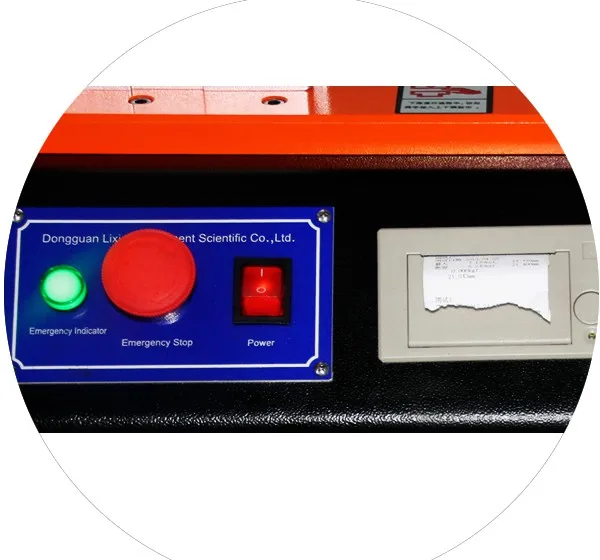

With travel limit and the overload stop function.





Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.

Universal Tensile Strength Testing Machinery is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rollable base station, makes it all very convenient. In particular, suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 1000N non-metallic and metallic materials within the test.

Our Service

We are here to help you. Services available:

Implementation Assistance

Installation

Training

Calibration

Preventive Maintencance

Technical Support

Relocation Assistance

Upgrade

Repair & Parts
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details



Universal Tensile Strength Testing Machinery packaged by standard export wooden box.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details



The normal package is wooden box(Size: L*W*H) or pack it according to customers special request.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

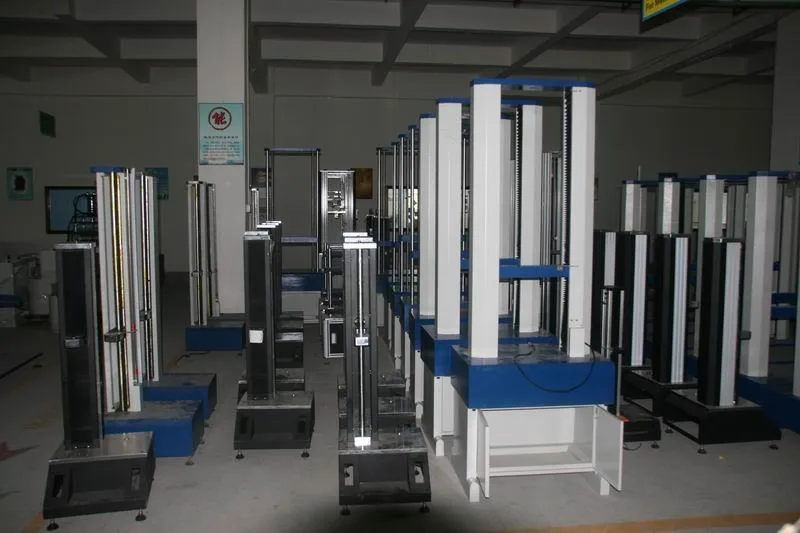

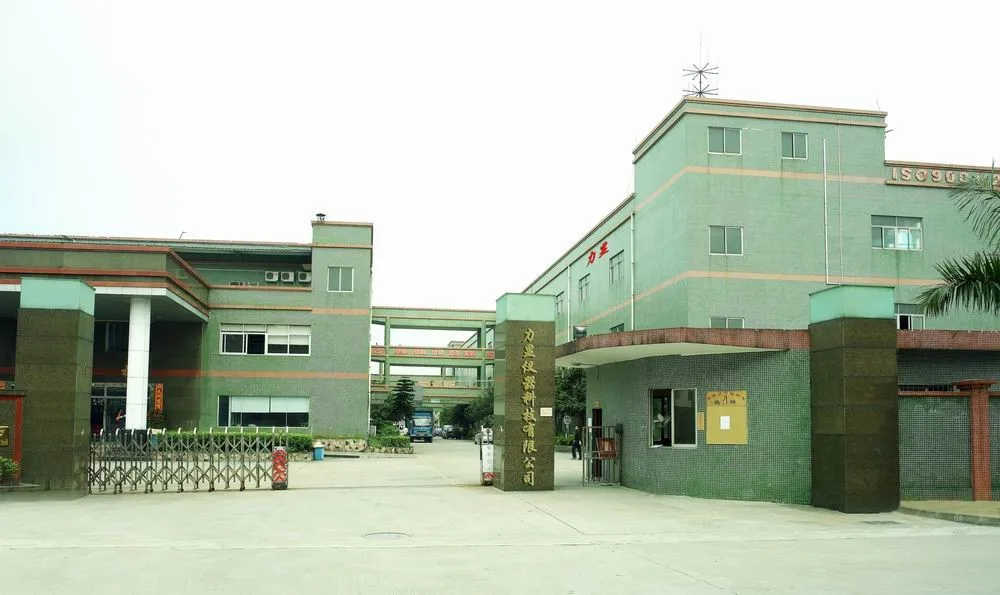

Factory

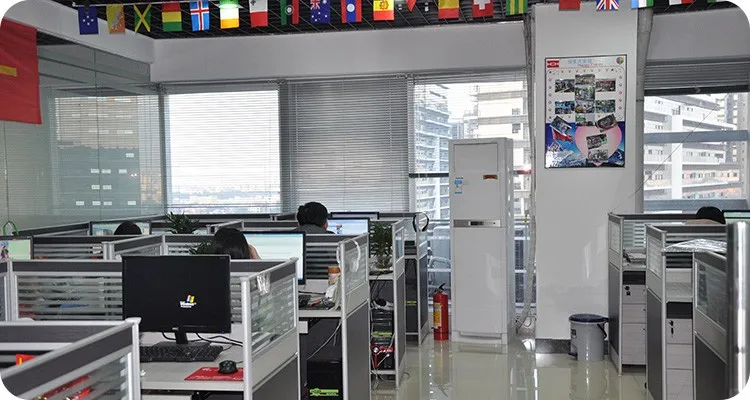

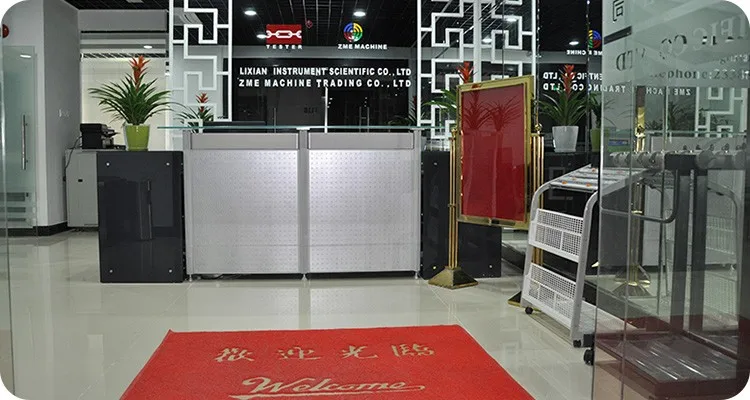

Business Office

FAQ

1.Are your company a trading one or a factory?

Factory + trade (integration),15 years focusing on test instruments field,6 years exporting experience.

2.After an order is placed, when to deliver?

Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?

12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.

After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in

a professional and timely.

4.What about the services and product' quality?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Product use training, each of our product provide video training to show you how to install & operate.

Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users.

All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
