Best Windows Linux Mac OS Android ISO 7816 Small Mini Smart Card Reader Portable ACR39T-A1

  • 2-49 Units
    $16.00
  • 50-499 Units
    $12.00
  • 500-999 Units
    $10.00
  • >=1000 Units
    $9.00
Model Number:
ACR39T-A1
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 500 Units)
Samples: $16.00 /Unit, 1 Unit (Min. Order): Buy Samples
Contact Supplier
Samples - $16.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
HCCTG
Interface:
USB 2.0 Full Speed
Supply Voltage:
Regulated 5 V DC
CLK Frequency:
4.8 MHz
Temperature:
0-50 °C
Smart Card Interface:
ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V )
Color:
Black
Infineon:
SLE4418, SLE4428, SLE5518 and SLE5528
Application:
Banking & Payment/1.e-Government/etc
Type:
Memory Stick Card
Atmel:
T24C01/02/04/08/16/32/64/128/256/512/1024

Packaging & Delivery

Selling Units:
Single item
Single package size:
4.95X2.15X0.9 cm
Single gross weight:
0.008 kg
Package Type:
General Packing For Best Windows Linux Mac OS Android ISO 7816 Small Mini Smart Card Reader Portable ACR39T-A1
Lead Time :
Quantity(Units) 1 - 50 >50
Est. Time(days) 7 To be negotiated

ACR39T-A1_01ACR39T-A1_02ACR39T-A1_03ACR39T-A1_04ACR39T-A1_06

Best Windows Linux Mac OS Android ISO 7816 Small Mini Smart Card Reader Portable ACR39T-A1



Overview

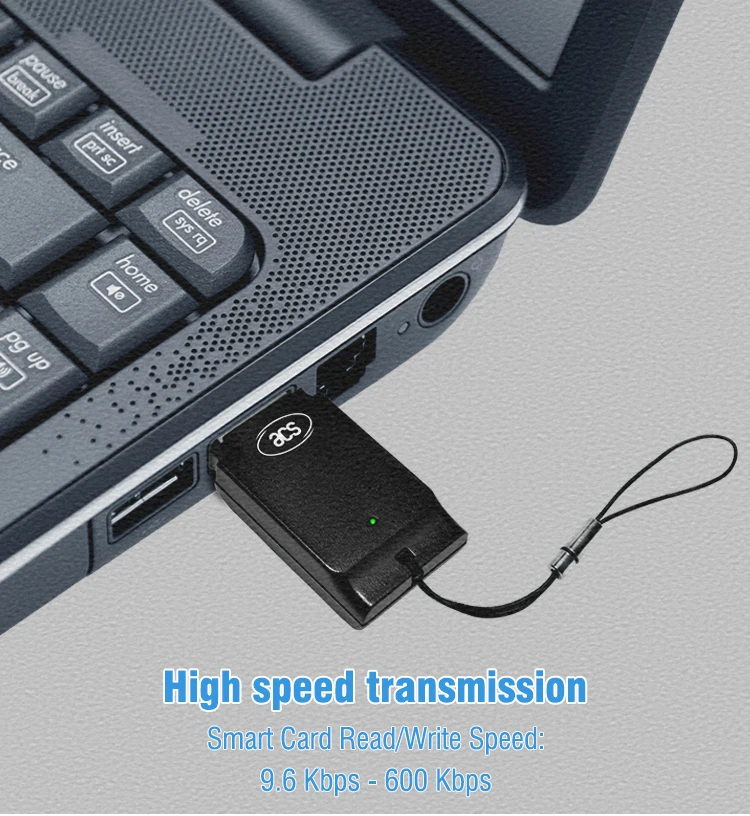

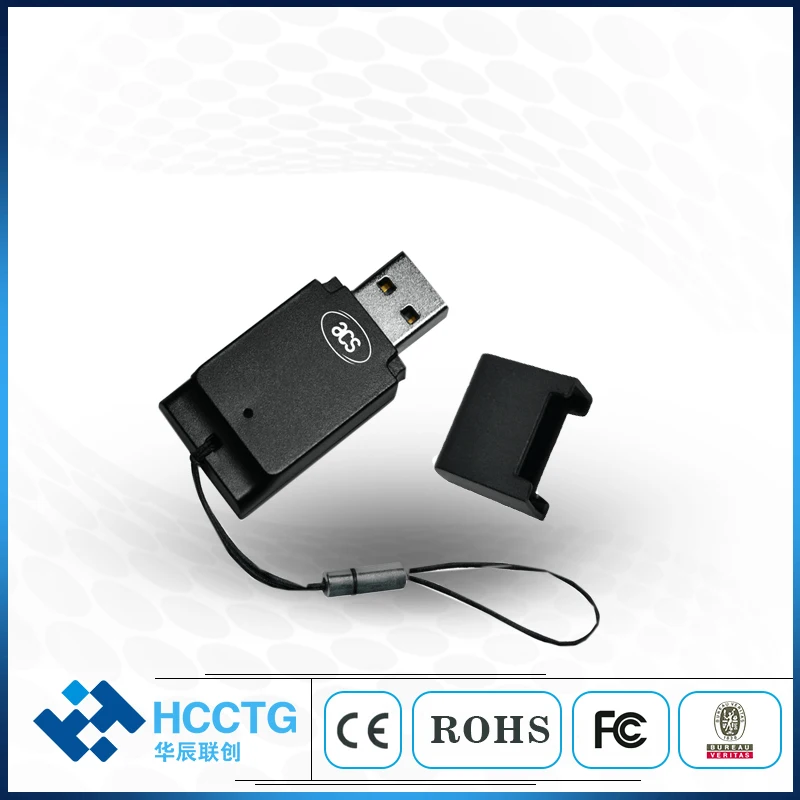

ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

ACR39T-A1 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Linux, and Mac OS®. Additionally, ACR39T-A1 may also be used on mobile devices running on Android™ platform versions 3.1 and above.

Weighing nothing more than your standard USB stick, ACR39T-A1 is a device that you can bring anywhere to keep smart card technology right at your fingertips.



Feature

1. Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards

2. Supports microprocessor cards with T=0 or T=1 protocol

3. Supports memory cards such as:

4. Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:

5. Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024

6. SGS-Thomson: ST14C02C, ST14C04C

7. Gem plus: GFM1K, GFM2K, GFM4K, GFM8K

8. Cards with intelligent 1k bytes EEPROM with write-protect function, including:

9. Infineon: SLE4418, SLE4428, SLE5518 and SLE5528

10. Cards with intelligent 256 bytes EEPROM with write-protect function, including:

11. 1 .Infineon: SLE4432, SLE4442, SLE5532 and SLE5542

12. 2. Supports PPS (Protocol and Parameters Selection)

13. Features Short Circuit Protection

14. Application Programming Interface:

a) Supports PC/SC

b) Supports CT-API (through wrapper on top of PC/SC

Specification

Dimensions

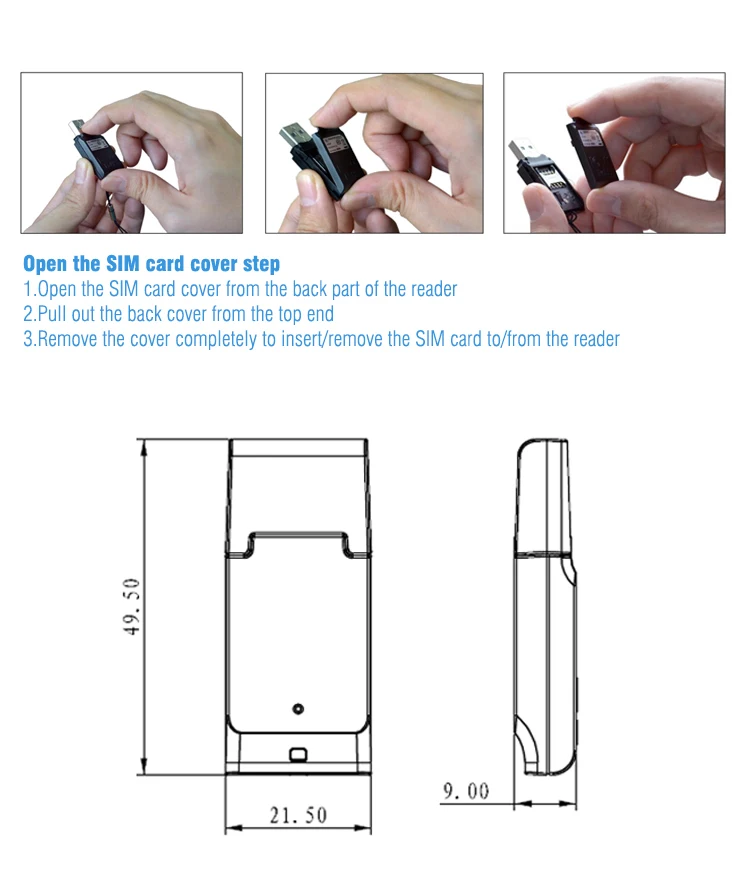

49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H)

Interface

USB 2.0 Full Speed

Supply Voltage

Regulated 5 V DC

Supply Current

Max. 50 m A

Operating Temperature

0-50 °C

CLK Frequency

4.8 MHz

Smart Card Interface Support

ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V )

Compliance / Certifications



EN60950/IEC 60950, ISO 7816, USB Full Speed,  PC/SC, CCID, CE, FCC, ROHS 2, REACH,VCCI (Japan) Microsoft® WHQL



Operating System Support

Windows

Linux

Mac OS

Android™

Manufacturers Pocket Smart Contact IC Chip Memory USB Type-C Card Reader ACR39U-NF

Application

Ø e-Government

Ø Banking & Payment

Ø e-Healthcare

Ø Network Security

Ø Access Control

Ø Public Key Infrastructure

Ø e-Purse & Loyalty
