Best cartuccia del filtro vino Pleated filter cartridge for beverage wine beer

FOB Reference Price:Get Latest Price
$1.00 - $50.00 / Pieces | 1 Piece/Pieces cartuccia del filtro vino (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lvyuan / OEM
Model Number:
LY-PF series
Product name:
cartuccia del filtro vino
Micron Rate:
0.1 to 60 micron pleated filter cartridge
Material:
PP / PTFE / PES / Nylon 6 / PVDF
Length:
5", 10", 20", 30", 40" inch
Filter Media:
Polypropylene membrane
End Cap:
DOE,222+Fin,222+Flat,226+Fin,226+Flat
Gasket/O ring material:
Silicon/EPDM/NBR/Viton/Teflon
Usage:
liquid filter elements, water filter parts
Inner core:
PP / stainless steel
Certification:
CE SGS ISO
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day cartuccia del filtro vino
Packaging & Delivery
Packaging Details
Package
10 inch: 50PCS/CTN 400*400*685mm
20 inch: 25PCS/CTN 400*400*685mm
30 inch: 25PCS/CTN 835*435*425mm
40 inch: 25PCS/CTN 1100*395*400mm
Port
Huangpu, Guangzhou port
Lead Time :
in 7 working days after payment
Product Description

Best cartuccia del filtro vino Pleated filter cartridge for beverage wine beer
The PP pleated filter cartridge uses pleated polypropylene fiber membrane as filtration media.
The PP Polypropylene cartridge is an advanced fixed intensive filter and available in a wide range of retention rating from 0.1μm to 60μm. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration capability attracted many customers.

Detail of Pleated filter cartridge
Jumbo / High flow rate Pleated Filter Cartridge
End Cap for pleated filter cartridge

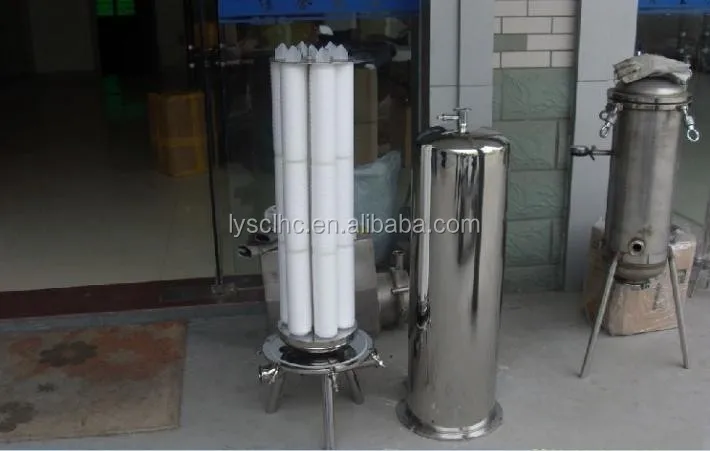

Stainless Steel filter housing with cartridges
Application

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, wine, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

Specification
Filter Media Option
PP filter cartridge
PTFE filter cartridge
Nylon 6 filter cartridge
PES filter cartridge
PVDF filter cartridge
Length
5, 10, 20, 30, 40
5, 10, 20, 30, 40
5, 10, 20, 30, 40
5, 10, 20, 30, 40
5, 10, 20, 30, 40"
Micron Rate
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
0.2, 0.45 micron
0.2, 0.45, 0.65, 1 micron
0.1, 0.2, 0.45, 0.65 micron
0.2, 0.45 micron
End Cap
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter
28mm
28mm
28mm
28mm
28mm
Outer Diameter
68mm (can be customized)
68mm (can be customized)
68mm (can be customized)
68mm (can be customized)
68mm (can be customized)
Jumbo Size
ID: 30mm, OD: 110~115mm
ID: 30mm, OD: 110~115mm
ID: 30mm, OD: 110~115mm
ID: 30mm, OD: 110~115mm
ID: 30mm, OD: 110~115mm
Gasket/O ring material
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area
0.4-0.7m²
≥0.72m²
≥0.6m²
≥5m²
≥0.72m²
Max.working pressure difference
0.42Mpa at 25℃
0.42Mpa at 25℃
0.42Mpa at 25℃
0.42Mpa at 25℃
0.42Mpa at 25℃
Max.back pressure
0.28Mpa at 60℃
0.35Mpa at 60℃
0.35Mpa at 25℃
0.21Mpa at 25℃
0.21Mpa at 25℃
Max. working temperature
88℃ at 0.28Mpa, 60℃ at 0.42Mpa
142℃ at 0.276Mpa
49℃ at 0.21Mpa
140℃ at 0.28Mpa
80℃ at 0.173Mpa
Sterilizing temperature
121℃, 30mins
121℃, 30mins
121℃, 30mins
121℃, 30mins
121℃, 30mins
Related Products

5 6 7 stage RO water purifier system

10'' single cartridge filter housing


stainless steel cartridge filter housing

PP Melt Blown filter cartridge

String Wound filter cartridge

CTO Activated Carbon filter cartridge

Why Choose us

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, our competitive product lines including:
1. All kinds of Filter Cartridges, Pleated / Melt Blown / Sintered etc.
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers.

Packing & Delivery
FAQ

1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo, but customized products may be extra cost.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.
