Best quality 2014 new design for color steel/PPGI/galvanized/zinc/aluminium sheet wall roof glazed tile forming making machine

FOB Reference Price:Get Latest Price
$8,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DX double layer
Report Suspicious Activity
Overview
Quick Details
Warranty:
365 days
Type:
Tile Forming Machine
Production Capacity:
8-12m/min
Power(W):
4 KW or as your requirement
Certification:
ISO BV
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DIXIN
Voltage:
380v or as your requirement
Dimension(L*W*H):
1.5*1.5*6.0m
Weight:
2.5-3.2 tons
Machine name:
color steel/PPGI/galvanized/zinc/aluminium sheet machine
Feeding material:
PPGI/galvanized/aluminium/zinc sheet
Feeding thickness:
0.3-0.8mm
Feeding width:
can be desiged as your requirement
Cover width:
as your design
Panel usage:
wall roof panel,glazed tile or purlin as your design
Control system:
PLC automatic control
Cutting style:
Hydraulic cutting mould
Forming steps:
As design,container and your requirement
Advantages:
Many kinds as your requirements available
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing
Load in a 20/40foot container
Port
Tianjin port

color steel/PPGI/galvanized/zinc/aluminium sheet machine

Product Description



best quality 2014 new design
color steel/PPGI/galvanized/zinc/aluminium sheet
wall roof glazed tile forming making machine

used tio roll forming or manufacturing wall roof or glazed tile panels

PLC automatic control.Panel length and cutting can be set by PLC,

one manual uncoiler is free

high precision 10000mm+-2mm

easy to operate and durable use

Hot sales Panel drawing for your reference

1.Working flow





2.  machine Technique parameters

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Effective width: as your request

(4) Feeding width: as your request

(5) Main motor power: 4kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 13steps.

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 300H steel

(11) Medium plate thickness: 16mm

(12) Control systerm: Delta PLC computer control

(13) Cutting blade material:Cr12

(14) Speed:about 10-12 meter/min

(15) Drived by Chain:1.2 inch

(16) Machine size (mm):6500*1300*1300

(17) Machine weight: about 2.5ton

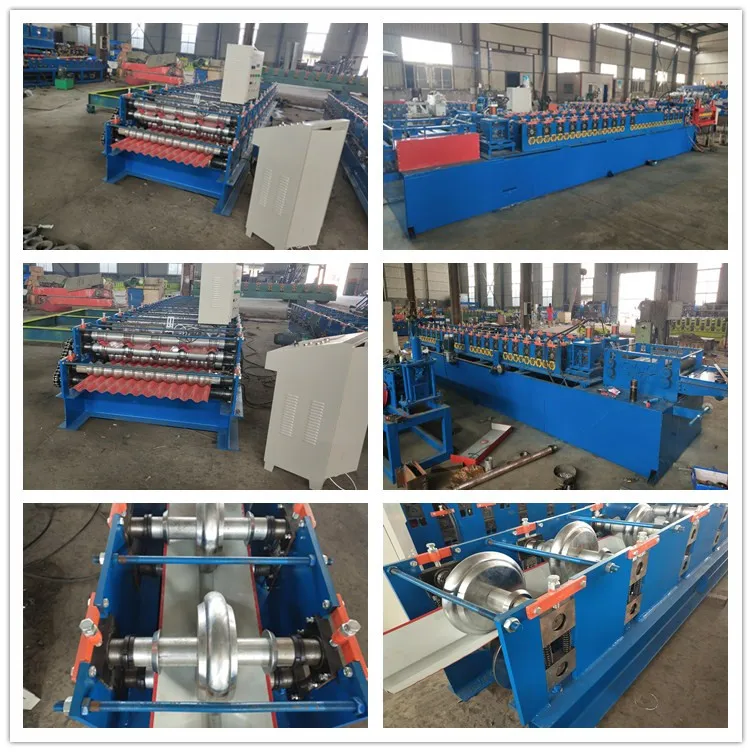

Some machine pictures for your reference.






Packaging & Shipping

 Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.



factory Shows

Factory show

Our  factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers.
Our machines are sold to worldwide, and feedback very well.
Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
We also can design and produce machine according to customer's requirement.


Best materials

We have the most professional technical team And many years of rich production experience.Start with the selection of raw materials.We produce and process each process carefully.Only hope the customer can use the best machine.





Costomers visit

Our machine exported all over the world,so our customers are also from all over the word.Sometimes some customers visit our factory before placing orders, some customers when theirs machines finished ,the come to check test machine, we also have some customers come to our factory to learn how to operate the machine, we welcome you at any time.





others product

     We are a manufacture of roll forming machine.Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
We also can design and produce machine according to customer's requirement.





Our Services

One year quality qurantee for whole machine

On-site training is free.

Your side setting and training is USD 80 per day

lifelong technical support.


FAQ2

FAQ:

Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.



Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.



Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.



Q: What I should do if I just start to know roll forming machinery?

A: Contact us immediately, we provide free consultant pre-sales service.



Q: How to visit our company:

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Please contact Bella mobile/what'sapp/wechat:8618231723279

Skype:andylidx
