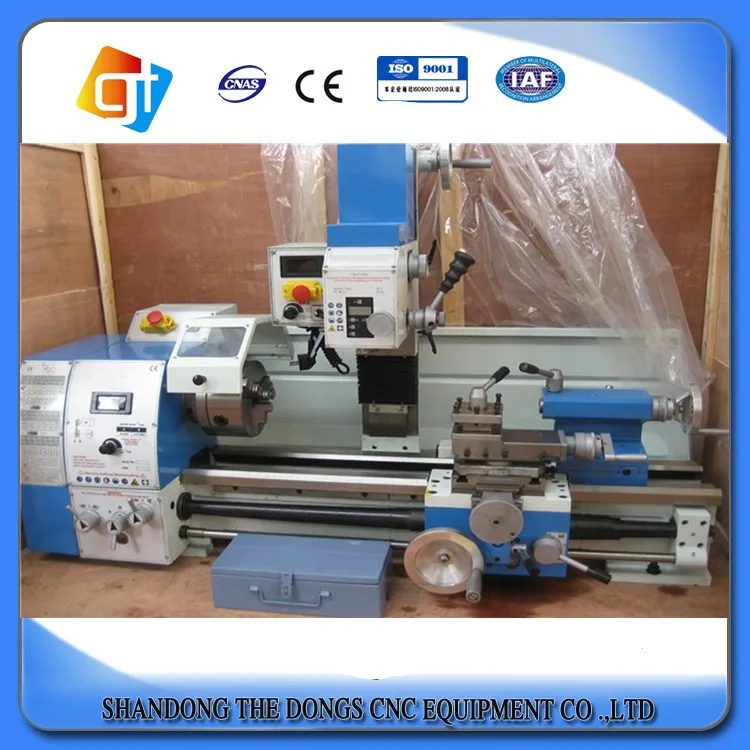

Best quality combination lathe milling machine for sale

FOB Reference Price:Get Latest Price
$2,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
290mm
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Place of Origin:
Shandong, China (Mainland)
Brand Name:
GT
Model Number:
WMP 290-F
Voltage:
380V
Dimension(L*W*H):
2250*1130*1540mm
Certification:
ISO9001
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year, 2 YEARS
Center height:
700mm
Swing over cross slide:
165mm
Width of bed:
180mm
Tail stock center travel:
140mm
Machine Type:
Lathe
Name:
Lathe Machine
Taper of spindle bore:
MT5
Range of inch threads:
8-56 T.P.I
Function:
Machining Metal
Power(W):
1.1KW
Weight:
1500kg
Max. Swing Diameter:
290mm
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box or as per your require
Port
Qingdao/Shanghai

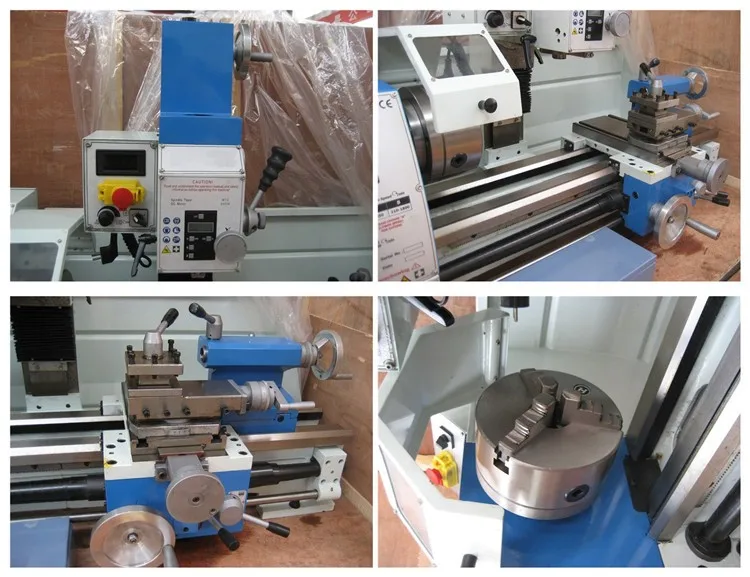

Product Description

Specification

Unit

WMP 280-F

WMP 290-F

Distance between centers

mm

700

700

Swing over bed

mm

280

290

Swing over cross slide

mm

165

165

Taper of spindle bore



MT5

MT5

Width of bed

mm

180

180

Spindle bore

mm

26

26

Number of spindle speeds



6/variable

6/variable

Range of spindle speeds

rpm

500-2000

500-2000

Range of longitudinal feeds

mm/r

0.07-0.20

0.07-0.20

Range of inch threads

mm

8-56 T.P.I

8-56 T.P.I

Range of metric threads

mm

0.4-3.5

0.4-3.5

Top slide travel

mm

50

50

Travel of cross slide

mm

140

140

Tailstock quill travel

mm

70

70

Taper of tailstock quill



MT3

MT3

Motor

Kw

1.1

1.1

N.W/G.W

Kg

220/260

230/270

Packing size

mm

1400×680×600

1400*700*680
