Big Capacity Block Ice Maker Manufacturing Plant

Feedback Ratings
$5,200.00 - $58,000.00 / Set | 1 Set (Min. Order)
Model Number:
SR-ICM803F3 SR-ICM803F1
Output:
3.3
$5,200.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Power(W):
12KW
Ice Shape:
Ice Block
Dimension(L*W*H):
3100*800*2400mm
Warranty:
12 MONTHS
After-sales Service Provided:
Video technical support
Condition:
New
Capacity:
2 TONS/DAY
Place of Origin:
CHINA
Brand Name:
SURE
Voltage:
380V
Weight:
1200
Certification:
CE
Name:
Ice Block Making Machine
Compressor:
Copeland
Cooling way:
air cooling/water cooling
Around temperature:
30℃
Water temperature:
15-20℃
Refrigerant:
R22
Ice mould:
415*150*500mm, 50kg,
Feature:
Fast Making
Material:
Stainless Steel
Ice outlet:
28mm 35mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
320X92X260 cm
Single gross weight:
1350.0 kg
Package Type:
Packed in wooden case Cheap small commercial ice block making machine price for sale
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 2 >2
Est. Time(days) 15 30 To be negotiated
Product Description

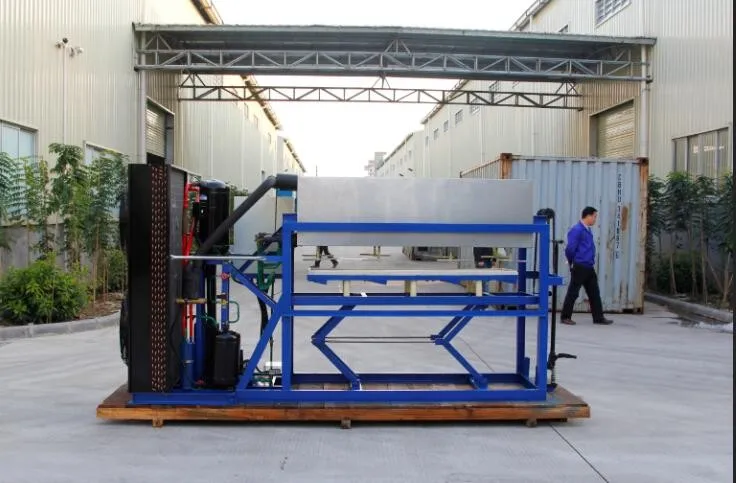

Big Capicity Block Ice Maker Manufacturing Plant


Product Application

a.Ice factory

b.Fresh preservation

c.Ice engraving;

d.Edible ice


Description:

Direct refrigeration block ice machine (adopting aluminum alloy plate to freeze ice directly, no brine tank or other auxiliary chemicals)

1.Non containerized ice block machine

1)Daily capacity: from 1 ton to 100 tons per set/24 hours.

2)Weight of each block ice: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg....50kg...100kg. We also can customize for you.

2.Containerized Ice Block Machine

1.)20 feet container: 5 tons

2.)40 feet container : 10 tons

3.Block ice: 10 kg, 25 kg.

Main Fetures:

1. Module design, easy to install;

2. Strong ability of keeping a low temperature;

3. Full automatic control system, low labor force costs and low maintenance costs;

4. Environmental-friendly design

Model
Dimension
Weight
Power
Condensation
ice mould size
Moulds
qty
ice
weight
Capacity
SR-ICM802F4B
1450*570*990mm
90kg
4kw
water/air
22*8*60
cm
8pcs
10kg
500kg/24h
SR-ICM802F4
1850*570*990mm
240kg
4kw
water/air
22*8*60
cm
16pcs
10kg
960kg/24h
SR-ICM803F4
2540*570*990mm
350kg
5.5kw
water/air
22*8*60
cm
28pcs
10kg
1680kg/24h
SR-ICM803F3
2540*570*1190mm
450kg
7.3kw
water/air
17.5*12*80cm
24pcs
15kg
2240kg/24h
Power Supply
220V/50Hz/60Hz/1P, 220V/60Hz/3P, 380V/50/Hz/3P
Refrigerant
R22/R404A
Cooling Way
Water Cooling/Air Cooling/Evaporating Cooling
Max. Ambient Temp.
+45ºC
Supply Water Temp.
+23ºC to 18 ºC
Condenser Temp.
+40ºC
Noise
55dB
Certifications
Our Service
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
