Big deep Holes Reverse Eirculation Water Well Drilling Machine

  • 1-2 Sets
    $21,000.00
  • >=3 Sets
    $20,200.00
Model Number:
HWS150
Power(W):
86KW
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support
Place of Origin:
China
Brand Name:
Hengwang
Usage:
Water Well
Voltage:
380V
Weight:
13ton
Certification:
CCC ISO
Type:
Rotary Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
8.2m*2.15m*2.8m
Applicable Industries:
Construction works , Drill well works
Name:
Reverse Eirculation Water Well Drilling Machine
Keyword:
Water Well Drilling Machine
Drilling depth:
200m
Engine:
6105D
Drilling method:
Reverse Eirculation
Max. drilling diameter:
1500mm
Diesel engine:
86KW
Rotate speed:
11r/min
Application:
Drill soil for water well
Advantage:
Fast speed
Product Certification certification
CE Certified.
Valid from 2019-12-02 until 2024-12-02

Packaging & Delivery

Selling Units:
Single item
Single package size:
820X215X260 cm
Single gross weight:
13000.0 kg
Package Type:
standard export packing
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

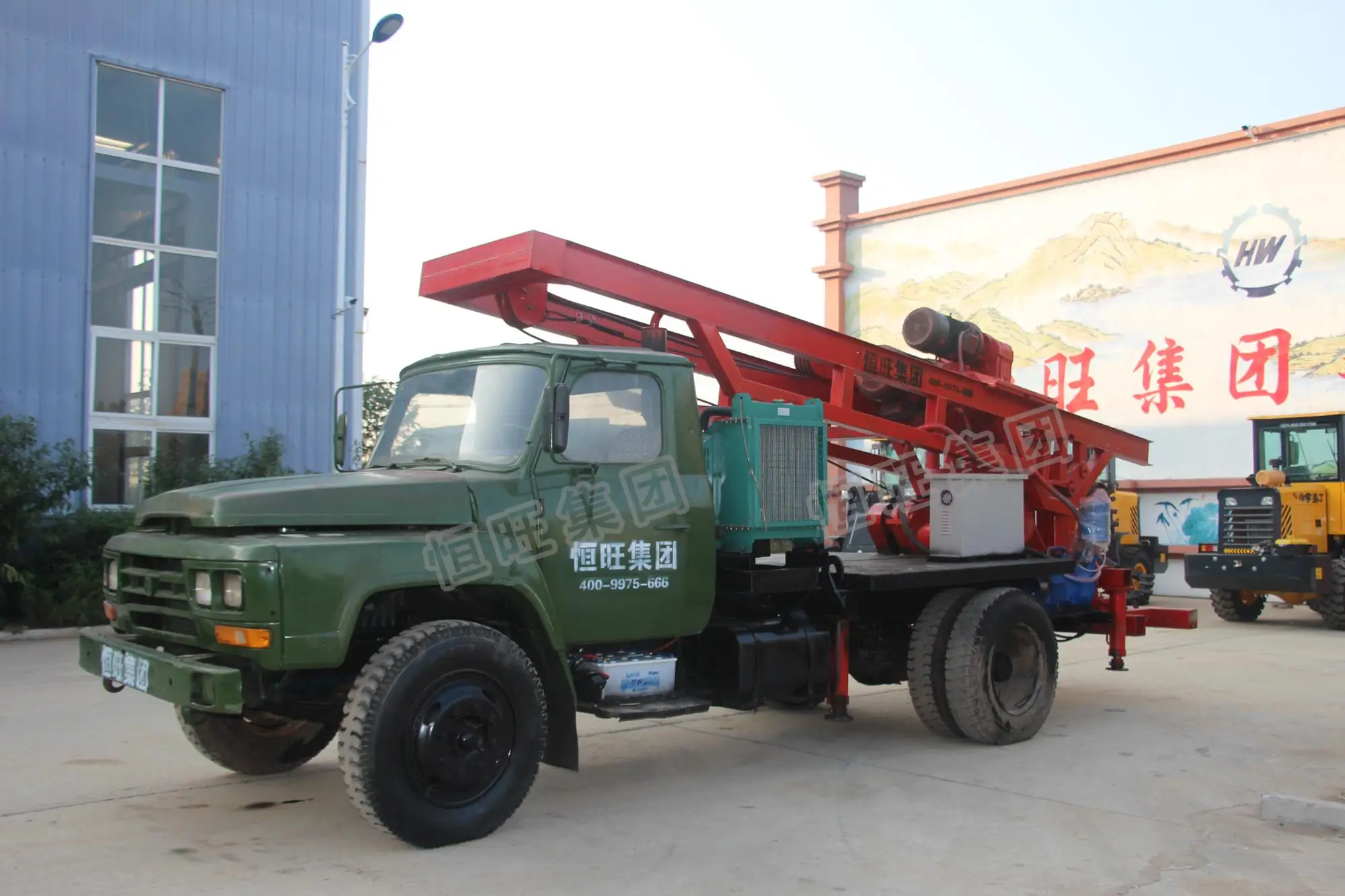

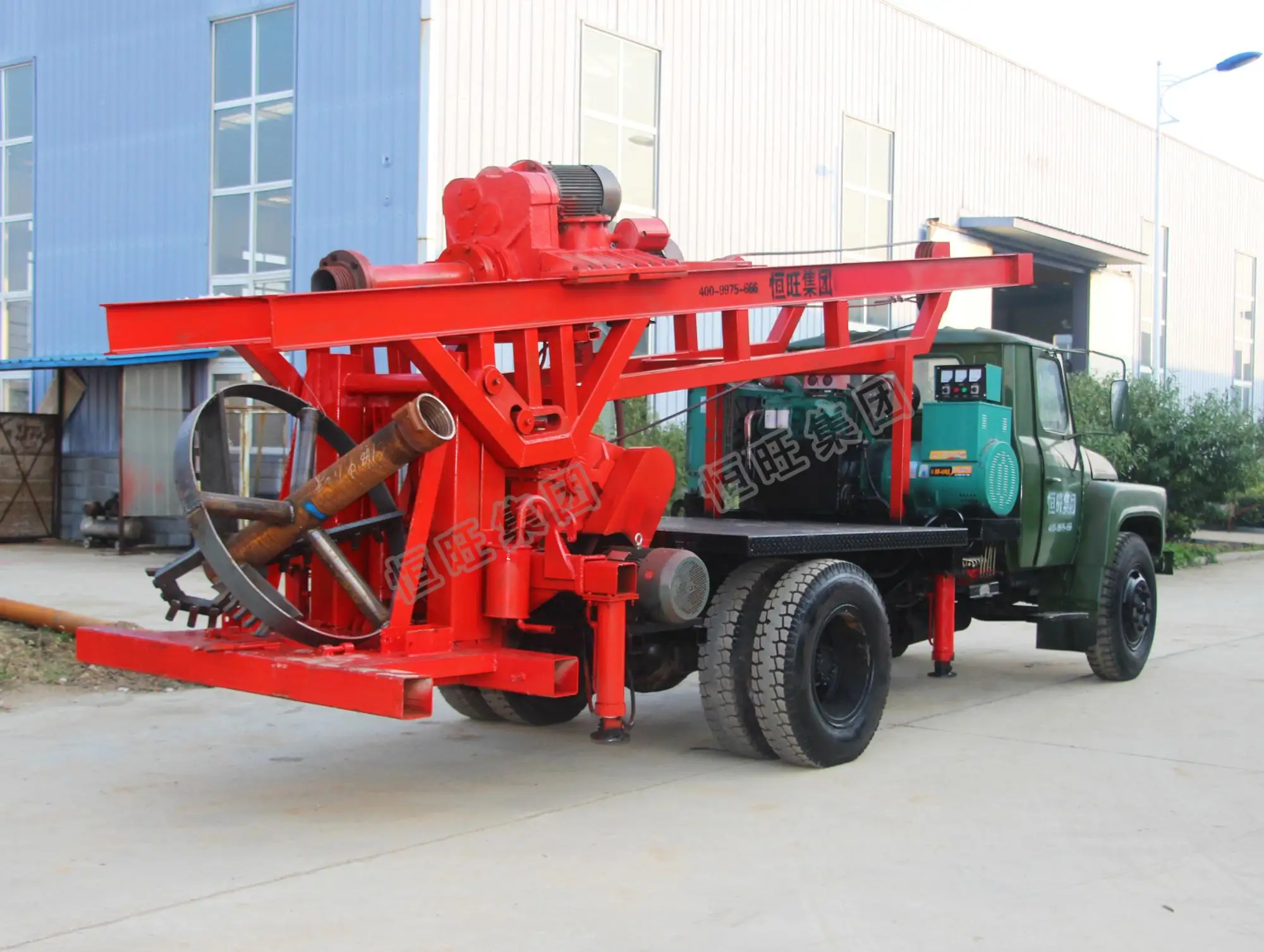

 Big deep Holes Reverse Eirculation Water Well Drilling Machine
Product Description



Application

1. The motive power comes from the truck engine, with 100KW generator and external power system. So the rig can work with truck engine or external power and is a electromechanical ,hydraulic,pneumatic controlled rig ;
2. The rig uses mud as the flushing liquor with 6BS gravel pump to drill; the equipped CB—--E532vacuum pump system provides water for the gravel pump.
3. The rig equips with hydraulic system, hydraulic tower, hydraulic supporting legs.
4. The drill pipes is screw thread joint, with special unloading device, easy to change the drill pipe.
5. The appearance of rig is pretty; it has a high efficiency because of having larger torque; it is suitable for water well engineering, construction, building, bridge foundation, port, dam and so on; it is popular with the domestic and foreign clients.
6.The rig is installed a generator (15kw) ,which is convenient to illuminate or work at night.Truck mounted deep rotary water well drilling rig reverse circulation with mud pump

SPECIFICATION FOR HWS-150 REVERSE EIRCULATION DRILLING MACHINE
Drill depth(m)
200
Drill diameter(mm)
500-1500
Top head speed(r/min)
11--22
Top head torque(kN.m)
15—7.5
Single line pull force of minor winch(t)
3
Tower hight(mm)
6980
Bearing (t)
20
Drill pipe(mm)
φ168×8×3000

6BS gravel pump
theoretical flow(L/min)
560
Revolving speed(r/min)
750
Input power(kw)
55

CB—E532 vacuum pump
Max-displacement(L/min)
3400
Revolving speed(r/min)
1450
Input power((kw)
7.5


Diesel engine
model
YC6J180-33
Rated power(KW)
132
speed(r/min)
2500
torque
590N.m/1400-1700rpm
Drive form of chassis
4×4


Generator set
Rated power(kW)
100
Rated voltage (V)
400
frequency (Hz)
50
Walking speed(km/h)
75
Transport dimension (L×W×H)(mm)
8550*2490*4000
