Bitumen ship bottom paint water permeation resistance good adhesion coatings

  • 500 - 999 Kilograms
    $4.50
  • >=1000 Kilograms
    $3.50
Color:
Lead Time:
Quantity(Kilograms) 1 - 500 >500
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Other Names:
Marine Coatings
Place of Origin:
Jiangsu, China (Mainland)
Main Raw Material:
Bitumen epoxy
Usage:
Appliance Paint, Boat Paint
Application Method:
Spray
State:
Liquid Coating
Brand Name:
Lanling
Model Number:
HL52-4
Gloss:
Semi-gloss
Mix proportion:
Paint: Curing agent=14:8
Specific density:
1.2
Storage life:
12months
Supply Ability
Supply Ability:
200000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
14Kg in 20L container for Component A, 8Kg in 10L container for Component B
Port
Shanghai
Lead Time :
Quantity(Kilograms) 1 - 500 >500
Est. Time(days) 15 To be negotiated
Product Details

The coating is a two-component system formulated with epoxy resin, coal-tar pitch, anticorrosive pigments, thickener, polyamide curing agent, etc.. Component B is a common curing agent for both brown coating and black coatings.

Excellent water resistance and rust resistance.

Good chemical resistance and oil resistance.
Good adhesion, impact resistance, abrasion resistance.
Good cathodic protection performance.

Applications

Used for Ship bottoms, ballast tanks, crude oil and fuel tanks, sewerage tanks, port steel poles, offshore drilling plats, steel water gate, mine steel support, pipes, other steel structures and concrete substrates.

Construction Note

Mixing Ratio: Component A(vehicle): Component B(curing agent) =14:8
Conditioning Period: 23±2℃: 0.5~1h.
Pot Life: 23±2℃: 8h
Application Methods: High pressure airless spray, air spray, brush and roll
Thinner: X-7 thinner for epoxy coatings


High pressure
airless spray
Air spray
Brush and roll
Max. dilution ratio
5%
10%
5%
Spray nozzle
0.4~0.5mm
2.0~3.0mm
-
Spray pressure
0.4~0.5mm
0.2~0.4MPa
-

Cleaning of Tools: X-7 thinner for epoxy coatings
Coating Film Thickness: Wet film: 225μm, Dry film: 125μm
Recoat Interval:

Temperature of Substrate
5℃
20℃
30℃
Min.
48h
24h
12h
Max.
14d
7d
5d

Surface Preparation

Steel with oxide scale should be blasted up to SIS Sa2.5Grade.
Steel without oxide scale should be blasted to SIS Sa2.5Grade or sanded to St3Grade with pneumatic or electric equipment.
Steel coated with shop primer should be re-rust-removed, and free from damaged shop primer and other dirt, then sanded up to SIS St3Grade.

Application Conditions

The substrate temperature should be 3℃higher than dew point, and the relative humidity should be less than 85%.When the substrate temperature is lower than 5℃, avoid application because the reactions between epoxy and curing agent stop.

Proceeding Coat

  H06-1 zinc rich epoxy shop primer, H06-1-2 zinc dust epoxy shop primer, H53-5 iron oxide red epoxy shop primer, E06-1 inorganic zinc silicate shop primer, E06-2 inorganic zinc silicate shop primer, H53-6 epoxy MIO antirust coating.
Or directly applied on steel substrate with a rust-removing grade of Sa2.5Grade.

Subsequent Coat

J53-14 chlorinated rubber pitch anticorrosive coating
J40-64 chlorinated rubber long-lasting antifouling coating
J40-65 chlorinated rubber efficient and long-lasting antifouling coating
9402 non-tin self-polishing long-lasting antifouling coating

Notes

When air temperature is over 30℃, overcoating effect is the best when coating film still sticky.
If exceeded max. overcoating interval, sand the coating film before application to insure good adhesion.

Safety

Avoid inhalation of solvent vapors or paint mist for a time, as well as paint contact with skin and eyes. Apply only in well ventilated areas and ensure adequate forced ventilation when applying paint in confined spaces or when the air is stagnant. Wear protective cloths and gloves during applying even there is good ventilation.

Remarks

The wet film thickness and dry film thickness listed above are the values in the case of high pressure airless spray.
The data in the document are from laboratory, the data of practical products may be varied slightly from the above value. If there are some changes in the data, the latest brochure will be provided without notification.

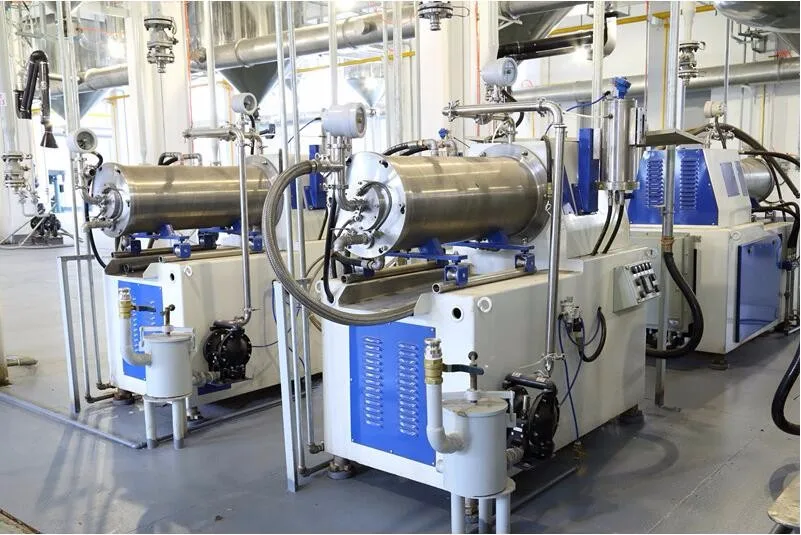

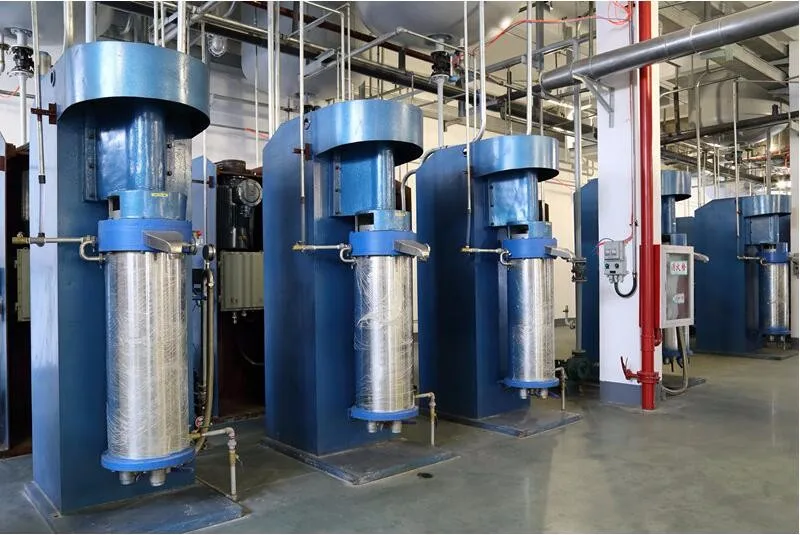

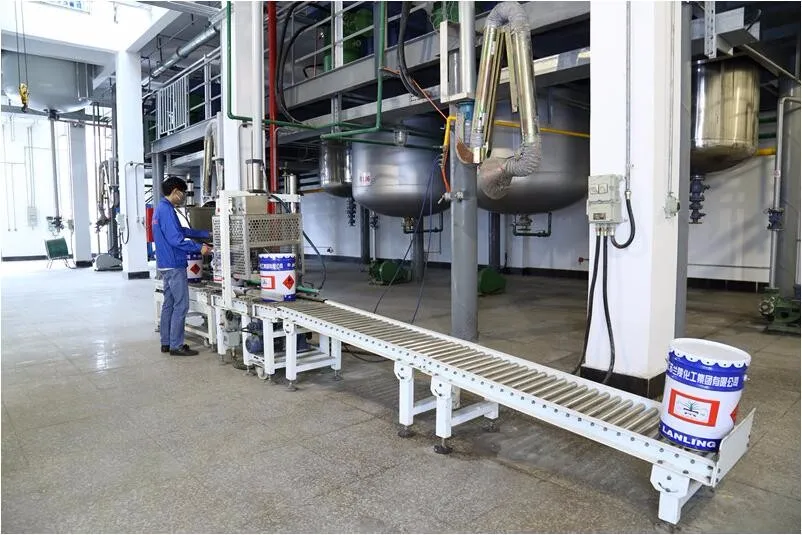

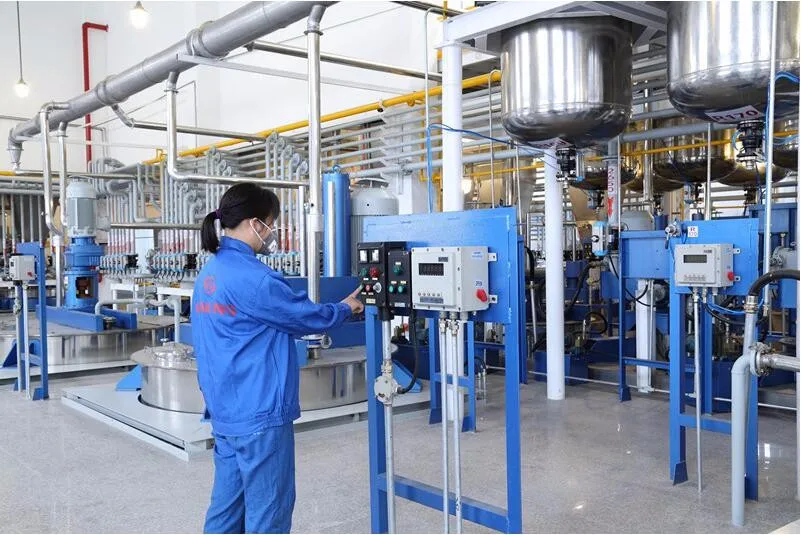

Product Processing

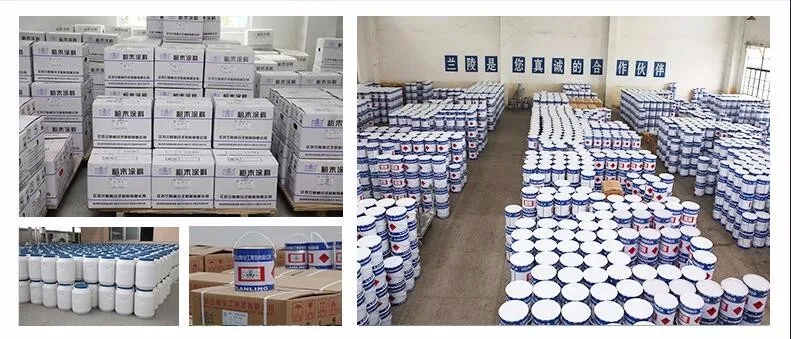

Product Packing

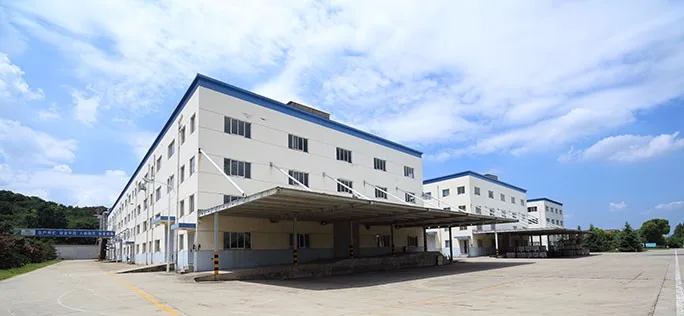

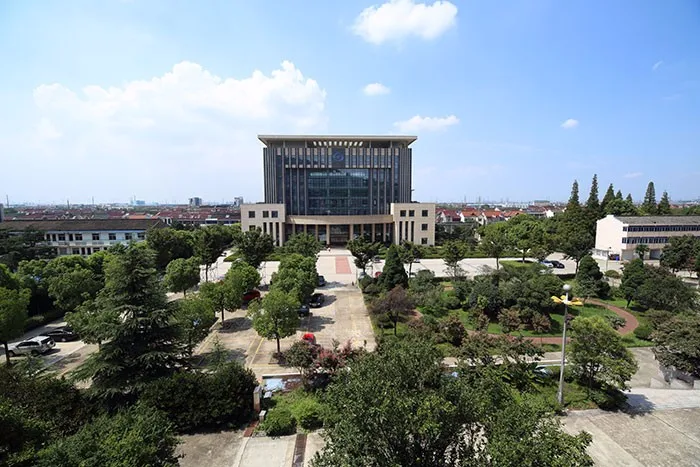

Our Company


Our company has been named Star Enterprise of Jiangsu Province, Model Unit and High Technique in Jiangsu Province and China Trustworthy Enterprise. Our company has been found to meet ISO9001 quality management system, ISO14001 environmental management system and occupational health and safety management system standard.


The Jiangsu Lanling Polymer Material Co., Ltd. a key enterprise under the Group, has a coatings production capacity over 100,000 tones and provides five categories products as anti-corrosion coatings, architectural coatings, marine coatings, coil coatings and powder coatings. The products have been widely used all over the country, greatly exported to Asia, Africa, Europe and Latin America, etc.

Certificate
FAQ

Q: Are you a trading company or a factory?
Jiangsu Lanling Chemical Group Co.,ltd is manufacturer.
Changzhou Kaibaobenma Trade Co.,ltd is our owner trading company.

Q: Can you provide the samples?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Can you produce the product according to customers' requirements?
Yes, OEM is welcome. We are a professional manufacturer of paint and coatings, including high temperature coatings.

Q: What's your delivery date?
Generally it is within 7 or 10 days after deposits are paid or it is 15-20 days if the good's raw materials are not in stock. The specific delivery time depends on the items and the quantity of your order.

Q: What's the term of payment?
We prefer T/T 30% deposit, the balance 70% T/T paid before shipping.

Q: Where is your factory located? Can I visit there?
It is located in Changzhou City Jiangsu Province, which is closed to Shanghai. Warmly welcome to visit us.
