Black building materials rubber foam insulated roof sheets prices

FOB Reference Price:Get Latest Price
$1.50 - $6.00 / Square Meters | 100 Square Meter/Square Meters (Min. Order)
Lead Time:
Quantity(Square Meters) 1 - 3000 >3000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 3000 Square Meters)
Customized packaging (Min. Order: 3000 Square Meters)

More

Graphic customization (Min. Order: 3000 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Huamei Brand
Model Number:
Class 1
Material:
NBR/PVC
OEM:
Accept
Property:
Direct factory sale
Temperature:
-40℃ - 110℃
Color:
black
Density:
50kg/m3
Place of Qrigin:
Hebei ,China
Facing:
TM5*5 ,Foil aliminum
Supply Ability
Supply Ability:
1800000 Cubic Meter/Cubic Meters per Year we have enough steady supply capacity .
Packaging & Delivery
Packaging Details
1:PP and PE ,Woven bags,nylon bags outside and plastic bags inside
2:As your special requirement
Port
Tianjin
Lead Time :
Quantity(Square Meters) 1 - 3000 >3000
Est. Time(days) 5 To be negotiated
Huamei Rubber Foam

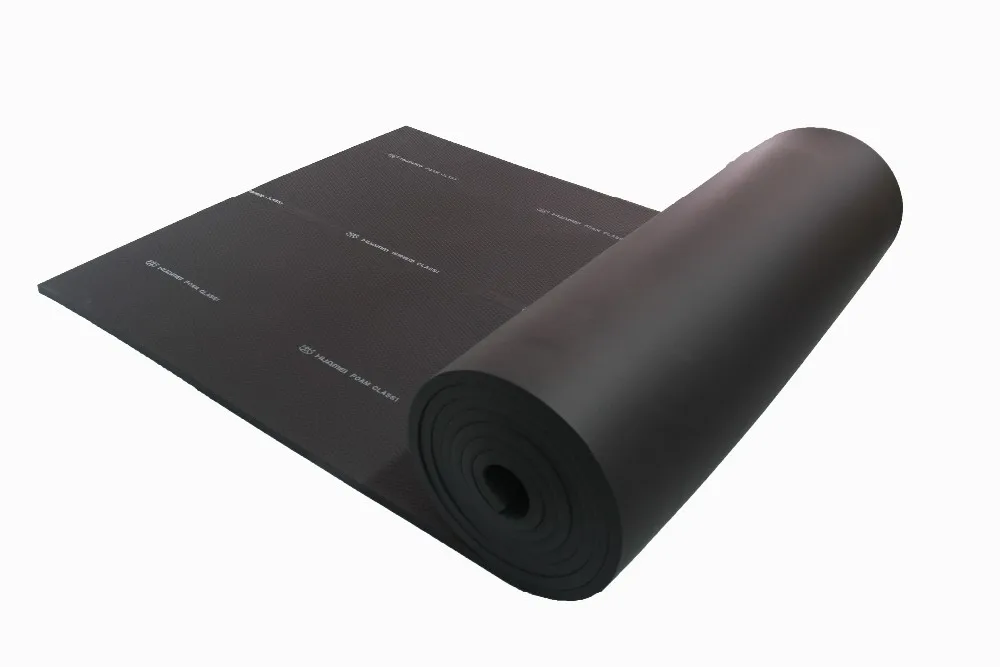

Huamei Class Rubber Foam is a flexible and light weight elastomeric nitrile rubber material designed for thermal insulation. Huamei Class1 insulation is generally black in color, other colors are available upon request. The product comes in tubing, roll and sheet form .The extruded flexible tubing are specially designed to fit the standard diameters of copper, steel and PVC piping. Sheets are available in standards precut sizes or in rolls.

Our products
Specification & Data

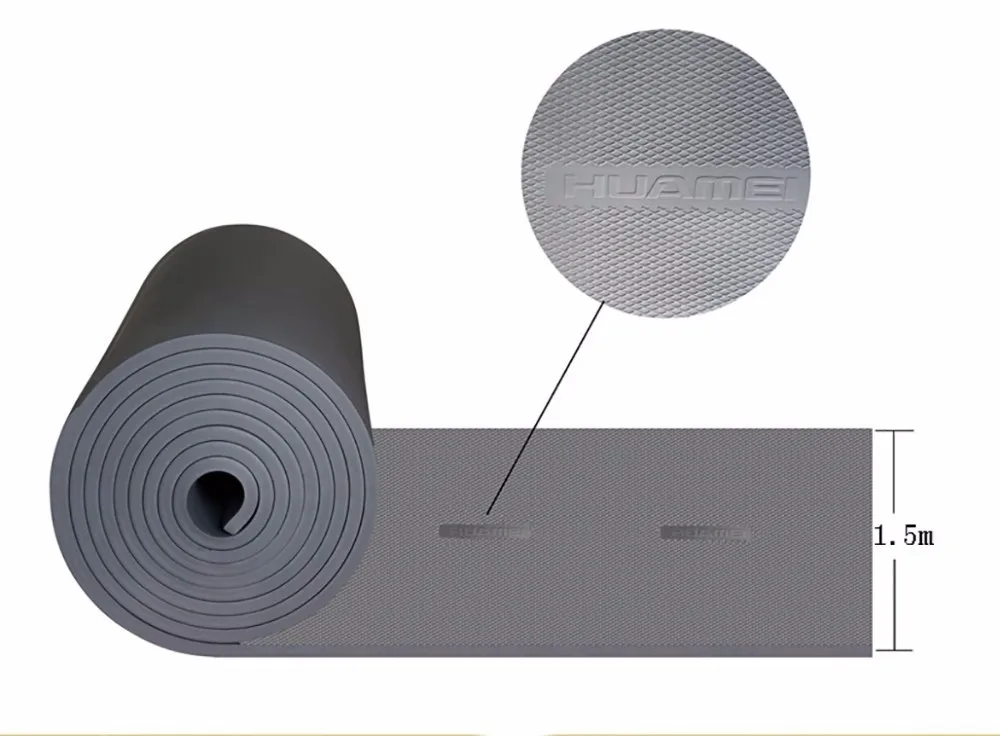

Standard Specification of Sheet
Thickness
10mm
15mm
20mm
25mm
30mm
Length
16m
16m
8m
8m
8m
Width
       1m ,1.2m ,1.5m

Note :

1.The above specifications are those in common use ;special specifications are available at customer's request .
2. Rubber foam sheet and tube are normally in black .Other colors are available at customer's request .
3. It is recommended to use sheet where outer diameter of tube exceeds 89mm .
4. Multilayer packing is recommended where the thickness of heat insulation materials needs to be greater than 25mm .
5. The width of sheet are available at customer's request for a scope of 1m to 2m .



Item
Unit
Specification
Standard
Density
Kg/m3
50-55
GB/T 6343
Temperature
C
-40 -110C
GB/T 17794
Flammability
Class-0
BS476Part7&Part6
Oxygen index
%
≧40
GB/T 2406
SDR
≦65
GB/T 8627-1999
Conductivity factor
-20C
0C
40C


W/M•K

≦0.031
≦0.034
≦0.036



GB/T 10294
Water vapor permeability
Factor
≧1.0×106
GB/T 17146-1997
Coefficient
g/(m.s.pa)
≦1.96×10-11
Water absorption ratio in vacuum
%
≦10
GB/T 17794-2008
Dimension stability 105±3C ,7d
%
≦10
GB/T 8811
Crack resistance
N/cm
≧2.5
GB/T 10808
Compression resilience ratio
Compression ratio 50%
Compression time 72h
%
≧70
GB/T 6669
Anti-ozone
Not cracking
GB/T 7762
Aging resistance
Slightly crumpling ,no cracks ,no pin holes ,not deforming
GB/T 16259

Requirement table of thickness for installation :

(As the environment conditions are different in various area ,so the following datas are just for reference )

Environmental conditions
Dimension of heat-preservation pipe
Suitable thickness at temperature of piping(mm)
Temp
Relative Humidity
Inch
millimeter
13℃
7℃
3℃
-15℃
26.5℃
50%
3/8-3
10-76
10
10
10
15
3-5
76-127
15
15
15
15
5-10
127-254
15
15
15
20
29℃
70%
3/8-3
10-76
10
15
15
20
3-5
76-127
15
15
15
20
32℃
80%
5-10
127-254
15
15
15
25
3/8-5
10-127
15
15
20
20
5-10
127-254
20
25
25
35
32℃
85%
3/8-1 1/2
10-38
20
25
30
45
85%
38-76
20
30
30
50
3-5
76-127
20
30
35
60
5-10
127-254
25
30
40
60
>10
>254
30
40
45
70
32℃
90%
1/8-1/2
3-13
25
32
35
45
90%
13-64
30
35
45
60
2 1/2-5
64-127
30
35
45
65
5-10
127-254
35
45
50
75
>10
>254
35
50
60
75
Rubber Foam Product

Wide Range of Production

The most suitable size for duct isolation; wıth sheet width 100cm and 120cm,and production in 7 different thickness intervals.


Helps to absorb vibrations that occur in the channel through its elastic structure.

Reduces the use of duct tape at round and square section channels and reduce scrap rates.

Reduces th scrap rate 2-3%.

Operating temperature is between -40 / + 120 °C.

Has as a density of 45-60 kg / m³

Since thermal conductivity coefficient of the elastomeric material is low it reduces the heat transfer significantly (λ ≤ 0.034 W / m•K).



APPLICATION

At HUAMEI we have worked with a number of industries, in the CN and internationally, supplying the products and services needed for specific applications. That's why our range of sponge rubber products has been used in many applications, some of which include:
Defence industry
Aerospace industry
Motorsport industry
Marine industry
Medical industry

Our Company

Huamei Group.

Huamei Energy-saving Technology Group Co.,LTD  is a  professional   manufacturer since 1990,  production and sales of rubber foam insulation ,glass wool, rock wool .Huamei products are widely used  in Beijing Olympic National Stadium Bird's Nest, Shanghai World Expo, and other famous Projects, and to be exported to Europe, South America,Australia, Southeast Asia,Africa ,and other countries.

FAQ

1. Are you manufacturer of trade company?

    We are manufacturer of rubber foam and glass wool, More than 20 Years

2. What's the MOQ.  Can i get a sample of free?

     We can offer sample of free, Pls bear the freight.

    The MOQ, According to the actual situation

3.  How long we can get the goods?

     Produce and loading within 3-5 days, When we got the payment.

4. Can we do the OEM , Or do the Huamei Brand?

    We will offer the OEM.

    Do the Huamei brand, we can offer long-term support.
