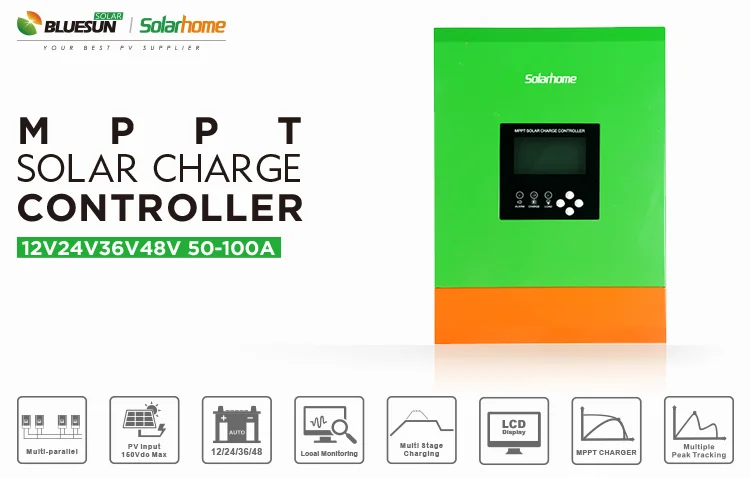

Bluesun Solar Charge Controller MPPT 40A 48V Controller for off grid pv system

$55.00 - $265.00 / Piece | 1 Piece (Min. Order)
Rated Voltage:
12V/24V/36V/48V
Maximum Current:
30A
$61.00
- +
available
40A
$79.00
- +
available
50A
$98.00
- +
available
All 7 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples: $60.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $60.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Bluesun
Model Number:
MPPT 20-100A
Application:
Charger Controller, Solar System Controller, Mppt Solar System Controller
Type:
MPPT
Work Time (h):
24 hours
Max PV Voltage:
150V
Max PV Power:
5400w
Maximum PV Voltage:
150V
Maximum Current:
100A
Conversion efficiency:
Up to 99%
Display:
LCD and LED
Battery type:
All type, three charge stage
Protection:
Electronic Protection
Communication:
RS232 or Lan remote control
Certification:
CE ,ROHS ,FCC
Warranty:
3 Years

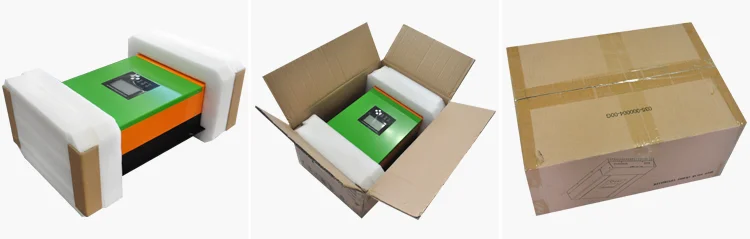

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X35X35 cm
Single gross weight:
8.000 kg
Package Type:
Carton Package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Video Description
MPPT Controller

MPPT or Maximum Power Point Tracking is algorithm that included in charge controllers used for extracting maximum available power from PV module under certain conditions. The voltage at which PV module can produce maximum power is called 'maximum power point' (or peak power voltage). Maximum power varies with solar radiation, ambient temperature and solar cell temperature.

Features.


> 12/24V Auto work , parallel design.                        > Multi-stage charging optimizes battery performance

> MPPT efficiency >99.5%                                                > Wide range Solar PV voltage input 18V~100Vdc

> Compatible with Flooded, Sealed lead acid ,GEL and Lithium battery

>Multi-function LCD+LED display                                 > Comprehensive protection

> Excellent heatsink cooling design

More MPPT Controller

Packing & Delivery

By Sea
Delivery from Shanghai or Ningbo seaport
By Air
Departure from Shanghai Pudong Airport
By Express
By TNT/DHL
Payment






Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
