Borewell drilling machine 200m dth water well drilling rig for sale

  • >=1 Sets
    $15,800.00
Model Number:
HQZ
Power:
40KW 60KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Drill well works
Local Service Location:
Philippines, Indonesia, Malaysia, Chile, South Africa
Showroom Location:
none
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Usage:
Water Well
Voltage:
380V
Dimension(L*W*H):
3442*2200*2800mm
Weight:
6500KGS
Certification:
CCC ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
3 years
Core Components:
Pump, Engine
Key Selling Points:
Suitable for rocks and high efficiency
Product name:
dth drilling machine
Keyword:
dth drilling machine price
Drilling depth:
200m-300m
Drill rod length:
3m
Color:
red/yellow
Rotate speed:
2200r/min
Drilling diameter:
130-245mm
Air consumption:
17-27m3/min
Application:
Water well drilling
Advantage:
Reliable
Product Certification certification
CE Certified.
Valid from 2019-12-02 until 2024-12-02
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Drilling rig in nude packag,spare parts in standard export wooden box
Port
Qingdao/Shanghai/Tianjin
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 7 To be negotiated
Video Description
Product Description

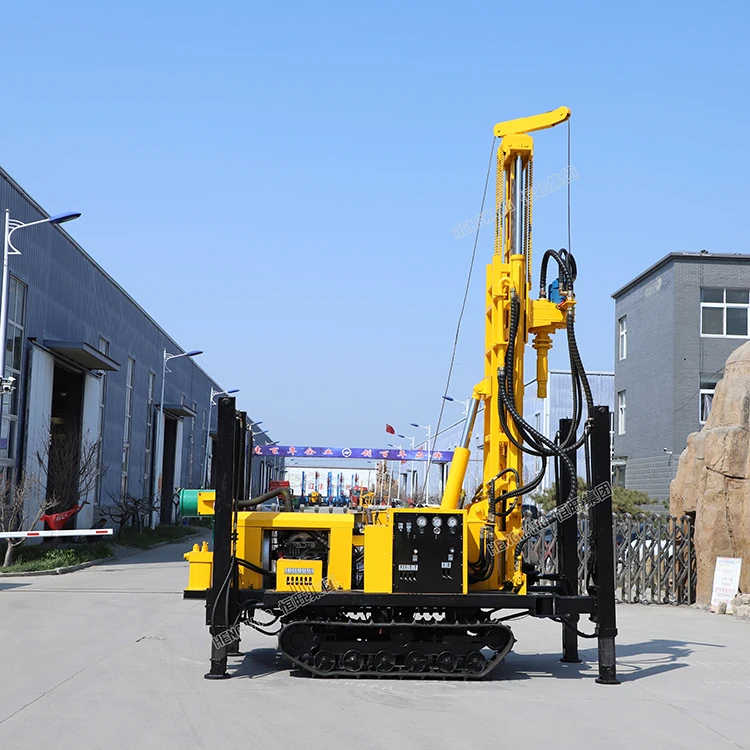

DTH DRILLING RIG.

HQZ hydraulic down-hole drilling rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. DTH drilling rig is convenient and efficient to operate. And drilling rig is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight. HWQ hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. Crawler type drilling rig is also used for anchor in road, railway, power station, civil engineering and building etc.
Specification
Specification of DTH Drilling Rig
The weight(T)
6.5
Dimensions(mm)
3442*2200*2800
The hole diameter(mm)
100~300
Drilling depth(m)
200
Once-time advance length(mm)
3000
Walking speed(km/h)
2.5~5
Climbing angles(Max.)
30
Minimum clearance clearance(mm)
250
Using air pressure(Mpa)
1.7-3.5
Air consumption(m³/min)
17-31
Equipped capacitor(Kw)
100
Swing speed(rpm)
55-115
Swing torque(N.m)
8660-11150
Drill pipe diameter(mm)
Φ76 Φ89 Φ102
Drill pipe length(m)
1.5 2.0 3.0
Rig lifting force(T)
20
Adapt to conditions
Loose layers and bedrock
Drilling mode
Hydraulic rotary top drive and propulsion,
DTH hammer drilling rig or mud
Impactor
Middle and high pressure series
Optional accessories
After circulating means, mud pumps,
centrifugal pumps, generators, foam
Main Features

1: These water well drilling rig are small size, light weight, easy to install.
2: These water well drilling rig three major components, host, pump station, console.
3: In the original transport, prospecting roadway can be put into production, the overall structure of the mine play a protective
role. These water well drilling rig can also be used for surface 0-90 degree drilling.
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: the use of box-type to the rack, the holder to tighten, power head rotary drilling, cylinder pull drilling tools, Save the bulky rig.
6: with a linkage function, through the console centralized control, simple and safe, stepless speed.
7: hollow shaft design, drill pipe length is not limited by drilling rig. Can be drilled at any angle of 360 °.
8: disintegration is good, easy to move and transport. Φ33-Φ43 drill pipe can be used with the machine, the replacement only 15 minutes.
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
