Boring tapping equipment multi spindle rotary drilling tapping machine for machining plumbing fittings castings auto parts

FOB Reference Price:Get Latest Price
$3,000.00 - $8,000.00 / Set | 1 Set/Sets (Min. Order)
Drilling Capacity:
90mm
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
type:
Vertical
Range of Spindle Speed(r.p.m):
10 - 1400 r.p.m
CNC or Not:
normal, Normal
Drilling Speed:
790 - 1200 r / min
Place of Origin:
Fujian, China
Brand Name:
DL Machinery
Model Number:
DL-95V/S
Voltage:
Customized
Dimension(L*W*H):
1200*610*1450mm
Certification:
ISO9001
Weight (KG):
600 KG
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field maintenance and repair service, No after-sales service
Key Selling Points:
Multifunctional
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, HOME USE, Retail, Construction works , Energy & Mining, multi spindle drilling machine
Type:
Multi spindle drilling machine
Max drill capacity:
19/25/32mm
Application:
Metal processing
Color:
Customizable
Usage:
Drilling and tapping metal parts
Size of working plate:
600*230 mm
Go up and down distance:
350 mm
Spindle travel:
120mm
Precision:
0.05
Power(W):
3000
Max. Drilling Dia. (mm):
90 mm
Supply Ability
Supply Ability:
7 Set/Sets per Week
Packaging & Delivery
Packaging Details
1.Outsidepackage: Standard export wooden cases;
2.Inner package: Stretch film;
Shipping: Container transport.
Port
Xiamen
Video Description
Product Description
Drilling And Tapping Machine Features
1.Pneumatic double spindle compound machine tool is suitable for drilling and tapping in quantity productions at one time.
2.Both the left and right workbench adopt cylinder for minimal vibration.
3.Clamp system uses cylinder to hold the mould for fast fixing.
4.Slider system adopts guide way ultrasonic frequency quenching and lubrication system for better capability.
5.Manually oil injector, manually feeding lubricating oil before and after the processing can maintain the drilling and tapping machine in good function.
6.Tapping main shaft performs self-acting feed by leading screw so as to realize tapping and ensure its feeding stability.
Technical Parameter
Type
ZS4132*2
ZS4150*2
Performance Dimension
1200*610*1450(mm)
1390*1110*1750(mm)
Machine Weight
600KG
1200KG
Worktable Size
600*230mm
800*230mm
Worktable Stoke Length
150mm
240mm
Main Spindles number
2 unit
2 unit
Spindle Forms
NT30
MT4
Spindle Power
3KW/4P
3KW/6P
Spindle Rotating Speed
left: 880/1400 (r/min)
right: 880/1400 (r/min)
left: 675 (r/min)
right: 1000/675 (r/min)
Spindle Outer Diameter
86mm
90mm

Sample Display

For different customer has different products processing,welcome to inquiry us for more details about what product our machine can be processed,we will try our best to serve you!
Other Products

CNC machining center machine features:

tool house,24 pcs tools, automatic tools changer.The speed is up to 10000PRM.

Rotary plate drilling tapping and milling machine are suitable for processing plumbing fittings,hardware,sanitary ware,auto parts.

We provide solution/automatic customized machining line:
We are supplying parts processing,milling,drilling,tapping and other required processing lines to customers,providing efficient intelligent,low input overall processing plan,and special automatic machine tools for various metal customized according to their requirements.
On Line Talk
For different customer has different requirements about machine,welcome to contact us to make a further discussion!
Our Company

Nan'an Delin Machinery Manufacturing Co., Ltd.
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production drilling and tapping machine,automatic molding machine, die casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings,plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines, good quality, reasonable prices and stylish designs.

Various Types Of Certificates

Brand Partners

Customers Visit

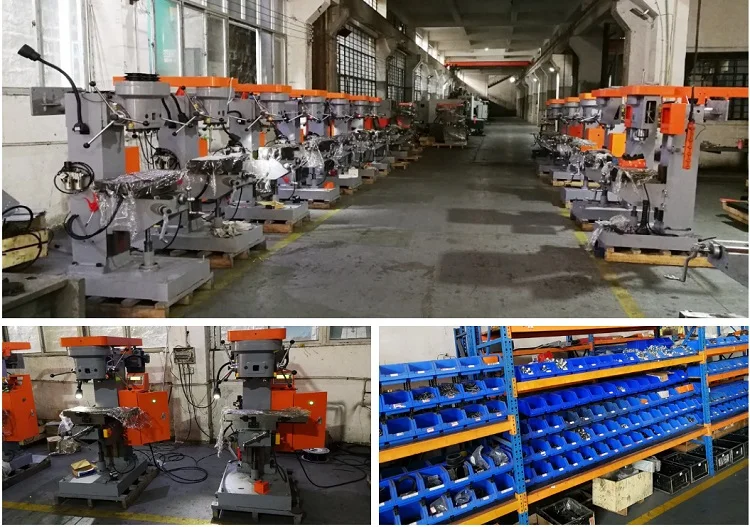

Production Workshop

Packing & Delivery
Our Service

1. Before payment

a. We will provide our best professional for the most suitable SPM machine.
b. Free professional design for each customer especially. Support sample testing.
c. Welcome to visit our factory.
2. After-Sales Service
a. After sending,
we will track the machine for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

b. We also can provide engineers / technicians to buyer’s factory if client requirement, train the drilling tapping machine works well, and also supply the technical support for free and spare parts at good price always.
3. Guarantee Period
1 year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine's quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer's factory on seller's account if problem is serious and can't be solved by Buyer.
4. Payment Terms
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.

FAQ

Q1. Where is your factory located ? How can I visit it ?

A : Our factory is located in Quanzhou city,Fujian province,China.You can fly to Jinjiang or Xiamen air port,we will pick you up.
Q2. Are you produce machine’s specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.

Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
