Box/carton boxing GR-2100 pneumatic waste stripper

Feedback Ratings
  • 1-9 Sets
    $945.00
  • 10-19 Sets
    $900.00
  • >=20 Sets
    $855.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Samples - $850.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
No overseas service provided
Application:
Food
Packaging Material:
Paper
Type:
Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Semi-Automatic
Driven Type:
Pneumatic
Voltage:
220V
Power:
3000W
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Graphic
Model Number:
GR-2100
Weight:
9kg
Dimension(L*W*H):
780X150X245mm
Certification:
other
Air consumption:
0.113M3/min
Air pressure:
0.62MPa
Stripping rate:
2200R/min
Specific air consumption:
12CFM
Gas pressure:
6-8kg
Gas pipe diameter:
8*12mm
Chain claw materil:
sk9,hrc60°
Free of revolution:
2500R.P.M
Adhesive Type:
Water Activated
Name:
Box/carton boxing GR-2100 pneumatic waste stripper

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X25X25 cm
Single gross weight:
9.0 kg
Package Type:
Box/carton boxing GR-2100 pneumatic waste stripper Packing:1 pc waste stripper; 1 pc water -oil seperator 1 pc air pipe 12m long 1 set of instructions carton size:50x25x25cm Weight: 9kgs Delivery:within 3-10 days upon receive payment
Picture Example:
package-img
package-img
Lead Time :
3
Specifications

Box/carton boxing GR-2100 pneumatic waste stripper

Spare parts:


Technical Parameters:


Model

Free speed(RPM)

Air consumption(CFM)

The gas pressure(KG)

The gas pipe diameter(MM)

Net weight(KG)

GR-2500

2500

12

6-8

8*12

4.5

GR-2100

2100

12

6-8

8*12

4.0

Application:1.Small Teeth for cardboard
                    2.Medium Teeth for cardboard & corrugated paper
                    3.Large Teeth for corrugated paper
Characteristics

1. Artificial stripping to 3 hours, stripping machine 10 to 30 minutes to complete, greatly shorten the deliverycycle;
2. The stripping machine structure is compact, the weight and portable polishing machine is the same as the common used, use very convenient, men and women after simple training can operation;
The damage of adhesive part
3. Clear the waste, improve the efficiency of process after the (automatic posting box/packaging);
4. The stripping machine power supply adopts Taiwan pneumatic motor, there is no carton brush like ordinary hand-held polisher damageable problem, and good safety, equipment long service life;

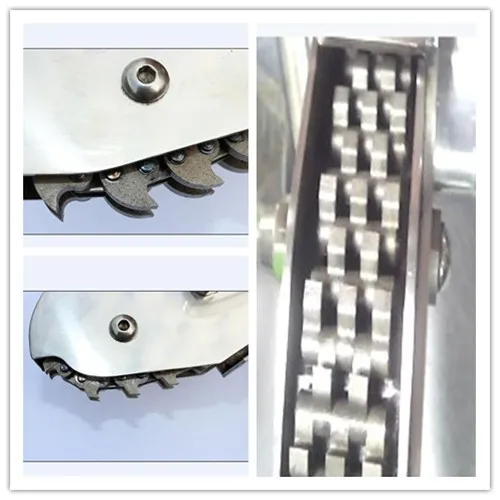

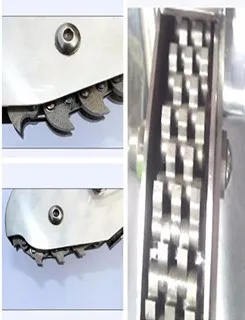

5. The tooth chain of stripping machine adopts high strength alloy steel after heat treatment process, high hardness, wear resistance, long service life, and easy to replace;
6. Reducing the occurrence of industrial injury, and other outside, Such as wrist, back, shoulder injuries and repetitive operation motion

How to use

1. Pneumatic waster stripper needs at least 5p air compressor or above with large enough connected pipes. Ensure the powerful rotation of the wheel
2. the first, make sure that the pneumatic waste stripper is connected with the air source; ensure the air pressure is 8kgs and the air pipe can work yes at 8 * 12m / m with maximum length of 15 meters.
3. Turn on the sliding switch before work, or adjust the pressure valve to the maximum
4. Inject special pneumatic tool oil or white mineral oil at air inlet of the waste stripper, lubricate air motor
5. press the platen and begin to work
6. stack the cardboard papers which need to remove the waste part neatly and four sides in flat.
7. the bu of the cardboard stack using iron plate. The four sides of the cardboard must have cutting edge. The distance of the cutting edges should be fit the cardboard stacking position. Arrange appropriate gap on the cutting edges, make sure waste part connecting with the products. So strip the waste corner must ≥ 5mm, easy to make breakpoint.
8. Each pneumatic daily stripping is one of the few airsheets and each other. service time.
9. Before use each time, drop 3-4 drops of pneumatic tool oil on the air inlet of waste stripper, and idling for 2-3 seconds.
10. Pneumatic waste stripper is a precision pneumatic tool. Please do not throw it hardly. Waste stripper's
maintenance is more important than repairs.

About us

       Beijing Graphic International Trade Co., Ltd is a joint venture created by Changzhou Machinery Blade Co.,ltd and ChangZhou Xinyitong Electrical & Mechanical Technology Co.,ltd, who is one of the world's leading and professional supplier of printing equipments and consumables in China, providing its customers with Graphic Arts Consumables, Machines and Spare Parts for diversified jobs.
Since its establishment in 2008, Beijing Graphic International Trade Co., Ltd is firmly in accordance with the Business Spirit"Excellent Quality, First-class Service, Honest Commitment"and remain committed to heartfelt Management Principles"Customers Supreme, Reputation First", meanwhile, we undertake"Action Priority, Efficiency Persistence"as our Enterprise Criterion.
We are always striving for new ideas and innovative solutions. Beijing Graphic Trade stands for efficient processing ,printing and die cutting systems for most versatile applications with highest customer benefits.
Here,Beijing Graphic International Trade Co., Ltd works on things that matter. The best people and the best technologies are taking on the toughest challenges. You will find exactly the right solution for every application and material.

Exhibition


Certification


Related Products
Packing & Delivery

Packing:1 pc waste stripper;
                1 pc water -oil seperator
                1 pc air pipe 12m long
                1 set of instructions
carton size:50x25x25cm
Weight: 9kgs
Delivery:within 3-10 days upon receive payment
