Brand new cassava starch processing machine for wholesales
Application The cassava starch processing line is used for cassava,and also can deal with potato,sweet potato,corn
Main Feature The starch processing line has high quality,low consumpation with hot price.
Function: 1.Advanced design concepts, do not need special tools can discharged clamper of blade, simple operation, handling and rapid; 2.High-intensity roller of rasper, special materials, in high-speed, heavy-duty not under deformation and ensure production safety; 3. Adopt international advanced high precision cutting line to gutter of roll to ensure that every dimension of precision; 4.High-speed rotation, the line speed of more than 96 m / s, broken cell completely and could fully extract useful components without waste; Removable sieve plate, easily cleaned to ensure that the best materials through rate; 5.Sweden imports SKF heavy loads bearing , Germany OPITE powerful conveyor belt to ensure a smooth high-speed operation; Motor domestic brands (the choice of Siemens Motor), adjustable motor Guide.

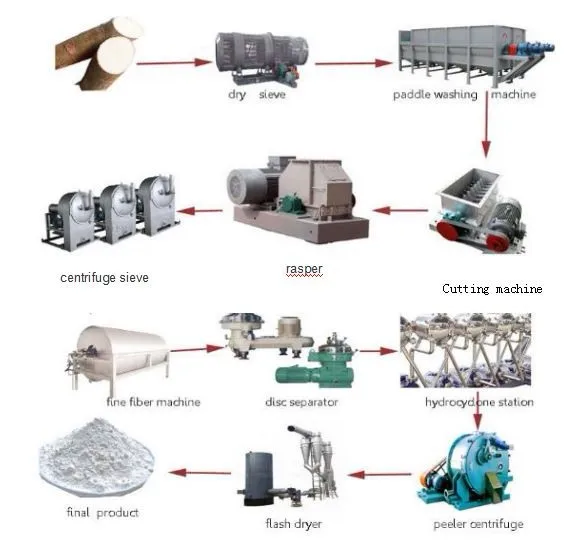

Advantage: 1 Cassava receiving, transporting and cleaning unit Store the cassava in storage pool. Then the de-stone machine will remove the dirt and other foreign matters completely. Finally, store the clean cassava in a temporary storage hopper.

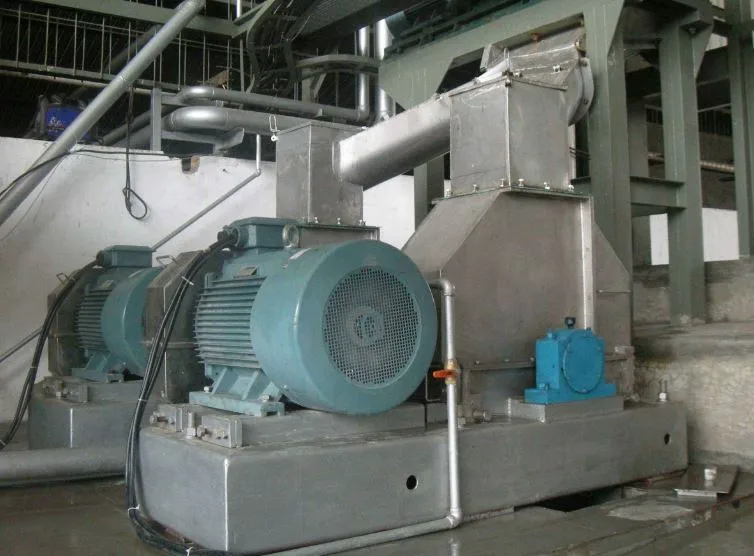

2 Cassava rasping unit The rasping unit is the most important part of cassava starch extraction. Rasping mill with high efficiency allows the starch granules in the cassava cells to be released out completely, which ensures minimum quantity of the remaining starch in the cassava residue. The rasping cassava slurry is pumped into de-sanding unit by a fiber pump.
3 De-sanding unit Rasping cassava slurry is pumped through the fiber pump into the de-sanding cyclone. When the slurry enters de-sanding cyclone, the light phase of starch and cassava residue come out of the top as overflow, and the heavy phase like sands will be discharged from the bottom.

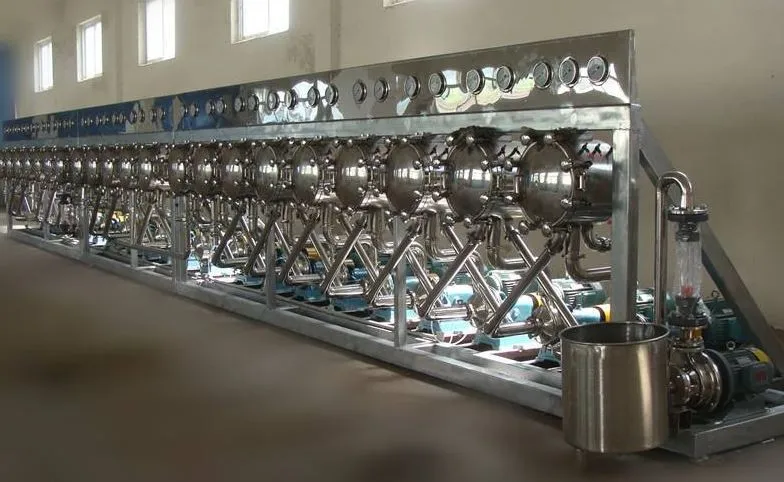

4 Starch extracting unit Centrifugal extraction is another key unit which influences the cassava starch yields. The cassava slurry enters the first stage centrifugal sieve from de-sanding cyclone, the slurry is separated into starch slurry and cassava residue under the centrifugal force. Starch slurry is pumped through the de-foaming pump to the hydro-cyclone station for washing starch, and the cassava residue is sent to second and third grade centrifugal sieves through fiber pump for starch recovery.
5 Cassava residue dewatering We use a centrifugal sieve for cassava residue dewatering, it works like the extraction sieve. Finally, cassava residue is transported out of the workshop, the extracted water return to the process water system.
Cassava Starch Production Line with capacity 500kg/h

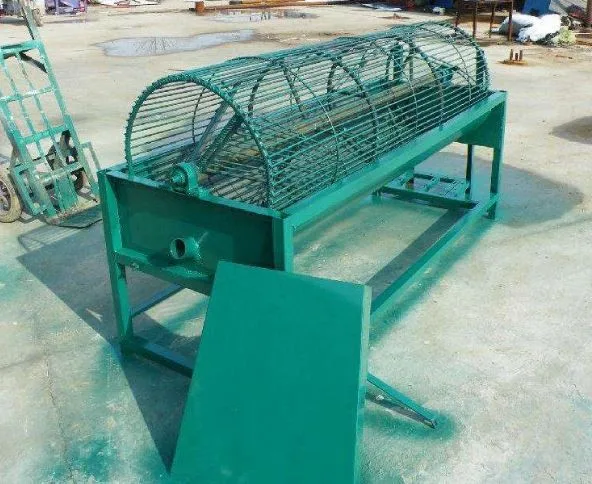

Cage model cleaning machine
3kw carbon steel material
Automatical feeding model cleaning machine
3KW carbon steel material
18.5kw carbon steel material Capacity: 3-4t/h (cassava)
