Build-in vacuum in mounting head - DH-A2E laser bga rework station for mobilephone repair

FOB Reference Price:Get Latest Price
$1,000.00 - $6,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DH-A2E
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 9 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Dinghua
Voltage:
AC220V±10%, AC220V±10% 50/60Hz
Current:
20A
Rated Capacity:
5300W
Rated Duty Cycle:
90%
Dimensions:
L600*W700*H850MM
Weight:
70kg
Usage:
used in Chip Level Repairing
Certification:
CE, ROHS, UL
Product name:
Build-in vacuum in mounting head 2 in 1 design DH-A2E laser bga rework
Heating:
3 independent heaters
Applicable PCB size:
Max 370*410 mm Min 22*22 mm
Applicable BGA size:
1x1mm~80x80mm
PCB positioning:
V-groove + universal fixture + movable PCB shelf
Temperature accuracy:
y: ±2℃
Temperature control:
K-Sensor closed-loop + PID automatic temp compensation
Type:
Other, Other
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Well packing in the standard wooden case
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 9 To be negotiated
Product Description

BGA Rework Station Motherboard Rework Station for TV/laptop/PS3/Xbox360/Cell
phone
Features Summary

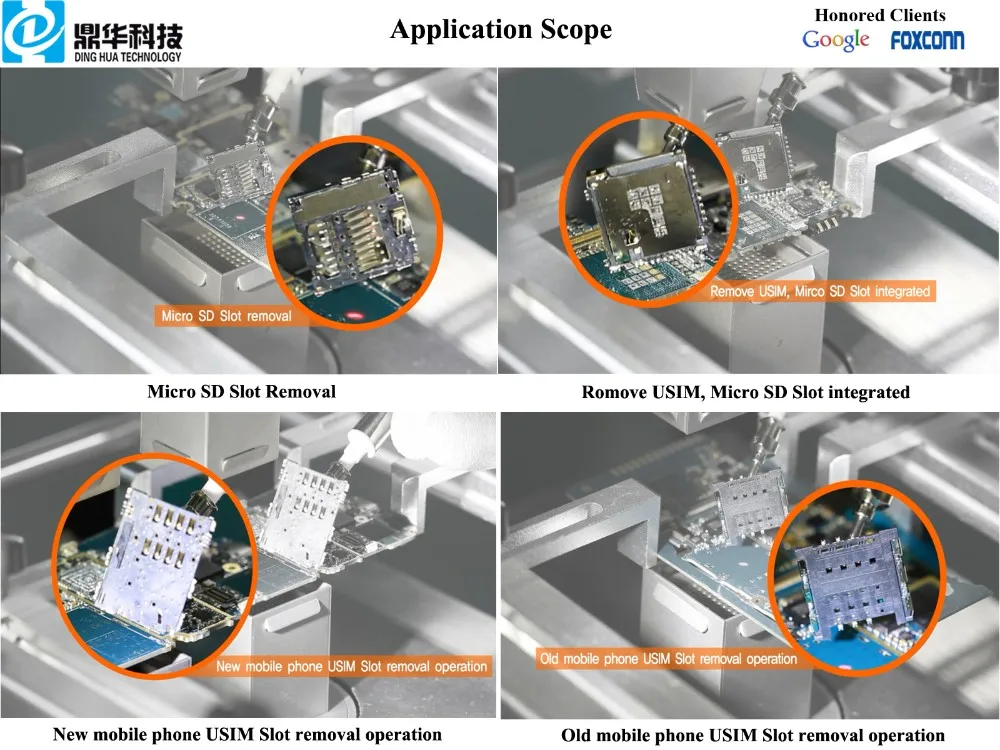

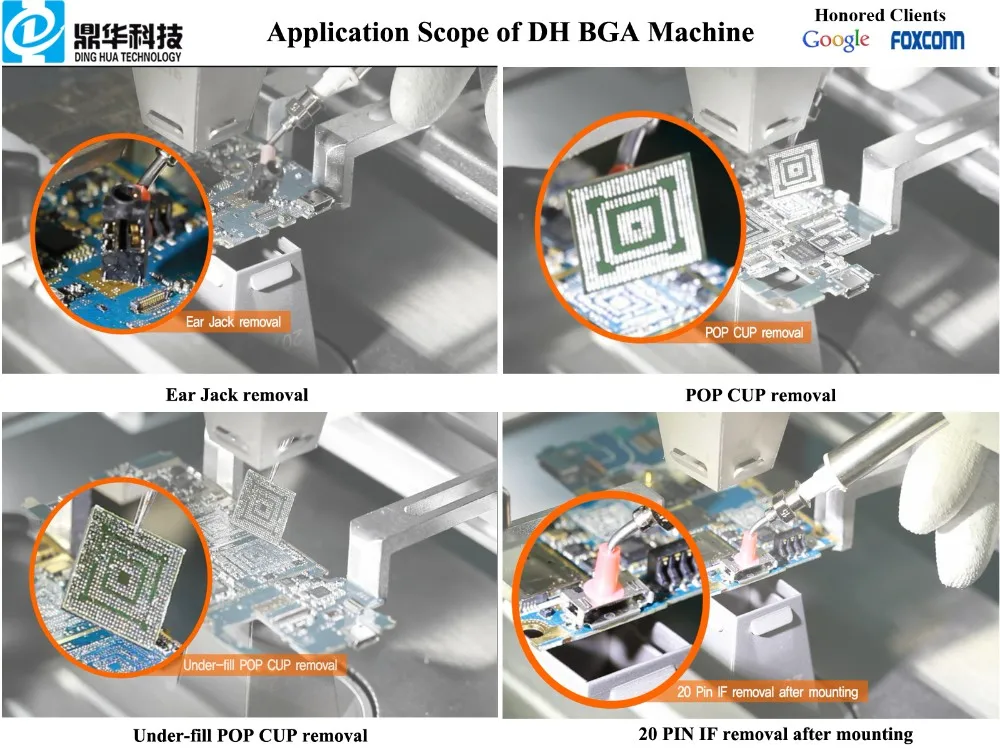

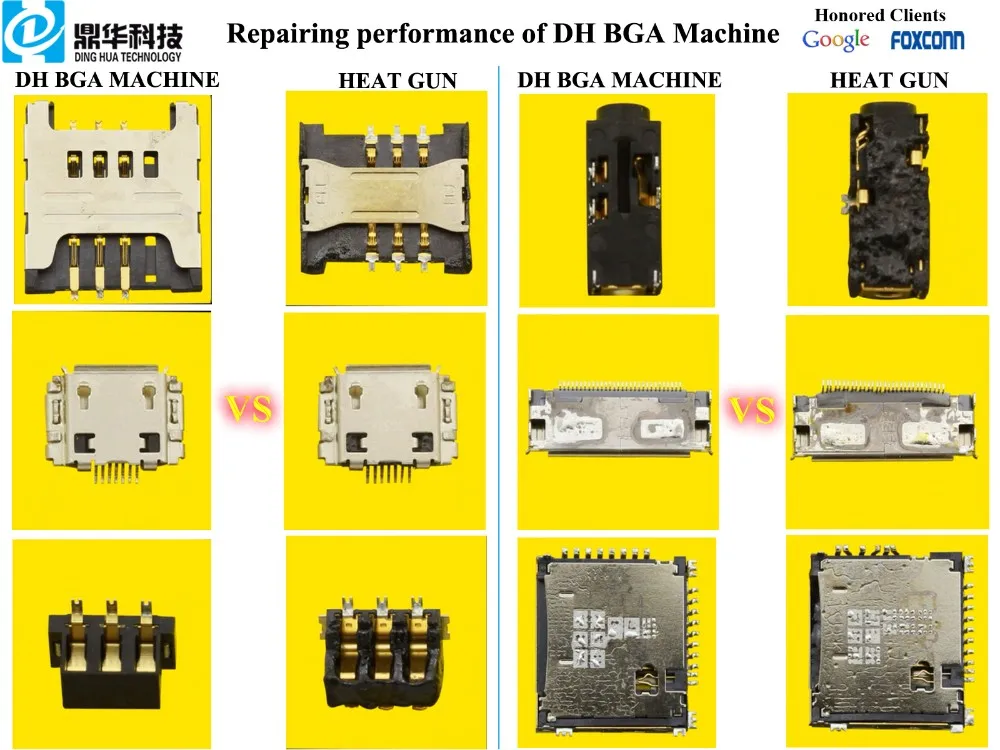

﹡ Widely used in Chip Level Repairing in laptop, PS3, PS4, XBOX360, Moblie Phone, Computer, TV, control boards etc.

﹡ Rework BGA, CCGA, QFN, CSP, LGA, SMD, LED etc.

﹡ Automatic desoldering, Mounting and Soldering, automatic pick up chip when desoldering completed.

﹡ HD CCD Optical Alignment system for precisely mounting BGA and Components.

﹡ BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.

﹡ Laser Positioning for Fast Positioning BGA Chip and motherboard.

﹡ Superior Safety Functions, with Emergency protection.

﹡ User-friendly operation, Multi-functional ergonomic system.

Specification
1
Total power
5300w
2
3 independent heaters
Top hot air 1200w, lower hot air 1200w, bottom infrared preheating 2700w
3
Voltage
AC220V±10% 50/60Hz
4
Electric parts
7'' touch screen + high precision intelligent temp control module + stepper motor driver + PLC + LCD display + high resolution optical CCD system + laser
5
Temperature control
K-Sensor closed-loop + PID automatic temp compensation + temp module, temp accuracy within ±2℃.
6
PCB positioning
V-groove + universal fixture + movable PCB shelf
7
Applicable PCB size
Max 370x410mm Min 22x22mm
8
Applicable BGA size
2x2mm~80x80mm
9
Dimensions
600x700x850mm (L*W*H)
10
Net weight
70 Kg

Product Features

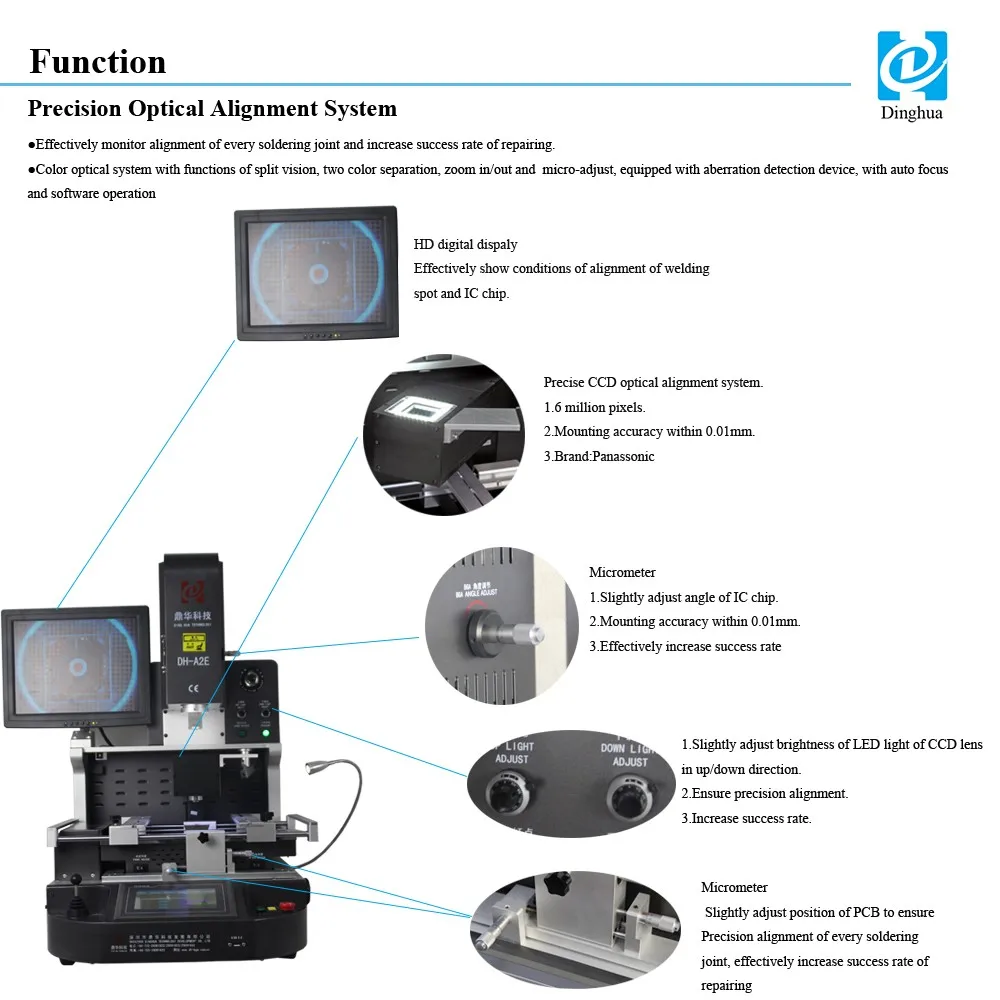

◆ Precise optical alignment system
① Color optical system with functions of split vision, two color separation, zoom in/out and micro-adjust, equipped with aberration detection device, with auto focus and software operation
② CCD camera amplify up to 200x, with top/down light brightness adjust function, mounting accuracy is within 0.01 mm

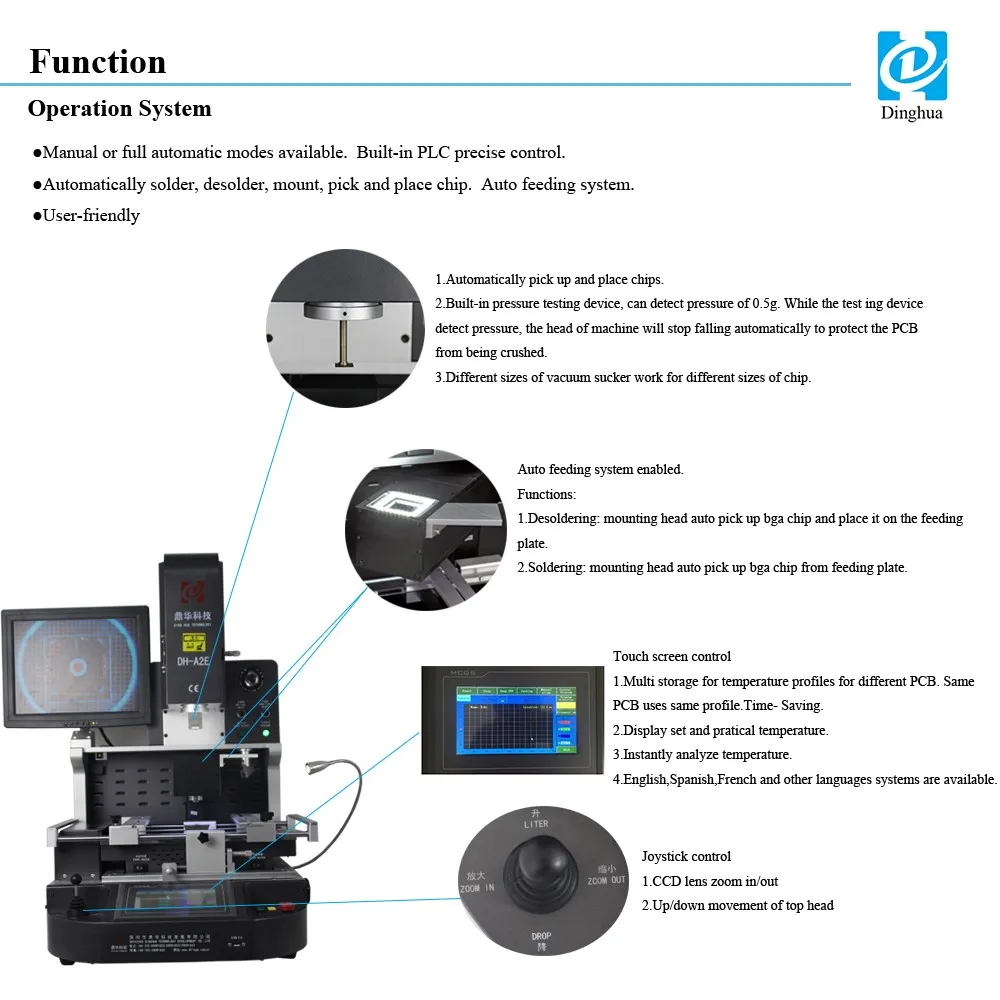

◆ Advanced features
① Top hot air flow is adjustable, to meet the demand of any chips.
② Desoldering, mounting and soldering automatically.
③ Built-in infrared laser positioning, help fast positioning for PCB.
④ Top heating head and mounting head 2 in 1 design.
⑤ Mounting head with built-in pressure testing device, to protect the PCB from being crushed.
⑥ build-in vacuum in mounting head pick up BGA chip automatically after desoldering completed.

◆ Three independently controlled heaters
① top and bottom heaters are hot-air heating, the third is infrared preheating zone, the top and bottom heaters can set 8 segments rising temperature/constant time/temperature rising slope , can save tens of thousands of groups temperature curves.
② it can heat PCB board and bga chips at the same time. And the third IR heater can preheat the PCB board from bottom evenly, to avoid PCB from deformation during repair process. All three heaters can heat independently .
③ It uses k-type thermocouple closed-loop control and PID automatic temperature compensation system, together with PLC and temperature module to enable precise temperature deviation to ±2 degree centigrade.
④ The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

◆ Multi-functional ergonomic system
① bottom heater can be adjusted up and down.
② Adopted all kinds of magnetic top and bottom nozzles, with 360° rotation, easy for installation and replacement, customized sizes are available.
③ Multi-functional PCB support shelf, can be moved along X axis, together with universal fixture and V-groove bracket, suitable for all kind of PCB positioning.
④ powerful cross-flow fan automatically cool the PCB board fast after desoldering or soldering completed, it can prevent the heaters from aging. Fan will be shut down automatically when the heaters temperature drops to normal temperature.

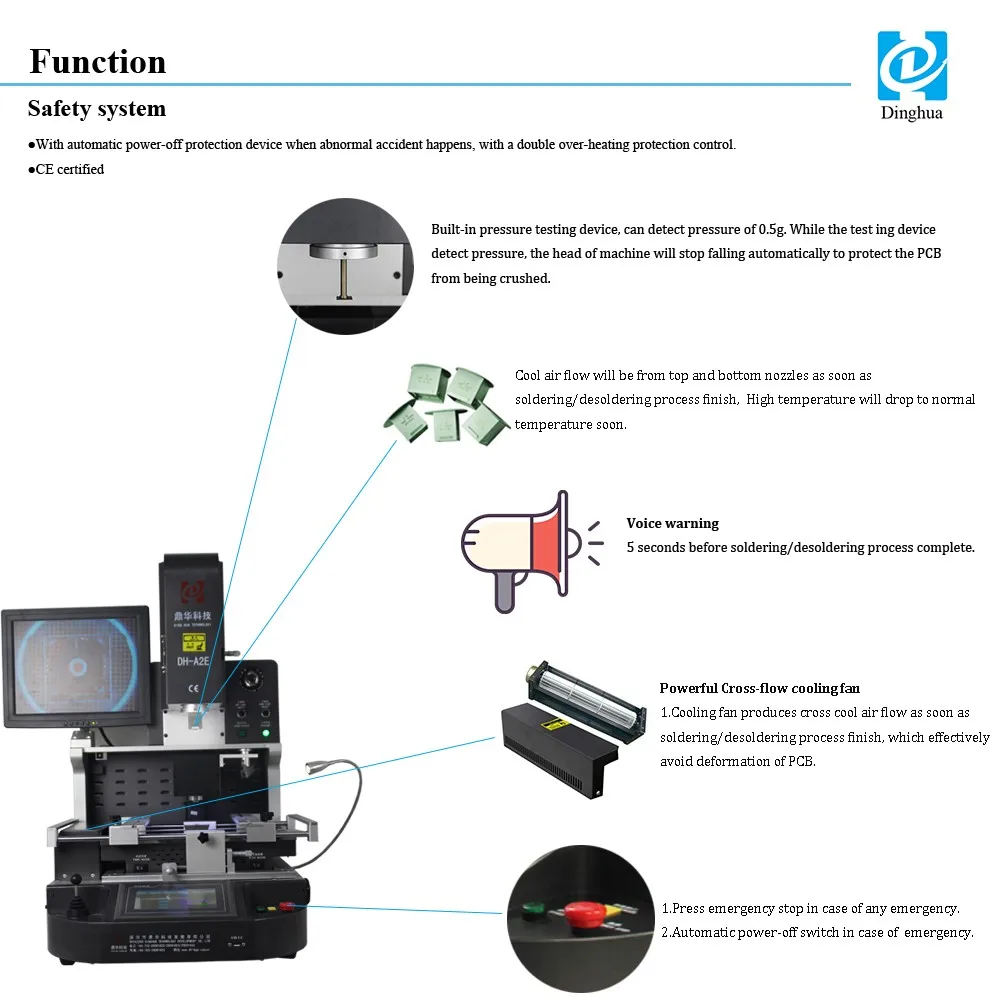

◆ Superior safety functions
Machines are CE certification guaranteed. It is equipped with emergency button. Also there is voice warning around 5 seconds before soldering/desoldering process complete. With automatic power-off protection device when abnormal accident happens, with a double over-heating protection control.

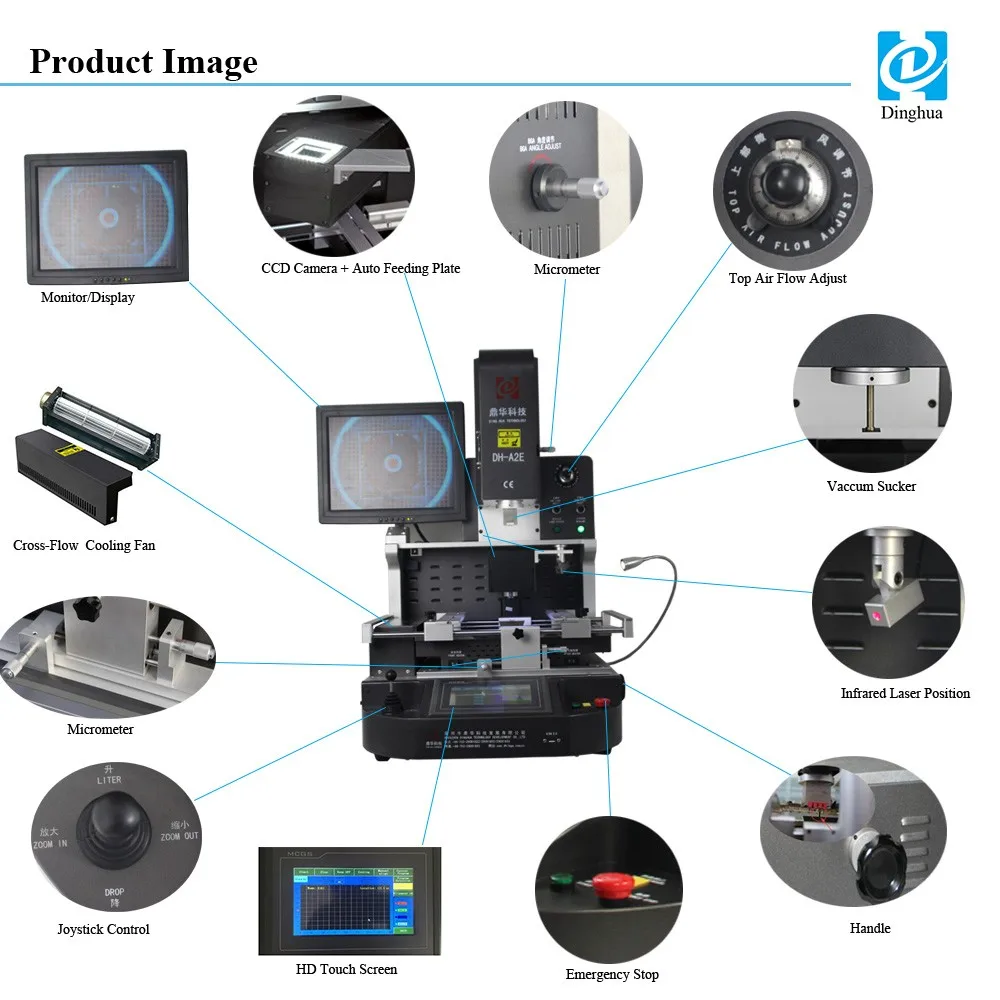

Detailed Images

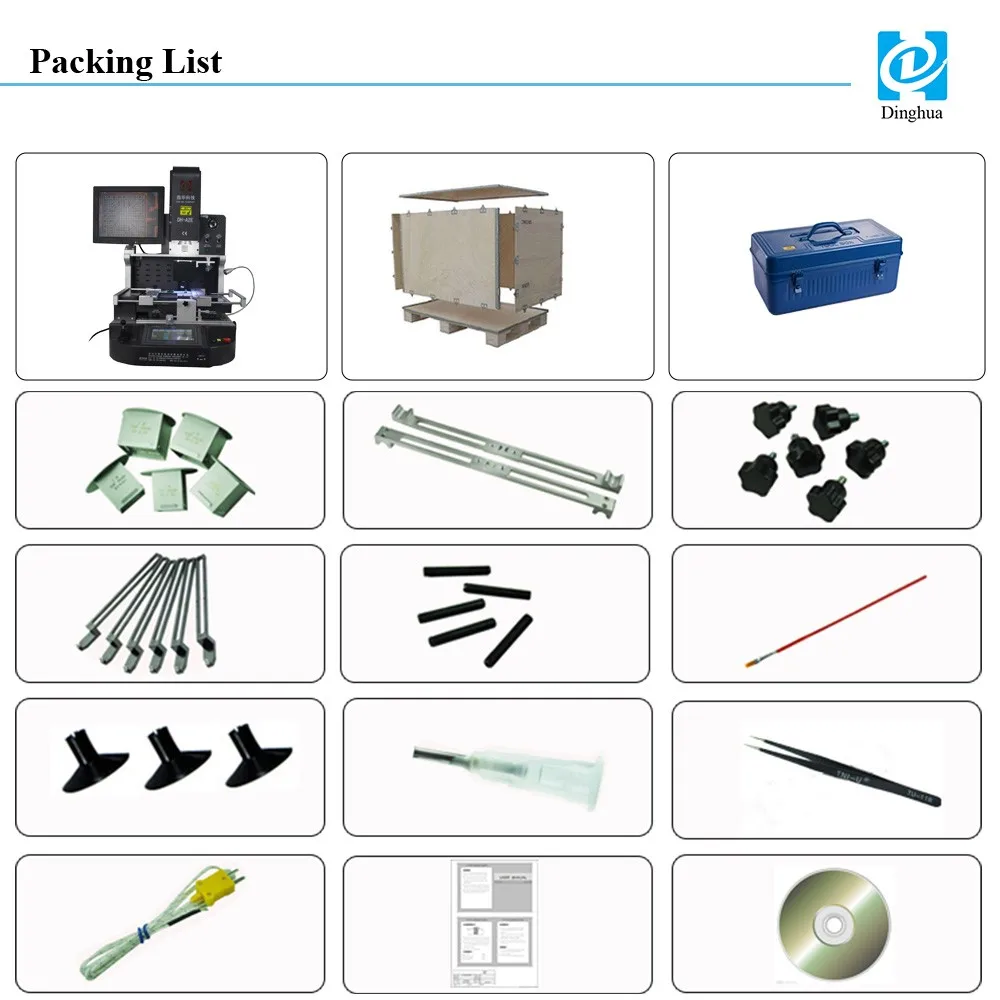

Packing & Delivery
Why choose us

1. We are the orginal Dinghua Factory

2. Logo/Brand: Customer's designs and logos are welcome,we can silk-print your own logo company;

3.Sony,Samsung,HUAWEI,TCL,HTC,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

4.Have a good market in Germany,France,US,Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,

Mexico and South Asia,The Mid-East and European countries;

5. 100% original

6. Over 20 R&D engineers, with more than 13 years experience;

7. Over 500 loyal customers across the globe

8. All models approved CE ;

9. 100% QC inspect before shipment;

10. High quality & competitive price.
