Burglar Alarm Wired Magnetic Contact Switch For Door Sensor

  • 1000-2999 Sets
    $1.20
  • 3000-4999 Sets
    $1.00
  • 5000-9999 Sets
    $0.88
  • >=10000 Sets
    $0.68
Usage:
Door
$
- +
available
Window
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Samples: $2.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $2.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sentek
Model Number:
BR-1012T
Product name:
Burglar Alarm Wired Magnetic Contact Switch For Door Sensor
Certification:
CE, UL, CUL
Color:
White , Brown , Grey
Size:
3/8"diax15/16"L
Installation:
recessed mounted
Gap:
3/4"(18mm)
Reed Form:
N/O
Loop Type:
closed
Usage:
burglar alarm system
Function:
switch or magnet are available separately

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X2X1 cm
Single gross weight:
0.02 kg
Package Type:
Standard packing :1000sets/Carton,Or according to customers' request.
Lead Time :
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated

Burglar Alarm Wired Magnetic Contact Switch For Door Sensor

Product Description

Specification:

Style:Recessed Mounted Burglar Alarm Door Magnetic ContactItem:BR-1012TWG
Magnet:MN3775Color:White, Brown, Grey
Wire RangeCable:#20~#24AWGLoop Type:closed
Reed Form:N/OColsed Gap[Inch(mm)]1 1/4(35)
Depature Gap[Inch(mm)]1.47 (37)Maximum InitialContact Resistance(Ohm)0.150
MaximumContact Rating(W)10Maximum Switching Voltage(VDC/VAC)100
Maximum Switching Current(A)0.5CertificateCE, UL

Recessed Mounted Burglar Alarm Door Magnetic Contact

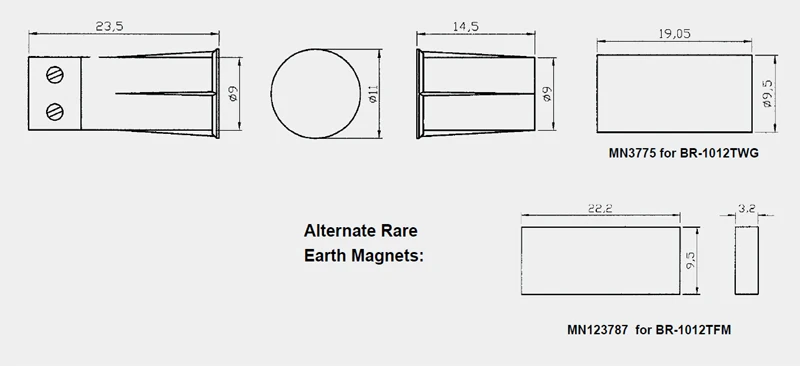

 Dimension (mm):



 Product Features:

* 3/8" diameter Stubby press to fit

* Wire Range: #20~#24AWG
* Terminal block for quick connecting
* Switch or magnet available seperately
* Build-in Resistors or Diodes on request

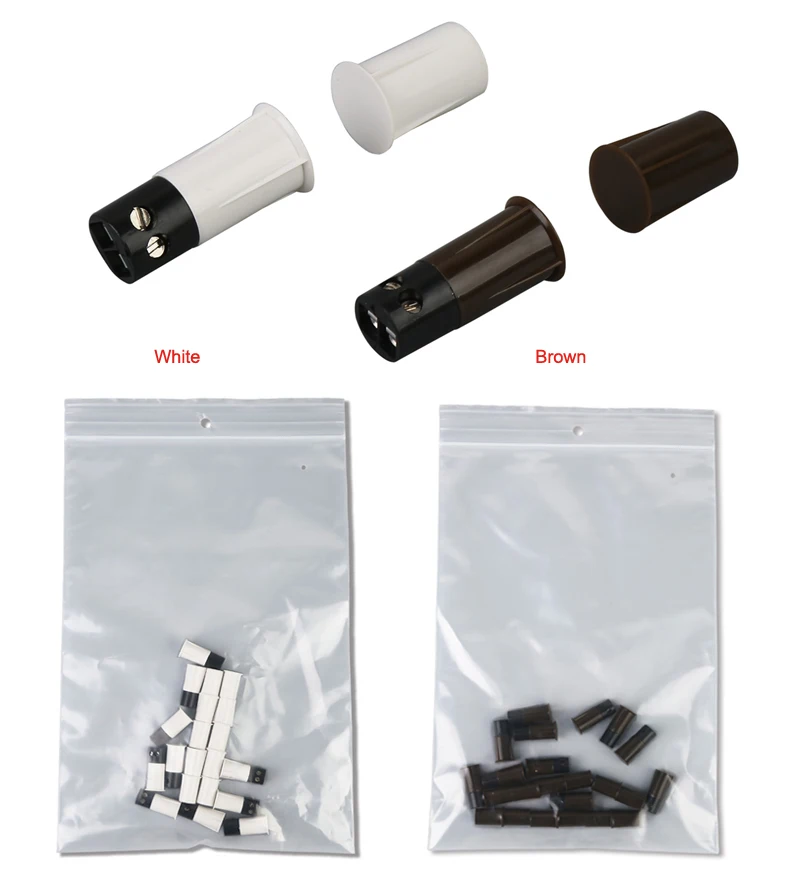

* Colors: White, Brown, Grey

Order Information:

Part

Number

Loop

Type

Reed

Form

Closed Gap

[Inch (mm) ]

Depature Gap

[Inch (mm) ]

Maximum Initial

Contact Resistance

(Ohm)

Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1012TClosedN/O3/4(19)0.82(21)0.150101000.5
BR-1012TWGClosedN/O11/4(35)1.47(37)0.150101000.5
BR-1012TFMClosedN/O11/4(31)1.3(33)0.150101000.5
