Burrs Remove Vibratory Bowls Polishing Machine

FOB Reference Price:Get Latest Price
  • 1 - 1 Pieces
    $830.00
  • >=2 Pieces
    $800.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Kafan
Model Number:
CL-80A
Product name:
Burrs Remove Vibratory Bowls Polishing Machine
Certification:
CE ISO
Capacity:
80L
Size:
840*640*740mm
Weigth:
110kgs Burrs Remove Vibratory Bowls Polishing Machine
Power:
110/220/380 as request
Speed:
1450 r/min
Color:
Green or Grey
Type:
CL-80A Burrs Remove Vibratory Bowls Polishing Machine
Application:
Ideal for deburring or burnishing
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wood case,400kgs,1.1x1.1x0.95m for Burrs Remove Vibratory Bowls Polishing Machine
Port
any seaport or airport
Lead Time :
2-3working days
Video Description

                       Burrs Remove Vibratory Bowls Polishing Machine

                                                                                 Products show



The detail pictures of Burrs Remove Vibratory Bowls Polishing Machine



PU lining -- wear - resistant and long using life



The Burrs Remove Vibratory Bowls Polishing Machine is capable of using a wide variety of medias and compounds to attain the desired finish.
Deburr, burnish, clean, descale, polish, degrease, and remove flash with Kafan vibratory bowl finisher to increase your parts finishing efficiency.

The detailed parameters
ModelCL-80A
Voltage230V/380V/440V,  50Hz/60Hz, 3 Phase
Capacity:80L
Size :840*640*740mm
Speed:1450 r/min
Amplitude0.8-3mm
Motor Power1.1Kw
Estimated weight:110kgs
Lining Thickness6-12mm
Equipped With:All urethane bowl
Rubber suspension mount system
Steel base/stand
Quick release bowl clamp system
Optional Items

Automatic Lubrication

Sound Enclosures

Media Separators

Variable Frequency

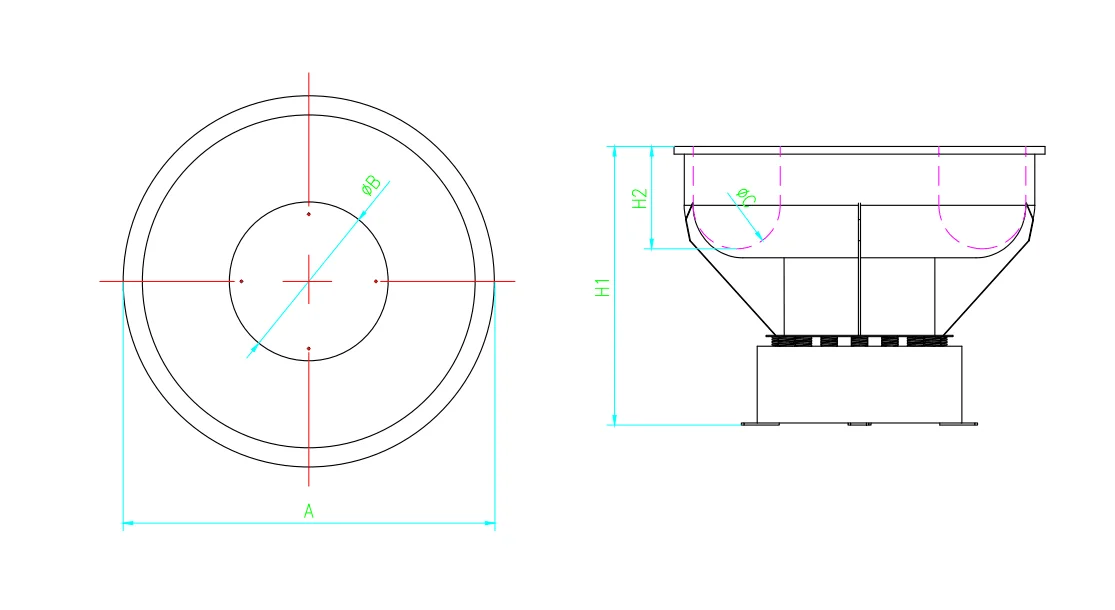

 The detailed size

The working principle

The vibratory motor of the finishing bowl generates vibration deviation, making the machine move in the three-dimensional space so that the workpiece and abrasive run in one direction, friction with each other to achieve the effect of the surface finishing.

The Advantages

1.Installed with high-performance vibration three-phase motor, amplitude adjustable and speed control variable

2. The vibratory finishing bowl allows inspection at any time, can be also equipped with PLC control system for unmanned operation.



The Application

Polishing of parts to obtain high brightness surface, or restore the natural color of metal, especially recommended for brass, aluminum, stainless steel, zinc, copper, alloy products, all kinds of jewelry and decorations.



Deburring, chamfering, rediusing to get smooth and safe surface, like casting parts, heat treatment parts, machinery parts, forging parts, etc.



Bicycles parts, aerospace components, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories.



Model Features & Specifications

 When selecting correct polishing machine, you need to consider the workpiece material, shape, size, grinding requirements and many other factors.





Remarks :
If the workpiece is relatively large, choose the A Type.
If the workpiece is relatively small, you can Use AB type.
If the workpiece is relatively small, and the workpiece hardness is relatively high, then choose B-type.

                                              Company show



About usVibration Polishing Machine for MetalVibration Polishing Machine for Metal

Kafan is a manufacturer of sand blasting machines, sand blasting accessories, vibratory polishing machines, abrasive for sand blasting as well. We possess our own Technical & Research Department, International

Trade Department, Production Department and Warehouse.

We are professional in designing and manufacturing various types of sand blasting machines,with the advanced production facilities as bending machine, shearing machine, laser cutting machine.





                                             Why Choose us



Certifications

 Exhibition Show and Customer Visiting

Our Packing

 FAQ

1)Q: Are you manufacturer or distributor?

   A: Kafan is professional manufacturer of surface finishing equipment with 10 years experience

2)Q: How can we place the order?

    A: You can inquiry us now, then we can talk by email, or whatsapp, or skype.

3)Q: How do we make payment?

    A: For big amount, we accept T/T by bank, for small amount, we also accept paypal and western union.

4)Q: Can you ship for customers?

    A: Yes, we can. We accept CIF, CFR, DDP, etc, we can ship for you.

        We also accept FOB, EXW, etc, customer can assign their own shipping agent.

5)Q: What is the delivery time?

     A: Normally  it is 7-10 working days

6)Q: What about the warranty time?

    A: One year.
